2017 MERCEDES-BENZ S CLASS Owners Manual

The antifreeze concentrate/corrosion inhibitor
concentration in the engine cooling system
should: R
be at least 50%. This will protect the engine
cooling system against freezing down to
approximately -35 ‡ (-37 †). R
not exceed 55% (antifreeze protection down
to -49 ‡[ -45 †]). Otherwise, heat will not be
dissipated as effectively.
Mercedes-Benz recommends an antifreeze/
corrosion inhibitor concentrate in accordance
with
MB Specifications for Service Products 310.1.
i When the vehicle is first delivered, it is filled
with a coolant mixture that ensures adequate
antifreeze and anti-corrosion protection.
i The coolant is checked with every mainte-
nance interval at a qualified specialist work-
shop.
Filling capacities Model Capacity
S 600
Mercedes ‑ May-
bach S 600 15.7 US qt (14.9 l)
S 400 4MATIC
Mercedes ‑ AMG
S 63 4MATIC 13.0 US qt (12.3 l)
Mercedes ‑ AMG
S 65 16.1 US qt (15.2 l)
Al l ot her models
12.8 US qt (12.1 l)
Windshield washer system
Important safety notes
G WARNING
Windshield washer concentrate could ignite if
it comes into contact with hot engine compo-
nents or the exhaust system. There is a risk of
fire and injury.
Make sure that no windshield washer con-
centrate is spilled next to the filler neck.
! Only MB SummerFit and MB WinterFit
washer fluid should be mixed together. The spray nozzles may otherwise become
blocked.
Do not use distilled or de-ionized water. Other-
wise, the level sensor may give a false reading.
At temperatures above freezing: X
Fill the washer fluid reservoir with a mixture of
water and windshield washer fluid, e.g. MB
SummerFit.
Add 1 part MB SummerFit to 100 parts water.
At temperatures below freezing: X
Fill the washer fluid reservoir with a mixture of
water and washer fluid, e.g. MB WinterFit.
For the correct mixing ratio refer to the infor-
mation on the antifreeze reservoir.
i Add windshield washer fluid, e.g. MB Sum-
merFit or MB WinterFit, to the washer fluid all
year round.
Climate control system refrigerant
Important safety notes The climate control system of your vehicle is fil-
led with refrigerant R ‑ 134a.
The instruction label regarding the refrigerant
type used can be found on the radiator cross
member.
! Only the refrigerant R ‑ 134a and the PAG oil
approved by Mercedes-Benz may be used.
The approved PAG oil may not be mixed with
any other PAG oil that is not approved for
R-134a refrigerant. Otherwise, the climate
control system may be damaged.
Service work, such as refilling with refrigerant or
replacing component parts, may only be carried
out by a qualified specialist workshop. All appli-
cable regulations, as well as SAE standard J639,
must be adhered to.
Always have work on the climate control system
carried out at a qualified specialist workshop.Service products and filling capacities 375
Technical data Z

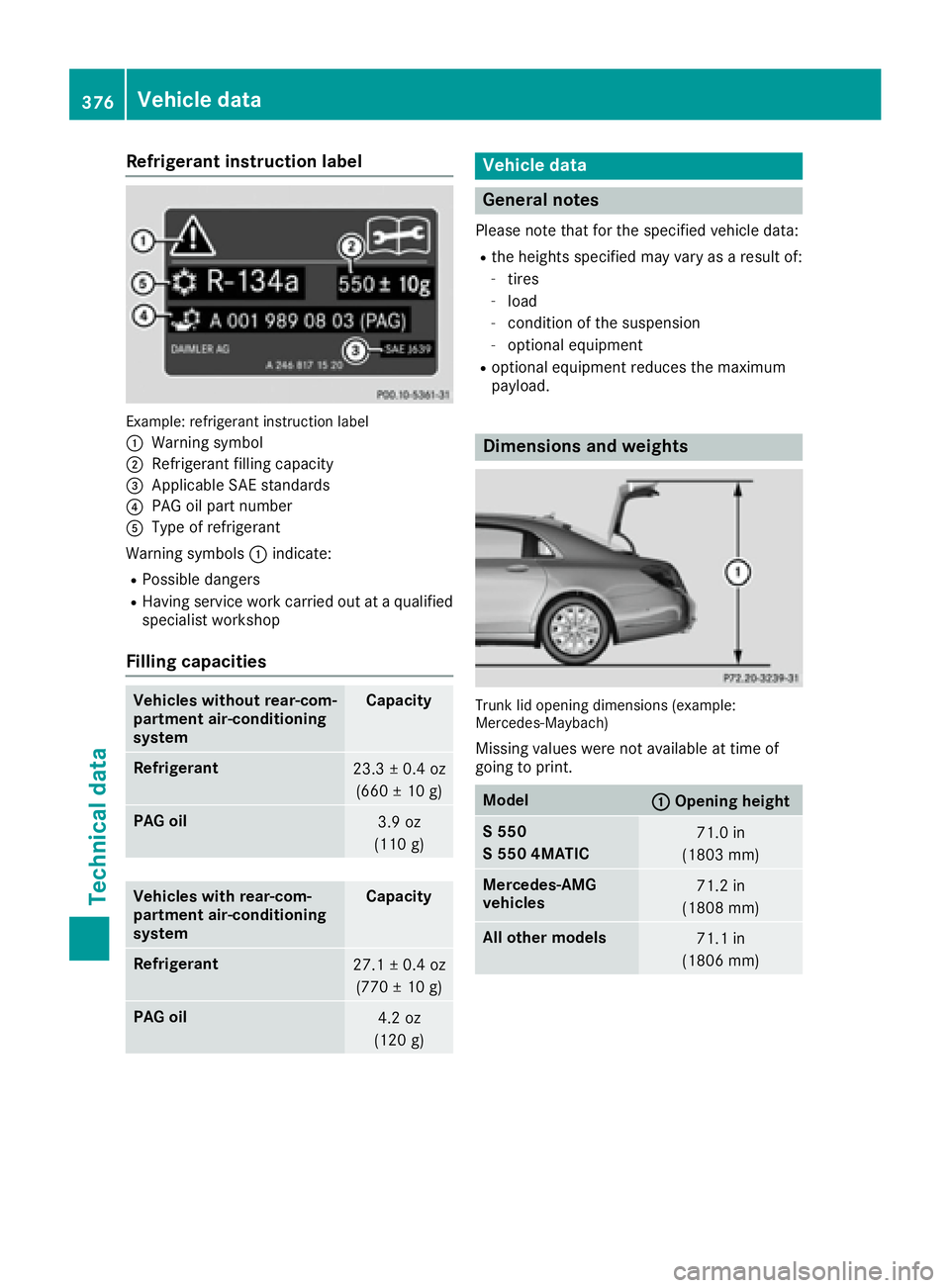

Refrigerant instruction label
Example: refrigerant instruction label
C
Warning symbolD
Refrigerant filling capacity

S-Class with a short wheelbase All models
Vehicle length
201.4 in (5116 mm)
Vehicle width
including exterior
mirrors 83.9 in (2130 mm)
Vehicle height
59.0 in (1499 mm)
Wheelbase
119.5 in (3035 mm)
Turning radius
39.0 ft (11.90 m)
Maximum roof load
220 lb (100 kg)
Maximum trunk
load 220 lb (100 kg)
S-Class with a long wheelbase Mercedes ‑ AMG
vehicles
Vehicle length
208.1 in (5287 mm)
Vehicle width
including exterior
mirrors 83.9 in (2130 mm)
Vehicle height
59.0 in (1499 mm)
Wheelbase
124.6 in (3165 mm)
Turning circle,
Mercedes-AMG S 63
4MATIC 41.0 ft (12.50 m)
Turning circle,
Mercedes ‑ AMG S 65 40.4 ft (12.30 m)
Maximum roof load
220 lb (100 kg)
Maximum trunk
load 220 lb (100 kg)
All other models
Vehicle length
206.5 in (5246 mm)
Vehicle width
including exterior
mirrors 83.9 in (2130 mm)
Wheelbase
124.6 in (3165 mm) All other models
Turning radius
40.4 ft (12.30 m)
Maximum roof load
220 lb (100 kg)
Maximum trunk
load 220 lb (100 kg)
Model Vehicle height
S 550
S 550 4MATIC 58.8 in (1494 mm)
S 600
58.9 in (1497 mm)
Mercedes ‑ MaybachAll models
Vehicle length
214.7 in (5453 mm)
Vehicle height
59.0 in (1498 mm)
Vehicle width
including exterior
mirrors 83.9 in (2130 mm)
Wheelbase
132.5 in (3365 mm)
Turning radius
42.3 ft (12.90 m)
Maximum trunk
load 220 lb (100 kg)Vehicle data 377
Technical data Z
