2017 MERCEDES-BENZ S CLASS Owners Manual

R

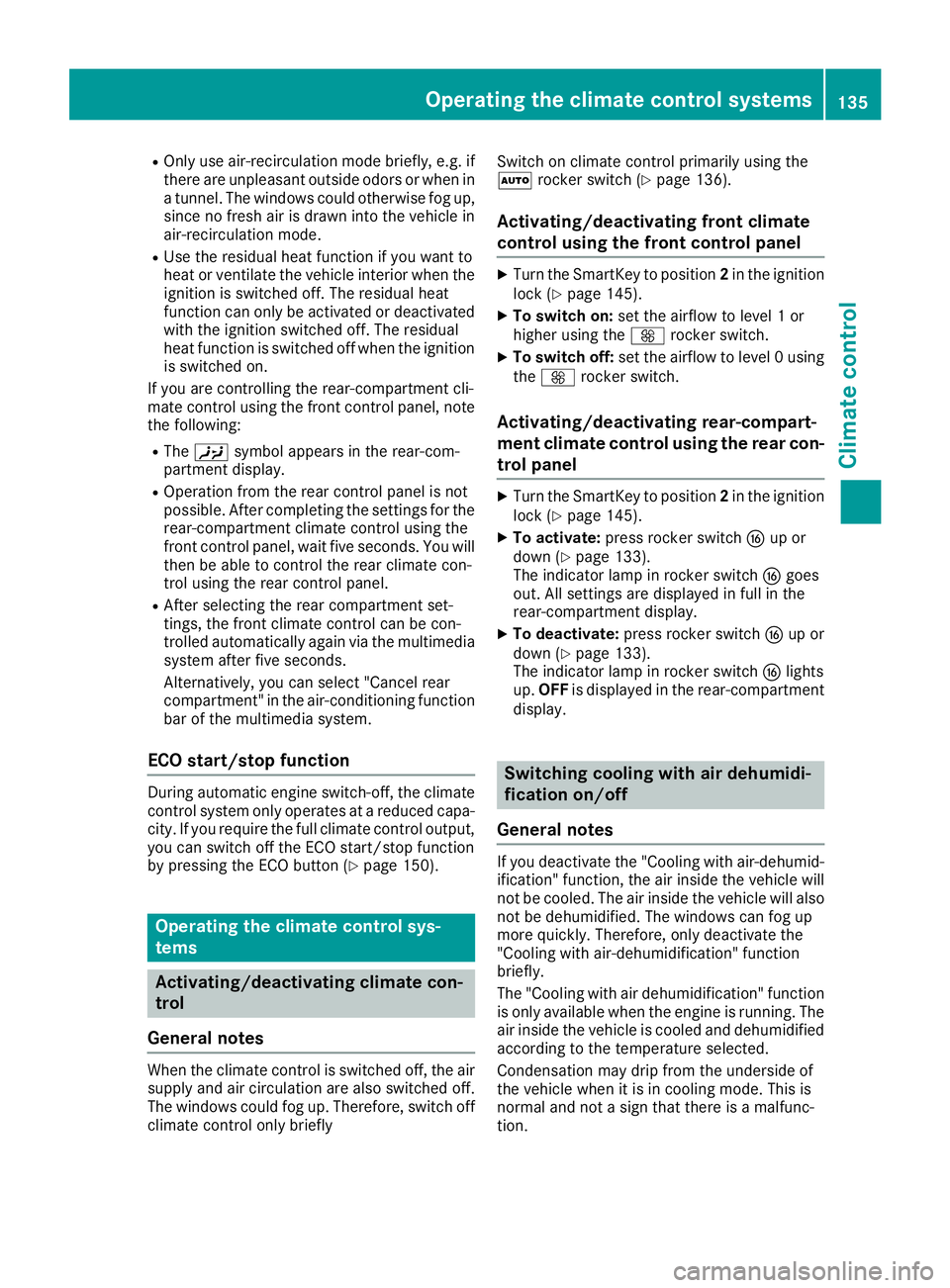

Only use air-recirculation mode briefly, e.g. if
there are unpleasant outside odors or when in
a tunnel. The windows could otherwise fog up,
since no fresh air is drawn into the vehicle in
air-recirculation mode. R
Use the residual heat function if you want to
heat or ventilate the vehicle interior when the
ignition is switched off. The residual heat
function can only be activated or deactivated
with the ignition switched off. The residual
heat function is switched off when the ignition
is switched on.
If you are controlling the rear-compartment cli-
mate control using the front control panel, note
the following: R
The

Activating/deactivating X
To activate: press th e V rocke r switch up
or down .
The indicator lamp abov e th e rocke r switch
lights up. X
To deactivate: press th e V rocke r switch
up or down .
The indicator lamp abov e th e rocke r switch
goe s out .
Problems with the "Cooling with air dehumidification" function Problem
Possible causes/consequences and P Solutions
The indicator lamp in th e
V butto n flashes
three times or remain s
off . Cooling wit h air
dehumidification can
also no longer be activa-
te d usin g th e multimedia
system; see th e Digital
Operator' s Manual. Cooling wit h air dehumidification has been deactivated due to a mal-
function . X
Visit a qualified specialis t workshop .
Setting climate cont rol to automatic
Gene ra l notesIn automatic mode, th e set temperature is main -
taine d automatically at a constan t level. The
system automatically regulates th e temperature
of th e dispensed air, th e airflow and th e air dis-
tribution .
During automatic controlling, th e "Cooling wit h
air dehumidification " function is activated.
Cont rol ling front climate cont rol auto-
ma tically using the front cont rol panelX
Turn th e SmartKey to position 2 in th e ignition
loc k ( Y
page 145).X
Se t th e desired temperature usin g th e

function which has not been changed manually,
however, continues to be controlled automati-
cally. When the manually set function switches
back to automatic mode, the AUTO display
reappears in the rear-compartment display.
Adjusting the climate mode settings In automatic mode you can select the following
airflow settings for the driver's and front-
passenger areas:
FOCUS high airflow, slightly cooler setting
MEDIUM medium airflow, standard setting
DIFFUSE low airflow, slightly warmer and draft-
free settingX
To set: set the climate mode using the mul-
timedia system ( Y
page 274).
Setting the temperature
General notes
You can set the temperature separately for the
following areas on vehicles without rear-com-
partment climate control: R
front footwells, left and right R
driver and front passenger area You can set the temperature separately for the
following areas on vehicles with rear-compart-
ment climate control: R
front footwells, left and right R
driver and front passenger area R
rear compartment, left and right
Setting the temperature in the front
compartment using the front control
panel X
Turn the SmartKey to position 2 in the ignition
lock ( Y
page 145). X
To increase or reduce: press the

Setting the air distribution
Air distribution settings a
Directs air through the defroster vents

Defrosting th e windshield
General notes You can use this function to defrost th e wind-
shield or to clear a fogge d up windshield or fron t
sid e windows on th e inside.
Switc h of f th e "Windshield defrosting" function
as soo n as th e windshield is clear again .
Switchin g th e "Windshield defrosting"
function on or off X
Tur n th e SmartKey to position 2 in th e ignition
loc k ( Y
page 145).X
To activate : press th e d rocker switch on
th e fron t contro l panel up or down .
The indicator lamp in th e d rocker switch
lights up.
The climat e contro l syste m switches to th e
followin g functions:R
hig h airflowR
hig h temperatureR
air distribution to th e windshield and fron t
sid e windowsR
air-recirculation mode of fR
windshield heatin g onR
coolin g wit h air dehumidification onX
To deactivate : press th e d rocker switch
up or down .
The indicator lamp in th e d rocker switch
goe s out . The previously selecte d setting s are
restored . Air-recirculation mode remain s
deactivated.
Defrosting th e windows
Windows fogged up on th e insideX
Activat e th e "Coolin g wit h air dehumidifica-
tion " function wit h th e V rocker switch .
or X
Activat e th e "Coolin g wit h air dehumidifica-
tion " function via th e multimedia system; see
th e Digital Operator's Manual. X
Switc h on automatic mode usin g th e X
rocker switch . X
If th e windows continue to fo g up: activat e th e
"Windshield defrosting" function usin g th e
d rocker switch . The windshield heatin g is
switched on .
i You should only selec t this setting until th e
windshield is clear again .
Windows fogged up on th e outsid eX
Activat e th e windshield wipers .X
Switc h on automatic mode usin g th e X
rocker switch .
i If you clean th e windows regularly, they do
no t fo g up so quickly.
Rea r window defroster
General notes The rea r window defroster has a hig h curren t
draw. You should therefore switch it of f as soo n
as th e rea r window is clear . Otherwise , th e rea r
window defroster switches of f automatically
after severa l minutes.
If th e battery voltage is to o low, th e rea r window
defroster may switch off.
Activating or deactivating X
Tur n th e SmartKey to position 2 in th e ignition
loc k ( Y
page 145). X
Press th e l rocker switch up or down .
The indicator lamp in th e l rocker switch
lights up or goe s out .Operating the climate control systems 13 9
Climate control

Problems with the rear window defroster Problem
Possible causes/consequences and P Solutions
The rear window
defroster has deactiva-
ted prematurely or can-
not be activated. The battery has not been sufficiently charged. X
Switch off any consumers that are not required, e.g. reading lamps,
interior lighting or the seat heating.
When the battery is sufficiently charged, the rear window defroster
can be activated again.
Switching air-recirculation mode
on/off
General notes You can also temporarily deactivate the flow of
fresh air manually if unpleasant odors are enter-
ing the vehicle from outside. The air already
inside the vehicle will then be recirculated.
If you switch on air-recirculation mode, the win-
dows can fog up more quickly, in particular at
low temperatures. Only use air-recirculation
mode briefly to prevent the windows from fog-
ging up.
Activating/deactivating X
Turn the SmartKey to position 2 in the ignition
lock ( Y
page 145).X
To activate: press the r rocker switch up
or down.
The indicator lamp in the r rocker switch
lights up.
Air-recirculation mode switches on automati-
cally: R
at high outside temperatures R
at high levels of pollution R
in a tunnel
The indicator lamp in the r rocker switch is
not lit when automatic air-recirculation mode is
activated. Outside air is added after about
30 minutes. X
To deactivate: press the r rocker switch
up or down.
The indicator lamp in the r rocker switch
goes out. Air-recirculation mode deactivates automati-
cally: R
after approximately five minutes at outside
temperatures below approximately 41 ‡
(5 †) R
after approximately five minutes if cooling
with air dehumidification is deactivated R
after approximately 30 minutes at outside
temperatures above approximately 41 ‡
(5 †) if the "Cooling with air dehumidifica-
tion" function is activated
Switching the residual heat on or off
General notes Vehicles with rear-compartment climate
control: once the engine is switched off, it is
possible to make use of the residual heat of the
engine to continue heating or ventilating the
rear and front compartment of the vehicle for
approximately 15 minutes. If the "Residual heat"
function is set for only the front or only the rear
compartment, it is possible to continue heating
or ventilating for approximately 30 minutes.
Vehicles without rear-compartment climate
control: once the engine is switched off, it is
possible to make use of the residual heat of the
engine to continue heating or ventilating the
front compartment of the vehicle for approx-
imately 30 minutes.
The heating or ventilation time depends on the
temperature that has been set.140
Operating the climate control systems
Climate control

Front control panel X
Turn th e SmartKey to position 0 in th e ignition
loc k or remove it ( Y
page 145).X
To activate: press th e ! or V rocke r
switch up or down .
The indicator lamp in th e ! or V rocke r
switch lights up.
The blowe r will run at a low spee d regardless of
th e airflow setting .
If you activat e th e residual heat function at high
temperatures , only th e ventilation will be acti-
vated. The blowe r run s at medium speed.X
To deactivate: press th e ! or V
rocke r switch up or down .
The indicator lamp in th e ! or V rocke r
switch goes out .
Rear control panel X
Turn th e SmartKey to position 0 in th e ignition
loc k or remove it ( Y
page 145).
The RES T display appear s on th e rear com-
partmen t display.X
To activate: press rocke r switch t up or
down ( Y
page 133).
The indicator lamp in rocke r switch t lights
up. X
To deactivate: press rocke r switch t up or
down ( Y
page 133).
The indicator lamp in rocke r switch t goes
out . RES T goes out on th e rear compartmen t
display.
i If you do no t activat e th e residual heat func-
tion , RES T goes out automatically after fiv e
minute s on th e rear compartmen t display.
Residual heat is deactivated automatically: R
after approximately 30 minute si f the residual
heat function is activated in the front or rear
compartment R
after approximately 15 minutes if the residual
heat function is activated in the front and rear
compartments R
when the ignition is switched on R
if the battery voltage drops Perfume atomizer
Operating the perfume atomizer
G WARNING
If children open the vial, they could drink the
perfume or it could come into contact with
their eyes. There is a risk of injury. Do not
leave children unsupervised in the vehicle.
If the perfume liquid has been drunk, consult
a doctor. If perfume comes into contact with
your eyes or skin, rinse the eyes with clean
water. If you continue to experience difficul-
ties, consult a doctor.
H Environmental note
Full vials must not be dis-
posed of with household
waste. They must be collec-
ted separately and recycled
to protect the environment.
Dispose of full vials in an
environmentally responsible
manner and take them to a
harmful substance collec-
tion point.
C
Vial lid
D
Vial
The perfume atomizer helps to improve driving
comfort.
Via the multimedia system you can: R
switch the perfume atomizer on/off R
regulate the perfume intensity ( Y
page 274).Operating the climate control systems 141
Climate control Z

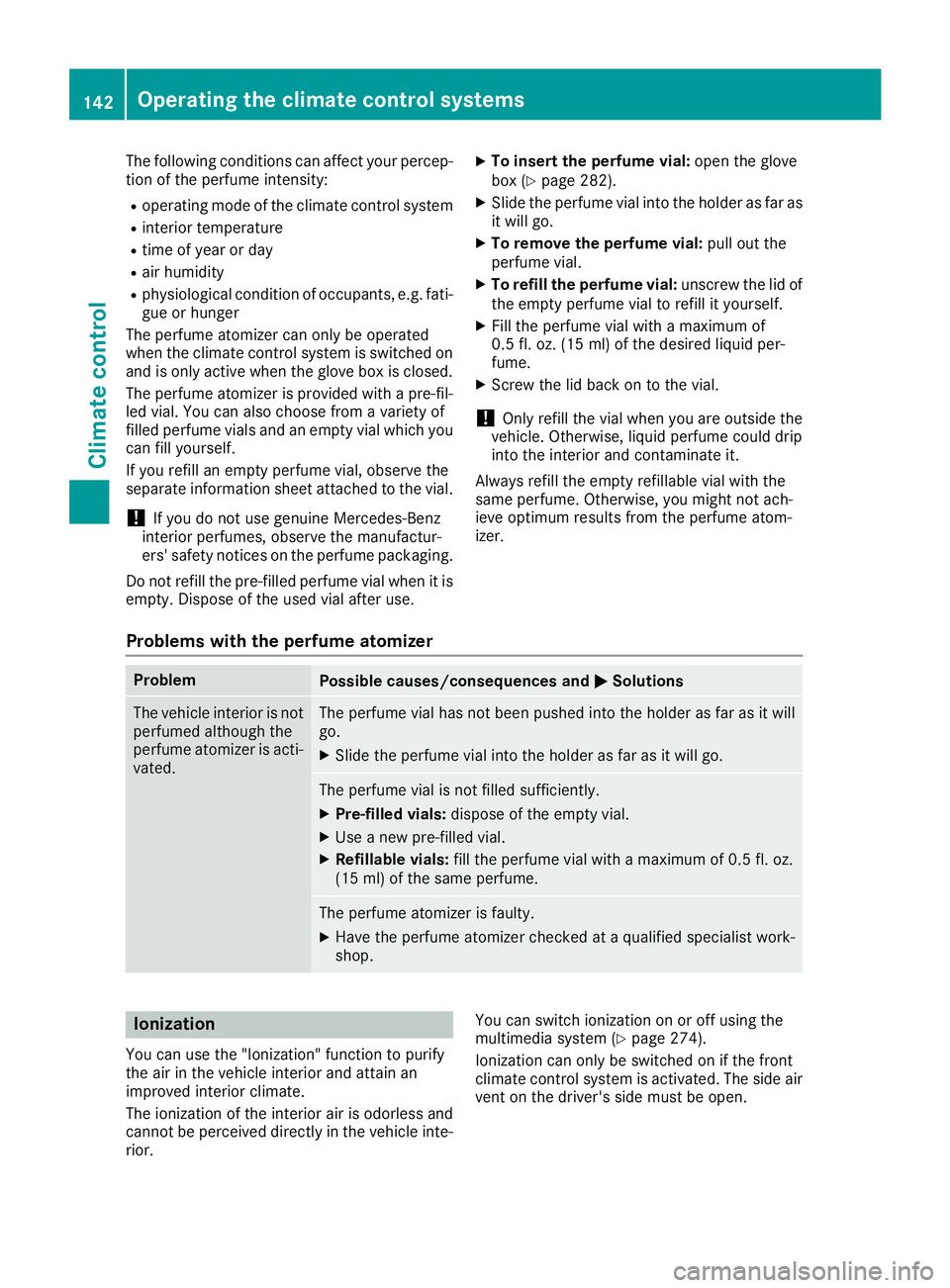

The following conditions can affect your percep-
tion of the perfume intensity: R
operating mode of the climate control system R
interior temperature R
time of year or day R
air humidity R
physiological condition of occupants, e.g. fati-
gue or hunger
The perfume atomizer can only be operated
when the climate control system is switched on
and is only active when the glove box is closed.
The perfume atomizer is provided with a pre-fil-
led vial. You can also choose from a variety of
filled perfume vials and an empty vial which you
can fill yourself.
If you refill an empty perfume vial, observe the
separate information sheet attached to the vial.
! If you do not use genuine Mercedes-Benz
interior perfumes, observe the manufactur-
ers' safety notices on the perfume packaging.
Do not refill the pre-filled perfume vial when it is
empty. Dispose of the used vial after use. X
To insert the perfume vial: open the glove
box ( Y
page 282). X
Slide the perfume vial into the holder as far as
it will go. X
To remove the perfume vial: pull out the
perfume vial. X
To refill the perfume vial: unscrew the lid of
the empty perfume vial to refill it yourself. X
Fill the perfume vial with a maximum of
0.5 fl. oz. (15 ml) of the desired liquid per-
fume. X
Screw the lid back on to the vial.
! Only refill the vial when you are outside the
vehicle. Otherwise, liquid perfume could drip
into the interior and contaminate it.
Always refill the empty refillable vial with the
same perfume. Otherwise, you might not ach-
ieve optimum results from the perfume atom-
izer.
Problems with the perfume atomizer Problem
Possible causes/consequences and P Solutions
The vehicle interior is not
perfumed although the
perfume atomizer is acti-
vated. The perfume vial has not been pushed into the holder as far as it will
go. X
Slide the perfume vial into the holder as far as it will go.
The perfume vial is not filled sufficiently. X
Pre-filled vials: dispose of the empty vial.X
Use a new pre-filled vial. X
Refillable vials: fill the perfume vial with a maximum of 0.5 fl. oz.
(15 ml) of the same perfume.
The perfume atomizer is faulty. X
Have the perfume atomizer checked at a qualified specialist work-
shop.
Ionization
You can use the "Ionization" function to purify
the air in the vehicle interior and attain an
improved interior climate.
The ionization of the interior air is odorless and
cannot be perceived directly in the vehicle inte-
rior. You can switch ionization on or off using the
multimedia system ( Y
page 274).
Ionization can only be switched on if the front
climate control system is activated. The side air
vent on the driver's side must be open.142
Operating the climate control systems
Climate control
