When Driving
Switches and Controls

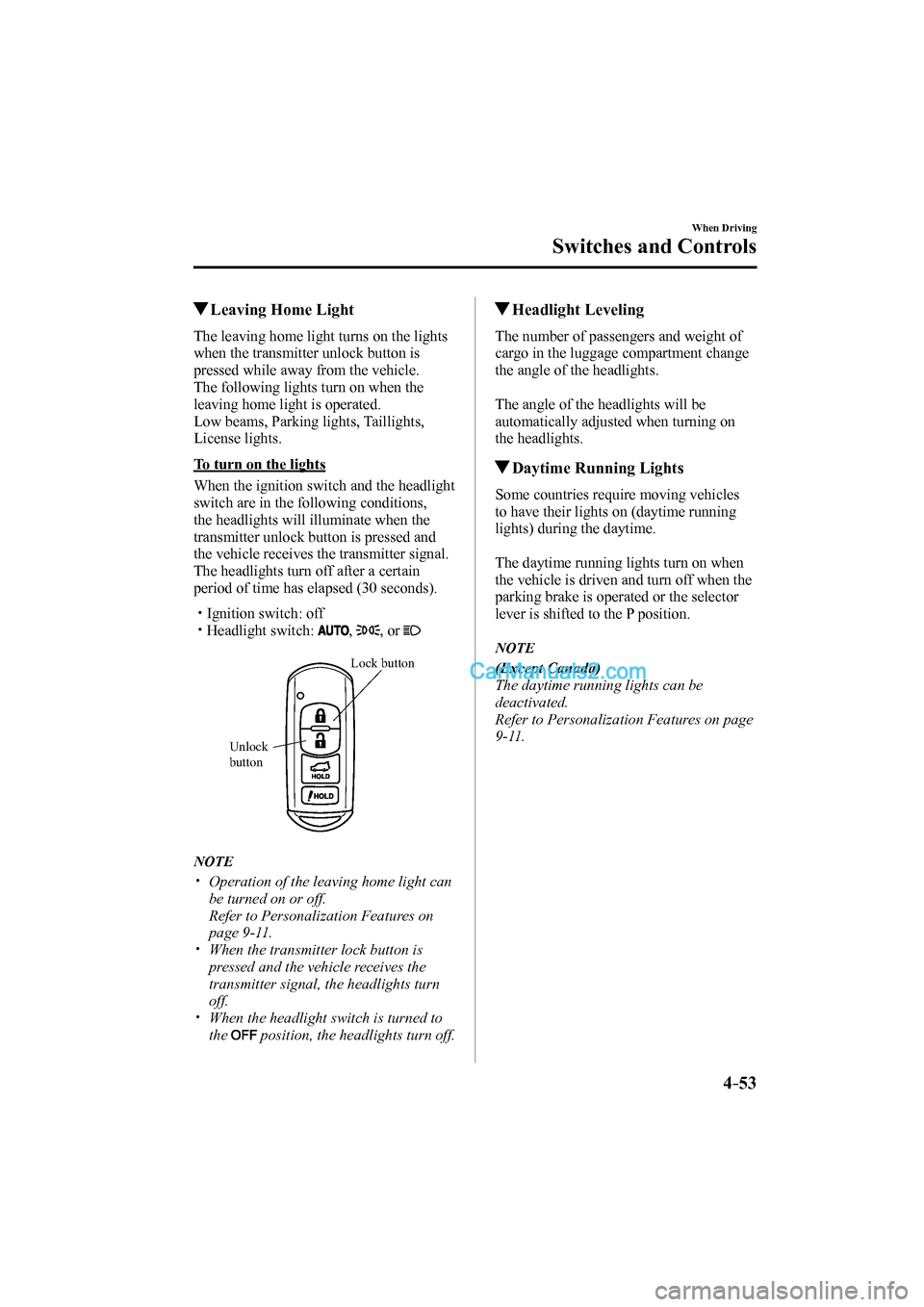

Leaving Home Light
The leaving home light turns on the lights
when the transmitter unlock button is
pressed while away from the vehicle.
The following lights turn on when the
leaving home light is operated.
Low beams, Parking lights, Taillights,
License lights.
To turn on the lights
When the ignition switch and the headlight
switch are in the following conditions,
the headlights will illuminate when the
transmitter unlock button is pressed and
the vehicle receives the transmitter signal.
The headlights turn off after a certain
period of time has elapsed (30 seconds).




 Ignition switch: off
 Headlight switch: , , or

Lock button
Unlock
button

NOTE
 


 Operation of the leaving home light can
be turned on or off.
  Refer to Personalization Features on
page 9-11 .
 


 When the transmitter lock button is
pressed and the vehicle receives the
transmitter signal, the headlights turn
off.
 


 When the headlight switch is turned to
the
position, the headlights turn off.
Headlight Leveling
The number of passengers and weight of
cargo in the luggage compartment change
the angle of the headlights.

The angle of the headlights will be
automatically adjusted when turning on
the headlights.
Daytime Running Lights
Some countries require moving vehicles
to have their lights on (daytime running
lights) during the daytime.

The daytime running lights turn on when
the vehicle is driven and turn off when the
parking brake is operated or the selector
lever is shifted to the P position.
NOTE
(Except Canada)
The daytime running lights can be
deactivated.
Refer to Personalization Features on page
9-11 .

CX-9_8FS7-EA-16K_Edition2.indb 53CX-9_8FS7-EA-16K_Edition2.indb 532016/12/15 18:33:592016/12/15 18:33:59

4–54
When Driving
Switches and Controls
*Some models.
Fog Lights *
The fog lights can be turned on with the
ignition switched ON and the headlights
turned on.
Use this switch to turn on the fog lights.
The fog lights will improve visibility at
night and during foggy conditions.
The fog lights turn on when the fog light
switch is turned to the
position and turn
off when the switch is turned to the

position.

Fog light switch
NOTE
The fog lights will turn off when the
headlights are set at high beams.
 


Turn and Lane-Change
Signals
The ignition must be switched ON to use
the turn and lane-change signals.
Turn Signals
Move the signal lever down (for a left
turn) or up (for a right turn) to the stop
position. The signal will self-cancel after
the turn is completed.

If the indicator light continues to fl ash
after a turn, manually return the lever to its
original position.

Right turn
Left turn Right lane change
Left lane changeOFF

The turn signal indicators in the instrument
cluster fl ash according to the operation of
the turn signal lever to show which signal
is working.



NOTE
 


 If an indicator light stays on without
fl ashing or if it fl ashes abnormally, one
of the turn signal bulbs may be burned
out.
 


 A personalized function is available to
change the turn indicator sound volume.
(page 9-11 )

CX-9_8FS7-EA-16K_Edition2.indb 54CX-9_8FS7-EA-16K_Edition2.indb 542016/12/15 18:34:002016/12/15 18:34:00

4–55
When Driving
Switches and Controls
Lane-Change Signals
Move the lever halfway toward the
direction of the lane change—until the
indicator fl ashes— and hold it there. It will
return to the off position when released.
Three-Flash Turn Signal
After releasing the turn signal lever, the
turn signal indicator fl ashes three times.
The operation can be cancelled by moving
the lever in the direction opposite to which
it was operated.
NOTE
The three-fl ash turn signal function can be
switched to operable/inoperable using the
personalization function.
Refer to Personalization Features on page
9-11 .

Windshield Wipers and
Washer
The ignition must be switched ON to use
the wipers.
WARNING
Use only windshield washer fl uid or
plain water in the reservoir:
Using radiator antifreeze as washer
fl uid is dangerous. If sprayed on the
windshield, it will dirty the windshield,
aff ect your visibility, and could result in
an accident.

Only use windshield washer fl uid mixed
with anti-freeze protection in freezing
weather conditions:
Using windshield washer fl uid without
anti-freeze protection in freezing
weather conditions is dangerous as
it could freeze on the windshield and
block your vision which could cause
an accident. In addition, make sure
the windshield is suffi ciently warmed
using the defroster before spraying the
washer fl uid.

CX-9_8FS7-EA-16K_Edition2.indb 55CX-9_8FS7-EA-16K_Edition2.indb 552016/12/15 18:34:002016/12/15 18:34:00

4–56
When Driving
Switches and Controls
NOTE
If the windshield wipers are operated
under cold weather conditions or
during snowfall, they could stop due to
accumulated snow on the windshield.
If the windshield wipers stop due to
accumulated snow on the windshield,
park the vehicle in a safe place, turn the
wiper switch off, and then remove the
accumulated snow. If the wiper switch is
turned to another position other than OFF,
the wipers will operate. If the wipers do
not operate even though the wiper switch
is turned to a position other than OFF,
consult an Authorized Mazda Dealer as
soon as possible.

Windshield Wipers
Turn the wipers on by pressing the lever
up or down.
With intermittent wiper



Switch
Position Wiper operation

Operation while pulling up lever

Stop

Intermittent

Low speed

High speed

Variable-speed intermittent wipers
Set the lever to the intermittent position
and choose the interval timing by rotating
the ring.

INT ring
CX-9_8FS7-EA-16K_Edition2.indb 56CX-9_8FS7-EA-16K_Edition2.indb 562016/12/15 18:34:012016/12/15 18:34:01

4–57
When Driving
Switches and Controls
With auto-wiper control



Switch
Position Wiper operation

Operation while pulling up lever

Stop

Auto control

Low speed

High speed

Auto-wiper control
When the wiper lever is in the

position, the rain sensor senses the amount
of rainfall on the windshield and turns the
wipers on or off automatically (off—
intermittent—low speed—high speed).

The sensitivity of the rain sensor can be
adjusted by turning the switch on the
wiper lever.
From the center position (normal), rotate
the switch upward for higher sensitivity
(faster response) or rotate it downward for
less sensitivity (slower response).


Higher sensitivity
Less sensitivitySwitch
Center
position

CX-9_8FS7-EA-16K_Edition2.indb 57CX-9_8FS7-EA-16K_Edition2.indb 572016/12/15 18:34:012016/12/15 18:34:01

4–58
When Driving
Switches and Controls
CAUTION
 


 Do not shade the rain sensor by
adhering a sticker or a label on the
windshield. Otherwise the rain sensor
will not operate correctly.

 


 When the wiper lever is in the
position and the ignition is switched ON,
the wipers may move automatically in
the following cases:
 


 If the windshield above the rain
sensor is touched or wiped with a
cloth.
 


 If the windshield is struck with a hand
or other object from either outside or
inside the vehicle.
  Keep hands and scrapers clear of the
windshield when the wiper lever is in the

position and the ignition is
switched ON as fi ngers could be pinched
or the wipers and wiper blades damaged
when the wipers activate automatically.
  If you are going to clean the windshield,
be sure the wipers are turned off
completely (when it is most likely
that the engine is left running) this is
particularly important when clearing ice
and snow.

NOTE
 


 Switching the auto-wiper lever from the

to the position while driving
activates the windshield wipers once,
after which they operate according to
the rainfall amount.
 


 The auto-wiper control may not operate
when the rain sensor temperature is
about -10 °C (14 °F) or lower, or about
85 °C (185 °F) or higher.
 


 If the windshield is coated with water
repellent, the rain sensor may not be
able to sense the amount of rainfall
correctly and the auto-wiper control
may not operate properly.
 


 If dirt or foreign matter (such as ice or
matter containing salt water) adheres
to the windshield above the rain sensor,
or if the windshield is iced, it could
cause the wipers to move automatically.
However, if the wipers cannot remove
this ice, dirt or foreign matter, the auto-
wiper control will stop operation. In
this case, set the wiper lever to the low
speed position or high speed position
for manual operation, or remove the ice,
dirt or foreign matter by hand to restore
the auto-wiper operation.
 


 If the auto-wiper lever is left in the
position, the wipers could operate
automatically from the effect of strong
light sources, electromagnetic waves, or
infrared light because the rain sensor
uses an optical sensor. It is
recommended that the auto-wiper lever
be switched to the
position other
than when driving the vehicle under
rainy conditions.
CX-9_8FS7-EA-16K_Edition2.indb 58CX-9_8FS7-EA-16K_Edition2.indb 582016/12/15 18:34:022016/12/15 18:34:02

4–59
When Driving
Switches and Controls
  If the headlight switch and the
windshield wiper switch are in
,
and the wipers are operated at low or
high speed by the auto wiper control for
several seconds, bad weather conditions
are determined and the headlights may
be turned on.
 


 The auto-wiper control functions can
be turned off. Refer to Personalization
Features on page 9-11 .

Windshield Washer
Pull the lever toward you and hold it to
spray washer fl uid.


Washer OFF

NOTE
If the windshield washer is turned on when
the windshield wipers are not operating,
the windshield wipers operate a few times.

If the washer does not work, inspect the
fl uid level (page 6-31 ). If the fl uid level
is normal, consult an Authorized Mazda
Dealer.
Rear Window Wiper and
Washer
The ignition must be switched ON to use
the wiper.
Rear Window Wiper

Turn the wiper on by turning the rear
wiper/washer switch.

Switch
Position Wiper operation

Stop

Intermittent

Normal

Rear Window Washer
To spray washer fl uid, turn the rear wiper/
washer switch to either of the
position.
After the switch is released, the washer
will stop.
If the washer does not work, inspect the
fl uid level (page 6-31 ). If the fl uid
level is normal and the washer still does
not work, consult an Authorized Mazda
Dealer.
CX-9_8FS7-EA-16K_Edition2.indb 59CX-9_8FS7-EA-16K_Edition2.indb 592016/12/15 18:34:032016/12/15 18:34:03

4–60
When Driving
Switches and Controls
*Some models.
Rear Window Defogger
The rear window defogger clears fog from
the rear window.

The ignition must be switched ON to use
the defogger.

Press the switch to turn on the rear
window defogger. The rear window
defogger operates for about 15 minutes
and then turns off automatically.
The indicator light illuminates when the
defogger is operating.

To turn off the rear window defogger
before the 15 minutes has elapsed, press
the switch again.

Indicator light

CAUTION
Do not use sharp instruments or
window cleaners with abrasives to
clean the inside of the rear window
surface. They may damage the
defogger grid inside the window.

NOTE
This defogger is not designed for melting
snow. If there is an accumulation of snow
on the rear window, remove it before using
the defogger.

Mirror Defogger *
The mirror defoggers defrost the outside
mirrors.

The mirror defoggers operate in
conjunction with the rear window
defogger.
To turn on the mirror defoggers, switch
the ignition ON and press the rear window
defogger switch (page 4-60 ).

Indicator light

CX-9_8FS7-EA-16K_Edition2.indb 60CX-9_8FS7-EA-16K_Edition2.indb 602016/12/15 18:34:042016/12/15 18:34:04
