Interior Features
Climate Control System
Rear Air Conditioner
Climate control information is displayed on the display.
Mode selector switch Airflow display
AUTO switchTemperature setting display REAR switch
Mode selector display
OFF switch
AU TO
SYNC
Temperature control switch
Fan control switch
CX-9_8FS7-EA-16K_Edition2.indb 11CX-9_8FS7-EA-16K_Edition2.indb 112016/12/15 18:34:542016/12/15 18:34:54

5–12
Interior Features
Climate Control System
Control Switches
Rear switch
Press the rear switch to operate the rear
air-conditioning.
The indicator illuminates to indicate that
the rear air-conditioning is operating.
AUTO switch
By pressing the AUTO switch the
following functions will be automatically
controlled in accordance with the set
temperature:
 


 Airfl ow temperature



 Amount of airfl ow



 Selection of airfl ow mode
OFF switch
Pressing the OFF switch shuts off the
climate control system.
Temperature control switch
This switch controls temperature. Press

for hot and
for cold.
Fan control switch
The fan has fi ve speeds. The selected
speed will be displayed.
Mode selector switch
The desired airfl ow mode can be selected.
Refer to Selecting the Airfl ow Mode on
page 5-10 .
Operation of Automatic Air-
conditioning
Operation from front seats
1. Turn the front air-conditioning on.
2. Press the rear switch. The rear air-
conditioning operates.
3. Selection of the airfl ow mode, airfl ow
amount and temperature will be
automatically controlled to the same
temperature setting as the front air
conditioner for the driver's side.
NOTE
  If the AUTO switch is pressed while the
front A/C switch is off, the rear air-
conditioning operates only to circulate
air.
 


 Setting the temperature to the maximum
high or low will not provide the desired
temperature at a faster rate.
 


 When selecting heat, the system will
restrict airfl ow until it has warmed to
prevent cold air from blowing out of the
vents.
 


 When the rear air conditioner is
controlled to the same temperature
setting as the front air conditioner for
the driver's side, “SYNC” is displayed
on the rear screen.

CX-9_8FS7-EA-16K_Edition2.indb 12CX-9_8FS7-EA-16K_Edition2.indb 122016/12/15 18:34:542016/12/15 18:34:54

5–13
Interior Features
Climate Control System
Operation from rear seats
1. Turn the front air-conditioning on.
2. Press the AUTO switch. The selection
of the airfl ow mode and airfl ow amount
will be automatically controlled.
3. Use the temperature control switch to
set the desired temperature.
NOTE
  If the AUTO switch is pressed while the
front A/C switch is off, the rear air-
conditioning operates only to circulate
air.
 


 Setting the temperature to the maximum
high or low will not provide the desired
temperature at a faster rate.
 


 When selecting heat, the system will
restrict airfl ow until it has warmed to
prevent cold air from blowing out of the
vents.
 


 When the rear air conditioner is
operated automatically, “AUTO” is
displayed on the rear screen.
 


 When the rear air conditioner is
controlled to the same temperature
setting as the front air conditioner for
the driver's side, “SYNC” is displayed
on the rear screen.

To turn off the system, press the OFF
switch.
CX-9_8FS7-EA-16K_Edition2.indb 13CX-9_8FS7-EA-16K_Edition2.indb 132016/12/15 18:34:552016/12/15 18:34:55

5–14
Interior Features
Before Using the Audio System
Audio Control Switch

Adjusting the Volume
To increase the volume, press up the
volume switch (
).
To decrease the volume, press down the
volume switch (
).


Seek Switch
AM/FM radio
Press the seek switch (
, ). The radio
switches to the next/previous stored station
in the order that it was stored.
Press and hold the seek switch (
, ) to
seek all usable stations at a higher or lower
frequency whether programmed or not.

Radio stations which have been previously
stored in the favorite radio can be called
up by pressing the seek switch (
, )
while any radio station stored in the
favorite radio is being received. Radio
stations can be called up in the order they
were stored with each press of the switch
(
, ).



USB Audio/Bluetooth
® Audio
Press the seek switch (
) to skip forward
to the beginning of the next track.
Press the seek switch (
) within a few
seconds after playback begins to track
down to the beginning of the previous
track.
Press the seek switch (
) after a few
seconds have elapsed to start playback
from the beginning of the current track.
Press and hold the seek switch (
, ) to
continuously switch the tracks up or down.
CX-9_8FS7-EA-16K_Edition2.indb 14CX-9_8FS7-EA-16K_Edition2.indb 142016/12/15 18:34:552016/12/15 18:34:55

5–15
Interior Features
Before Using the Audio System
Pandora ® /Aha™/Stitcher™ Radio
Press the seek switch (
) to skip forward
to the beginning of the next track.
Press and hold the seek switch (
) to
evaluate the playback of the current song
as “Like”.
Press and hold the seek switch (
) to
evaluate the playback of the current song
as “Dislike”.
AUX/USB
Audio can be heard from the vehicle's
speakers by connecting a commercially-
available portable audio unit to the
auxiliary jack.
A commercially-available, non-impedance
(3.5
) stereo mini plug cable is required.
Contact an Authorized Mazda Dealer for
details.
In addition, audio can be played from the
vehicle audio device by connecting a USB
device to the USB port.
NOTE
The SD card slot is for the navigation
system. For vehicles with the navigation
system, the SD card (Mazda genuine) with
stored map data is inserted into the SD
card slot and used.



USB port
Auxiliary jack


How to use AUX mode ......... page 5-34

How to use USB mode .......... page 5-35

CX-9_8FS7-EA-16K_Edition2.indb 15CX-9_8FS7-EA-16K_Edition2.indb 152016/12/15 18:34:572016/12/15 18:34:57

5–16
Interior Features
Before Using the Audio System
WARNING
Do not adjust the portable audio unit
or a similar product while driving the
vehicle:
Adjusting the portable audio unit
or a similar product while driving
the vehicle is dangerous as it could
distract your attention from the vehicle
operation which could lead to a serious
accident. Always adjust the portable
audio unit or a similar product while
the vehicle is stopped.

CAUTION
Depending on the portable audio
device, noise may occur when the
device is connected to the vehicle
accessory socket. (If noise occurs, do
not use the accessory socket.)

NOTE
 


 This mode may not be usable depending
on the portable audio device to be
connected.
 


 Before using the auxiliary jack/USB
port, refer to the instruction manual for
the portable audio device.
 


 Use a commercially-available, non-
impedance (3.5
) stereo mini plug for
connecting the portable audio unit to
the auxiliary jack. Before using the
auxiliary jack, read the manufacturer's
instructions for connecting a portable
audio unit to the auxiliary jack.
 


 To prevent discharging of the battery,
do not use the auxiliary input for long
periods with the engine off or idling.
 


 When connecting a device to the
auxiliary jack or USB port, noise may
occur depending on the connected
device. If the device is connected to the
vehicle's accessory socket, the noise can
be reduced by unplugging it from the
accessory socket.

CX-9_8FS7-EA-16K_Edition2.indb 16CX-9_8FS7-EA-16K_Edition2.indb 162016/12/15 18:34:582016/12/15 18:34:58

5–17
Interior Features
Before Using the Audio System

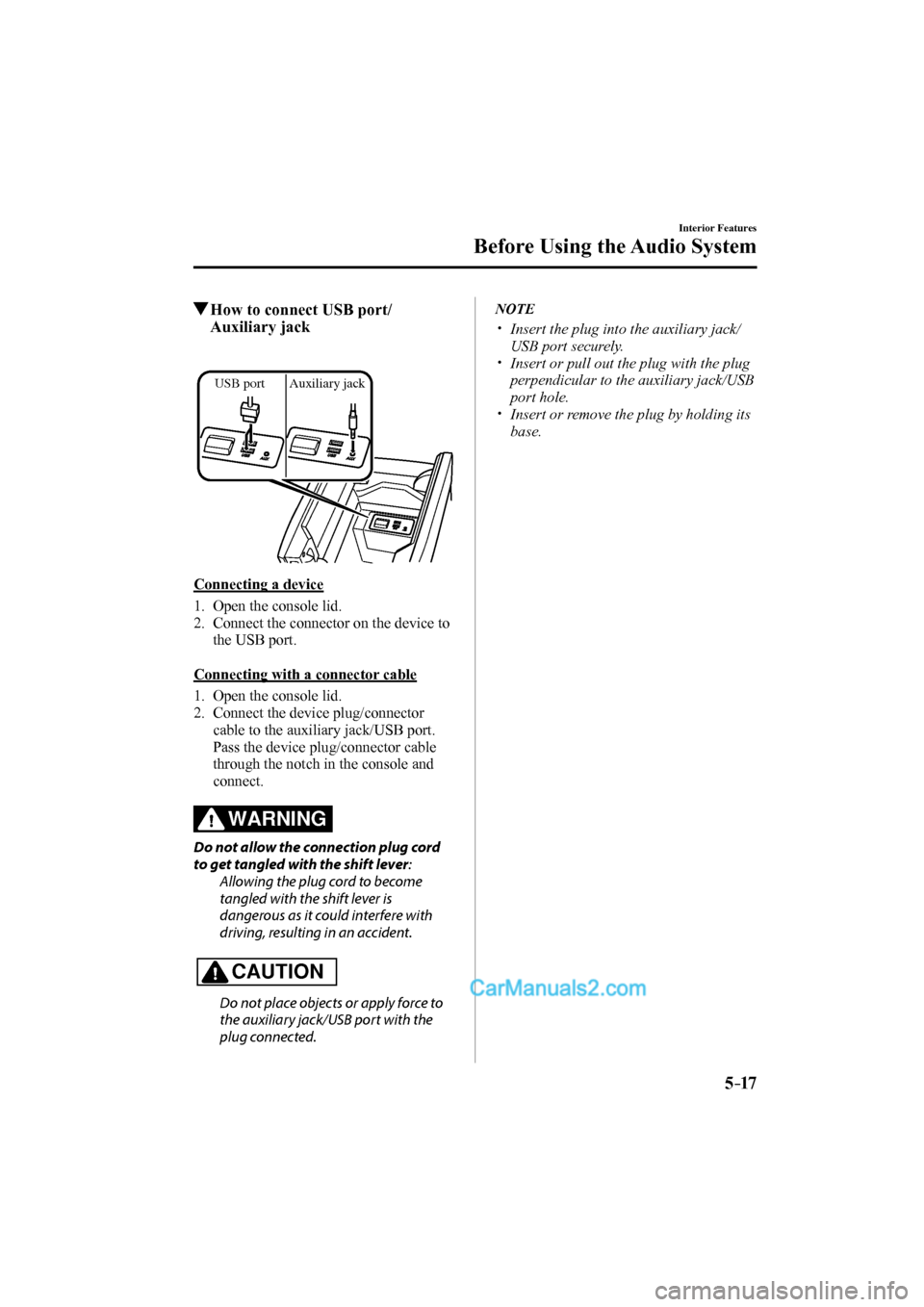

How to connect USB port/
Auxiliary jack

USB port Auxiliary jack

Connecting a device
1. Open the console lid.
2. Connect the connector on the device to
the USB port.

Connecting with a connector cable
1. Open the console lid.
2. Connect the device plug/connector
cable to the auxiliary jack/USB port.
Pass the device plug/connector cable
through the notch in the console and
connect.

WARNING
Do not allow the connection plug cord
to get tangled with the shift lever:
Allowing the plug cord to become
tangled with the shift lever is
dangerous as it could interfere with
driving, resulting in an accident.

CAUTION
Do not place objects or apply force to
the auxiliary jack/USB port with the
plug connected.

NOTE
 


 Insert the plug into the auxiliary jack/
USB port securely.
 


 Insert or pull out the plug with the plug
perpendicular to the auxiliary jack/USB
port hole.
 


 Insert or remove the plug by holding its
base.
 


