2017 MAZDA MODEL CX-5 ESP

If you must run the engine while working under the bonnet, make certain that you remove all
jewellery (especially rings, bracelets, watches, and necklaces) and all neckties, scarves, and
similar loose clothing before getting near the engine or cooling fan which may turn on
unexpectedly:
Working under the bonnet with the engine running is dangerous. It becomes even more
dangerous when you wear je wellery or loose clothing.
Either can become entangled in moving parts and result in injury.
Pull over to a safe location, then switch the ignition off and make sure the fan is not
running before attempting to work near the cooling fan:
Working near the cooling fan when it is running is dangerous. The fan could continue running
indefinitely even if the engine has stopped and the engine compartment temperature is high.
You could be hit by the fan and seriously injured.
Do not leave items in the engine compartment:
After you have finished checking or doing servic ing in the engine compartment, do not forget
and leave items such as tools or rags in the engine compartment.
Tools or other items left in the engine compartment could cause engine damage or a fire
leading to an unexpected accident.
Maintenance and Care
Owner Maintenance
6-21
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

▼Inspecting Electrolyte Level
A low level of electrolyte fluid will cause
the battery to discharge quickly.

Upper level
Lower level
Inspect the electrolyte level at least once a
week. If it is low, re move the caps and add
enough distilled water to bring the level
between the upper and lower level
(illustration).

Do not overfill.
Examine the specific gravity of the
electrolyte with a hydrometer, especially
during cold weather. If it is low, recharge
the battery.
▼ Battery Recharging
NOTE
•Before performing maintenance or
recharging the battery, turn off all
accessories and stop the engine.
•To disconnect the battery, remove the
negative lead first. Install it last when
connecting the battery.
•Be sure to remove the caps before
recharging the battery.
•(With i-stop system)
Do not quick-charge the battery.
•If the battery quickly discharges
because, for example, the lights were
left on too long with the engine off,
slow-charge it as required by battery
size and charger capacity.
•If the battery gradually discharges
because of high electric load while the
vehicle is being used, recharge it as
required by battery
size and charger
capacity.
▼ Battery Replacement
Contact an Authorised Mazda Repairer for
a battery replacement purchase.
Maintenance and Care
Owner Maintenance
6-40
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

Do not spray water in the engine
compartment. Otherwise, it could result
in engine-starting problems or damage
to electrical parts.
 When washing and waxing the vehicle,
be careful not to apply excessive force to
any single area of the vehicle roof.
Otherwise, you could dent the vehicle.
To help protect the finish from rust and
deterioration, wash your Mazda
thoroughly and frequently, at least once a
month, with lukewarm or cold water.

If the vehicle is washed improperly, the
paint surface could be scratched. Here are
some examples of how scratching could
occur.

Scratches occur on th e paint surface when:
•The vehicle is washed without first
rinsing off dirt and other foreign matter.
•The vehicle is washed with a rough, dry,
or dirty cloth.
•The vehicle is washed at a car wash that
uses brushes that are dirty or too stiff.
•Cleansers or wax containing abrasives
are used.
NOTE
•Mazda is not responsible for scratches
caused by automatic car washes or
improper washing.
•Scratches are more noticeable on
vehicles with darker paint finishes.
To minimize scratches on the vehicle's
paint finish:
•Rinse off any dirt or other foreign matter
using lukewarm or cold water before
washing.
•Use plenty of luke warm or cold water
and a soft cloth when washing the
vehicle. Do not use a nylon cloth.
•Rub gently when washing or drying the
vehicle.
•Take your vehicle only to a car wash
that keeps its brushes well maintained.
•Do not use abrasive cleansers or wax
that contain abrasives.
CAUTION
 Do not use steel wool, abrasive cleaners,
or strong detergents containing highly
alkaline or caustic agents on
chrome-plated or anodised aluminium
parts. This may damage the protective
coating; also, cleaners and detergents
may discolour or deteriorate the paint.
Pay special attention to removing salt, dirt,
mud, and other forei gn material from the
underside of the wing s, and make sure the
drain holes in the lower edges of the doors
and rocker panels are clean.

Insects, tar, tree sap, bird droppings,
industrial fallout, and similar deposits can
damage the finish if not removed
immediately. When prompt washing with
plain water is ineffective, use a mild soap
made for use on vehicles.

Thoroughly rinse off all soap with
lukewarm or cold water. Do not allow
soap to dry on the finish.

After washing the ve hicle, dry it with a
clean chamois to prevent water spots from
forming.
Maintenance and Care
Appearance Care
6-63
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

CAUTION
Do not disassemble the Mazda ERA-GLONASS. Otherwise, it could become damaged and
may not function in an emergency.
 The Mazda ERA-GLONASS has a special built-in battery so that it can operate even if the
power supply from the vehicle is cut such as in an accident.
Heed the following cautions. If the Mazda ER A-GLONASS is not used correctly it may not
operate.
 The built-in battery is not a rechargeable ty pe battery. Do not attempt to recharge the
battery.
 If the built-in battery power is low due to natural discharge and the system determines
that there is a problem, the Mazda ER A-GLONASS cannot be used. If the system
determines that there is a problem, the indicator light (red) in the Mazda ERA-GLONASS
switch turns on to notify the driver. Have the vehicle inspected at an Authorised Mazda
Repairer. Refer to Indicator light/Beep sound on page 7-10.
NOTE
•The Mazda ERA-GLONASS can be used when the ignition is switched ON.
•There are two ways the Mazda ERA-GLONASS makes calls; automatically or manually.
•The Mazda ERA-GLONASS may not operate in the following cases: If the Mazda
ERA-GLONASS does not operate, make a call from another telephone such as the nearest
available public telephone.
•The vehicle is outside of a mobile phone network area
•The vehicle is in a weak radio wave transmission environment (such as inside tunnels,
underground parking areas, shadow of buildings, and mountain areas)
•The vehicle does not receive an impact of a certain level or more even if an accident has
occurred.
•An extremely serious collision occurs resulting in damage to the Mazda
ERA-GLONASS.
•The position information cannot be obtained when signals cannot be received from the
GPS and GLONASS satellites, however, voice calls are possible.
•When a voice call is made by the Mazda ERA-GLONASS, the audio system is muted so
that it does not interfere with the call.
•It may take some time for the call centre to respond after the Mazda ERA-GLONASS first
starts operating.
•If you are unable to respond to an operator's questions after the voice call begins, the
operator may proceed with emergency procedures at their own discretion.
•Even if it is difficult for you to hear the operator's voice, your voice may be heard by the
call centre. Continue explaining your circumstances.
If Trouble Arises
Mazda ERA-GLONASS (Russia)
7-5
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

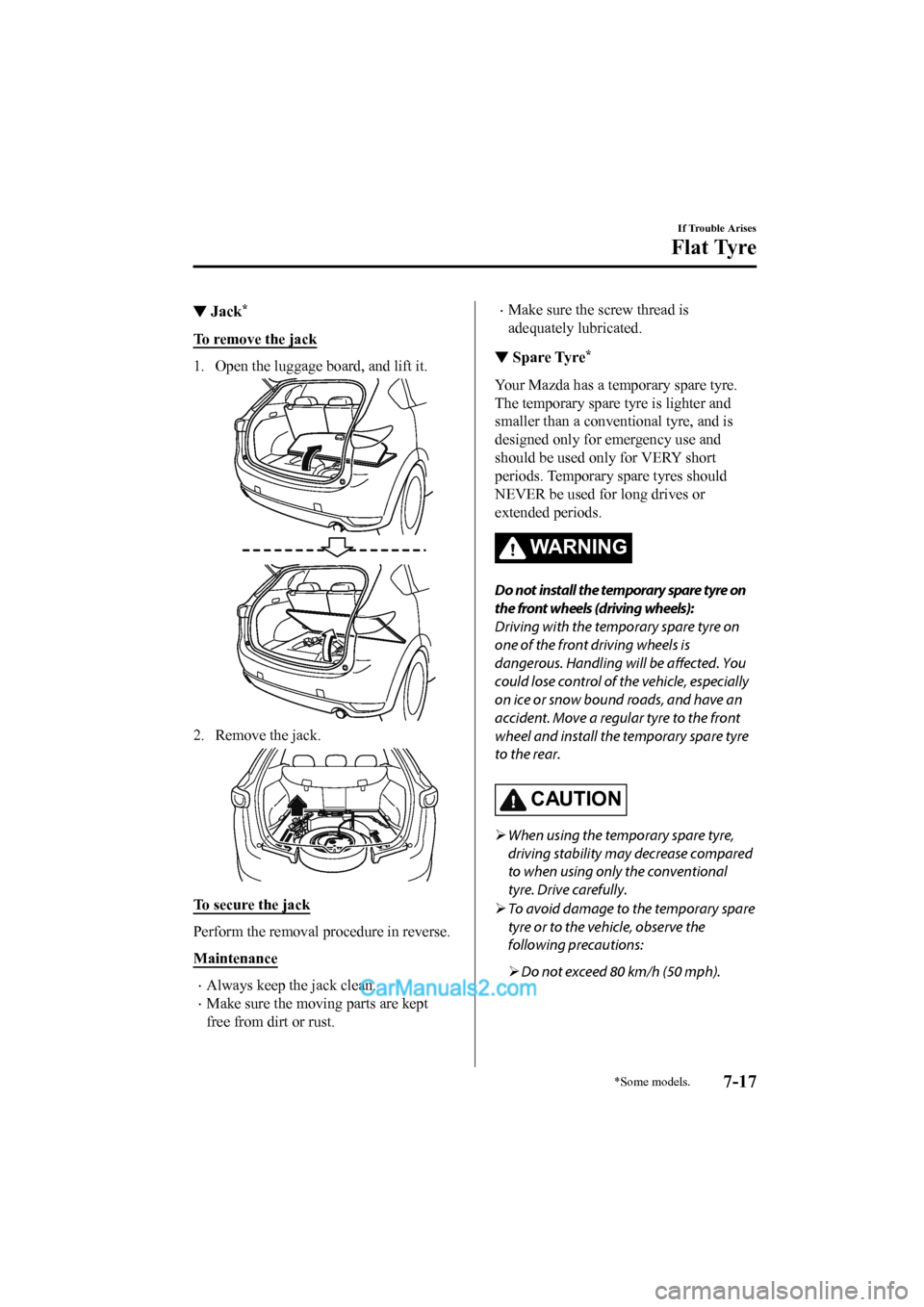

▼Jack*
To remove the jack
1. Open the luggage board, and lift it.
2. Remove the jack.
To secure the jack
Perform the removal procedure in reverse.
Maintenance
•Always keep the jack clean.
•Make sure the moving parts are kept
free from dirt or rust.
•Make sure the screw thread is
adequately lubricated.
▼Spare Tyre*
Your Mazda has a tem
porary spare tyre.
The temporary spare tyre is lighter and
smaller than a conventional tyre, and is
designed only for emergency use and
should be used only for VERY short
periods. Temporary spare tyres should
NEVER be used for long drives or
extended periods.
WA R N I N G
Do not install the temporary spare tyre on
the front wheels (driving wheels):
Driving with the temporary spare tyre on
one of the front driving wheels is
dangerous. Handling will be affected. You
could lose control of the vehicle, especially
on ice or snow bound roads, and have an
accident. Move a regular tyre to the front
wheel and install the temporary spare tyre
to the rear.
CAUTION
 When using the temporary spare tyre,
driving stability may decrease compared
to when using only the conventional
tyre. Drive carefully.
 To avoid damage to the temporary spare
tyre or to the vehicle, observe the
following precautions:
 Do not exceed 80 km/h (50 mph).
If Trouble Arises
Flat Tyre
*Some models.7-17
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

Towing Hooks
CAUTION
The towing eyelet should be used in an
emergency (to get the vehicle out of a
ditch or a snow ba nk, for example).
 When using the towing eyelets, always
pull the lead or chain in a straight
direction with respect to the eyelet. Never
apply a sideways force.
NOTE
When towing with chain or lead, wrap the
chain or lead with a soft cloth near the
bumper to prevent damage to the bumper.
▼ Towing Hooks
1. Remove the towing eyelet and the
wheel brace from the luggage
compartment (page 7-15).
2. Wrap a flathead screwdriver or similar tool with a soft c loth to prevent
damage to a painted bumper, and open
the cap located on the front or rear
bumper.
Front

Rear

Jack lever
CAUTION
Do not use excessive force as it may
damage the cap or scratch the painted
bumper surface.
NOTE
Remove the cap completely and store it
so as not to lose it.
3. Securely install the towing eyelet using the wheel brace or equivalent.
Consult an Authorised Mazda
Repairer.
Front

Wheel brace
Towing
eyelet
If Trouble Arises
Emergency Towing
7-41
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

Add-On Non-Genuine Parts and Accessories
Please note that technical alterations to the original state of your Mazda vehicle can affect
the safety of the vehicle. Such technical alterations include not only the use of unsuitable
spare parts, but also accessories, fittings or attachments, including rims and tyres.

Genuine Mazda Parts and Genuine Mazda Accessories have been spe cifically designed for
Mazda vehicles.
Other parts and accessories than those mentioned above have not been examined and
approved by Mazda unless explicitly stated by Mazda. We cannot certify the suitability of
such products. Mazda is not liable for any damage caused by the use of such products.
WA R N I N G
Be very careful in choosing and installing add-on electrical equipment, such as mobile
telephones, two-way radios, stereo systems, and car alarm systems:
Incorrectly choosing or installing improper add-on equipment or choosing an improper
installer is dangerous. Essential systems could be damaged, causing engine stalling, air-bag
(SRS) activation, ABS/TCS/DSC inacti vation, or a fire in the vehicle.
Mazda assumes no responsibility for death, injury, or expenses that may result from the
installation of add-on non-genuine parts or accessories.
Customer Information
Wa r r an t y
8-3
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

Cell Phones Warning
WA R N I N G
Please comply with the legal regulations concerning the use of communication equipment in
vehicles in your country:
Use of any electrical devices such as cell phones, computers, portable radios, vehicle
navigation or other devices by the driver while the vehicle is moving is dangerous. Dialing a
number on a cell phone while driving also ties-up the driver's hands. Use of these devices will
cause the driver to be distracted and could lead to a serious accident. If a passenger is unable
to use the device, pull off the right-of-way to a safe area before use. If use of a cell phone is
necessary despite this warning, use a hands-free system to at least leave the hands free to
drive the vehicle. Never use a cell phone or othe r electrical devices while the vehicle is moving
and, instead, concentrate on the full-time job of driving.
Customer Information
Cell Phones
8-4
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2
