2017 MAZDA MODEL CX-5 ESP

Electromagnetic Compatibility
Your Mazda has been tested and certified to the UNECE*1 10 regulation as related to
electromagnetic compatibility. Ra dio Frequency (RF) transmitter equipment (e.g. cellular
telephones, amateur radio transmitters, etc.) may only be fitte d to your Mazda if they
comply with the parameters shown in the table below.
*1 UNECE stands for United Nations Economic Commission for Europe.

It is your responsibility to ensure that any equipment you have fitted complies with
applicable local legislations. Have any equipment fitted by pro perly trained technicians.
CAUTION
Do not mount any transceiver, microphones, sp eakers, or any other item in the deployment
path of the air bag system.
 Do not fasten aerial lead to original vehicle wiring, fuel pipes or brake pipes. Avoid running
the aerial lead parallel with the wire harness to the best extent possible.
 Keep the aerial and power leads at least 100 mm (3.9 in) from any electronic modules and
the air bags.
 Avoid using the cigar lighter or accessory sock et as a power source for the RF-transmitting
equipment.

Aerial positions: : front right of roof
: front left of roof
: centre of roof
Frequency Band (MHz) Maximum output power (Wattage) Aerial Positi ons
50 ― 54 50
68 ― 87.5 50
142 ― 176 50
380 ― 47050
806 ― 94010
1200 ― 1300 10
Customer Information
Electromagnetic Compatibility
8-32
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

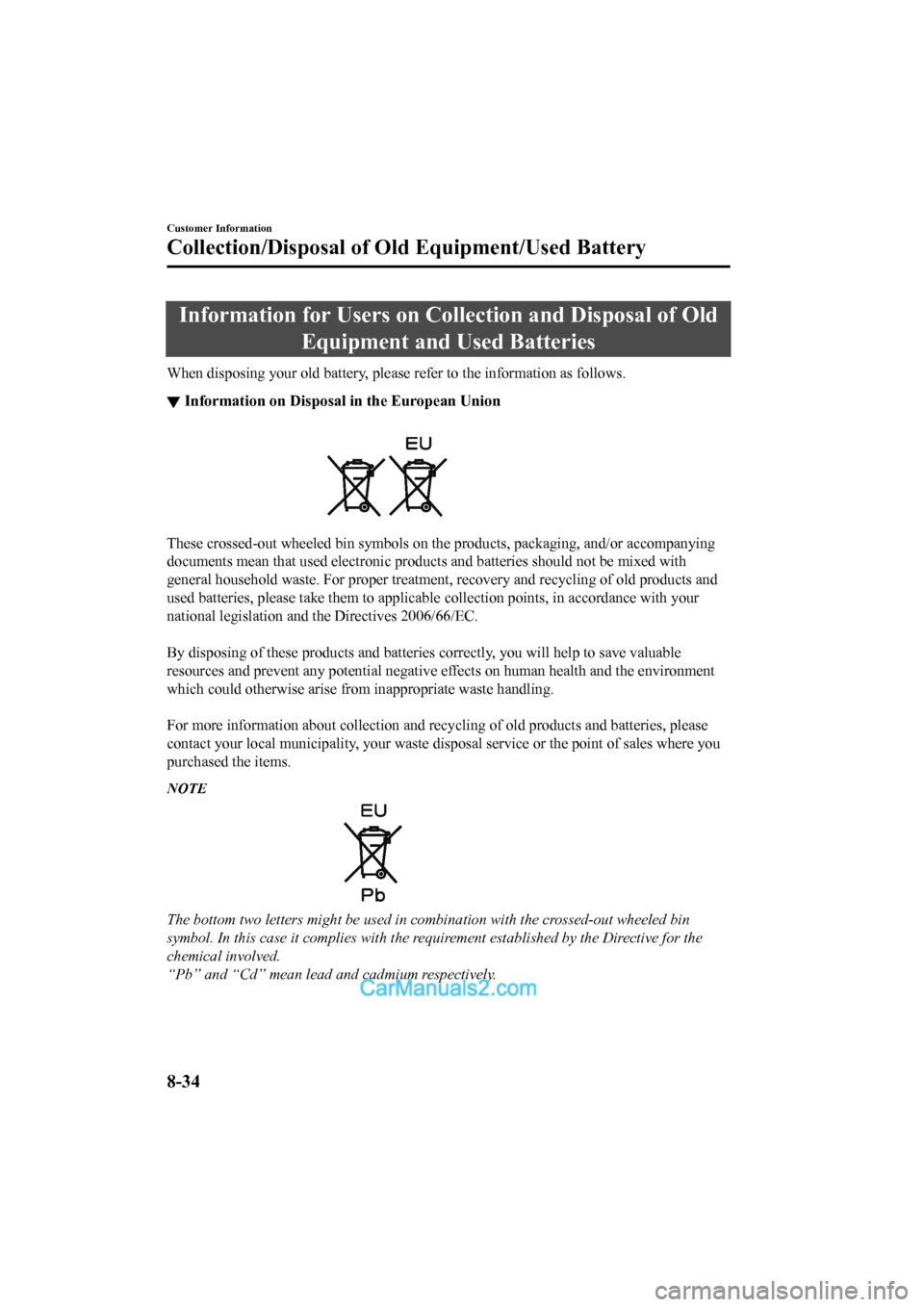

Information for Users on Collection and Disposal of OldEquipment and Used Batteries
When disposing your old battery, please refer to the informatio n as follows.
▼Information on Disposal in the European Union
These crossed-out wheeled bin symbols on the products, packagin
g, and/or accompanying
documents mean that used electronic products and batteries shou ld not be mixed with
general household waste. For proper treatment, recovery and rec ycling of old products and
used batteries, please take them to applicable collection point s, in accordance with your
national legislation and the Directives 2006/66/EC.

By disposing of these products and batteries correctly, you wil l help to save valuable
resources and prevent any potential negative effects on human h ealth and the environment
which could otherwise arise from inappropriate waste handling.

For more information about collect ion and recycling of old products and batteries, please
contact your local municipality, your waste disposal service or the point of sales where you
purchased the items.
NOTE
The bottom two letters might be used in combination with the crossed-out wheeled bin
symbol. In this case it complies with the requirement established by the Directive for the
chemical involved.
“Pb” and “Cd” mean lead and cadmium respectively.
Customer Information
Collection/Disposal of Old Equipment/Used Battery
8-34
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

▼Electrical System
Item Classification
SKYACTIV-G 2.0, SKYACTIV-G 2.5 SKYACTIV-D 2.2
Battery Q-85
*1T- 1 1 0*112V-55Ah/20HR*2 or 12V-65Ah/20HR*2
Spark-plug numberExcept Thailand
Mazda Genuine
spark plug*3
PE5R-18-110 or
PE5S-18-110 ―
Thailand PEHW-18–110
*1 Q-85 or T-110 is designed for i-stop system (FOR STOP & START)/i-ELOOP system. O nly Q-85 or T-110
should be used to ensure correct operation of i-stop system (FOR STOP & START)/i-ELOOP system. Consult
an expert repairer, we recommend an Authorised Mazda Repairer f or details.
*2 Not for i-stop system/i-ELOOP system.*3 The spark plugs provide the SKYACTIV-G its optimum performance. Consult an expert repairer, we
recommend an Authorised Mazd a Repairer for details.
CAUTION
When cleaning the iridium plugs, do not use a wire brush. The
fine particulate coating on the
iridium alloy and platinum tips could be damaged.
▼ Lubricant Quality
Engine oil*1Europe
Except Europe
SKYACTIV-G 2.0,
SKYACTIV-G 2.5 Recommended Oils
*2Oil Quality
Mazda Original Oil Supra 0W-20
API SL/SM/SN or
ILSAC GF-III/GF-IV/GF-V
Mazda Original Oil Ultra 5W-30
Alternative Oil Quality
*3
API SN*4 or ACEA A5/B5 0W-20
5W-30
SKYACTIV-D 2.2 Recommended Oils
*2Oil Quality
Mazda Original Oil Supra DPF 0W-30
ACEA C3
0W-30/5W-30
Mazda Original Oil Ultra DPF 5W-30
Alternative Oil Quality
*3
ACEA C3 0W-30
5W-30
*1 Refer to Recommended Oil on page 6-25.*2 Mazda Original Oils are special
ly designed/tested for the respective engine. For optimum performance we
recommend to use Mazda Ori ginal Oils at all times.
*3 If you are unable to find a Ma zda Original Oil, alternative oils meeting the listed sp ecification may also be
used.
*4 Use API SM/SN in Kazakhstan.
Specifications
Specifications
9-6
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2
