2017 LEXUS RC300H Owners Manual

571-1. For safe use
1
For safety and security
RC300h_EE(OM24740E)

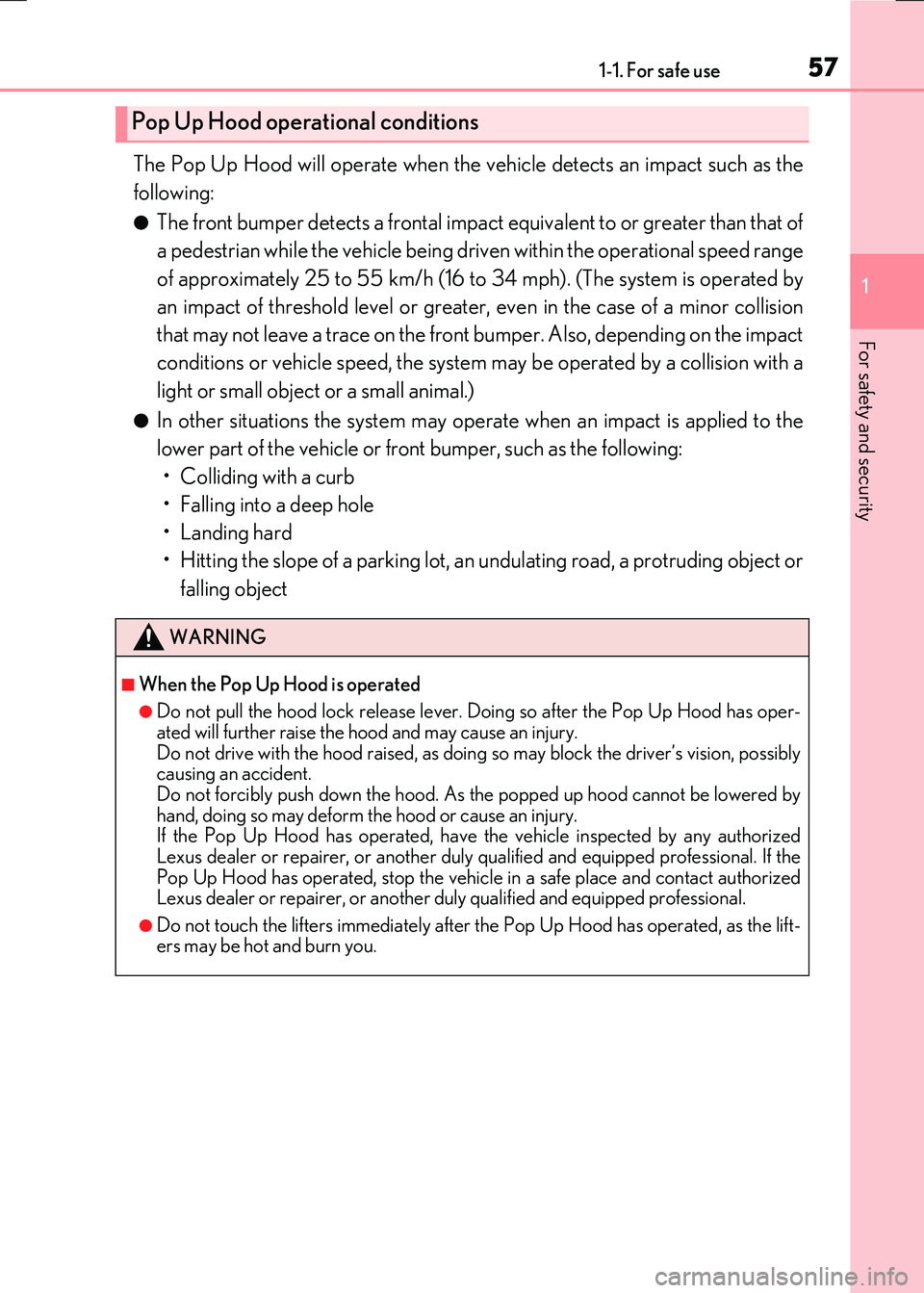

The Pop Up Hood will operate when the vehicle detects an impact such as the
following:
●The front bumper detects a frontal impact equivalent to or greater than that of
a pedestrian while the vehicle being driven within the operational speed range
of approximately 25 to 55 km/h (16 to 34 mph). (The system is operated by
an impact of threshold level or greater, even in the case of a minor collision
that may not leave a trace on the front bumper. Also, depending on the impact
conditions or vehicle speed, the system may be operated by a collision with a
light or small object or a small animal.)
●In other situations the system may operate when an impact is applied to the
lower part of the vehicle or front bumper, such as the following:
• Colliding with a curb
• Falling into a deep hole
•Landing hard
• Hitting the slope of a parking lot, an undulating road, a protruding object or
falling object
Pop Up Hood operational conditions
WARNING
■When the Pop Up Hood is operated
●Do not pull the hood lock release lever. Doing so after the Pop Up Hood has oper-
ated will further raise the h ood and may cause an injury. Do not drive with the hood raised, as doing so may block the driver’s vision, possiblycausing an accident.
Do not forcibly push down the hood. As the popped up hood cannot be lowered by hand, doing so may deform the hood or cause an injury. If the Pop Up Hood has operated, have the vehicle inspected by any authorized
Lexus dealer or repairer, or another duly qualified and equipped professional. If the Pop Up Hood has operated, stop the vehicle in a safe place and contact authorizedLexus dealer or repairer, or another du ly qualified and equipped professional.
●Do not touch the lifters immediately after the Pop Up Hood has operated, as the lift- ers may be hot and burn you.

581-1. For safe use
RC300h_EE(OM24740E)
■Pop Up Hood precautions
●Before scrapping your vehicle, make sure to contact any authorized Lexus dealer or repairer, or another duly qualified and equipped professional.
●The Pop Up Hood system cannot be reused once it has operated. Have it replaced by
any authorized Lexus dealer or repairer, or another duly qualified and equipped profes- sional.
■Conditions under which the Pop Up Hood may not operate properly
The Pop Up Hood may not operate prop erly under the following conditions:
●If a pedestrian collides with the right or left corner of the front bumper or the side of the vehicle. As such impacts may be difficul t to detect, the system may not operate.
●If the vehicle speed is not detected correctly, such as if the vehicle is sliding sideways, the system may not operate properly.
■Conditions under wh ich the Pop Up Hood may not operate
The Pop Up Hood may not operate in the following situations:
●Colliding with a lying pedestrian
●A frontal impact applied to the front bumper while driving at speeds outside of the
operational speed range
●A side impact or rear impact
●A vehicle rollover (In some accident situations, the Pop Up Hood may operate.)
NOTICE
■Pop Up Hood precautions
●Make sure to close the hood before driving, as the system may not operate properly if the hood is not fully closed.
●Make sure that all 4 tires are of the specif ied size and inflated to the specified tire
pressure ( P. 604). If tires of a different size are used, the system may not operate properly.
●If something has hit the area around the front bumper, the sensors may be damaged
even if the Pop Up Hood has not operated. Have the vehicle inspected by any autho- rized Lexus dealer or repairer, or anothe r duly qualified and equipped professional.
●Do not remove or repair the parts or wiring of the Pop Up Hood, as doing so may
cause accidental operation or prevent the sy stem from operating properly. If repair or replacement is necessary, contact any authorized Lexus dealer or repairer, oranother duly qualified an d equipped professional.
●Do not remove such components as the front bumper, hood or suspension, or replace them with non-genuine parts, as doing so may prevent the system from oper-ating properly.
●Do not install anything to the front bumper or hood, as doing so may prevent the sen-sors from detecting an impact correctly and prevent the system from operating prop-erly.
●Do not close the hood with force or apply load to the lifters, as doing so may damage the lifters and prevent the system from operating properly.
●Do not modify the suspension, as changes made to the vehicle height may prevent
the system from operating properly.

591-1. For safe use
1
For safety and security
RC300h_EE(OM24740E)
●It is recommended that children sit in the rear seats to avoid accidental con-
tact with the shift lever, wiper switch, etc.
●Use the window lock switch to avoid children operating the power window
accidentally.
●Do not let small children operate equipment which may catch or pinch body
parts, such as the power window, hood, trunk, seats etc.
Safety information for children
Observe the following precautions when children are in the vehicle.
Use a child restraint system appropriate for the child, until the child becomes
large enough to properly wea r the vehicle’s seat belt.
WARNING
Never leave children unattended in the vehicle, and never allow children to have or use the key.
Children may be able to start the vehicle or sh ift the vehicle into neutral. There is also a danger that children may injure themselves by playing with the windows, the moon roof or other features of the vehicle. In addition, heat build-up or extremely cold tempera-
tures inside the vehicle can be fatal to children.

601-1. For safe use
RC300h_EE(OM24740E)

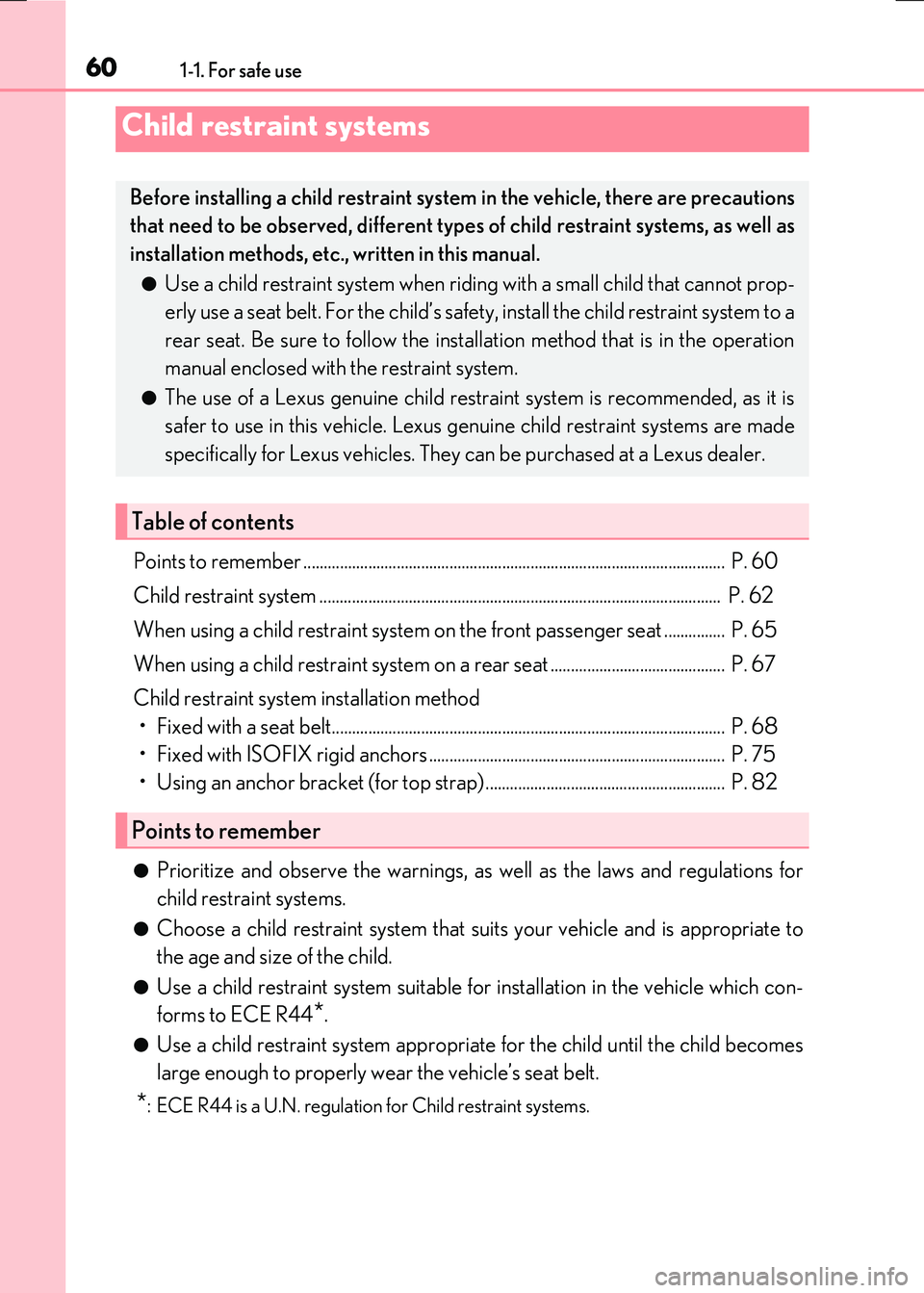

Points to remember ........................................................................................................ P. 60
Child restraint system ................................................................................................... P. 62
When using a child restraint system on the front passenger seat ............... P. 65
When using a child restraint system on a rear seat ........................................... P. 67
Child restraint system installation method
• Fixed with a seat belt................................................................................................. P. 68
• Fixed with ISOFIX rigid anchors ......................................................................... P. 75
• Using an anchor bracket (for top strap) ........................................................... P. 82
●Prioritize and observe the warnings, as well as the laws and regulations for
child restraint systems.
●Choose a child restraint system that suits your vehicle and is appropriate to
the age and size of the child.
●Use a child restraint system suitable for installation in the vehicle which con-
forms to ECE R44*.
●Use a child restraint system appropriate for the child until the child becomes
large enough to properly wear the vehicle’s seat belt.
*: ECE R44 is a U.N. regulation for Child restraint systems.
Child restraint systems
Before installing a child restraint system in the vehicle, there are precautions
that need to be observed, different types of child restraint systems, as well as
installation methods, etc., written in this manual.
●Use a child restraint system when riding with a small child that cannot prop-
erly use a seat belt. For the child’s safety, install the child restraint system to a
rear seat. Be sure to follow the installation method that is in the operation
manual enclosed with the restraint system.
●The use of a Lexus genuine child restraint system is recommended, as it is
safer to use in this vehicle. Lexus genuine child restraint systems are made
specifically for Lexus vehicles. They can be purchased at a Lexus dealer.
Table of contents
Points to remember

611-1. For safe use
1
For safety and security
RC300h_EE(OM24740E)
WARNING
■When a child is riding
Observe the following precautions. Failure to do so may result in death or serious injury.
●For effective protection in automobile accidents and sudden stops, a child must be properly restrained, using a seat belt or child restraint system depending on the age and size of the child.
●Lexus strongly urges the use of a proper child restraint system that conforms to thesize of the child, installed on the rear seat. According to accident statistics, the child is safer when properly restrained in the rear seat than in the front seat.
●Holding a child in your or someone else’s ar ms is not a substitute for a child restraint system. In an accident, the child can be crushed against the windshield or betweenthe holder and the interior of the vehicle.
●Place one child to a child restraint system and then secure the child with the harnessof the child restraint system.
■Handling the child restraint system
If the child restraint system is not properly fixed in place, the child or other passengers may be seriously injured or even killed in the event of sudden braking, sudden swerv- ing, or an accident.
●If the vehicle were to receive a strong impact from an accident, etc., it is possible thatthe child restraint system has damage that is not readily visible. In such cases, do notreuse the restraint system.
●Depending on the child restrain t system, installation may be difficult or impossible. In those cases, check whether the child restraint system is suitable for installment in the vehicle. ( P. 68, 75) Be sure to install and observe the usage rules after carefully
reading the child restraint system fixing me thod in this manual, as well as the opera- tion manual enclosed with the child restraint system.
●Keep the child restraint system properly secure d on the seat even if it is not in use. Do
not store the child restraint system un secured in the passenger compartment.
●If it is necessary to detach the child restraint system, remove it from the vehicle or store it securely in the trunk.

621-1. For safe use
RC300h_EE(OM24740E)
Install the available child restraint system in vehicle upon confirming the following
items.
■Standards for child restraint systems
Use a child restraint system that conforms to ECE R44*1.
The following approval mark is displaye d on child restraint systems which are
conformed.
Check for an approval mark attached to the child restraint system.
Example of the displayed regulation
number
ECE R44 approval mark*2
The weight range of the child who is
applicable for an ECE R44 approval
mark is indicated.
*1: ECE R44 is a U.N. regulation for child restraint systems.
*2: The displayed mark may differ depending on the product.
Child restraint system

631-1. For safe use
1
For safety and security
RC300h_EE(OM24740E)

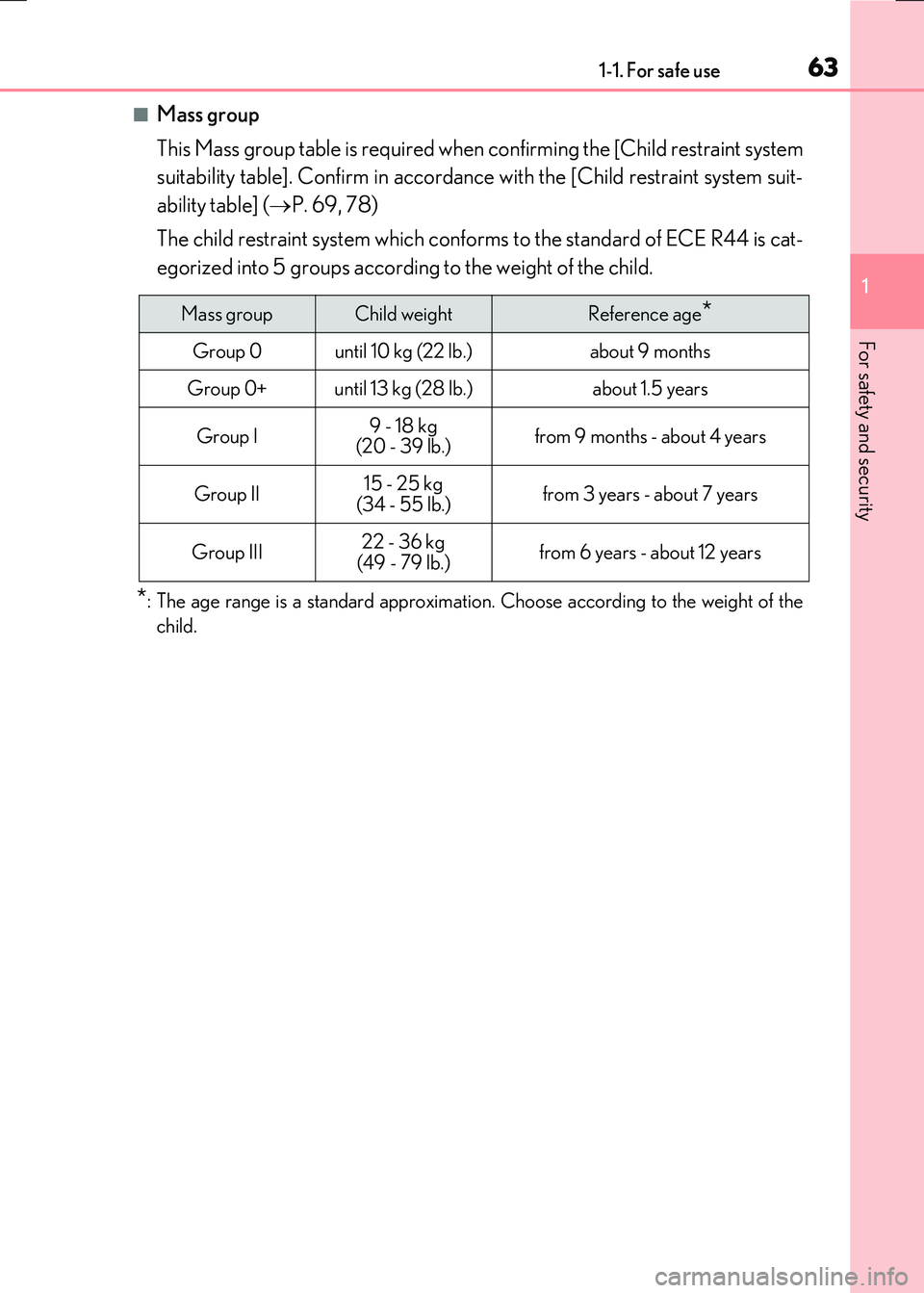

■Mass group
This Mass group table is required when confirming the [Child restraint system
suitability table]. Confirm in accordance with the [Child restraint system suit-
ability table] ( P. 69, 78)
The child restraint system which confor ms to the standard of ECE R44 is cat-
egorized into 5 groups according to the weight of the child.
*: The age range is a standard approximation. Choose according to the weight of the
child.
Mass groupChild weightReference age*
Group 0until 10 kg (22 lb.)about 9 months
Group 0+until 13 kg (28 lb.)about 1.5 years
Group I9 - 18 kg (20 - 39 lb.)from 9 months - about 4 years
Group II15 - 25 kg
(34 - 55 lb.)from 3 years - about 7 years
Group III22 - 36 kg (49 - 79 lb.)from 6 years - about 12 years

641-1. For safe use
RC300h_EE(OM24740E)
■Types of child restraint system installation methods
Confirm with the operation manual enclosed with the child restraint system
about the installation of the child restraint system.
Installation methodPage
Seat belt attachment P. 68
ISOFIX rigid anchor attachment P. 75
Anchor brackets
(for top strap) attachmentP. 82
