731-1. For safe use
1
For safety and security
RC300h_EE(OM24740E)
If your child restraint system is not
equipped with a lock-off (a seat
belt locking feature), secure the
child restraint system using a
locking clip.
After installing the child restraint system, rock it back and forth to ensure
that it is installed securely.
◆Removing a child restraint system installed with a seat belt
Press the buckle release button and
fully retract the seat belt.
When releasing the buckle, the child restraint system may spring up due tothe rebound of the seat cushion.
Release the buckle while holding down the child restraint system.
Since the seat belt automatically
reels itself, slowly return it to the stowing position.
■When installing a child restraint system
You may need a locking clip to install the child restraint system. Follow the instructions provided by the manufacturer of the system. If your child restraint system does not pro-
vide a locking clip, you can purchase the following item from any authorized Lexus dealer or repairer, or another duly qualified and equipped professional: Locking clip for child restrain t system (Part No. 73119-22010)
5
6

741-1. For safe use
RC300h_EE(OM24740E)
WARNING
■When installing a child restraint system
Observe the following precautions. Failure to do so may result in death or serious injury.
●Do not allow children to play with the seat belt. If the seat belt becomes twistedaround a child’s neck, it may lead to choking or other serious injuries that could resultin death. If this occurs and the buckle ca nnot be unfastened, scissors should be used
to cut the belt.
●Ensure that the belt and plate are securely locked and the seat belt is not twisted.
●Shake the child restraint system left and right, and forward and backward to ensure
that it has been securely installed.
● After securing a child restrain t system, never adjust the seat.
●When a junior seat is installed, always ensure that the shoulder belt is positioned
across the center of the child’s shoulder. Th e belt should be kept away from the child’s neck, but not so that it could fall off the child’s shoulder.
●Follow all installation instructions provided by the child restraint system manufacturer.

751-1. For safe use
1
For safety and security
RC300h_EE(OM24740E)
■ISOFIX rigid anchors (ISOFIX child restraint system)
Lower anchors are provided for the
each rear seats. (Mark displaying
the location of the anchors are
attached to the seats.)
■Use a child restraint system that conforms to ECE R44*
Approval marks are displayed on child restraint systems which have con-
formed. ( P. 62)
*: ECE R44 is a U.N. regulation for child restraint systems.
■Child restraint system suitability table
The child restraint system suitability table ( P. 78), with symbols, displays the
types of usable child restraint systems and possible seating position installa-
tion for the child restraint system ow ned by the customer. Also, recommended
child restraint systems suited for in fants can also be selected. Confirm in
accordance with the listed Size class, Anchor, as well as [Confirming the Mass
group and Size class for ECE R44 ISOF IX corresponding child restraint sys-
tems].
Child restraint system fixed with ISOFIX rigid anchors

761-1. For safe use
RC300h_EE(OM24740E)
■ECE R44 child restraint system size classes and anchors
Class Code which represents the child restraint system and the accompany-
ing installation anchor code.
*: Carrycot is a seat for babies which can be attached sideways and orientated to allow
the infant to sleep. For further details, inqu ire with the child restraint system manufac-
turer or dealer.
Size classAnchorShape/SizeDirectional usageChild size
A ISO/F3 Full-Height Forward-facing Small child
BISO/F2Reduced-
HeightForward-facingSmall child
B1ISO/F2XReduced- HeightForward-facingSmall child
CISO/R3Full-SizeRearward-facingSmall child
DISO/R2Reduced-SizeRearward-facingSmall child
EISO/R1—Rearward-facingInfant
FISO/L1Carrycot*Left-facingInfant
GISO/L2Carrycot*Right-facingInfant

771-1. For safe use
1
For safety and security
RC300h_EE(OM24740E)
■Confirming the Mass group and Size class for ECE R44 ISOFIX corre-
sponding child restraint systems
Confirm the corresponding [Mass group] from the weight of the child
( P. 63)
(Ex. 1) When the weight is 12 kg (27 lb.), [Mass group 0+]
(Ex. 2) When the weight is 15 kg (34 lb.), [Mass group I]
Confirming Size class
Select the Size class corresponding to [Mass group] confirmed in step
from the [Child restraint system suitability table] ( P. 78)*.
(Ex. 1) When [Mass group 0+], the corresponding size class is [C], [D], [E].
(Ex. 2) When [Mass group I], the corresponding size class is [A], [B], [B1],
[C], [D].
*: However, listings that are marked with [X] cannot be selected, despite having the
corresponding size class in the suitabilit y table of the [Vehicle ISOFIX position].
Also, select the product designated by [Recommended Child Restraint Systems]
( P. 78), if the listing is marked with [IL].
1
2
1

781-1. For safe use
RC300h_EE(OM24740E)

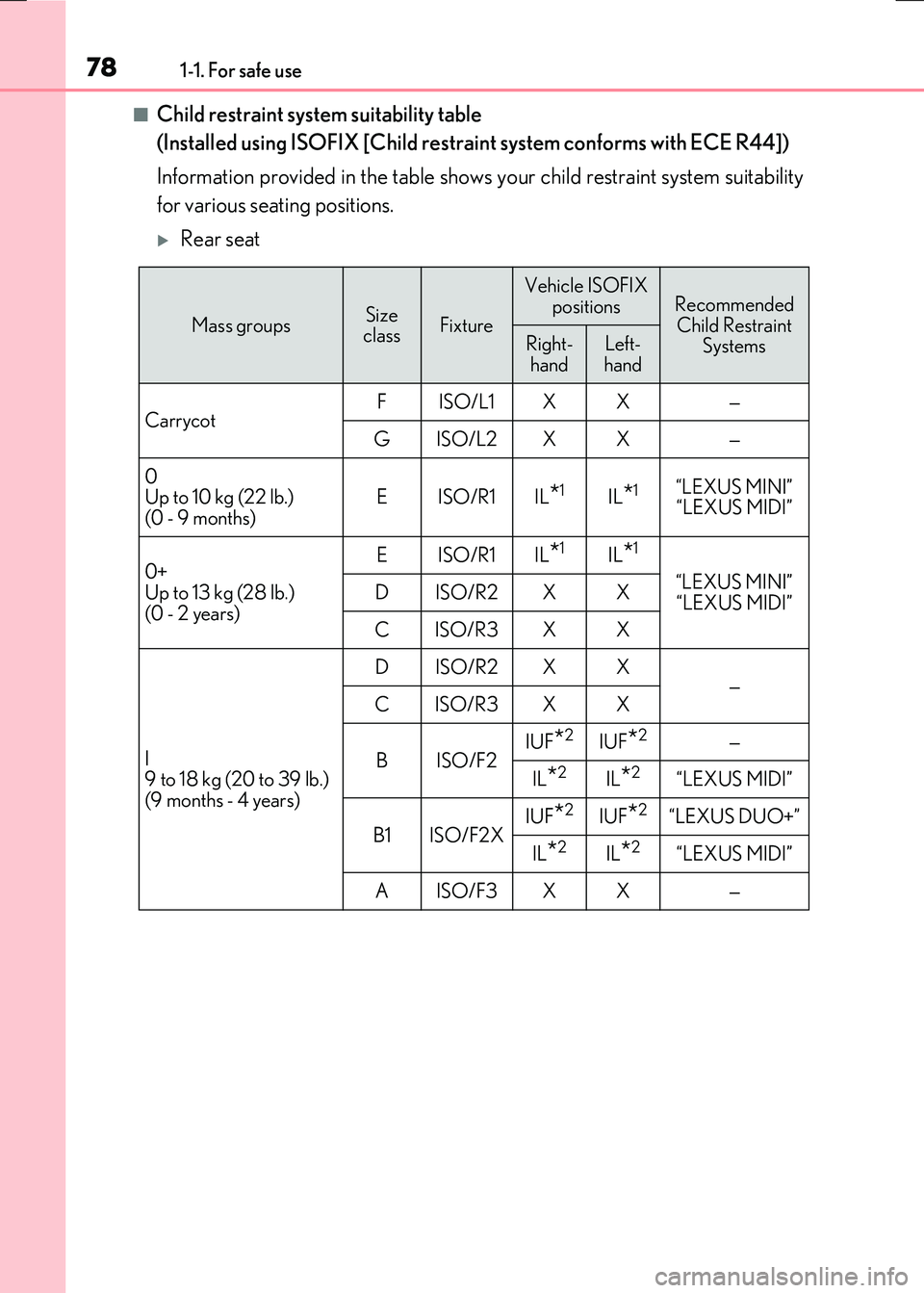

■Child restraint system suitability table
(Installed using ISOFIX [Child restraint system conforms with ECE R44])
Information provided in the table shows your child restraint system suitability
for various seating positions.
Rear seat
Mass groupsSize classFixture
Vehicle ISOFIX
positionsRecommended
Child Restraint SystemsRight-handLeft-hand
Carrycot FISO/L1X X —
GISO/L2X X —
0 Up to 10 kg (22 lb.)
(0 - 9 months)
EISO/R1IL*1IL*1“LEXUS MINI” “LEXUS MIDI”
0+
Up to 13 kg (28 lb.) (0 - 2 years)
EISO/R1IL*1IL*1
“LEXUS MINI” “LEXUS MIDI” DISO/R2X X
CISO/R3X X
I 9 to 18 kg (20 to 39 lb.)(9 months - 4 years)
DISO/R2X X —CISO/R3X X
BISO/F2 IUF*2IUF*2—
IL*2IL*2“LEXUS MIDI”
B1 ISO/F2X IUF*2IUF*2“LEXUS DUO+”
IL*2IL*2“LEXUS MIDI”
AISO/F3X X —

791-1. For safe use
1
For safety and security
RC300h_EE(OM24740E)

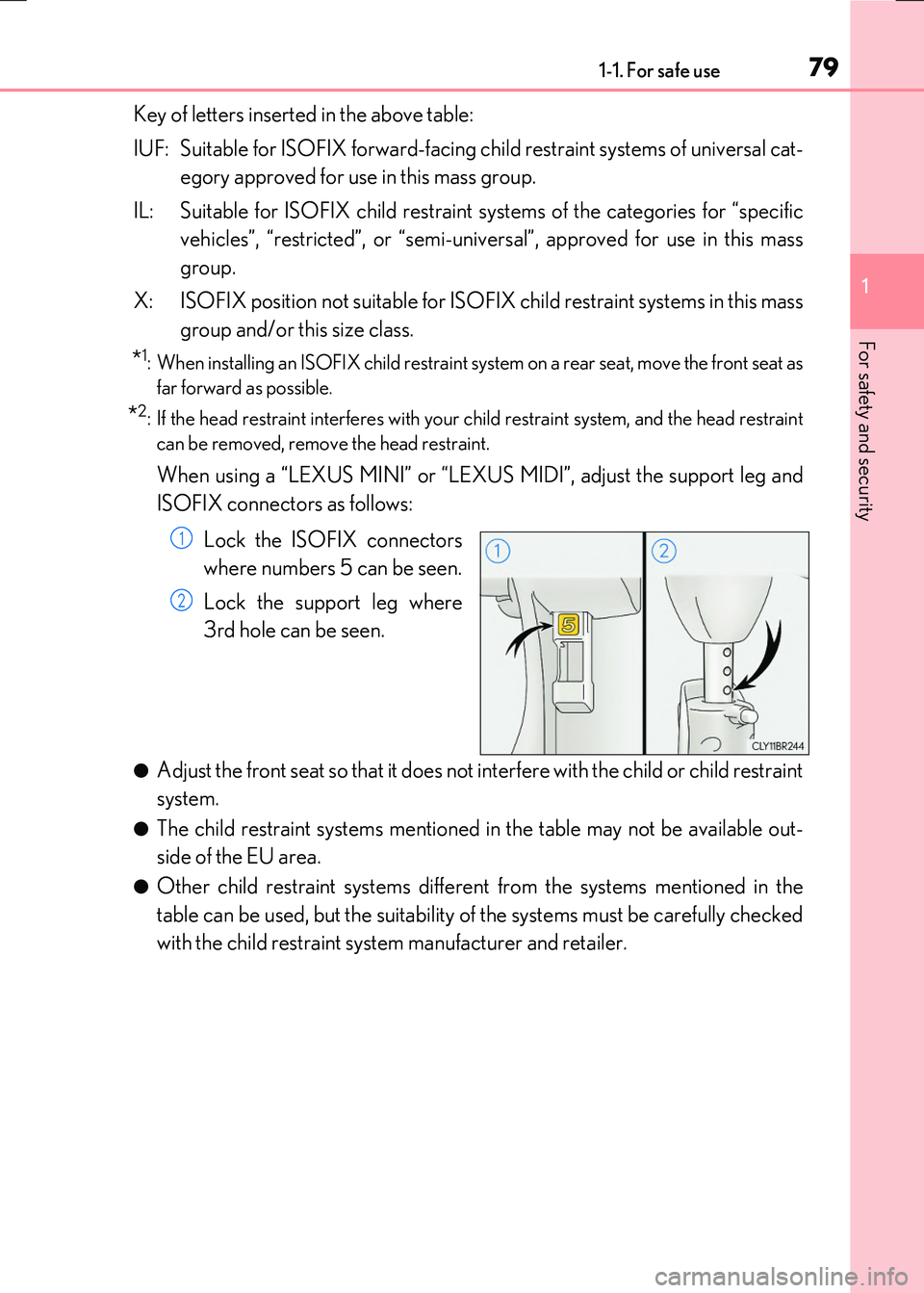

Key of letters inserted in the above table:
IUF: Suitable for ISOFIX forward-facing child restraint systems of universal cat-
egory approved for use in this mass group.
IL: Suitable for ISOFIX child restraint systems of the categories for “specific
vehicles”, “restricted”, or “semi-universal”, approved for use in this mass
group.
X: ISOFIX position not suitable for ISOFIX child restraint systems in this mass
group and/or this size class.
*1: When installing an ISOFIX child restraint system on a rear seat, move the front seat as
far forward as possible.
*2: If the head restraint interferes with your child restraint system, and the head restraint
can be removed, remove the head restraint.
When using a “LEXUS MINI” or “LEXUS MIDI”, adjust the support leg and
ISOFIX connectors as follows:
Lock the ISOFIX connectors
where numbers 5 can be seen.
Lock the support leg where
3rd hole can be seen.
●Adjust the front seat so that it does not interfere with the child or child restraint
system.
●The child restraint systems mentioned in the table may not be available out-
side of the EU area.
●Other child restraint systems different from the systems mentioned in the
table can be used, but the suitability of the systems must be carefully checked
with the child restraint system manufacturer and retailer.
1
2

801-1. For safe use
RC300h_EE(OM24740E)
■Installation with ISOFIX rigid anchor (ISOFIX child restraint system)
Install the child restraint system in accordance to the operation manual
enclosed with the child restraint system.
Remove the head restraint if it
interferes with your child restraint
system. ( P. 186)
Check the positions of the exclu-
sive fixing bars, and install the
child restraint system to the seat.
After installing the child restraint system, rock it back and forth to ensure
that it is installed securely.
1
2
3
