5938-2. Steps to take in an emergency
8
When trouble arises
RC300h_EE(OM24740E)

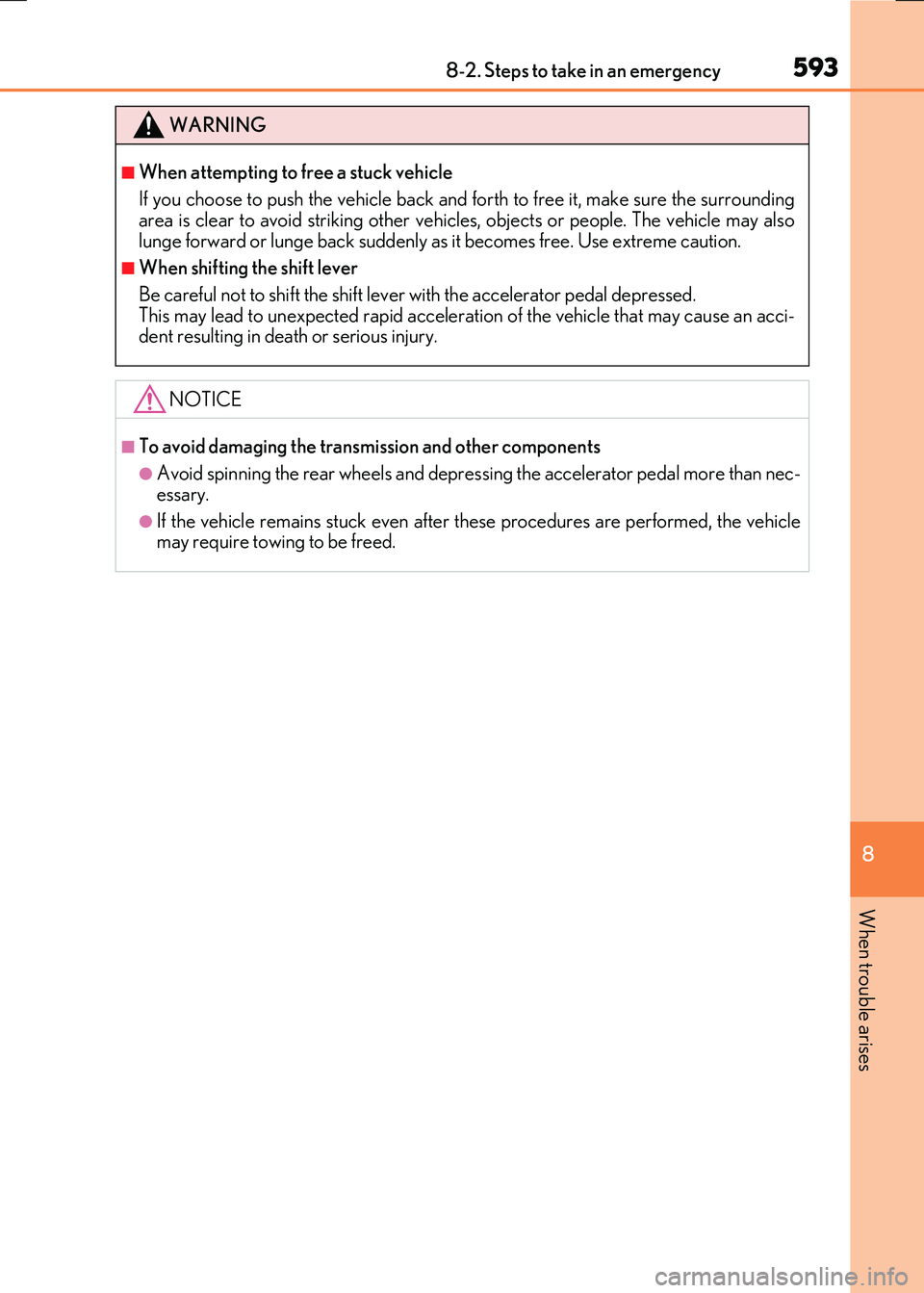

WARNING
■When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the surrounding area is clear to avoid striking other vehi cles, objects or people. The vehicle may also
lunge forward or lunge back suddenly as it becomes free. Use extreme caution.
■When shifting the shift lever
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may cause an acci- dent resulting in death or serious injury.
NOTICE
■To avoid damaging the transmission and other components
●Avoid spinning the rear wheels and depressing the accelerator pedal more than nec-
essary.
●If the vehicle remains stuck even after these procedures are performed, the vehicle may require towing to be freed.

5948-2. Steps to take in an emergency
RC300h_EE(OM24740E)

595

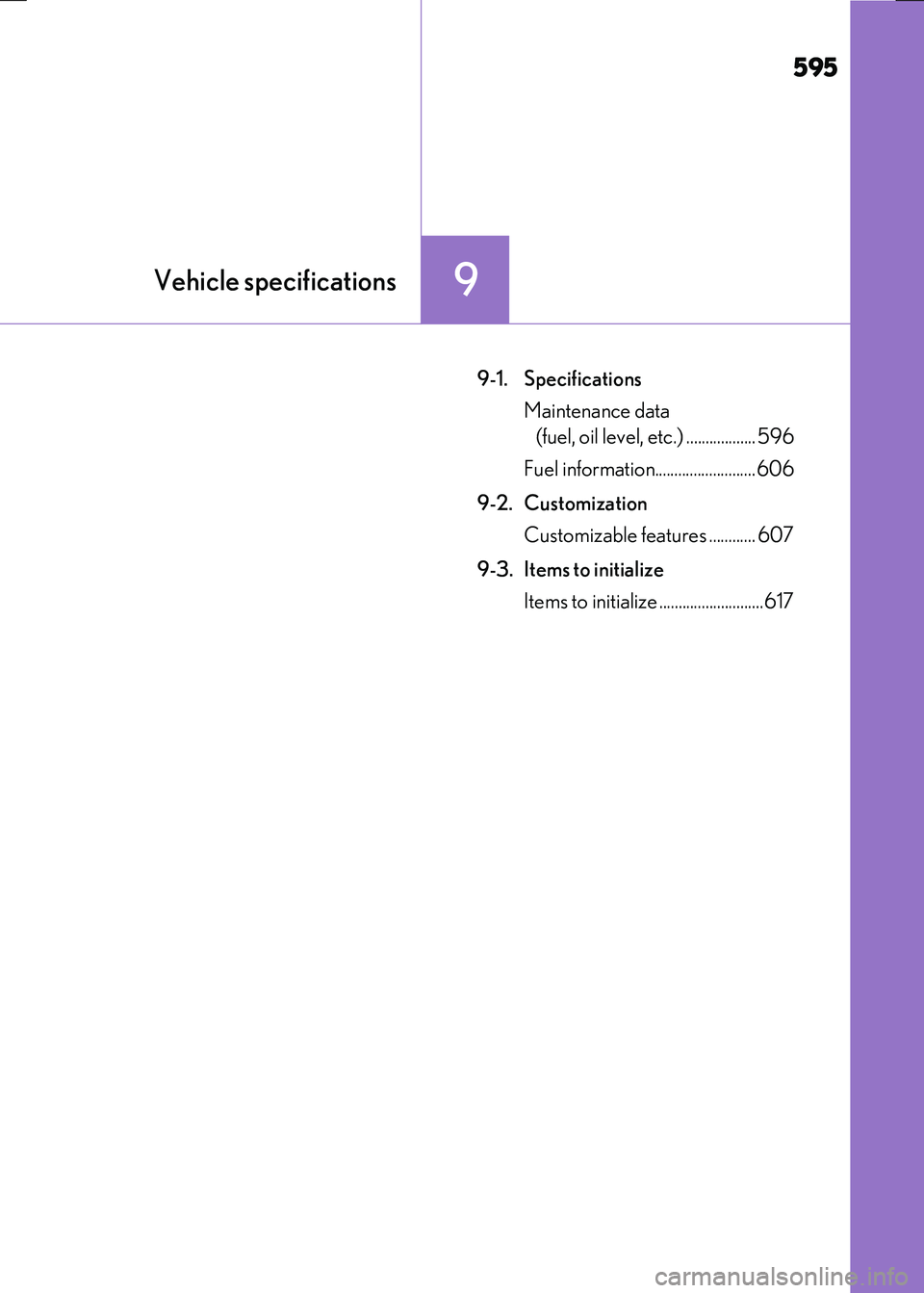

9Vehicle specifications
RC300h_EE(OM24740E)
9-1. Specifications
Maintenance data
(fuel, oil level, etc.) .................. 596
Fuel information..........................606
9-2. Customization
Customizable features ............ 607
9-3. Items to initialize
Items to initialize ...........................617

596
RC300h_EE(OM24740E)
9-1. Specifications
*1: Unladen vehicle
*2: Vehicles with 265/35R19 tires
Maintenance data (fuel, oil level, etc.)
Dimensions and weights
Overall length 4695 mm (184.8 in.)
Overall width 1840 mm (72.4 in.)
Overall height*11395 mm (54.9 in.)
Wheelbase 2730 mm (107.5 in.)
Tread*1Front 1580 mm (62.2 in.)
Rear 1600 mm (63.0 in.) 1570 mm (61.8 in.)*2
Gross vehicle mass 2170 kg (4784 lb.)
Maximum permissi-
ble axle capacity
Front 1120 kg (2469 lb.)
Rear 1205 kg (2657 lb.)

597
9
9-1. Specifications
Vehicle specifications
RC300h_EE(OM24740E)

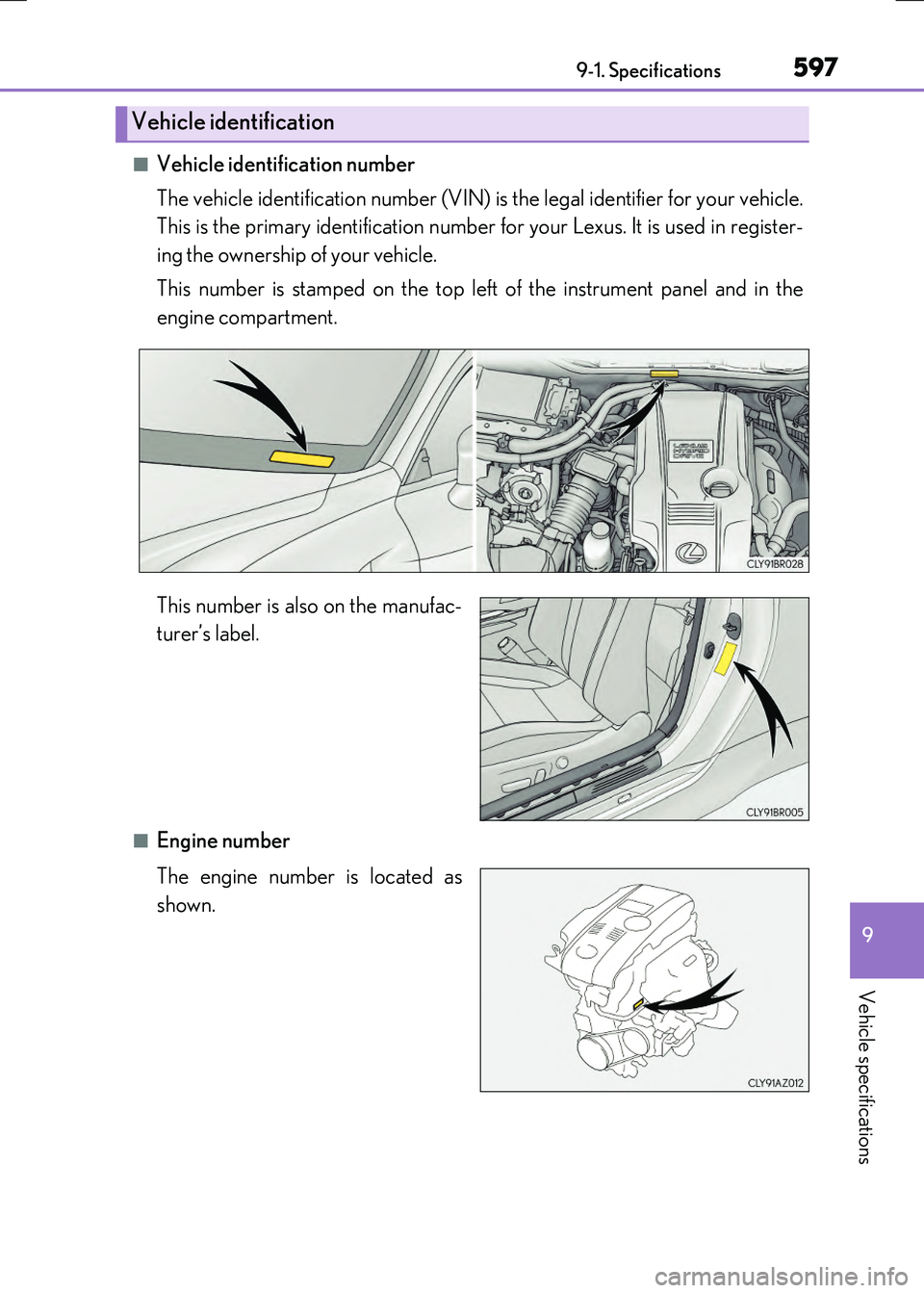

■Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for your vehicle.
This is the primary identification number for your Lexus. It is used in register-
ing the ownership of your vehicle.
This number is stamped on the top left of the instrument panel and in the
engine compartment.
This number is also on the manufac-
turer’s label.
■Engine number
The engine number is located as
shown.
Vehicle identification

5989-1. Specifications
RC300h_EE(OM24740E)
Engine
Model2AR-FSE
Type4-cylinder in line, 4-cycle, gasoline
Bore and stroke90.0  98.0 mm (3.54  3.86 in.)
Displacement2494 cm3 (152.2 cu. in.)
Valve clearanceAutomatic adjustment
Drive belt tensionAutomatic adjustment
Fuel
Fuel type
EU area: Unleaded gasoline conforming to European standard
EN228 only Except EU area: Unleaded gasoline only
Research Octane Number95 or higher
Fuel tank capacity
(Reference)66 L (17.4 gal., 14.5 Imp. gal.)
Electric motor (t raction motor)
TypePermanent magnet synchronous motor
Maximum output105 kW
Maximum torque300 N•m (30.6 kgf•m, 221.3 ft•lbf)
Hybrid battery (traction battery)
TypeNickel-Metal hydride battery
Voltage7.2 V/module
Capacity6.5 Ah (3HR)
Quantity32 modules
Overall voltage230.4 V

599
9
9-1. Specifications
Vehicle specifications
RC300h_EE(OM24740E)
■Oil capacity (Drain an d refill [Reference*])
*: The engine oil capacity is a reference quantity to be used when changing the engine
oil. Warm up the engine and turn off the hybrid system, wait more than 5 minutes, and
check the oil level on the dipstick.
■Engine oil selection
“Toyota Genuine Motor Oil” is used in your Lexus vehicle. Lexus recom-
mends the use of approved “Toyota Genuine Motor Oil”. Another motor oil of
matching quality can also be used.
Oil grade:
0W-20, 5W-30 and 10W-30:
API grade SL “Energy-Conserving ”, SM “Energy-Conserving” or SN
“Resource-Conserving”; or IL SAC multigrade engine oil
15W-40:
API grade SL, SM or SN multigrade engine oil
Recommended viscosity (SAE):
SAE 0W-20 is filled into your Lexus
vehicle at manufacturing, and the
best choice for good fuel economy
and good starting in cold weather.
If SAE 0W-20 oil is not available,
SAE 5W-30 oil may be used. How-
ever, it should be replaced with SAE
0W-20 at the next oil change.
If you use SAE 10W-30 or a higher
viscosity engine oil in extremely low
temperatures, the engine may
become difficult to start, so SAE
0W-20 or 5W-30 engine oil is rec-
ommended.
Lubrication system
With filter4.5 L (4.8 qt., 4.0 Imp. qt.)
Without filter4.1 L (4.3. qt., 3.6 Imp. qt.)
Temperature range anticipated before
next oil change
Preferred

6009-1. Specifications
RC300h_EE(OM24740E)
Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which allows cold
startability. Oils with a lower value before the W allow for easier starting of
the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil when the
oil is at high temperature. An oil with a higher viscosity (one with a higher
value) may be better suited if the vehicle is operated at high speeds, or
under extreme load conditions.
How to read oil container labels:
Either or both API registered marks are added to some oil containers to help
you select the oil you should use.
API Service Symbol
Top portion: “API SERVICE SN” means the oil quality designation byAmerican Petroleum Institute (API).
Center portion: “SAE 0W-20” means the SAE viscosity grade.Lower portion: “Resource-Conserv-
ing” means that the oil has fuel-saving and environmental protection capa-bilities.
ILSAC Certification Mark
The International Lubricant Specificatio n Advisory Committee (ILSAC) Certifica-
tion Mark is displayed on the front of the container.
1
2
