2017 LEXUS RC300H Owners Manual

411-1. For safe use
1
For safety and security
RC300h_EE(OM24740E)
WARNING
Observe the following precautions to reduce the risk of injury in the event of sudden braking, sudden swerving or an accident.Failure to do so may cause death or serious injury.
■Wearing a seat belt
●Ensure that all passengers wear a seat belt.
●Always wear a seat belt properly.
●Each seat belt should be used by one pe rson only. Do not use a seat belt for more than one person at on ce, including children.
●Lexus recommends that children be seated in the rear seat and always use a seat belt
and/or an appropriate child restraint system.
●To achieve a proper seating position, do no t recline the seat more than necessary. The seat belt is most effective when the occupants are sitting up straight and well back in
the seats.
●Do not wear the shoulder belt under your arm.
●Always wear your seat belt low and snug across your hips.
■Pregnant women
Obtain medical advice and wear the seat belt
in the proper way. ( P. 38)
Women who are pregnant should position the lap belt as low as possible over the hips in the
same manner as other occupants, extending the shoulder belt completely over the shoulderand avoiding belt contact with the rounding of
the abdominal area.
If the seat belt is not worn properly, not only the pregnant woman, but also the fetus could suffer
death or serious injury as a result of sudden braking or a collision.

421-1. For safe use
RC300h_EE(OM24740E)
WARNING
■People suffering illness
Obtain medical advice and wear the seat belt in the proper way. ( P. 38)
■When children are in the vehicle
Do not allow children to play with the seat belt. If the seat belt becomes twisted around a child’s neck, it may lead to choking or othe r serious injuries that could result in death. If this occurs and the buckle cannot be unfastened, scissors should be used to cut the
belt.
■Seat belt pretensioners
If the pretensioner has activated, the SRS warn ing light will come on. In that case, the
seat belt cannot be used again and must be replaced at any authorized Lexus dealer or repairer, or another duly qualified and equipped professional.
■Seat belt damage and wear
●Do not damage the seat belts by allowing the belt, plate, or buckle to be jammed in the door.
●Inspect the seat belt system periodically. Check for cuts, fraying, and loose parts. Do
not use a damaged seat belt until it is re placed. Damaged seat belts cannot protect an occupant from death or serious injury.
●Ensure that the belt and plate are locked and the belt is not twisted.
If the seat belt does not function correctly, immediately contact any authorized Lexus dealer or repairer, or another duly qualified and equipped professional.
●Replace the seat assembly, incl uding the belts, if your vehicle has been involved in a
serious accident, even if there is no obvious damage.
●Do not attempt to install, remove, modify, disassemble or dispose of the seat belts. Have any necessary repairs carried out by any authorized Lexus dealer or repairer,
or another duly qualified and equipped professional. Inappropriate handling may lead to incorrect operation.
■When using the seat belt guide
●Always make sure that the belt is not twisted, and runs freely through the guide.
●Regardless of whether the guide is used or not, always secure the seat belt guide but-ton.
●Do not hang from or pull the guide forcefully.

431-1. For safe use
1
For safety and security
RC300h_EE(OM24740E)

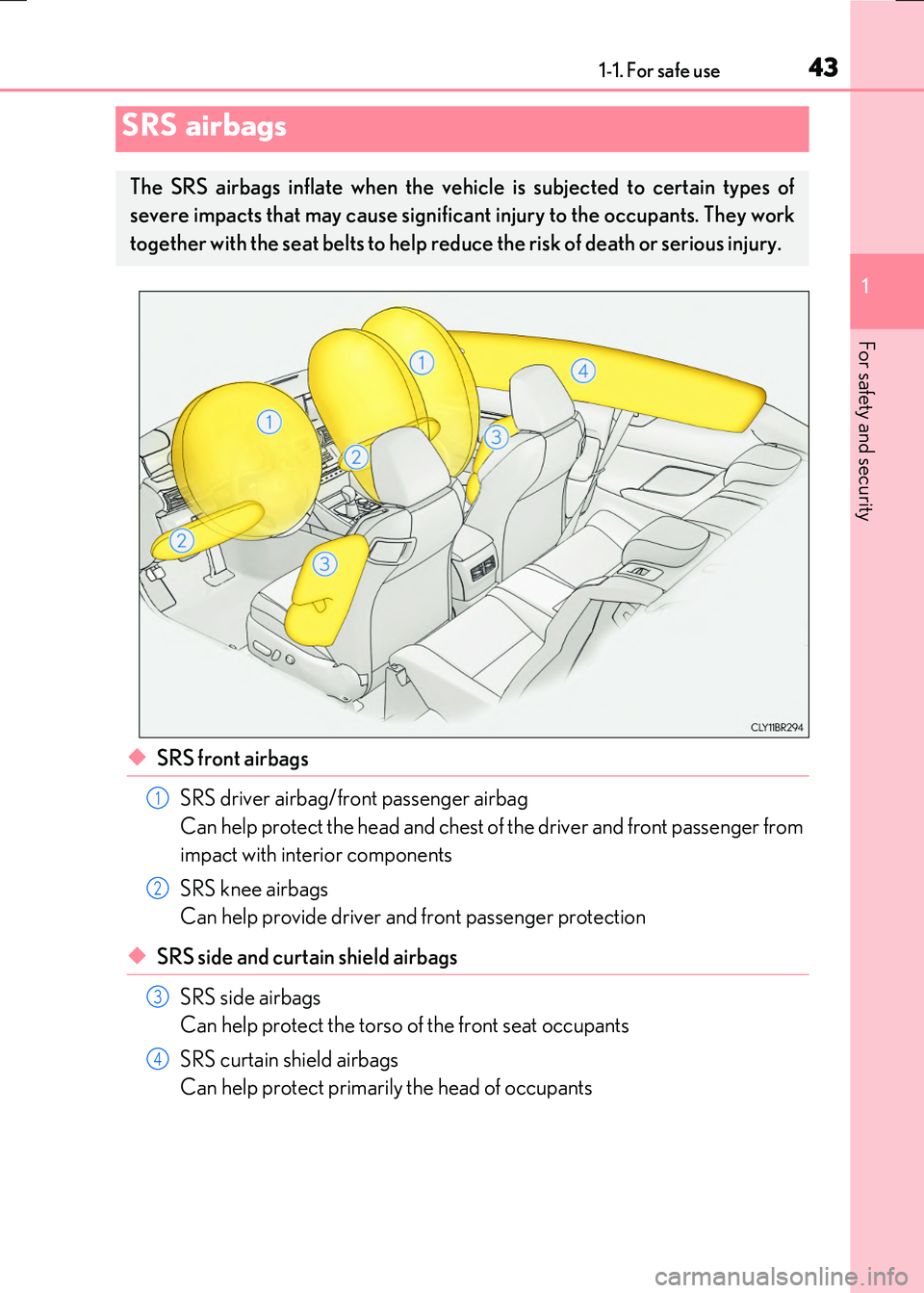

◆SRS front airbags
SRS driver airbag/front passenger airbag
Can help protect the head and chest of the driver and front passenger from
impact with interior components
SRS knee airbags
Can help provide driver and front passenger protection
◆SRS side and curtain shield airbags
SRS side airbags
Can help protect the torso of the front seat occupants
SRS curtain shield airbags
Can help protect primarily the head of occupants
SRS airbags
The SRS airbags inflate when the vehicle is subjected to certain types of
severe impacts that may cause signific ant injury to the occupants. They work
together with the seat belts to help reduce the risk of death or serious injury.
1
2
3
4

441-1. For safe use
RC300h_EE(OM24740E)
SRS airbag system components
Pop up hood lifters
Airbag manual on-off switch
Front passenger airbag
Curtain shield airbags
Knee airbags
“PASSENGER AIR BAG” indica-
tor lights
Seat belt pretensioners and force
limiters
Side impact sensors (front)
Front side airbags
SRS warning light
Driver airbag
Side impact sensors (rear)
Driver’s seat position sensor
Driver’s seat belt buckle switch
Airbag sensor assembly
Front impact sensors
Pop up hood sensors
Side impact sensors (door)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18

451-1. For safe use
1
For safety and security
RC300h_EE(OM24740E)
The main SRS airbag system and Pop Up Hood components are shown above.
The SRS airbag system and Pop Up Hood are controlled by the airbag sensor
assembly. As the airbags deploy, a chemical reaction in the inflators quickly fills
the airbags with non-toxic gas to help restrain the motion of the occupants.
When the Pop Up Hood is activated, a non-toxic gas is released due to a chemi-
cal reaction in the lifters, which causes the pistons to eject quickly and raise the
rear portion of the hood. (Pop Up Hood: P. 56)
WARNING
■SRS airbag precautions
Observe the following precaution s regarding the SRS airbags. Failure to do so may cause death or serious injury.
●The driver and all passengers in the vehicle must wear their seat belts properly.The SRS airbags are supplemental devices to be used with the seat belts.
●The SRS driver airbag deploys with considerable force, and can cause death or seri-
ous injury especially if the driv er is very close to the airbag.
Since the risk zone for the driver’s airbag is the first 50 - 75 mm (2 - 3 in.) of inflation, placing yourself 250 mm (10 in.) from your driver airbag provides you with a clear
margin of safety. This distance is measured from the center of the steering wheel to your breastbone. If you sit less than 250 mm (10 in.) away now, you can change yourdriving position in several ways:
• Move your seat to the rear as far as you can while still reaching the pedals com- fortably.• Slightly recline the back of the seat.
Although vehicle designs vary, many drivers can achieve the 250 mm (10 in.) dis- tance, even with the driver seat all the way forward, simply by reclining the back ofthe seat somewhat. If reclining the back of your seat makes it hard to see the road,
raise yourself by using a firm, non-slippery cushion, or raise the seat if your vehicle has that feature.• If your steering wheel is adjustable, tilt it downward. This points the airbag toward
your chest instead of your head and neck. The seat should be adjusted as recommend ed above, while still maintaining control of the foot pedals, steering wheel, and your view of the instrument panel controls.

461-1. For safe use
RC300h_EE(OM24740E)
WARNING
■SRS airbag precautions
●The SRS front passenger airbag also deploys with considerable force, and can cause death or serious injury especially if the fron t passenger is very close to the airbag. The
front passenger seat should be as far from the airbag as possible with the seatback adjusted, so the front passenger sits upright.
●Improperly seated and/or restrained infant s and children can be killed or seriously
injured by a deploying airbag. An infant or child who is too small to use a seat belt should be properly secured using a child restraint system. Lexus strongly recom- mends that all infants and children be placed in the rear seats of the vehicle and prop-
erly restrained. The rear seats are safer for infants and children than the front passenger seat. ( P. 60)
●Do not sit on the edge of the seat or lean against the dashboard.
●Do not allow a child to stand in front of theSRS front passenger airbag unit or sit on the
knees of a front passenger.
●Do not allow the front seat occupants to hold items on their knees.
●Do not lean against the door, the roof side railor the front, side and rear pillars.

471-1. For safe use
1
For safety and security
RC300h_EE(OM24740E)
WARNING
■SRS airbag precautions
●Do not hang coat hangers or hard objects on the coat hooks. All of these items could become projectiles and may cause death or serious injury, should the SRS curtain
shield airbags deploy.
●If a vinyl cover is put on the area where the SRS knee airbag will deploy, be sure to remove it.
●Do not use seat accessories which cover the parts where the SRS side airbags inflateas they may interfere with inflation of th e airbags. Such accessories may prevent the side airbags from activating correctly, disable the system or cause the side airbags to
inflate accidentally, resulting in death or serious injury.
●Do not allow anyone to kneel on the passen-
ger seats toward the door or put their head or hands outside the vehicle.
●Do not attach anything to or lean anythingagainst areas such as the dashboard, steeringwheel pad and lower portion of the instru-
ment panel. These items can become projectiles when theSRS driver, front passenger and knee airbags
deploy.
●Do not attach anything to areas such as a door, windshield, side window, front or rear pillar,roof side rail and assist grip. (Except for the
speed limit sticker P. 568)

481-1. For safe use
RC300h_EE(OM24740E)
WARNING
■SRS airbag precautions
●Do not strike or apply significant levels of force to the area of the SRS airbag compo- nents.
Doing so can cause the SRS airbags to malfunction.
●Do not touch any of the component parts immediately after the SRS airbags have deployed (inflated) as they may be hot.
●If breathing becomes difficult after the SRS airbags have deployed, open a door orwindow to allow fresh air in, or leave the vehicle if it is safe to do so. Wash off any resi-due as soon as possible to prevent skin irritation.
●If the areas where the SRS airbags are stored, such as the steering wheel pad andfront and rear pillar garnishes are damaged or cracked, have them replaced by anyauthorized Lexus dealer or repairer, or an other duly qualified and equipped profes-
sional.
■Modification and disposal of SRS airbag system components
Do not dispose of your vehicle or perform any of the following modifications without
consulting any authorized Lexus dealer or repairer, or another duly qualified and equipped professional. The SRS airbags may malfunction or deploy (inflate) acciden-tally, causing death or serious injury.
●Installation, removal, disassembly and repair of the SRS airbags
●Repairs, modifications, removal or repl acement of the steering wheel, instrument panel, dashboard, seats or seat upholstery, fr ont, side and rear pillars or roof side rails
●Repairs or modifications of the front fender, front bumper, or side of the occupant compartment
●Installation of a grille guard (bull bars, kangaroo bar, etc.), snow plows, winches
●Modifications to the vehicle’s suspension system
●Installation of electronic devices such as mobile two-way radios (RF-transmitter) and CD players
●Modifications to your vehicle for a person with a physical disability
