2017 LEXUS RC300H Owners Manual

5458-2. Steps to take in an emergency
8
When trouble arises
RC300h_EE(OM24740E)
Indicates a malfunction in the Lexus parking assist-sen-
sor A buzzer also sounds. Have the vehicle inspected by any authorized Lexus
dealer or repairer, or another duly qualified and equipped professional.
Indicates that a Lexus parking assist-sensor is dirty or
covered with ice A buzzer also sounds. Clean the sensor.
Indicates that the accelerator pedal is depressed while the shift position is in NA buzzer also sounds.
 Release the accelerator pedal and shift the shift lever to D, S or R.
Indicates that the accelerator pedal is depressed to stopthe vehicle on an upward slope, etc.
A buzzer also sounds.  Release the accelerator pedal and depress the brake pedal.
Warning messageDetails/Actions
(Flashes)
(Flashes)

5468-2. Steps to take in an emergency
RC300h_EE(OM24740E)
Indicates that the hybrid battery (traction battery) power
has dropped because a long period of time has elapsed after shifting the shift lever to NA buzzer also sounds.
 Restart the hybrid system when starting the vehicle.
Indicates a malfunction in the hybrid system
A buzzer also sounds.  Immediately stop the vehicle in a safe place and contact any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional.
Indicates that the hybrid battery (traction battery) is low A buzzer also sounds. When stopping the vehicle for a long period of time,
shift the shift lever to P. The hybrid battery (traction battery) cannot be charged with the shift lever in N.
Indicates a malfunction in the EPS (Electric Power Steer-
ing) system A buzzer also sounds. Have the vehicle inspected by any authorized Lexus
dealer or repairer, or another duly qualified and equipped professional.
Warning messageDetails/Actions
(Flashes)
(Flashes)

5478-2. Steps to take in an emergency
8
When trouble arises
RC300h_EE(OM24740E)
Indicates that the vehicle is being driven at 5 km/h (3 mph) or more with the parking brake still engaged
A buzzer also sounds.  Release the parking brake.
Indicates a malfunction in: • The SRS airbag system; or• The seat belt pretensioner system
A buzzer also sounds.  Have the vehicle inspected by any authorized Lexus dealer or repairer, or another duly qualified and
equipped professional.
Indicates a malfunction in: •The ABS; or• The brake assist system
A buzzer also sounds.  Have the vehicle inspected by any authorized Lexus dealer or repairer, or another duly qualified and
equipped professional.
Indicates that the engine coolant temperature is too high
A buzzer also sounds.  P. 587
(If equipped)
Indicates that the radar sensor is dirty or covered with ice
A buzzer also sounds.  Clean the sensor.
Warning messageDetails/Actions
(Flashes)

5488-2. Steps to take in an emergency
RC300h_EE(OM24740E)
(If equipped)
Indicates that the dynamic radar cruise control system is
unable to judge vehicle-to-vehicle distance A buzzer also sounds. Turn off snow mode.
If the windshield wipers are on, turn them off or set them to a mode other than AUTO or high speedwiper operation.
(If equipped)
Indicates that the LDA (Lane Departure Alert) system issuspended (The camera sensor temperature is higher
than the operation temperature range) A buzzer also sounds. Restart the LDA after driving for a while.
(If equipped)
Indicates that a Blind Spot Monitor sensor or the sur- rounding area on the rear bumper is dirty or covered
with snow, ice, etc. or that a sensor is misaligned A buzzer also sounds. Clean off the dirt, snow, ice, etc. and drive the vehi-
cle with the operation conditions of the BSM func- tion ( P. 327) satisfied for approximately 10
minutes. If the warning message does not disappear, the sensor may be misaligned. Have the vehicleinspected by any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional.
Indicates a malfunction in:• The cruise control system; or
• The dynamic radar cruise control system (if equipped) Press the “ON/OFF” button once to deactivate thesystem, and then press the button again to reactivate
the system. A buzzer also sounds. Have the vehicle inspected by any authorized Lexus
dealer or repairer, or another duly qualified and equipped professional.
Warning messageDetails/Actions

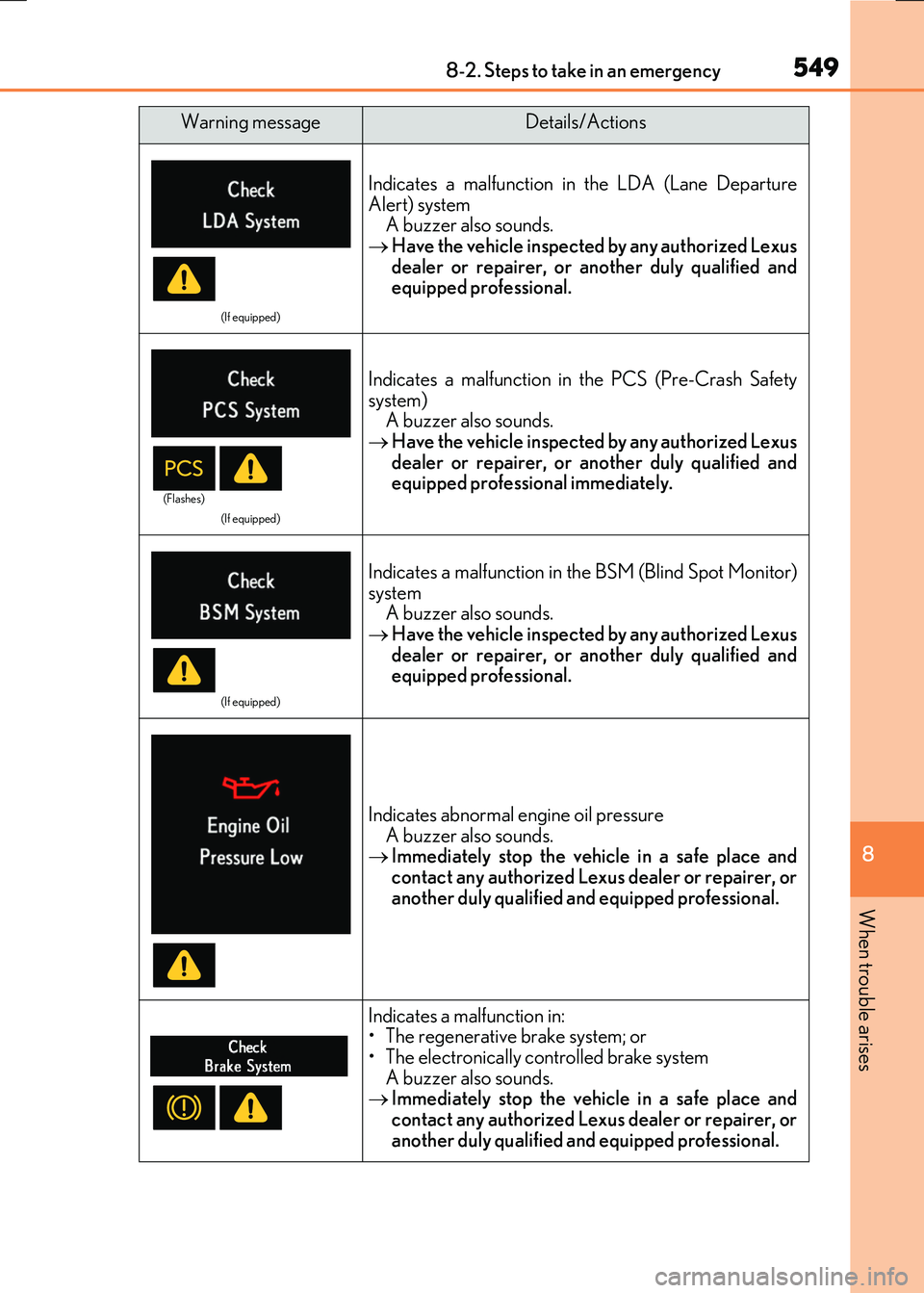

5498-2. Steps to take in an emergency
8
When trouble arises
RC300h_EE(OM24740E)
(If equipped)
Indicates a malfunction in the LDA (Lane Departure
Alert) system A buzzer also sounds. Have the vehicle inspected by any authorized Lexus
dealer or repairer, or another duly qualified and equipped professional.
(If equipped)
Indicates a malfunction in the PCS (Pre-Crash Safetysystem)A buzzer also sounds.
 Have the vehicle inspected by any authorized Lexus dealer or repairer, or another duly qualified andequipped professional immediately.
(If equipped)
Indicates a malfunction in the BSM (Blind Spot Monitor)
system A buzzer also sounds. Have the vehicle inspected by any authorized Lexus
dealer or repairer, or another duly qualified and equipped professional.
Indicates abnormal engine oil pressure
A buzzer also sounds.  Immediately stop the vehicle in a safe place and contact any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional.
Indicates a malfunction in: • The regenerative brake system; or• The electronically controlled brake system
A buzzer also sounds.  Immediately stop the vehicle in a safe place and contact any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional.
Warning messageDetails/Actions
(Flashes)

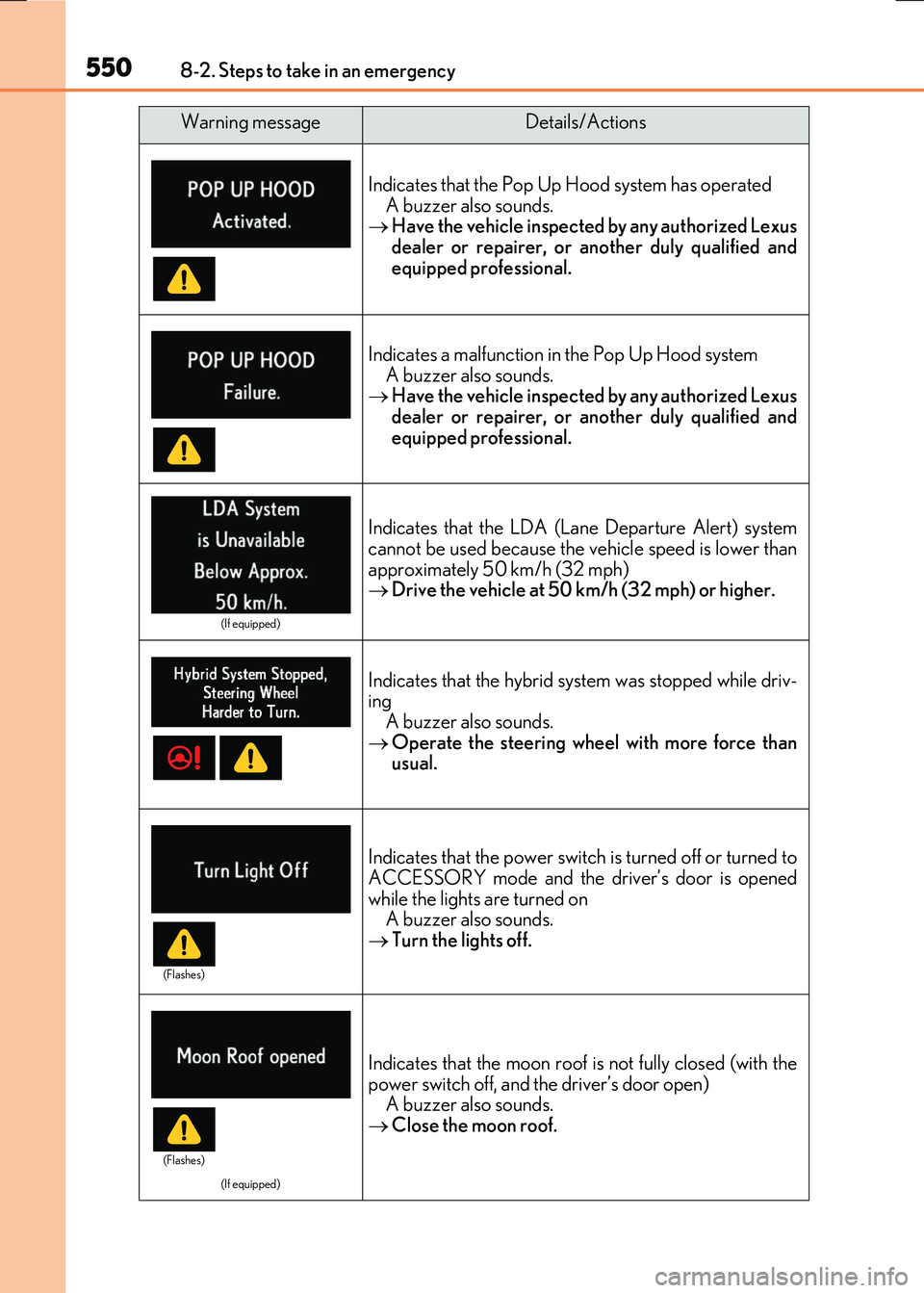

5508-2. Steps to take in an emergency
RC300h_EE(OM24740E)
Indicates that the Pop Up Hood system has operated A buzzer also sounds. Have the vehicle inspected by any authorized Lexus
dealer or repairer, or another duly qualified and equipped professional.
Indicates a malfunction in the Pop Up Hood system A buzzer also sounds. Have the vehicle inspected by any authorized Lexus
dealer or repairer, or another duly qualified and equipped professional.
(If equipped)
Indicates that the LDA (Lane Departure Alert) systemcannot be used because the vehicle speed is lower than
approximately 50 km/h (32 mph)  Drive the vehicle at 50 km/h (32 mph) or higher.
Indicates that the hybrid system was stopped while driv- ingA buzzer also sounds.
 Operate the steering wheel with more force than usual.
Indicates that the power switch is turned off or turned toACCESSORY mode and the driver’s door is opened
while the lights are turned on A buzzer also sounds. Turn the lights off.
(If equipped)
Indicates that the moon roof is not fully closed (with the power switch off, and the driver’s door open)A buzzer also sounds.
 Close the moon roof.
Warning messageDetails/Actions
(Flashes)
(Flashes)

5518-2. Steps to take in an emergency
8
When trouble arises
RC300h_EE(OM24740E)
Indicates that the windows are not fully closed (with the
power switch off, and the driver’s door open) A buzzer also sounds. Close all the windows.
(If equipped)
Indicates that the windows and the moon roof are not fully closed (with the power switch off, and the driver’s
door open) A buzzer also sounds. Close all the windows and the moon roof.
Indicates a malfunction in the brake override system
A buzzer also sounds.  Have the vehicle inspected by any authorized Lexus dealer or repairer, or another duly qualified and
equipped professional.
Indicates that engine oil level is low This message may appear if the vehicle is stopped on a
slope. Move the vehicle to a level surface and check to see if the message disappears.A buzzer also sounds.
 Check the level of engine oil, and add if necessary.
Indicates that the hybrid system has overheated This message may be displayed when driving undersevere operating conditions. (For example, when driv-
ing up a long steep hill.) A buzzer also sounds.
 Stop and check. (P. 587)
Warning messageDetails/Actions
(Flashes)
(Flashes)

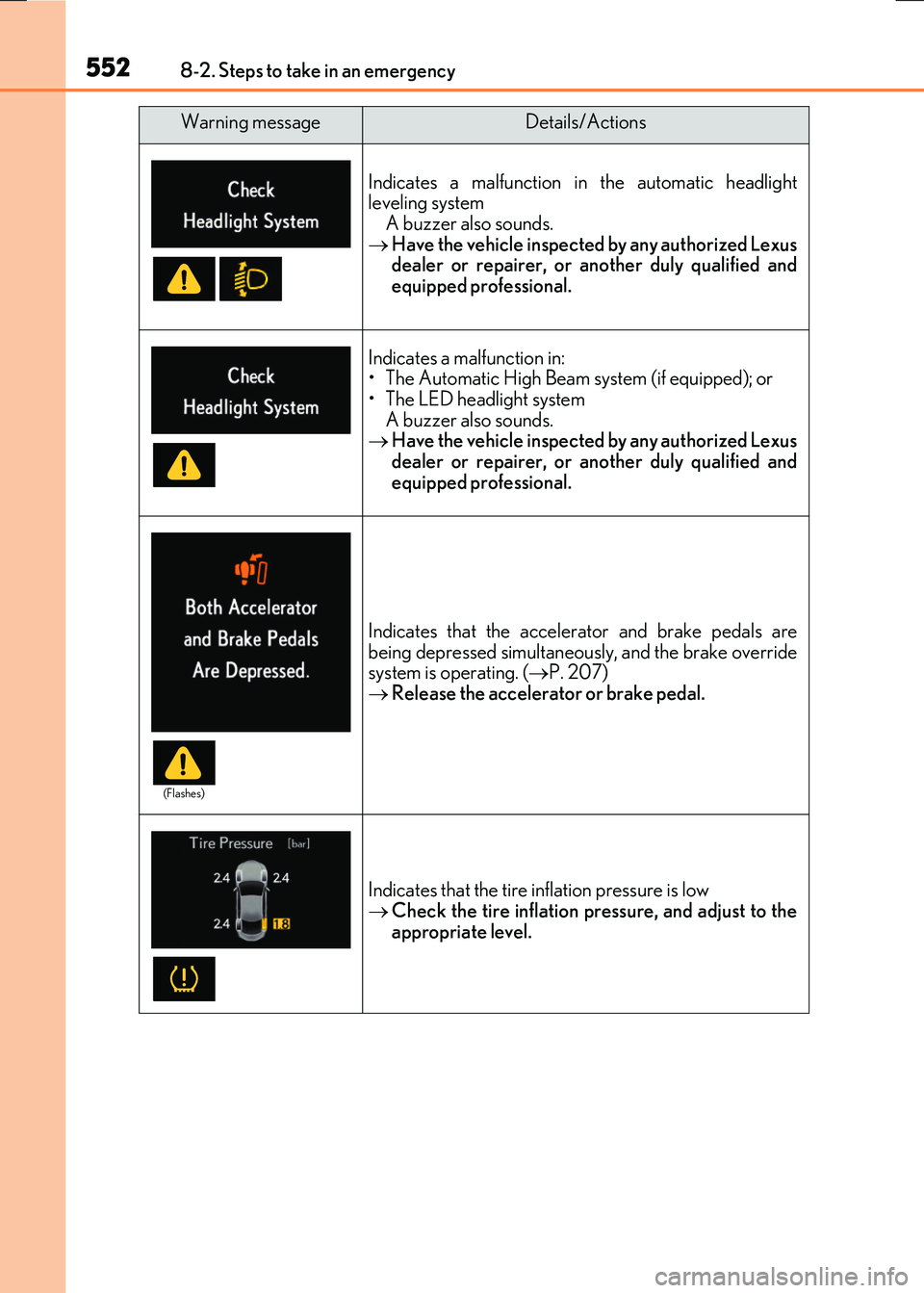

5528-2. Steps to take in an emergency
RC300h_EE(OM24740E)
Indicates a malfunction in the automatic headlight
leveling systemA buzzer also sounds.
 Have the vehicle inspected by any authorized Lexus
dealer or repairer, or another duly qualified and
equipped professional.
Indicates a malfunction in:
• The Automatic High Beam system (if equipped); or
• The LED headlight system A buzzer also sounds.
 Have the vehicle inspected by any authorized Lexus
dealer or repairer, or another duly qualified and
equipped professional.
Indicates that the accelerator and brake pedals are
being depressed simultaneously, and the brake override
system is operating. ( P. 207)
 Release the accelerator or brake pedal.
Indicates that the tire in flation pressure is low
 Check the tire inflation pressure, and adjust to the
appropriate level.
Warning messageDetails/Actions
(Flashes)
