2017 LEXUS RC200T Owners Manual

5777-3. Do-it-yourself maintenance
7
Maintenance and care
RC200t_RC F_EE(OM24728E)
■Replacing the following bulbs
If any of the lights listed below has burnt out, have it replaced by any autho-
rized Lexus dealer or repairer, or another duly qualified and equipped profes-
sional.
●Headlights
●Front position lights and daytime running lights
●Front turn signal lights (LED type)
●Front fog lights (if equipped)
●Side turn signal lights
●Stop/tail lights
●Stop lights
●Tail lights
●Rear fog light
●High mounted stoplight
●License plate lights
■LED lights
The lights other than the front turn signal lights (bulb type), rear turn signal lights and back-up lights each consist of a number of LE Ds. If any of the LEDs burn out, take your vehicle to any authorized Lexus dealer or repairer, or another duly qualified and
equipped professional to have the light replaced.
■Condensation build-up on the inside of the lens
Temporary condensation build-up on the inside of the headlight lens does not indicate a
malfunction. Contact any authorized Lexus dealer or repairer, or another duly qualified and equipped professional for more info rmation in the following situations:
●Large drops of water have built up on the inside of the lens.
●Water has built up inside the headlight.
■When replacing light bulbs
 P. 569

5787-3. Do-it-yourself maintenance
RC200t_RC F_EE(OM24728E)
WARNING
■Replacing light bulbs
●Turn off the lights. Do not attempt to replace the bulb immediately after turning off the lights.
The bulbs become very hot and may cause burns.
●Do not touch the glass portion of the light bulb with bare hands. When it is unavoid- able to hold the glass portion, use and hold with a clean dry cloth to avoid getting
moisture and oils on the bulb. Also, if the bulb is scratched or dropped, it may blow out or crack.
●Fully install light bulbs and any parts used to secure them. Failure to do so may result
in heat damage, fire, or wate r entering the headlight unit. This may damage the head- lights or cause condensation to build up on the lens.
■To prevent damage or fire
●Make sure bulbs are fully seated and locked.
●Check the wattage of the bulb before installing to prevent heat damage.

579
8When trouble arises
RC200t_RC F_EE(OM24728E)
8-1. Essential information
Emergency flashers ................. 580
If your vehicle has to be
stopped in an
emergency.................................. 581
8-2. Steps to take in an
emergency
If your vehicle needs to be
towed ...........................................582
If you think something is
wrong...........................................589
Fuel pump shut off
system ..........................................590
If a warning light turns
on or a warning buzzer
sounds........................................... 591
If a warning message is
displayed .................................... 597
If you have a flat tire
(vehicles with a
spare tire) .................................... 619
If you have a flat tire
(vehicles with an
emergency tire puncture
repair kit) .................................... 633
If the engine will not start ........ 648
If the electronic key does
not operate properly .............650
If the vehicle battery is
discharged ................................. 654
If your vehicle overheats ......... 659
If the vehicle becomes
stuck ............................................. 664

580
RC200t_RC F_EE(OM24728E)
8-1. Essential information
Press the switch.
All the turn signals will flash. To turn them off, press the switch onceagain.
■Emergency flashers
If the emergency flashers are used for a long time while the engine is not operating, the
battery may discharge.
Emergency flashers
The emergency flashers are used to wa rn other drivers when the vehicle has
to be stopped in the road due to a breakdown, etc.

5818-1. Essential information
8
When trouble arises
RC200t_RC F_EE(OM24728E)
Steadily step on the brake pedal with both feet and firmly depress it.
Do not pump the brake pedal repeatedly as this will increase the effort required to slow the vehicle.
Shift the shift lever to N.
If the shift lever is shifted to N
After slowing down, stop the vehicle in a safe place by the road.
Stop the engine.
If the shift lever cannot be shifted to N
Keep depressing the brake pedal with both feet to reduce vehicle speed as
much as possible.
To stop the engine, press and hold
the engine switch for 2 consecutive
seconds or more, or press it briefly 3
times or more in succession.
Stop the vehicle in a safe place by the road.

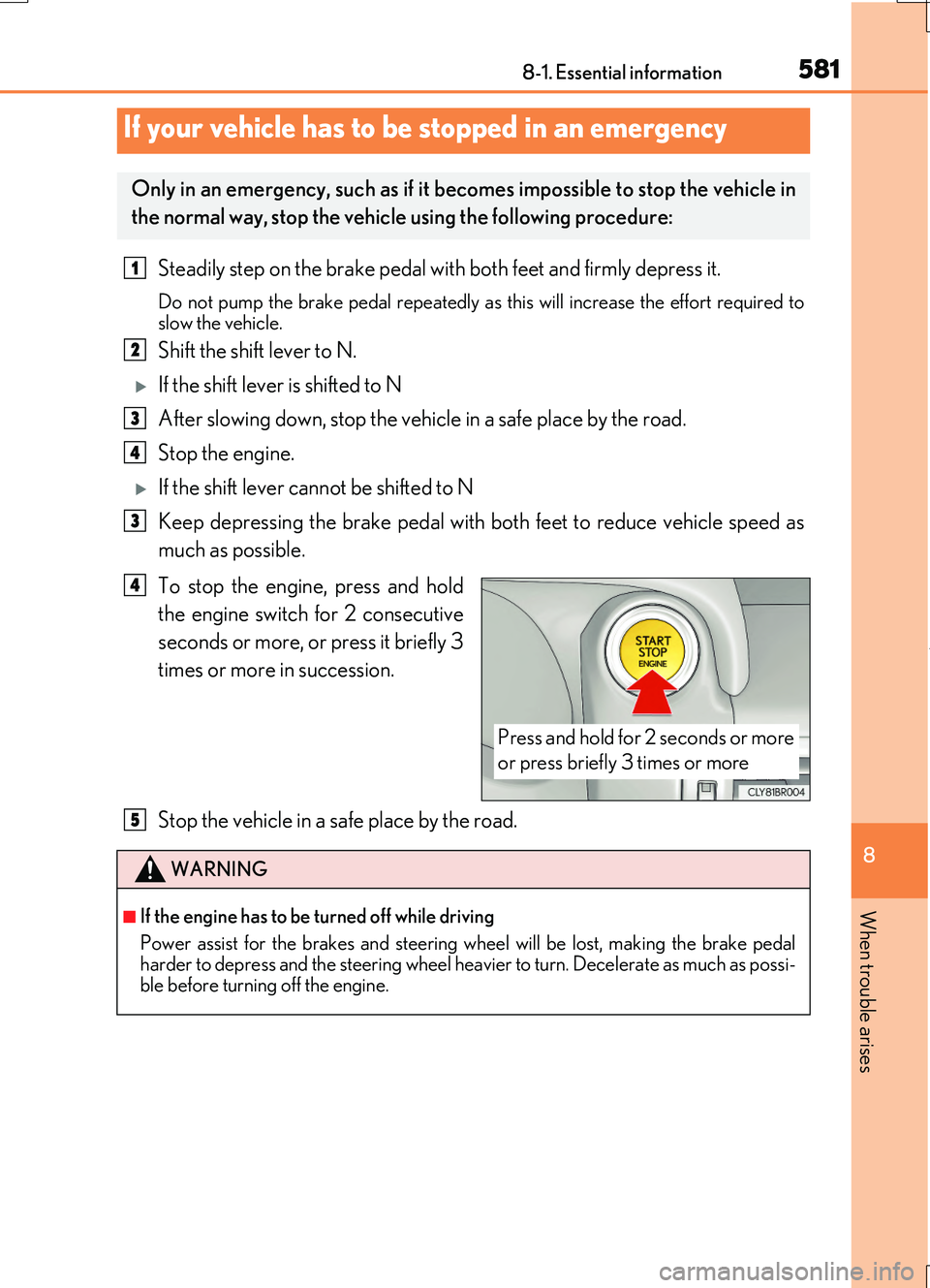

If your vehicle has to be stopped in an emergency
Only in an emergency, such as if it becomes impossible to stop the vehicle in
the normal way, stop the vehicle using the following procedure:
1
2
3
4
3
Press and hold for 2 seconds or more
or press briefly 3 times or more
4
WARNING
■If the engine has to be turned off while driving
Power assist for the brakes and steering wheel will be lost, making the brake pedal harder to depress and the steering wheel heavier to turn. Decelerate as much as possi-
ble before turning off the engine.
5

582
RC200t_RC F_EE(OM24728E)
8-2. Steps to take in an emergency
The following may indicate a problem with your transmission. Contact any
authorized Lexus dealer or repairer, or another duly qualified and equipped pro-
fessional or commercial towing service before towing.
●The engine is running but the vehicle does not move.
●The vehicle makes an abnormal sound.
If your vehicle needs to be towed
If towing is necessary, we recommend having your vehicle towed by any
authorized Lexus dealer or repairer , or another duly qualified and equipped
professional or commercial towing se rvice, using a wheel-lift type truck or
flatbed truck.
Use a safety chain system for all towing , and abide by all state/provincial and
local laws.
Situations when it is necessary to contact dealers before towing

5838-2. Steps to take in an emergency
8
When trouble arises
RC200t_RC F_EE(OM24728E)
Do not tow with a sling-type truck to
prevent body damage.
Towing with a sling-type truck
Towing with a wheel -lift type truck
From the frontFrom the rear
Use a towing dolly under the rear
wheels.
Use a towing dolly under the front
wheels.

5848-2. Steps to take in an emergency
RC200t_RC F_EE(OM24728E)
If your vehicle is transported by a flat-
bed truck, it should be tied down at the
locations shown in the illustration.
If you use chains or cables to tie down
your vehicle, the angles shaded in black
must be 45 .
Do not overly tighten the tie downs or
the vehicle may be damaged.
If a tow truck is not available in an emergency, your vehicle may be temporarily
towed using cables or chains secured to the emergency towing eyelets. This
should only be attempted on hard surfac ed roads for at most 80 km (50 miles)
at under 30 km/h (18 mph).
A driver must be in the vehicle to steer and operate the brakes. The vehicle’s
wheels, drive train, axles, steering and brakes must be in good condition.
Using a flatbed truck
Emergency towing
