2017 Lexus ES350 Owner's Manuals

ES350_OM_OM33C68U_(U)
3836-3. Using the storage features
6
Interior features
Open (press the button)
Unlock with the mechanical key
Lock with the mechanical key
●The glove box light turns on when the tail lights are on.
●The trunk opener main switch is located in the glove box. (→P. 1 0 2 )
●The partition inside the glove box can be removed. ( →P. 4 5 5 )
Push the knob to release the lock, and
lift the armrest to open fully.
●The console box light turns on when the tail lights are on.
Glove box
1
2
3
Console box
●The tray slides forward/backward and can be
removed.
WA R N I N G
When using the console box with half-open, do not apply too much load on the arm-
rest. Doing so may damage the armrest and may cause you to injure yourself.

384
ES350_OM_OM33C68U_(U)6-3. Using the storage features

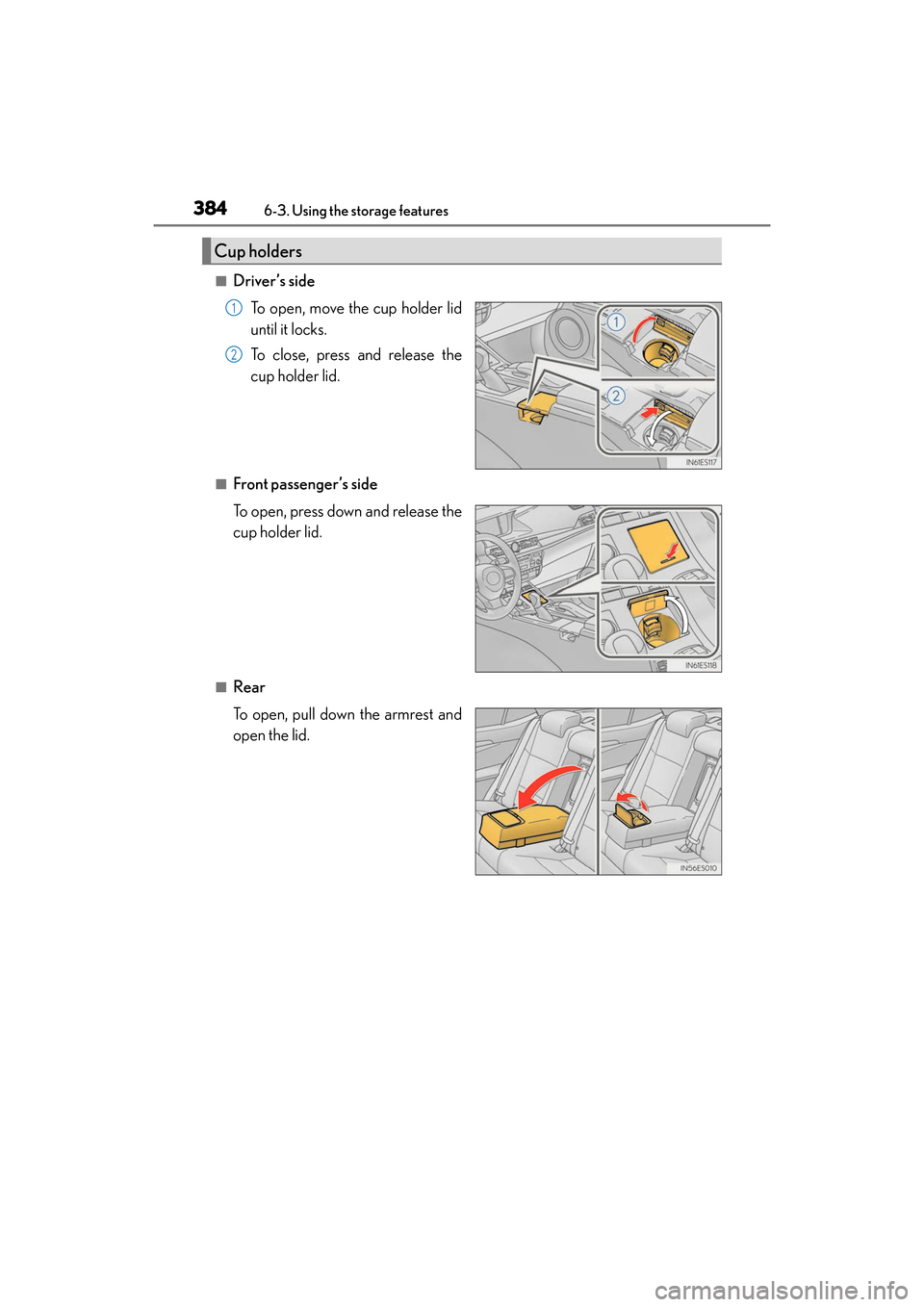

■Driver’s side
To open, move the cup holder lid
until it locks.
To close, press and release the
cup holder lid.
■Front passenger’s side
To open, press down and release the
cup holder lid.
■Rear
To open, pull down the armrest and
open the lid.
Cup holders
1
2

ES350_OM_OM33C68U_(U)
3856-3. Using the storage features
6
Interior features
Press in the button.
WA R N I N G
●Do not place anything other than cups or beverage cans in the cup holders.
Other items may be thrown out of the holders in the event of an accident or sudden
braking, causing injury. If possible, cover hot drinks to prevent burns.
●Front passenger’s side cup holder only: Do not place anything larger than a 32 oz cup
in the cup holder.
Doing so may prevent the switches from being operated properly or block the
driver’s view of the switches, which may cause an accident.
NOTICE
To prevent damage to the rear cup holder, stow the cup holder before stowing the arm-
rest.
Auxiliary box

386
ES350_OM_OM33C68U_(U)6-3. Using the storage features
Trunk features
Raise the hooks when needed.
The cargo hooks are provided for
securing loose items.
Cargo hooks
WA R N I N G
To avoid injury, always return the cargo hooks to their stowed positions when not in use.
Grocery bag hooks

ES350_OM_OM33C68U_(U)
3876-3. Using the storage features
6
Interior features
Pull the lever upwards when lifting
the luggage mat up.
The lever can be hooked on the
edge of the trunk.
Luggage mat
1
2
NOTICE
When closing the trunk door, do not leave the luggage mat lever hooked on the edge
of the trunk. The luggage mat may get damaged.

388
ES350_OM_OM33C68U_(U)6-4. Using the other interior features
Other interior features
To set the visor in the forward posi-
tion, flip it down.
To set the visor in the side position,
flip down, unhook, and swing it to the
side.
To use the side extender, place the
visor in the side position, then slide it
backward.
Slide the cover to open.
The light turns on when the cover is
opened.
Sun visors
1
2
3
Vanity mirrors
NOTICE
To prevent battery discharge, do not leave the vanity lights on for extended periods
while the engine is not running.

ES350_OM_OM33C68U_(U)
3896-4. Using the other interior features
6
Interior features
The clock can be adjusted.Pressing and holding will move the
clock hands backward.
Pressing and holding will move the
clock hands forward.
The power outlets can be used for 12V accessories that run on less than 10A.
■Front
Open the lid.
■Rear
Open the lid.
The power outlets can be used when the engine switch is in ACCESSORY or IGNI-
TION ON mode.
Clock
1
2
Power outlets

390
ES350_OM_OM33C68U_(U)6-4. Using the other interior features
Fold down the armrest for use.
NOTICE
●To avoid damaging the power outlets, close the power outlet lids when the power out-
lets are not in use.
Foreign objects or liquids that enter the power outlets may cause a short circuit.
●To prevent blown fuse, do not use an accessory that uses more than 12V 10A.
●To prevent battery discharge, do not use the power outlets longer than necessary
when the engine is not running.
Armrest
NOTICE
To prevent damage to the armrest, do not apply too much load on the armrest.
