2017 Lexus ES350 Owner's Manuals

ES350_OM_OM33C68U_(U)
1353-5. Opening, closing the windows and moon roof
3
Operation of each component
XStandard type
Tilts the moon roof up
*
Tilts the moon roof down*
*
: Lightly press either way of the moon roof switch to stop the moon roof part-
way.
XGlass type
Tilts the moon roof up
*
Tilts the moon roof down (push and
hold)
*: Lightly press either way of the moonroof switch to stop the moon roof part-
way.
■The moon roof can be operated when
The engine switch is in IGNITION ON mode.
■Operating the moon roof after turning the engine off
The moon roof can be operated for approximately 45 seconds after the engine switch is
turned to ACCESSORY mode or turned off. It cannot, however, be operated once either
front door is opened.
■Jam protection function
If an object is detected between the moon r oof and the frame while the moon roof is clos-
ing or tilting down, travel is stopped and the moon roof opens slightly.
■Sunshade (standard type)
The sunshade can be opened and closed manually. However, the sunshade will open
automatically when the moon roof is opened.
■Front/rear sunshades (glass type)
The sunshades can be opened and closed manually. However, the front sunshade will
open automatically when the moon roof is opened.
■Door lock linked moon roof operation
●The moon roof can be opened and closed using the mechanical key.* ( → P. 5 0 4 )
●The moon roof can be opened using the wireless remote control.* (→ P. 9 5 )
*: These settings must be customized at your Lexus dealer.
Tilting up and down
1
2
1
2

136
ES350_OM_OM33C68U_(U)3-5. Opening, closing the windows and moon roof
■When the moon roof does not close normally
Perform the following procedure:
●If the moon roof closes
but then re-opens slightly
Stop the vehicle.
Press and hold the “CLOSE” switch.
*1
The moon roof will close, reopen an d pause for approximately 10 seconds.*2 Then it
will close again, tilt up and pause for appr oximately 1 second. Finally, it will tilt down,
open and close.
Check to make sure that the moon roof is completely closed and then release the
switch.
●If the moon roof tilts do wn but then tilts back up
Stop the vehicle.
Press and hold the “UP” switch
*1 until the moon roof moves into the tilt up position
and stops.
Release the “UP” switch once and then press and hold the “UP” switch again.
*1
The moon roof will pause for approximatel y 10 seconds in the tilt up position.*2
Then it will adjust slightly and pause for approximately 1 second. Finally, it will tilt
down, open and close.
Check to make sure that the moon roof is completely closed and then release the
switch.
*1: If the switch is released at the incorrect time, the procedure will have to be per-
formed again from the beginning.
*2: If the switch is released after the above mentioned 10 second pause, automaticoperation will be disabled. In that case, press and hold the “CLOSE” or “UP” switch,
and the moon roof will tilt up and pause for approximately 1 second. Then it will tilt
down, open and close. Check to make sure that the moon roof is completely closed
and then release the switch.
If the moon roof does not fully close even after performing the above procedure cor-
rectly, have the vehicle inspected by your Lexus dealer.
■Moon roof open warning buzzer
The buzzer sounds and a message is shown on the multi-information display in the instru-
ment cluster when the engine switch is turned off and the driver’s door is opened with the
moon roof open.
■Customization
Settings (e.g. linked door lock operation) can be changed.
(Customizable features: →P. 5 3 8 )
1
2
3
1
2
3
4

ES350_OM_OM33C68U_(U)
1373-5. Opening, closing the windows and moon roof
3
Operation of each component
WA R N I N G
Observe the following precautions.
Failure to do so may cause death or serious injury.
■Opening the moon roof
●Do not allow any passengers to put their hands or heads outside the vehicle while it is
moving.
●Do not sit on top of the moon roof.
■Closing the moon roof
●The driver is responsible for moon roof opening and closing operations. In order to
prevent accidental operation, especially by a child, do not let a child operate the
moon roof. It is possible for children and other passengers to have body parts caught
in the moon roof.
●Check to make sure that all passengers do not have any part of their body in a posi-
tion where it could be caught when the moon roof is being operated.
●When using the mechanical key and operat ing the moon roof, operate the moon roof
after checking to make sure that there is no possibility of any passenger having any of
their body parts caught in the moon roof. Also do not let a child operate moon roof by
the mechanical key. It is possible for ch ildren and other passengers to get caught in
the moon roof.
●When exiting the vehicle, turn the engine switch off, carry the key and exit the vehicle
along with the child. There may be accidental operation, due to mischief, etc., that
may possibly lead to an accident.
■Jam protection function
●Never use any part of your body to intent ionally activate the jam protection function.
●The jam protection function may not work if something gets caught just before the
moon roof fully closes.

138
ES350_OM_OM33C68U_(U)3-5. Opening, closing the windows and moon roof

139
ES350_OM_OM33C68U_(U)
4Driving
4-1. Before drivingDriving the vehicle ...................... 140
Cargo and luggage .................... 148
Vehicle load limits .........................151
Trailer towing ................................. 152
Dinghy towing............................... 153
4-2. Driving procedures Engine (ignition) switch ............ 154
Automatic transmission ............ 159
Turn signal lever ........................... 163
Parking brake ................................ 164
4-3. Operating the lights and wipers
Headlight switch .......................... 165
Automatic High Beam .............. 168
Fog light switch..............................172
Windshield wipers and washer...................................173
4-4. Refueling Opening the fuel tank cap ........177 4-5. Using the driving support
systems
Lexus Safety System+ ............... 180
PCS (Pre-Collision System)............187
LDA (Lane Departure Alert with steering control) ............. 199
Dynamic radar cruise control ............................208
Cruise control ............................. 220
Intuitive parking assist .............. 223
Lexus parking assist monitor ........................................ 232
Driving mode select switch ........................................... 248
BSM (Blind Spot Monitor) .....250 •Blind Spot Monitor function .................................... 253
• Rear Cross Traffic Alert function .................................... 255
Driving assist systems...............258
4-6. Driving tips Winter driving tips ..................... 263

140
ES350_OM_OM33C68U_(U)4-1. Before driving
Driving the vehicle
→
P. 1 5 4
With the brake pedal depressed, shift the shift lever to D. ( →P. 1 5 9 )
Release the parking brake. ( →P. 1 6 4 )
Gradually release the brake pedal and gently depress the accelerator pedal
to accelerate the vehicle.
With the shift lever in D, depress the brake pedal.
If necessary, set the parking brake.
If the vehicle is to be stopped for an extended period of time, shift the shift lever to P or
N. ( →P. 1 5 9 )
With the shift lever in D, depress the brake pedal.
Set the parking brake ( →P. 164), and shift the shift lever to P ( →P. 1 5 9 )
Press the engine switch to stop the engine.
Lock the door, making sure that you ha ve the electronic key on your person.
If parking on a hill, block the wheels as needed.
Make sure that the parking brake is set and shift the shift lever to D.
Gently depress the accelerator pedal.
Release the parking brake.
The following procedures should be observed to ensure safe driving:
Starting the engine
Driving
Stopping
Parking the vehicle
Starting off on a steep uphill
1
2
3
1
2
1
2
3
4
1
2
3

ES350_OM_OM33C68U_(U)
1414-1. Before driving
4
Driving
■When starting off on a uphill
The hill-start assist control will activate. (→P. 2 5 8 )
■Driving in the rain or adverse weather conditions
●Drive carefully, because visibility may be reduced, the windows may become fogged-
up, and the road will be slippery.
●Drive carefully when it gets wet or icy, becau se the road surface will be especially slip-
pery.
●Slow down when water is present on the roadway, because there may be a layer of
water between the tires and the road surface, preventing the steering and brakes from
operating properly.
■Engine speed while driving
In the following conditions, the engine speed may become high while driving. This is due
to automatic up-shifting control or down-shi fting implementation to meet driving condi-
tions. It does not indicate sudden acceleration.
●The vehicle is judged to be driving uphill or downhill
●When the accelerator pedal is released
■Restraining the engine output (Brake Override System)
●When the accelerator and brake pedals are depressed at the same time, the engine
output may be restrained.
●A warning message is displayed on the mult i-information display while the system is
operating. If a warning mess age is shown on the multi-information display, read the
message and follow the instructions.
■Restraining sudden start (Drive-Start Control)
●When the following unusual operation is performed, the engine output may be
restrained.
• When the shift lever is shifted from R to D, D to R, N to R, P to D, or P to R (D includes S) with the accelerator pedal depressed, a warning message appears on
the multi-information display. If a warnin g message is shown on the multi-informa-
tion display, read the message and follow the instructions.
• When the accelerator pedal is depressed t oo much while the vehicle is in reverse.
●While Drive-Start Control is being activated, your vehicle may have trouble escaping
from the mud or fresh snow. In such case, deactivate TRAC ( →P. 259) to cancel Drive-
Start Control so that the vehicle may become able to escape from the mud or fresh
snow.

142
ES350_OM_OM33C68U_(U)4-1. Before driving

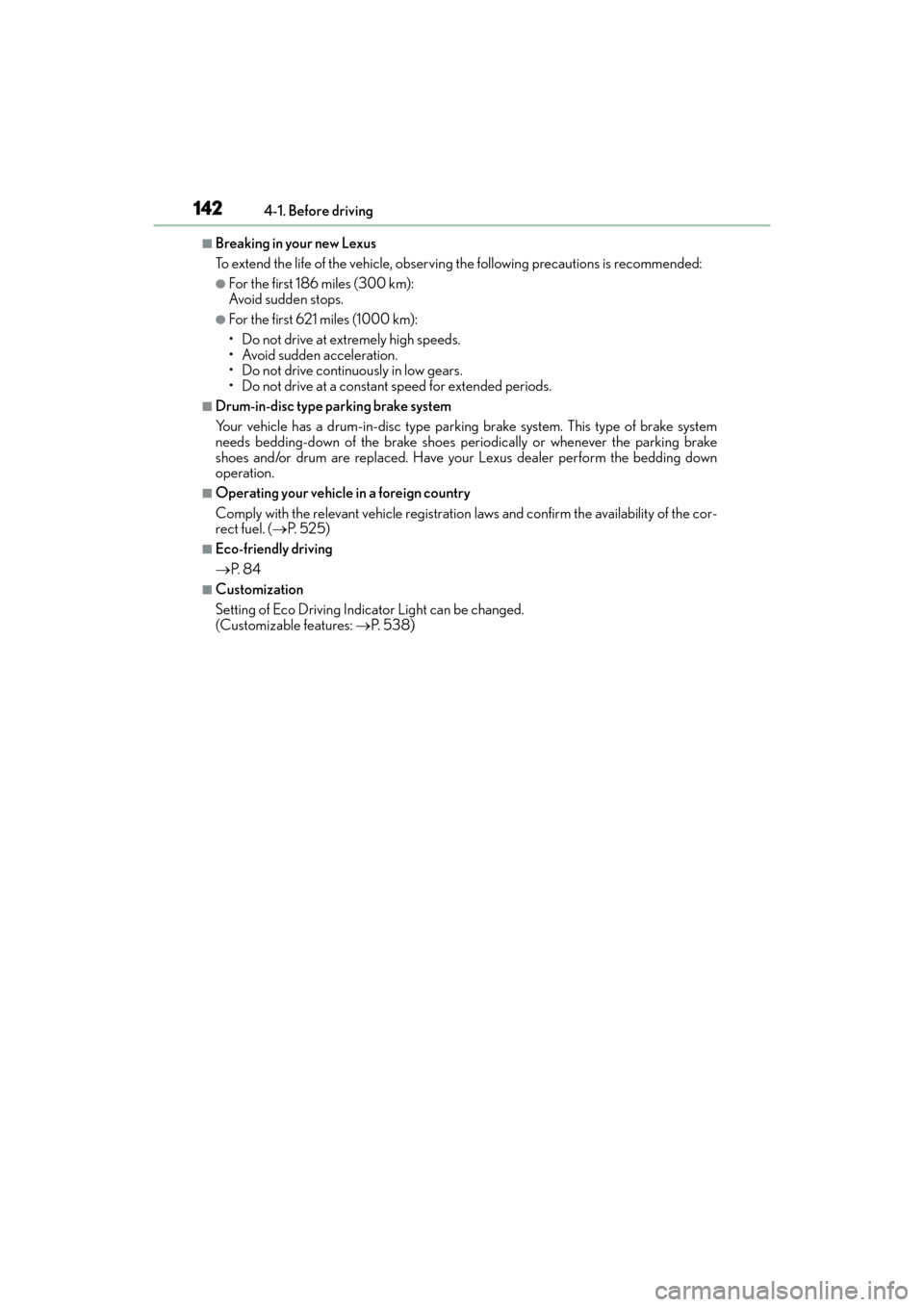

■Breaking in your new Lexus
To extend the life of the vehicle, observin
g the following precautions is recommended:
●For the first 186 miles (300 km):
Avoid sudden stops.
●For the first 621 miles (1000 km):
• Do not drive at extremely high speeds.
• Avoid sudden acceleration.
• Do not drive continuously in low gears.
• Do not drive at a constant speed for extended periods.
■Drum-in-disc type parking brake system
Your vehicle has a drum-in-disc type parking brake system. This type of brake system
needs bedding-down of the brake shoes periodically or whenever the parking brake
shoes and/or drum are replaced. Have your Lexus dealer perform the bedding down
operation.
■Operating your vehicle in a foreign country
Comply with the relevant vehicle registration laws and confirm the availability of the cor-
rect fuel. ( →P. 5 2 5 )
■Eco-friendly driving
→P. 8 4
■Customization
Setting of Eco Driving Indicator Light can be changed.
(Customizable features: →P. 5 3 8 )
