2017 Lexus CT200h OWNERS MANUAL QUICK GUIDE (in English)

65
CT200h_QG_OM76225U_(U)
■Changing the registered name
Press .
Press and say “Phone book”.
Press and say “Change name”.
Press and say the desired name.
Press and say “Confirm”.
Press and say the new name.
Press and say “Confirm”11
2
3
4
5
6
7
: Pressing this switch turns the voice command system on. Say a command after the
beep.

66
CT200h_QG_OM76225U_(U)
■Registering a speed dial
Press .
Press and say “Phone book”.
Press and say “Set speed dial”.
Select the data to be registered.
Press and say the desired name.
Press and say “Confirm”.
Press the desired preset button.
Press and say “Confirm”11
2
3
4
5
6
77
8
: Pressing this switch turns the voice co mmand system on. Say a command after the
beep.

67
CT200h_QG_OM76225U_(U)

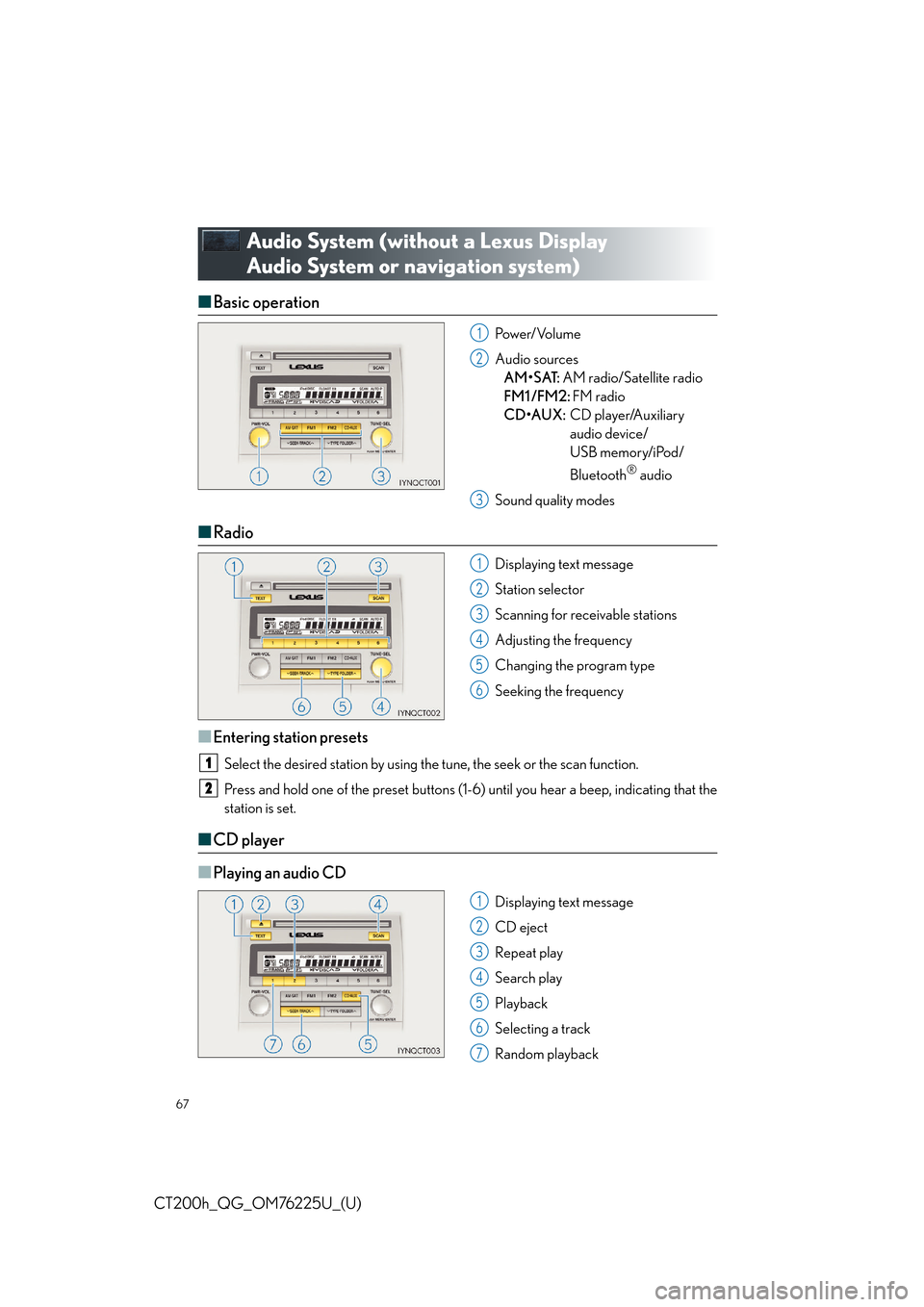

Audio System (without a Lexus Display
Audio System or navigation system)
■Basic operation
Pow e r/ Vo l u m e
Audio sources
AM•SAT: AM radio/Satellite radio
FM1 /FM2: FM radio
CD•AUX: CD player/Auxiliary
audio device/
USB memory/iPod/
Bluetooth
® audio
Sound quality modes
■ Radio
Displaying text message
Station selector
Scanning for receivable stations
Adjusting the frequency
Changing the program type
Seeking the frequency
■Entering station presets
Select the desired station by using the tune, the seek or the scan function.
Press and hold one of the preset buttons (1-6) until you hear a beep, indicating that the
station is set.
■CD player
■
Playing an audio CD
Displaying text message
CD eject
Repeat play
Search play
Playback
Selecting a track
Random playback
1
2
3
1
2
3
4
5
6
1
2
1
2
3
4
5
6
7

68
CT200h_QG_OM76225U_(U)
■Playing a CD with MP3/WMA files
Displaying text message
CD eject
Repeat play
Search play
File selection
Playback
Folder selection
Selecting a file
Random playback
■Loading a CD
Insert a CD.
■Operating an iPod
Displaying text message
Repeat play
Playback/pause
Go back
iPod menu/Song selection
Playback
Song selection
Shuffle playback
■Remote control (steering wheel switches)
Some audio features can be controlled using the switches on the steering wheel.
Increases/decreases volume
Radio mode: Selects a radio station
CD mode: Selects a track, file (MP3
and WMA) and disc
iPod mode: Selects a song
Turns the power on, selects an audio
source
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
1
2
3

69
CT200h_QG_OM76225U_(U)
Air Conditioning System
■Adjusting the temperature setting
Press to increase the temperature and to decrease the temperature.
■Adjusting the fan speed setting
Press to increase the fan speed and to decrease the fan speed.
Press the “OFF” button to turn the fan off.
■Changing the airflow mode
To change the airflow, press . The air outlets used are switched each time the button is pressed.

70
CT200h_QG_OM76225U_(U)
■Control screen (if equipped)
Vehicles with a Lexus Display Audio System
Adjust the left-hand side temperature
setting
Adjust the fan speed setting
“AUTO”: Select to set automatic mode
on/off
“OFF”: Turn the fan off
: Display the option control
screen
Select the air flow mode
Adjust the right-hand side temperature
setting
Vehicles with a navigation system
Adjust the left-hand side temperature
setting
Adjust the fan speed setting
Select the air flow mode
Adjust the right-hand side temperature
setting
Display the option control screen
Tu r n t h e f a n o f f
Select to set automatic mode on/off
■Option control screen
Select on the climate screen to display the option control screen. The functions can
be switched on and off.
Vehicles with a Lexus Display Audio System
Select to set cooling and dehumidifica-
tion function on/off
Adjust the temperature for driver and
passenger seats separately (“DUAL”
mode)
Prevent ice from building up on the
windshield and wiper blades (if
equipped)
Remove pollen from the air (Micro dust
and pollen filter)
1
2
3
4
5
1
2
3
4
5
6
7
1
2
3
4

71
CT200h_QG_OM76225U_(U)
Vehicles with a navigation systemSelect to set cooling and dehumidifica-
tion function on/off
Adjust the temperature for driver and
passenger seats separately (“DUAL”
mode)
Prevent ice from building up on the
windshield and wiper blades (if
equipped)
Remove pollen from the air (Micro dust
and pollen filter)
■Using the automatic mode
Press the “AUTO” button to turn on the airflow and adjust the temperature setting.
■Adjusting the temperature for driver and passenger seats separately
(“DUAL” mode)
To turn on the “DUAL” mode, perform any of the following procedures:
● Press the “DUAL” button.
● Select “DUAL” on the option control screen (if equipped).
● Adjust the passenger’s side temperature setting.
Seat Heaters (if equipped)
Po p s t h e k n o b o u t
Turns the seat heater on
The indicator light comes on.
Adjusts the seat temperature
The further you turn the knob clock-
wise, the warmer the seat becomes.
1
2
3
4
1
2
3

72
CT200h_QG_OM76225U_(U)
Voice Command System
■Basic operation
Press the talk switch.
To cancel the voice command system,
press and hold the talk switch.
After a beep sounds, say the desired
command.
On the list screen, you can select the
desired command.
Continue on to pages 73-76 for a detailed list of Voice Commands for the following catego-
ries: Basic. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P.73
Apps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P.73
Navi . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P.73
Phone. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P.74
Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P.74
Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P.75
Info . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P.75
Other . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P.76
1
2
■Important voice commands information and tips
 Voice commands can be used while driving.
 You must wait until after the beep to say a command.
 In vehicles with a navigation system, a la rge (TALK icon) will appear on the navi-
gation screen to prompt you to say a command.
 If you know what command to use, you can press at any time to interrupt the voice
guidance.
NOTE: When inputting voice commands you mu st wait until after the beep to speak.
