2017 Lexus CT200h OWNERS MANUAL QUICK GUIDE (in English)

73
CT200h_QG_OM76225U_(U)
■Command list
Basic (vehicles with a Lexus Display Audio System)
Basic (vehicles with a navigation system)
Apps (vehicles with a navigation system) (for U.S.A., if equipped)
Navi (vehicles with a navigation system)
*1: For example; “Gas stations”, “Restaurants”, etc.
*2: Depending on the search results, a POI list may be provided by a relevant POI applica- tion of the LEXUS App suite.
CommandAction
“Help”Prompts voice guidance to offer examples of com-
mands or operation methods
“Go Back”Returns to the previous screen
“Go to ”Displays the command list of the selected tab
CommandAction
“Help”Prompts voice guidance to offer examples of com-
mands or operation methods
“Go Back”Returns to the previous screen
“Go to ”Displays the command list of the selected tab
“More Hints”Displays more commonly used commands
“Cancel”Cancels the voice command system
CommandAction
“Launch ”Activates the LEXUS App Suite application
CommandAction
“Find ”Displays a list of near the current
position
*2
“Enter an Address”Enables setting a destinatio n by saying the address
“Go Home”Displays the route to home
“Pause Guidance”Stops the route guidance
“Resume Guidance”Resumes the route guidance
“Show icons”Displays the specified POI icons
“Delete Destination”Deletes the destination
“Previous Destination”Displays previous destinations

74
CT200h_QG_OM76225U_(U)
Phone
Radio (vehicles with a navigation system)
CommandAction
“Redial”Places a call to the phone number of the latest outgo-
ing call
“Call Back”Places a call to the phone number of latest incoming
call
“Show Recent Calls”Displays the call history screen
“Dial ”Places a call to the said phone number
“Call ”Place a call to the said phone type of the contact from
the phone book
CommandAction
“Tune to AM”Changes the radio to the specified AM frequency
“Tune to FM”Changes the radio to the specified FM frequency
“Play station”Changes the radio to an FM station of the specified
genre
“Tune to FM
HD ”Changes the radio to the specified HD radio station
“Tune to preset ”Changes the radio to the specified preset radio sta-
tion
“Tune to ”Changes the radio to the satellite radio channel with
the specified name
“Tune to channel ”Changes the radio to the specified satellite radio
channel number
“Play satellite station”Changes the radio to a sate llite radio channel of the
specified genre

75
CT200h_QG_OM76225U_(U)
Audio (vehicles with a Lexus Display Audio System)
Audio (vehicles with a navigation system)
Info (vehicles with a Lexus Display Audio System)
Info (vehicles with a navigation system) (for U.S.A., if equipped)
CommandAction
“Play Playlist ”Plays tracks from the selected playlist
“Play Artist ”Plays tracks from the selected artist
“Play Song ”Plays the selected track
“Play Album ”Plays tracks from the selected album
“Turn Music On/Off”Turns the audio system on/off
“Play the

76
CT200h_QG_OM76225U_(U)

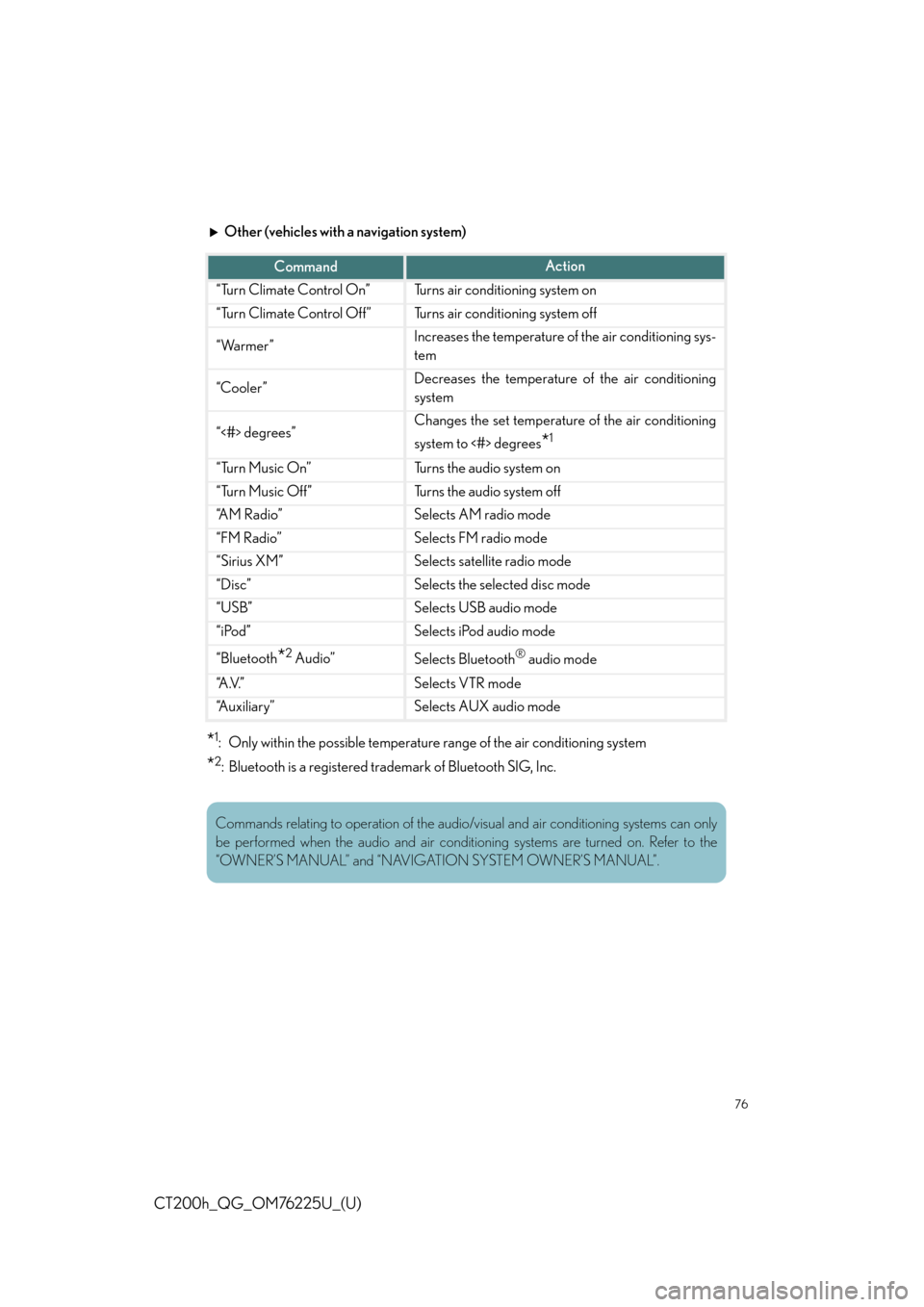

Other (vehicles with a navigation system)
*1: Only within the possible temperature range of the air conditioning system
*2: Bluetooth is a registered trademark of Bluetooth SIG, Inc.
CommandAction
“Turn Climate Control On”Turns air conditioning system on
“Turn Climate Control Off”Turns air conditioning system off
“Warmer”Increases the temperature of the air conditioning sys-
tem
“Cooler”Decreases the temperature of the air conditioning
system
“<#> degrees”Changes the set temperature of the air conditioning
system to <#> degrees
*1
“Turn Music On”Turns the audio system on
“Turn Music Off”Turns the audio system off
“A M R a d i o ”Selects AM radio mode
“FM Radio”Selects FM radio mode
“Sirius XM”Selects satellite radio mode
“Disc”Selects the sele cted disc mode
“USB”Selects USB audio mode
“iPod”Selects iPod audio mode
“Bluetooth*2 Audio”Selects Bluetooth® audio mode
“A .V. ”Selects VTR mode
“Auxiliary”Selects AUX audio mode
Commands relating to operation of the audio/visual and air conditioning systems can only
be performed when the audio and air conditioning systems are turned on. Refer to the
“OWNER’S MANUAL” and “NAVIGATION SYSTEM OWNER’S MANUAL”.

77
CT200h_QG_OM76225U_(U)

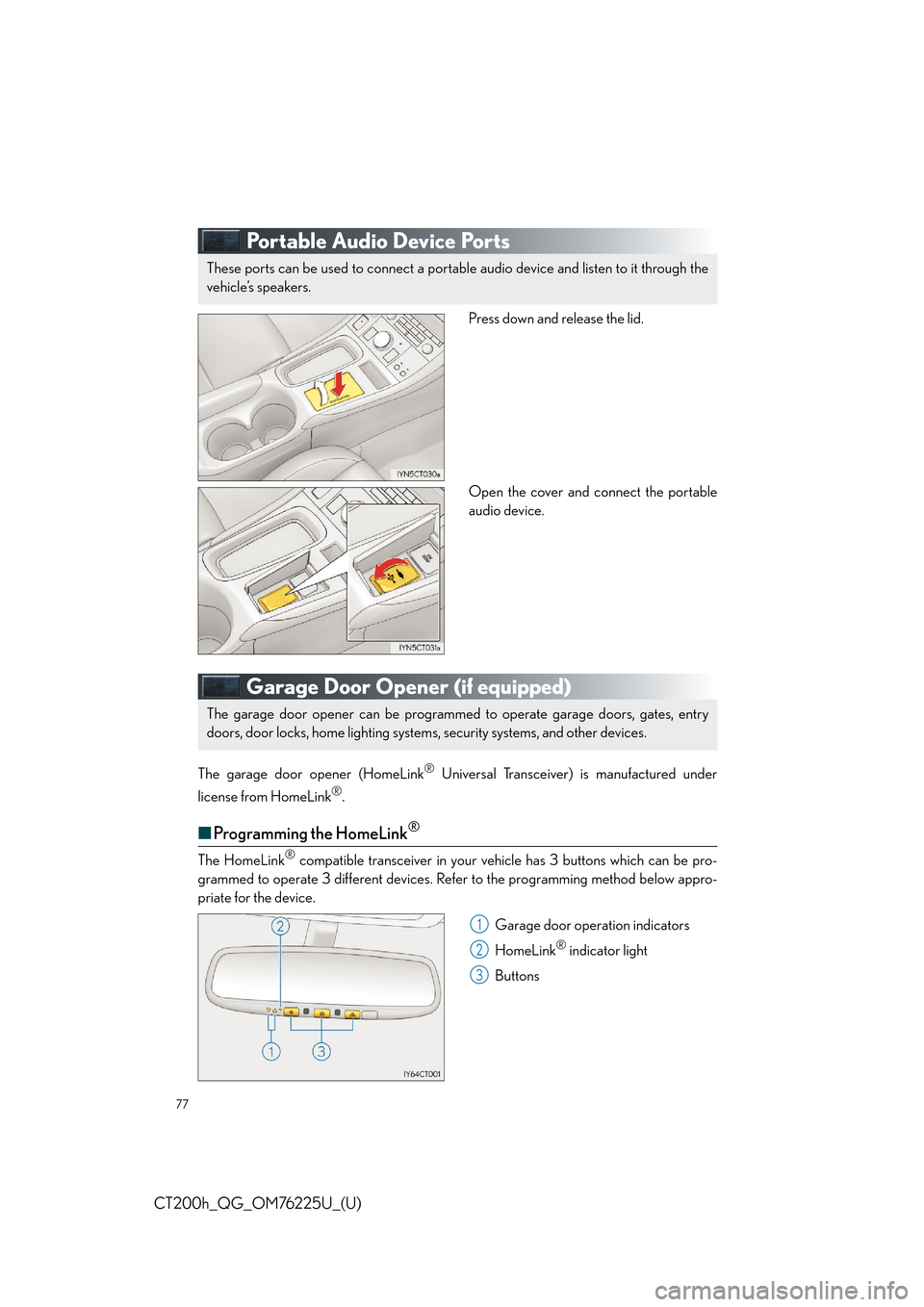

Portable Audio Device Ports
Press down and release the lid.
Open the cover and connect the portable
audio device.
Garage Door Opener (if equipped)
The garage door opener (HomeLink® Universal Transceiver) is manufactured under
license from HomeLink
®.
■ Programming the HomeLink®
The HomeLink® compatible transceiver in your vehicle has 3 buttons which can be pro-
grammed to operate 3 different devices. Refer to the programming method below appro-
priate for the device.
Garage door operation indicators
HomeLink
® indicator light
Buttons
These ports can be used to connect a portable audio device and listen to it through the
vehicle’s speakers.
The garage door opener can be programmed to operate garage doors, gates, entry
doors, door locks, home lighting system s, security systems, and other devices.
1
2
3

78
CT200h_QG_OM76225U_(U)
■Programming HomeLink®
Point the remote control transmitter for
the device 1 to 3 in. (25 to 75 mm)
from the HomeLink
® buttons.
Keep the HomeLink
® indicator light in
view while programming.
For U.S.A. owners Press and hold the HomeLink
® button
you want to program and the remote
control transmitter button simulta-
neously. When the HomeLink
® indica-
tor light changes fr om slowly flashing
orange to rapidly flashing green (roll-
ing code) or continuously lit green
(fixed code), release both buttons.
Programming an entry gate (for U.S.A. owners)/Programming a device in the
Canadian market With one hand, press and hold the HomeLink
® button you want to program. With your
other hand, press and release the remote control transmitter every 2 seconds and
repeat this cycle until the HomeLink
® indicator light starts to flash rapidly. Then,
release the buttons.
Te s t t h e H o m e L i n k
® operation by pressing the newly programmed button and observ-
ing the indicator light:
● If the indicator light is solid/continuous, programming has been completed and your
device should activa te when the HomeLink
® button is pressed and released.
● If the indicator light blinks rapidly for 2 seconds and then turns into a solid/continu-
ous light, proceed to the heading “Programming a Rolling Code System”.
Repeat the steps above to program another device for any of the remaining
HomeLink
® buttons.
1
2
2
3
4

79
CT200h_QG_OM76225U_(U)
■Programming a Rolling Code System
Locate the “learn” or “smart” button on the garage door opener motor in the garage.
This button can usually be found where the ha nging antenna wire is attached to the unit.
The name and color of the button may vary by manufacturer. Please refer to the
Owner’s manual supplied with the garage door opener motor for details.
Press and release the “learn” or “smart” button.
Perform step within 30 seco nds after performing step .
Press and hold the programmed HomeLink
® button (located inside the vehicle) for 2
seconds and release it. Repeat this sequen ce (press/hold/release) up to 3 times to
complete programming.
If the garage door opener mo tor activates when the HomeLink
® button is pressed, the
garage door opener motor recognizes the HomeLink
® signal.
LEXUS Enform Safety Connect (if equipped)
■ System components
Microphone
LED light indicators
“SOS” button
1
2
32
3
Safety Connect is a subscription-based telema tics service that uses Global Positioning
System (GPS) data and embedded cellular te chnology to provide safety and security
features to subscribers. Safety Connect is supported by Lexus’ designated response
center, which operates 24 hours per day, 7 days per week.
Safety Connect service is available by subscription on select, telematics hardware-
equipped vehicles.
1
2
3

80
CT200h_QG_OM76225U_(U)
■Services
Subscribers have the following Safety Connect services available:
● Automatic Collision Notification
*
In case of either airbag deployment or severe rear-end collision, the system is designed
to automatically call the response center. The responding agent receives the vehicle’s
location and attempts to speak with the vehicle occupants to assess the level of emer-
gency. If the occupants are unable to communicate, the agent automatically treats the
call as an emergency, contacts the nearest em ergency services provider to describe the
situation, and requests that assistance be sent to the location.
*: U.S. Patent No. 7,508,298 B2
● Stolen Vehicle Location
If your vehicle is stolen, Safety Connect can work with local authorities to assist them in
locating and recovering the vehicle. After filing a police report, call the Safety Connect
response center at 1-800-25-LEXUS (1-800-255-3987) and follow the prompts for
Safety Connect to initiate this service.
In addition to assisting law enforcement with recovery of a stolen vehicle, Safety-
Connect-equipped vehicle location data may, under certain circumstances, be shared
with third parties to locate your vehicle. Further information is available at Lexus.com.
● Emergency Assistance Button (SOS)
In the event of an emergency on the road, push the “SOS” button to reach the Safety
Connect response center. The answering agen t will determine your vehicle’s location,
assess the emergency, and dispatch the necessary assistance required. If you accidentally press the “SOS” button, tell the response-center agent that you are
not experiencing an emergency.
● Enhanced Roadside Assistance
Enhanced Roadside Assistance adds GPS data to the already included warranty-based
Lexus roadside service.
Subscribers can press the “SOS” button to reach a Safety Connect response-center
agent, who can help with a wide range of needs, such as: towing, flat tire, fuel delivery, etc.
For a description of the Roadsi de Assistance services and their limitations, please see the
Safety Connect Terms and Conditions, which are available at Lexus.com.
■ Subscription
After you have signed the Telematics Subscription Service Agreement and are enrolled,
you can begin receiving services.
A variety of subscription terms is available for purchase. Contact your Lexus dealer, call
1-800-25-LEXUS (1-800-255-3987) or push the “SOS” button in your vehicle for fur-
ther subscription details.
