2017 Lexus CT200h OWNERS MANUAL QUICK GUIDE (in English)

81
CT200h_QG_OM76225U_(U)
Lexus Enform (for U.S.A., if equipped)
■Function achieved by using a cellular phone (with navigation system)
■
Services
Of the functions included with Lexus Enform, only LEXUS App Suite can be achieved by
using a cellular phone.
LEXUS App Suite is a service that enables the us able contents of a cellular phone to be dis-
played on and operated from the navigation screen. Before LEXUS App Suite can be used,
a few settings need to be performed.
● LEXUS App Suite
When LEXUS App Suite is activated, an app lication may need to update. By updating, an
application can be kept the latest version. To updating the application, it is necessary to
download the updated data and install it.
■Subscription
LEXUS App Suite will be available on a trial pe riod included upon purchase of a new vehi-
cle. User registration is required to start using the service.
When a trial period has elapsed after purchasing a new vehicle, a fee will be charged to
renew the contract. Services requiring a separa te contract can also be used. For details,
refer to http://www.lexus.com/enform/
or call 1-800-255-3987.
■ Function achieved by using DCM and the navigation system
(with navigation system)
■
Services
Of the functions included with Lexus Enform, LEXUS Enform Destinations (Destination
Assist, eDestination), and Le xus Insider can be achieved by making DCM cooperate with
the navigation system.
These are subscription-based telematics servic es that use Global Positioning System (GPS)
data, embedded cellular technology to provide safety and security as well as convenience
features to subscribers. The services are supp orted by Lexus’ designated response center,
which operates 24 hours a day, 7 days a week.
The services are available by subscription on select, telematics hardware-equipped vehi-
cles.
Lexus Enform is a service that includes Sa fety Connect, Remote, Destinations, Insider
and App Suite.
For details, refer to the “OWNER’S MANUAL” and “NAVIGATION SYSTEM
OWNER’S MANUAL”.

82
CT200h_QG_OM76225U_(U)
●Destination Assist
Destination Assist provides you with live assi stance for finding destinations via the Lexus
response center. You can request either a specific business, address, or ask for help
locating your desired destination by category, such as restaurants, gas stations, shopping
centers or other points of interest (POI).
After you tell the agent your choice of destin ation, its coordinates are sent wirelessly to
your vehicle’s navigation system.
● eDestination
With the eDestination feature, you can go online, and via the Lexus.com owner’s Web
site, select and organize dest inations of your choice and then wirelessly send them to
your vehicle’s navigation system.
Up to 200 locations can be stored online and accessed or updated at any time.
Locations can be organized into up to 20 personalized folders.
You must first go online at www.lexus.com/drivers/
to view the Owners site where you
will need to register and log in. After this, personalized folders that contain the locations
to be sent to your vehicle can be created. (See Lexus Enform Guide for more informa-
tion.)
● Lexus Insider
Lexus Insider is an optional service that can send audio messages, or articles, to partici-
pating owners’ vehicles via the navigation sy stem. Potential Lexus Insider subjects might
include, for example, Lexus vehicle technology tips, updates on regional Lexus events, or
audio excerpts from Lexus Magazine articles.
■Subscription
After you have signed the Telematics Subscription Service Agreement and are enrolled,
you can begin receiving services. A variet y of subscription terms are available.
Contact your Lexus dealer, call 1-800-25-LEXUS (1-800-255-3987), or select the “Des-
tination Assist” in your vehicle for further subscription details.
■ Function achieved by using DCM
■
Services
Of the functions included with Lexus Enfo rm Safety Connect, Safety Connect can be
achieved by using DCM.
● Lexus Enform Safety Connect ( P. 7 9 )
■LEXUS Enform Remote
■
Services
Lexus Enform Remote is a cellular phone application that lets you view and remotely
control certain aspects of your vehicle.
For details about the functions and serv ices of this application, refer to
http://www.lexus.com/enform/
. For further details, contact your Lexus dealer.
Function of the Lexus Enform Remote is achieved by using an embedded cellular device
in the vehicle (DCM: Data Communication Module).
■Subscription
P. 8 2

83
CT200h_QG_OM76225U_(U)
XM Satellite Radio
■Subscription
For XM Services requiring a subscription (suc h as XM Radio), the following paragraph shall
be included.
Required XM Radio monthly subscriptions sold separately after trial period. Subscription
fee is consumer only. All fees and progra mming subject to change. Subscriptions are
subject to the Customer Agreement available at www.siriusxm.com
(U.S.A.) or
www.siriusxm.ca
(Canada) XM service only available in the 48 contiguous United States
and 10 Canadian provinces.
For more information, program schedules, and to subscribe or extend subscription after
complimentary trial period; more information is available at:
U.S.A. Customers:
Visit ww w.siriusxm.com
or calling 1-877-447-0011
Canadian Customers:
Visit ww w.siriusxm.ca
or calling 1-877-438-9677
An XM Satellite Radio is a tuner designed exclusively to receive broadcasts provided
under a separate subscription.
For details, refer to the “OWNER’S MANUAL” and “NAVIGATION SYSTEM
OWNER’S MANUAL”.

84
What to do if...
CT200h_QG_OM76225U_(U)
List of Warning/Indicator Lights
Stop the vehicle immediately. Continuing to drive the vehicle may be dangerous.
(U.S.A.)
Brake system warning light (red indicator)
(Canada)
Stop the vehicle immediately.
Charging system warning light
Low engine oil pressure warning light
Have the vehicle inspected immediately.
(U.S.A.)Malfunction
indicator lamp(Flashes)
“PCS” warning light
(if equipped)
(Canada)Slip indicator light
SRS warning lightBrake system warning light
(yellow indicator)
(U.S.A.)
ABS warning light
Automatic headlight leveling
system warning light
(if equipped)
(Canada)
(Blinking and
then continu-
ously on)Tire pressure warning lightElectric power steering
system warning light
For further information, refer to the “OWNER’S MANUAL”.

What to do if...
85
CT200h_QG_OM76225U_(U)
*: It also comes on due to natural causes such as natural air leaks and tire inflation pressure changes caused by temperature. Adjust the tire inflation pressure to the specified level.
The light will turn off after a few minutes. In case the light does not turn off even if the tire
inflation pressure is adjusted, have the system checked by your Lexus dealer.
Follow the correction procedures.
High coolant temperature
warning lightSeat belt reminder light
Open door warning lightMaster warning light
Low fuel level warning light
(Illuminates
without
blinking)Tire pressure warning light*
See the “OWNER’S MANUAL”
Turn signal indicatorCruise control indicator
Headlight indicator (U.S.A.)Radar cruise control
indicator (if equipped)
Tail light indicator (Canada)Intuitive parking assist
indicator (if equipped)
Headlight high beam indicator
(Flashes)
Slip indicator light
Fog light indicator“TRAC OFF” indicator
“READY” indicator
(Flashes faster)
“PCS” warning light
(if equipped)
EV indicator
Shift position indicators
EV drive mode indicator
“ECO MODE” indicator“A I R B A G O N /
OFF” indicator
“SPORT MODE” indicator
For further information, refe r to the “OWNER’S MANUAL”.

86
What to do if...
CT200h_QG_OM76225U_(U)
If the hybrid system does not start
Make sure that the correct operating procedures have been followed.Make sure that the brake pedal is firmly
depressed when attempting to start the
hybrid system.
If the electronic key does not operate properly
■Unlocking and locking the doors
Use the mechanical key in order to perform
the following operations:
Locks all the doors
Closes the windows
* (turn and hold)
Unlocks the door
Turning the key rearward unlocks the
driver’s door. Turning the key once
again within 3 seconds unlocks the
other doors.
Opens the windows
* (turn and hold)
*: These settings must be customized at your Lexus dealer.
Brake pedal
If the hybrid system still does not start, see the “OWNER’S MANUAL” for more informa-
tion or contact your Lexus dealer.
1
2
3
4

What to do if...
87
CT200h_QG_OM76225U_(U)

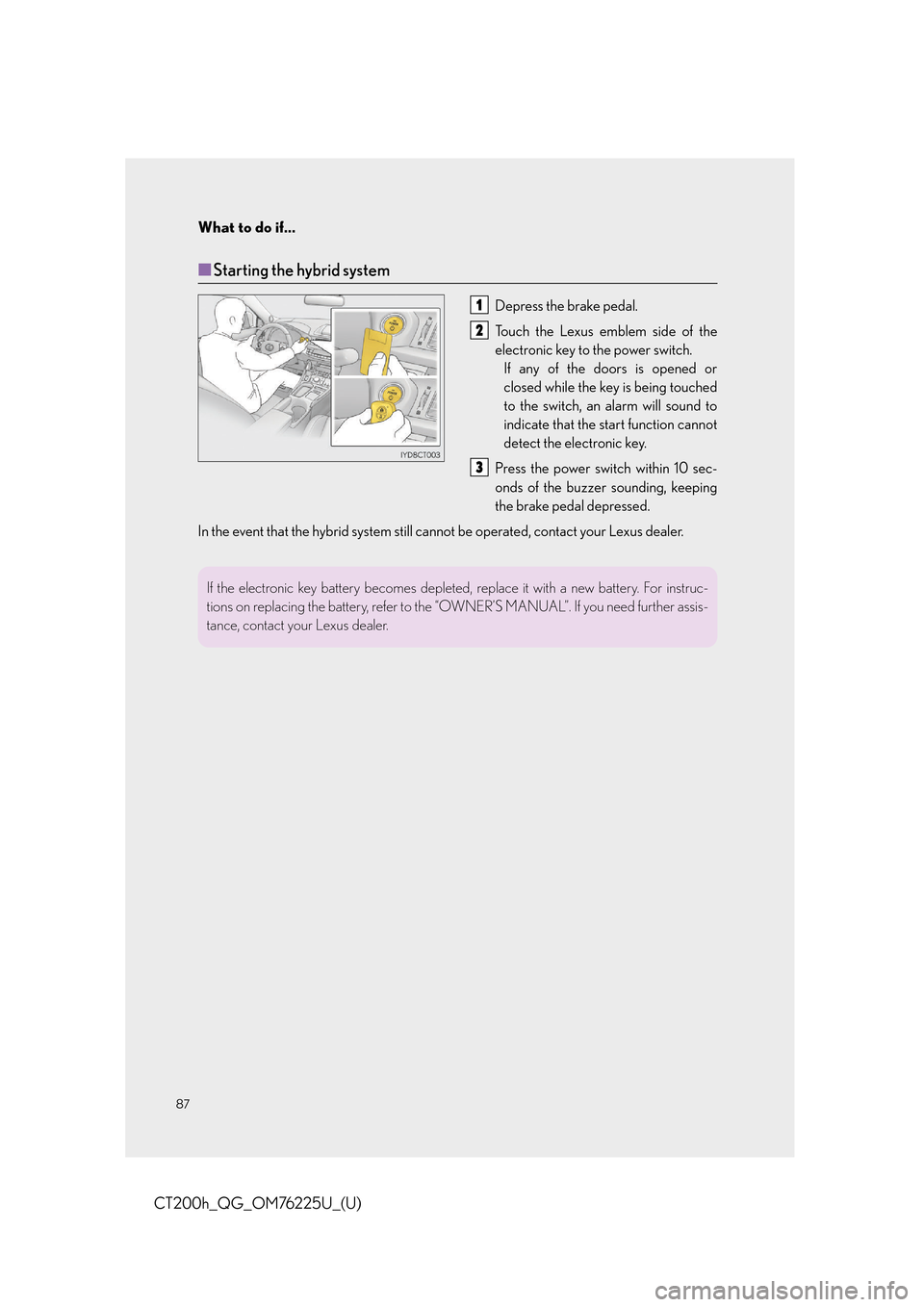

■Starting the hybrid system
Depress the brake pedal.
Touch the Lexus emblem side of the
electronic key to the power switch.
If any of the d oors is opened or
closed while the key is being touched
to the switch, an alarm will sound to
indicate that the start function cannot
detect the electronic key.
Press the power switch within 10 sec-
onds of the buzzer sounding, keeping
the brake pedal depressed.
In the event that the hybrid system still cannot be operated, contact your Lexus dealer.1
2
3
If the electronic key battery becomes depleted, replace it with a new battery. For instruc-
tions on replacing the battery, refer to the “OWNER’S MANUAL”. If you need further assis-
tance, contact your Lexus dealer.

CT200h_QG_OM76225U_(U)
Memo
88
