2017 Lexus CT200h OWNERS MANUAL QUICK GUIDE (in English)

17
CT200h_QG_OM76225U_(U)
Lexus Display Audio system
Press the “MENU” button on the Lexus Display Audio controller, then select “Info” on the
“Menu” screen, and then select “Fuel Consumption”.
If the “Past Record” screen does not appear, move the controller to the right and select
“Past Record”.
Previous fuel consumption record
Current fuel consumption
Best recorded fuel consumption
1
2
3

18
CT200h_QG_OM76225U_(U)
Tu r n S i g n a l L e v e r
Right turn
Lane change to the right (move the
lever partway and release it)
The right hand signals will flash 3 times.
Lane change to the left (move the lever
partway and release it)
The left hand signals will flash 3 times.
Left turn1
2
3
4
■Customization
The number of times the turn signals flash during a lane change can be changed.

19
CT200h_QG_OM76225U_(U)

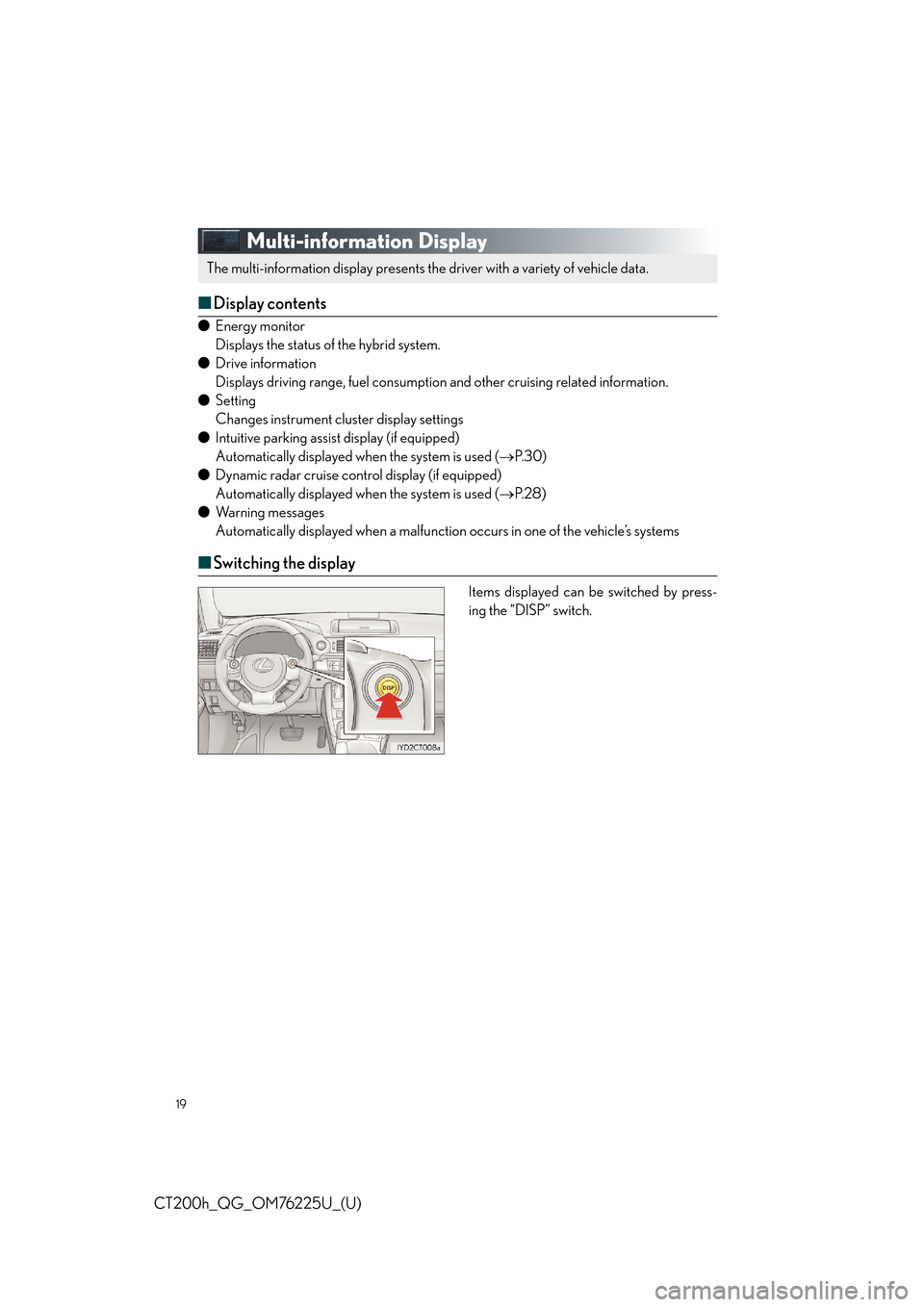

Multi-information Display
■Display contents
● Energy monitor
Displays the status of the hybrid system.
● Drive information
Displays driving range, fuel consumptio n and other cruising related information.
● Setting
Changes instrument cl uster display settings
● Intuitive parking assist display (if equipped)
Automatically displayed when the system is used ( P. 3 0 )
● Dynamic radar cruise control display (if equipped)
Automatically displayed when the system is used ( P. 2 8 )
● Wa r n i n g m e s s a g e s
Automatically displayed when a malfunction occurs in one of the vehicle’s systems
■Switching the display
Items displayed can be switched by press-
ing the “DISP” switch.
The multi-information display presents the driver with a variety of vehicle data.

20
CT200h_QG_OM76225U_(U)
Headlights
Ty p e AThe headlights, side marker,
parking lights, daytime run-
ning lights and so on turn on
and off automatically (when
the power switch is in ON
mode).
The side marker, parking, tail,
license plate, daytime running
lights and instrument panel
lights turn on.
The headlights and all the
lights listed above (except
daytime running lights) turn
on.
The daytime running lights
turn off.
Ty p e B The daytime running lights
turn on.
The side marker, parking, tail,
license plate, daytime running
lights and instrument panel
lights turn on.
The headlights and all the
lights listed above (except
daytime running lights) turn
on.
The headlights, side marker,
parking lights, daytime run-
ning lights and so on turn on
and off automatically (when
the power switch is in ON
mode).
1
2
3
4
1
2
3
4

21
CT200h_QG_OM76225U_(U)
■Turning on the high beam headlights
With the headlights on, push the lever
away from you to turn on the high
beams.
Pull the lever toward you to the center
position to turn the high beams off.
Pull the lever toward you and release it
to flash the high beams once.
You can flash the high beams with the
headlights on or off.
Windshield Wipers and Washer
■Intermittent windshield wipers wi th interval adjuster (if equipped)
Ty p e A
Intermittent operation
Low speed operation
High speed operation
Te m p o r a r y o p e r a t i o n
1
2
1
2
3
4

22
CT200h_QG_OM76225U_(U)
Wiper intervals can be adjusted when intermittent operation is selected.
Increases the intermittent windshield
wiper frequency
Decreases the intermittent windshield
wiper frequency
Washer/wiper dual operation
The wipers will automatically operate a
couple of times after the washer
squirts.
Vehicles with headlight cleaners: If the
headlights are on, the headlight clean-
ers will operate once.
Ty p e B Intermittent operation
Low speed operation
High speed operation
Temporary operation
5
6
7
1
2
3
4

23
CT200h_QG_OM76225U_(U)
Wiper intervals can be adjusted when intermittent operation is selected.
Increases the intermittent windshield
wiper frequency
Decreases the intermittent windshield
wiper frequency
Washer/wiper dual operation
The wipers will automatically operate a
couple of times after the washer
squirts.
Vehicles with headlight cleaners: If the
headlights are on, the headlight clean-
ers will operate once.
■Rain-sensing windshield wipers (if equipped)
Ty p e A
Rain-sensing operation
Low speed operation
High speed operation
Te m p o r a r y o p e r a t i o n
When “AUTO” is selected, the wipers
will operate automatically when the
sensor detects falling rain. The system
automatically adjusts wiper timing in
accordance with rain volume and vehi-
cle speed.
5
6
7
1
2
3
4

24
CT200h_QG_OM76225U_(U)

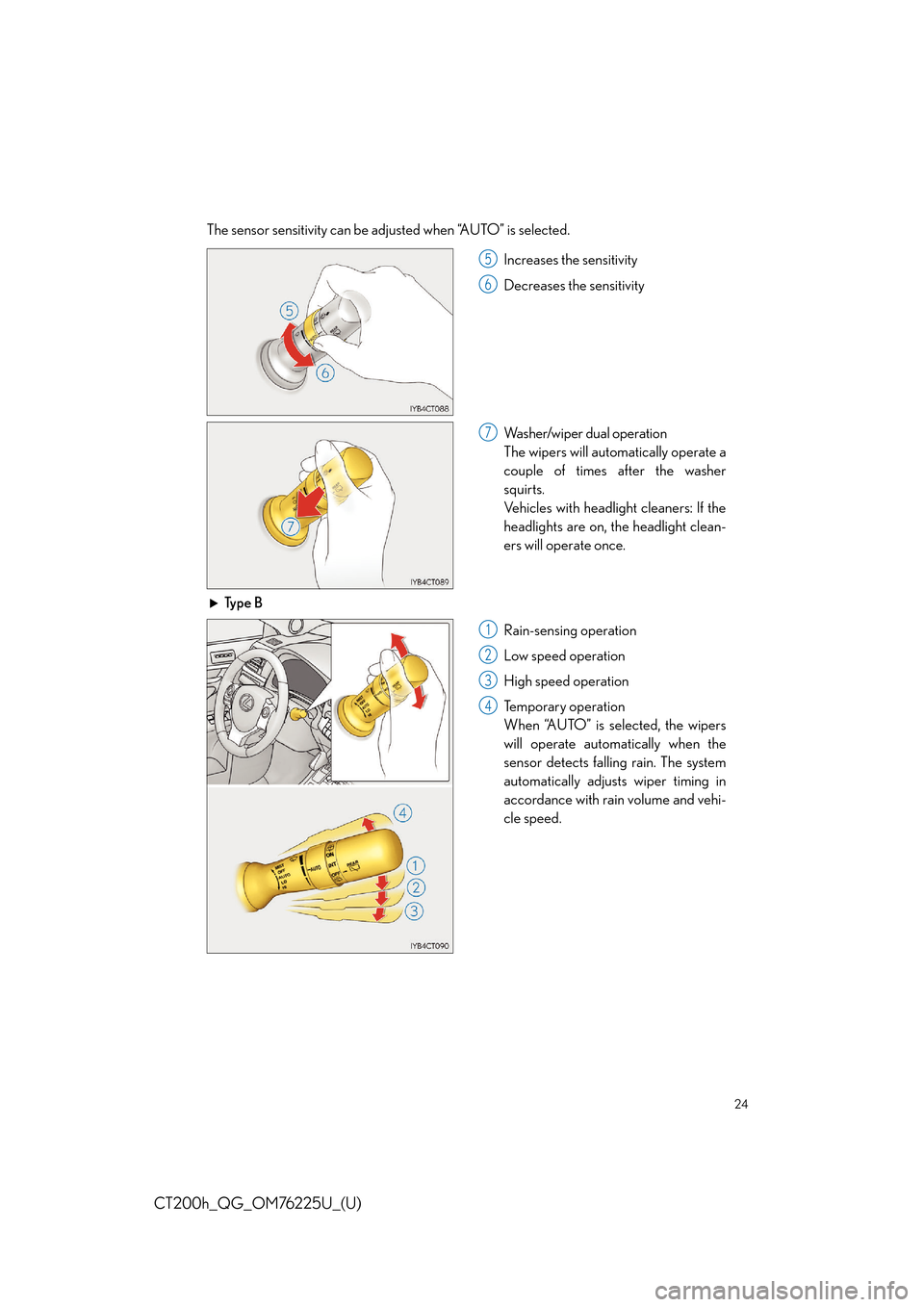

The sensor sensitivity can be adjusted when “AUTO” is selected.
Increases the sensitivity
Decreases the sensitivity
Washer/wiper dual operation
The wipers will automatically operate a
couple of times after the washer
squirts.
Vehicles with headlight cleaners: If the
headlights are on, the headlight clean-
ers will operate once.
Ty p e B Rain-sensing operation
Low speed operation
High speed operation
Temporary operation
When “AUTO” is selected, the wipers
will operate automatically when the
sensor detects falling rain. The system
automatically adjusts wiper timing in
accordance with rain volume and vehi-
cle speed.
5
6
7
1
2
3
4
