2017 INFINITI QX60 HYBRID Owner's Manual

CRUISE CONTROL OPERATIONS
The cruise control allows driving at a speed be-
tween 25 - 89 mph (40 - 144 km/h) without
keeping your foot on the accelerator pedal.
To turn on the cruise control,push the
ON/OFF switch on. The CRUISE indicator light
in the vehicle information display will illuminate.
To set cruising speed, accelerate the vehicle to
the desired speed, push the COAST/SET switch
and release it. The SET indicator light in the
vehicle information display will illuminate. Take
your foot off the accelerator pedal. Your vehicle
maintains the set speed.
● To pass another vehicle, depress the ac-
celerator pedal. When you release the
pedal, the vehicle returns to the previously
set speed.
● The vehicle may not maintain the set speed
when going up or down steep hills. If this
happens, drive without the cruise control.
To cancel the preset speed, use one of the
following three methods:
● Push the CANCEL switch; the SET indicator
light in the vehicle information display goes
out.
● Tap the brake pedal; the SET indicator light
goes out. ●
Push the ON/OFF switch off. Both the
CRUISE indicator light and SET indicator
light in the vehicle information display go out.
The cruise control is automatically canceled and
the SET light in the vehicle information display
goes out if: ● You depress the brake pedal while pushing
the ACCEL/RES or SET/COAST switch.
The preset speed is deleted from memory.
● The vehicle slows down more than 8 mph
(13 km/h) below the set speed.
● You move the shift lever to N (Neutral) .
To reset at a faster cruising speed, use one of
the following three methods:
● Depress the accelerator pedal. When the
vehicle attains the desired speed, push and
release the COAST/SET switch.
● Push and hold the ACCEL/RES switch.
When the vehicle attains the speed you de-
sire, release the switch.
● Push and release the ACCEL/RES switch.
Each time you do this, the set speed in-
creases by about 1 mph (1.6 km/h). To reset at a slower cruising speed,
use one
of the following three methods:
● Lightly tap the brake pedal. When the ve-
hicle attains the desired speed, push the
COAST/SET switch and release it.
● Push and hold the COAST/SET switch. Re-
lease the switch when the vehicle slows to
the desired speed.
● Push and release the COAST/SET switch.
Each time you do this, the set speed de-
creases by about 1 mph (1.6 km/h).
To resume the preset speed, push and re-
lease the ACCEL/RES switch. The vehicle re-
turns to the last set cruising speed when the
vehicle speed is over 25 mph (40 km/h).
5-76Starting and driving

WARNING
Failure to follow the warnings and instruc-
tions for proper use of the ICC system
could result in serious injury or death.
●The ICC system is only an aid to assist
the driver and is not a collision warning
or avoidance device. It is the driver’s
responsibility to stay alert, drive safely
and be in control of the vehicle at all
times.
● Always observe posted speed limits
and do not set the speed over them.
● Always drive carefully and attentively
when using the ICC system. Read and
understand the Owner’s Manual thor-
oughly before using the ICC system. To
avoid serious injury or death, do not rely
on the system to prevent accidents or to
control the vehicle’s speed in emer-
gency situations. Do not use the ICC
system except in appropriate road and
traffic conditions. The ICC system is intended to enhance the op-
eration of the vehicle when following a vehicle
traveling in the same lane and direction.
The ICC system uses a radar sensor
Alocated
on the front of the vehicle to detect vehicles
traveling ahead.
If the radar sensor detects a slower moving ve-
hicle ahead, the system will reduce the vehicle
speed so that your vehicle follows the vehicle in
front at the selected distance.
The detection range of the sensor is approxi-
mately 390 ft (120 m) ahead.
LSD2702
INTELLIGENT CRUISE CONTROL (ICC)
(if so equipped)
Starting and driving5-77

ICC SYSTEM OPERATION
The ICC system maintains a selected distance
from the vehicle in front of you within the speed
range 0 to 90 mph (0 to 144 km/h) up to the set
speed. The set speed can be selected by the
driver between 20 to 90 mph (32 to 144 km/h),
based on road conditions.
The vehicle travels at the set speed when the
road ahead is clear.
The ICC system is designed to maintain a se-
lected distance from the vehicle in front of you
and can reduce the speed to match a slower
vehicle ahead. The system will decelerate the
vehicle as necessary and if the vehicle ahead
comes to a stop, the vehicle decelerates to a
standstill. However, the ICC system can only
apply up to 40% of the vehicle’s total braking
power.
This system should only be used when traffic
conditions allow vehicle speeds to remain fairly
constant or when vehicle speeds change gradu-
ally. If a vehicle moves into the traveling lane
ahead or if a vehicle traveling ahead rapidly de-
celerates, the distance between vehicles may
become closer because the ICC system cannot
decelerate the vehicle quickly enough. If this oc-
curs, the ICC system will sound a warning chime
and blink the system display to notify the driver to
take necessary action.
LSD2610
5-78Starting and driving

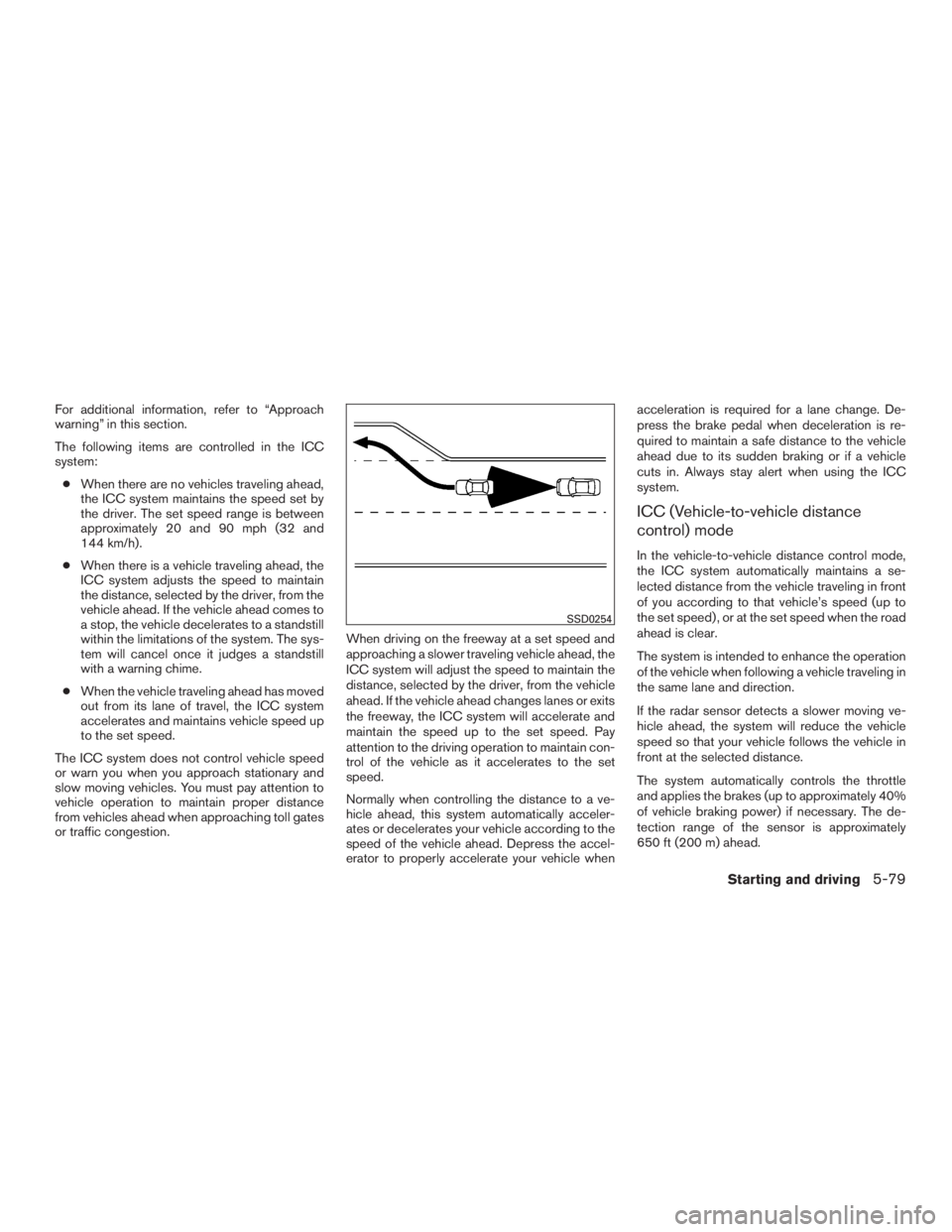

For additional information, refer to “Approach
warning” in this section.
The following items are controlled in the ICC
system:● When there are no vehicles traveling ahead,
the ICC system maintains the speed set by
the driver. The set speed range is between
approximately 20 and 90 mph (32 and
144 km/h).
● When there is a vehicle traveling ahead, the
ICC system adjusts the speed to maintain
the distance, selected by the driver, from the
vehicle ahead. If the vehicle ahead comes to
a stop, the vehicle decelerates to a standstill
within the limitations of the system. The sys-
tem will cancel once it judges a standstill
with a warning chime.
● When the vehicle traveling ahead has moved
out from its lane of travel, the ICC system
accelerates and maintains vehicle speed up
to the set speed.
The ICC system does not control vehicle speed
or warn you when you approach stationary and
slow moving vehicles. You must pay attention to
vehicle operation to maintain proper distance
from vehicles ahead when approaching toll gates
or traffic congestion. When driving on the freeway at a set speed and
approaching a slower traveling vehicle ahead, the
ICC system will adjust the speed to maintain the
distance, selected by the driver, from the vehicle
ahead. If the vehicle ahead changes lanes or exits
the freeway, the ICC system will accelerate and
maintain the speed up to the set speed. Pay
attention to the driving operation to maintain con-
trol of the vehicle as it accelerates to the set
speed.
Normally when controlling the distance to a ve-
hicle ahead, this system automatically acceler-
ates or decelerates your vehicle according to the
speed of the vehicle ahead. Depress the accel-
erator to properly accelerate your vehicle whenacceleration is required for a lane change. De-
press the brake pedal when deceleration is re-
quired to maintain a safe distance to the vehicle
ahead due to its sudden braking or if a vehicle
cuts in. Always stay alert when using the ICC
system.
ICC (Vehicle-to-vehicle distance
control) mode
In the vehicle-to-vehicle distance control mode,
the ICC system automatically maintains a se-
lected distance from the vehicle traveling in front
of you according to that vehicle’s speed (up to
the set speed) , or at the set speed when the road
ahead is clear.
The system is intended to enhance the operation
of the vehicle when following a vehicle traveling in
the same lane and direction.
If the radar sensor detects a slower moving ve-
hicle ahead, the system will reduce the vehicle
speed so that your vehicle follows the vehicle in
front at the selected distance.
The system automatically controls the throttle
and applies the brakes (up to approximately 40%
of vehicle braking power) if necessary. The de-
tection range of the sensor is approximately
650 ft (200 m) ahead.
SSD0254
Starting and driving5-79

Preview Function
The ICC system with the Preview Function iden-
tifies the need to apply emergency braking by
sensing a vehicle ahead in the same lane, and the
distance and relative speed from it. The system
applies the brake pre-pressure before the driver
depresses the brake pedal and helps improve
brake response by reducing pedal free play.● This system will not operate when the ve-
hicle is moving at approximately 20 mph
(32 km/h) or less.
● The pre-pressure function ceases when the
following conditions are met:
1. When the driver depresses the accelerator pedal or the brake pedal.
2. If the driver does not operate the accelerator or brake pedal within approximately 1 sec-
ond. ●
The sensor will not detect:
1. Pedestrians or objects in the roadway
2. Oncoming vehicles in the same lane
3. Motorcycles traveling offset in the travel lane as illustrated
WARNING
●This system is only an aid to assist brak-
ing operation and is not a collision
warning or avoidance device. It is the
driver’s responsibility to stay alert, drive
safely and be in control of the vehicle at
all times. ●
As there is a performance limit to the
Preview Function, never rely solely on
this system. This system does not cor-
rect careless inattentive or absent-
minded driving, or overcome poor vis-
ibility in rain, fog, or other bad weather.
Reduce vehicle speed by depressing the
brake pedal, in order to maintain a safe
distance between vehicles.
● The system may not detect the vehicle
in front of you in certain road or weather
conditions. The Preview Function may
not operate properly under the follow-
ing conditions. The vehicle is still drive-
able under normal conditions and the
Brake Assist will operate.
– When rain or snow adhere to the bumper around the distance sensor
– Vehicle position in the lane may cause the sensor to temporarily not
detect a vehicle in the same lane or
may detect objects or vehicles in
other lanes.
SSD0338
5-80Starting and driving

Conventional (fixed speed) cruise
control mode
This mode allows driving at a speed between 20
to 90 mph (32 to 144 km/h) without keeping your
foot on the accelerator pedal.
WARNING
●In the conventional (fixed speed) cruise
control mode, a warning chime does not
sound to warn you if you are too close
to the vehicle ahead, as neither the
presence of the vehicle ahead nor the
vehicle-to-vehicle distance is detected.
● Pay special attention to the distance
between your vehicle and the vehicle
ahead of you or a collision could occur.
● Always confirm the setting in the Intel-
ligent Cruise Control system display.
● Do not use the conventional (fixed
speed) cruise control mode when driv-
ing under the following conditions:
– When it is not possible to keep the vehicle at a set speed
– In heavy traffic or in traffic that varies in speed
– On winding or hilly roads – On slippery roads (rain, snow, ice,
etc.)
– In very windy areas
● Doing so could cause a loss of vehicle
control and result in an accident.
THE ICC SWITCH
The system is operated by the CRUISE ON/OFF
switch and four control switches, all mounted on
the steering wheel.
1. ACCEL/RES switch:
Resumes set speed or increases speed in-
crementally.
2. COAST/SET switch:
Sets desired cruise speed or reduces speed
incrementally.
LSD2056
Starting and driving5-81

3.CANCEL switch:
Deactivates the system without erasing the
set speed.
4. DISTANCE
switch*:
Changes the vehicle’s following distance:
● Long
● Middle
● Short
5. CRUISE ON/OFF switch:
Master switch to activate the system.
*: This switch only affects the vehicle-to-vehicle
control mode, not the conventional (fixed speed)
cruise control mode.
How to select the cruise control mode
Selecting vehicle-to-vehicle distance con-
trol mode
To choose the vehicle-to-vehicle distance control
mode, quickly push and release the CRUISE
ON/OFF switch. Selecting the conventional (fixed speed)
cruise control mode
To choose the conventional (fixed speed) cruise
control mode, push and hold the CRUISE
ON/OFF switch for longer than approximately
1.5 seconds. For additional information, refer to
“Operating conventional (fixed speed) cruise
control mode” in this section.
ICC (vehicle-to-vehicle distance
control) mode display and indicators
The display is located between the speedometer
and tachometer.
1. CRUISE ON/OFF switch indicator: ●ICC system ON indicator (white): In-
dicates that the CRUISE ON/OFF switch
is ON.
● ICC system SET indicator (green):
Indicates that the cruising speed is set.
● ICC system warning (orange): Indi-
cates that if there is a malfunction in the
ICC system.
LSD2534
5-82Starting and driving

2. Vehicle ahead detection indicator:Indicates whether it detects a vehicle in front
of you.
3. Set distance indicator: Displays the selected distance between ve-
hicles set with the distance switch.
4. Set vehicle speed indicator: Indicates the set vehicle speed.
Preview function warning light and dis-
play
When the Preview Function is not operating
properly, the chime sounds and the system warn-
ing light (orange) will come on.
Action to take:
If the warning light comes on, park the vehicle in a
safe place. Turn the hybrid system off, restart the
hybrid system and resume driving. If the indicator stays on, it may indicate that
the Preview Function is malfunctioning
(the brake is operative) . Although the ve-
hicle is still driveable under normal condi-
tions, have the vehicle checked. It is recom-
mended that you visit an INFINITI retailer
for this service.
LSD2067
Starting and driving5-83
