INSTRUMENT PANEL
0-6Illustrated table of contents

2 Instruments and controls
Instrument panel...................................2-2
Meters and gauges ................................2-4
Speedometer and odometer .....................2-4
Tachometer ....................................2-5
Fuel gauge ....................................2-6
Assist Charge Gauge ...........................2-6
Warning lights, indicator lights and audible
reminders .........................................2-7
Checking lights ................................2-8
Warning lights .................................2-8
Indicator lights ................................ 2-13
Audible reminders ............................. 2-15
Vehicle Information Display ........................2-16
How to use the vehicle information display .......2-17
Startup display ................................ 2-17
Resetting the trip computer .....................2-18
Settings ...................................... 2-18
Vehicle information display warnings and
indicators ..................................... 2-27
Security systems ................................. 2-33
Vehicle security system ......................... 2-33
INFINITI vehicle immobilizer system ..............2-34
Wiper and washer switch ......................... 2-36Switch operation
.............................. 2-36
Rain-sensing auto wiper system
(if so equipped) ............................... 2-37
Rear switch operation .......................... 2-38
Rear window and outside mirror defroster switch .....2-39
Headlight and turn signal switch ....................2-40
Xenon headlights .............................. 2-40
Headlight control switch ........................ 2-40
Daytime running light system ....................2-45
Instrument brightness control ...................2-45
Turn signal switch ............................. 2-45
Fog light switch ............................... 2-46
Horn ............................................ 2-46
Climate controlled seat switches (if so equipped) ....2-47
Heated seat switches (if so equipped) ..............2-48
Heated 2nd row seat switches (if so equipped) ......2-49
Heated

steering wheel switch (if so equipped) .......2-50
Vehicle Dynamic Control (VDC) off switch ...........2-50
Warning systems switch (if so equipped) ............2-51
Power inverter switch (if so equipped) ..............2-52
E-call (SOS) switch (if so equipped) ................2-52
Power outlets .................................... 2-53
12v outlets ................................... 2-53

1. Vent (P. 4-49)
2. Headlight/fog light/turn signal switch(P. 2-40)
3. Instrument brightness control (P. 2-40)
4. Meters and gauges (P. 2-4) Warning and indicator lights (P. 2-7)
Vehicle information display (P. 2-16)
5. Driver supplemental air bag (P.1-49) Horn (P. 2-46)
6. Back-up Collision Intervention (BCI)
system switch (if so equipped)
(P. 5-58)
7. Twin trip odometer reset switch (P. 2-4)
8. Wiper and washer switch (P. 2-36) Rear wiper and washer switch
(P. 2-36)
9. Rear window and outside mirror de-
froster switch (P. 2-39)
10. Center display* Navigation system* (if so equipped)
11. Automatic heater and air conditioning
controls (P. 4-50)
12. Front passenger supplemental air bag
(P. 1-56)
13. Glove box (P. 2-56)
14. Center multi-function control buttons*
15. Power outlet (P. 2-53)
LII2436
INSTRUMENT PANEL
2-2Instruments and controls

The rear window wiper and washer operate when
the ignition switch is in the ON position. Turn the
switch clockwise from the OFF position to oper-
ate the wiper.
1Intermittent (INT) — intermittent operation
(not adjustable)
2Low (ON) — continuous low speed opera-
tion
Push the switch forward
3to operate the
washer. The wiper will also operate several times.
To defrost the rear window glass and outside
mirrors:
Start the hybrid system and push the rear window
defroster switch. The rear window defroster indi-
cator light on the switch comes on. Push the
switch again to turn the defroster off.
The rear window defroster automatically turns off
after approximately 15 minutes.
CAUTION
When cleaning the inner side of the rear
window, be careful not to scratch or dam-
age the rear window defroster.NOTE:
The top and bottom few rows of wires on
the rear window are not part of the rear
window defroster system. These wires
make up the antenna for the audio system.
LIC2923
REAR WINDOW AND OUTSIDE
MIRROR DEFROSTER SWITCH
Instruments and controls2-39

– When there is a sudden, continuouschange in brightness.
– When driving on a road that passes over rolling hills, or a road that has
level differences.
– When driving on a road with many curves.
– When a sign or mirror-like surface is reflecting intense light towards the
front of the vehicle.
– When the container, etc. being towed by a leading vehicle is reflecting in-
tense light.
– When a headlight on your vehicle is damaged or dirty.
– When the vehicle is leaning at an angle due to a punctured tire, being
towed, etc.
● The timing of switching the low beam
and high beam may change under the
following situations.
– The brightness of the headlights of the oncoming vehicle or leading
vehicle. – The movement and direction of the
oncoming vehicle and the leading
vehicle.
– When only one light on the oncoming vehicle or the leading vehicle is
illuminated.
– When the oncoming vehicle or the leading vehicle is a two-wheeled
vehicle.
– Road conditions (incline, curve, the road surface, etc.) .
– The number of passengers and the amount of luggage.
High beam assist operation
To activate the high beam assist system, turn the
headlight switch to the AUTO position
1and
push the lever forward
2(high beam position) .
The high beam assist indicator light in the meter
will illuminate while the headlights are turned on.
If the high beam assist indicator light does not
illuminate in the above condition, it may indicate
that the system is not functioning properly. Have
the system checked, it is recommended that you
visit an INFINITI retailer for this service.
When the vehicle speed lowers to less than
approximately 16 mph (25 km/h), the headlight
uses the low beam.
LIC3618
Instruments and controls2-43

To turn off the high beam assist system, turn the
headlight switch to the
position or select
the low beam position by placing the lever in the
neutral position.
Ambient image sensor maintenance
The ambient image sensor
1for the high beam
assist system is located in front of the inside
mirror. To maintain the proper operation of the
high beam assist system and prevent a system
malfunction, be sure to observe the following:
● Always keep the windshield clean.
● Do not attach a sticker (including transpar-
ent material) or install an accessory near the
ambient image sensor.
● Do not strike or damage the areas around
the ambient image sensor. Do not touch the
sensor lens that is located on the ambient
image sensor. If the ambient image sensor is damaged due to an
accident, it is recommended that you visit an
INFINITI retailer.
Battery saver system
The battery saver system automatically turns off
the ignition after a period of time when the igni-
tion switch is left in the ACC or ON position.
The battery saver system automatically turns off
the following lights after a period of time when the
ignition switch is placed in the OFF position and
the doors are closed:
● Headlights, when the headlight switch is in
the
orposition
● Interior lights, when left in the ON position
The battery saver system may be disabled. For
additional information, refer to “Vehicle informa-
tion display” in this section.
CAUTION
Even though the battery saver feature au-
tomatically turns off the headlights after a
period of time, you should turn the head-
light switch to the OFF position when the
engine is not running to avoid discharging
the vehicle battery.
LIC3638
2-44Instruments and controls

Push the VDC OFF switch again or restart the
engine to turn on the system. For additional infor-
mation, refer to “Vehicle Dynamic Control (VDC)
system” in the “Starting and driving” section of
this manual.
WARNING
When this switch is activated the follow-
ing Warning Systems (if so equipped) are
turned off and will not work.
●Blind Spot Warning (BSW)
● Lane Departure Warning (LDW)
● Rear Cross Traffic Alert (RCTA)
The warning systems switch is used to turn on
and off the warning systems (Lane Departure
Warning (LDW) , Blind Spot Warning (BSW) ,
Rear Cross Traffic Alert (RCTA) , and Forward
Emergency Braking (FEB) with Pedestrian De- tection) that are activated (if equipped) using the
settings menu on the vehicle information display.
When the warning systems switch is turned off,
the indicator
1on the switch is off. The indicator
will also be off if the warning system is deacti-
vated using the settings menu.
The LDW system warns the driver with a warning
light and chime that the vehicle is beginning to
leave the driving lane.For additional information,
refer to “Lane Departure Warning (LDW)” in the
“Starting and driving” section of this manual.
The BSW system will turn on the side indicator
light, located next to the outside mirrors, if the
radar detects a vehicle in the detection zone. If
the turn signal is activated in the direction of the
detected vehicle, a chime sounds twice and the
side indicator light will flash. For additional infor-
mation, refer to “Blind Spot Warning (BSW)” in
the “Starting and driving” section of this manual.
The RCTA system can help alert the driver of an
approaching vehicle when the driver is backing
out of a parking space. If the system detects an
approaching vehicle from either side, the system
chimes (once) and the side BSW/RCTA indica-
tor light flashes on the side the vehicle is ap-
proaching from. For additional information, refer
to “Rear Cross Traffic Alert (RCTA)” in the “Start-
ing and driving” section of this manual.
LIC2225
WARNING SYSTEMS SWITCH (if so
equipped)
Instruments and controls2-51

To turn on the automatic anti-glare feature, press
the | button again. The indicator light will turn
on.
For information on HomeLink® Universal Trans-
ceiver operation, refer to “HomeLink® Universal
Transceiver” in the “Instruments and controls”
section of this manual.
NOTE:
Do not hang any objects over the sensors
1or apply glass cleaner to the sensors.
Doing so will reduce the sensitivity of the
sensors, resulting in improper operation.

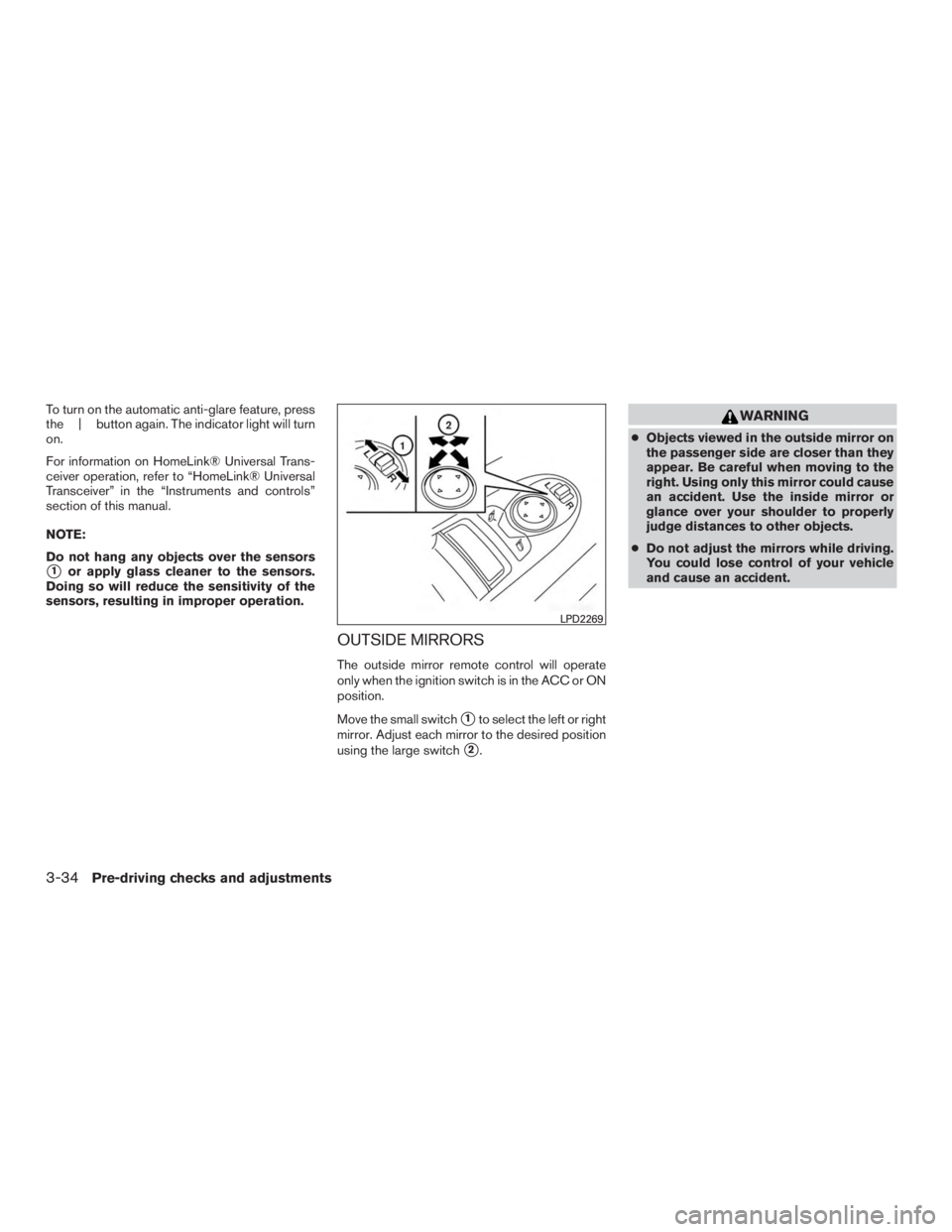

OUTSIDE MIRRORS
The outside mirror remote control will operate
only when the ignition switch is in the ACC or ON
position.
Move the small switch
1to select the left or right
mirror. Adjust each mirror to the desired position
using the large switch
2.
WARNING
● Objects viewed in the outside mirror on
the passenger side are closer than they
appear. Be careful when moving to the
right. Using only this mirror could cause
an accident. Use the inside mirror or
glance over your shoulder to properly
judge distances to other objects.
● Do not adjust the mirrors while driving.
You could lose control of your vehicle
and cause an accident.
LPD2269
3-34Pre-driving checks and adjustments
