WARNING
Failure to follow the warnings and instruc-
tions for proper use of the sonar function
as outlined in this section could result in
serious injury or death.
●The sonar is a convenience feature. It is
not a substitute for proper parking.
● This function is designed as an aid to
the driver in detecting large stationary
objects to help avoid damaging the
vehicle.
● The driver is always responsible for
safety during parking and other
maneuvers.
● Always look around and check that it is
safe to move before parking.
● Read and understand the limitations of
the sonar as contained in this section.
The sonar function helps to inform the driver of
large stationary objects around the vehicle when
parking by issuing an audible and visual alert. 1. Center display
2. CAMERA button
3. SETTING button
SONAR SYSTEM OPERATION
The system gives the tone for front objects when
the shift lever is in the “D” (Drive) position and
both front and rear objects when the shift lever is
in the “R” (Reverse) position.
LHA4245
CAMERA AIDING SONAR (parking
sensor) (if so equipped)
4-40Monitor, climate, audio, phone and voice recognition systems

When the camera image is shown on the center
display, the system shows the sonar indicator
regardless of the shift lever position.
The system is deactivated at speeds above
6 mph (10 km/h). It is reactivated at lower
speeds.
The colors of the sonar indicators and the dis-
tance guide lines in the front, front-wide, rear, and
rear-wide views indicate different distances to
the object.
When the objects are detected, the indicator
(green) appears and blinks and the tone sounds
intermittently. When the vehicle moves closer to
the object, the color of the indicator turns yellow
and the rate of the blinking and the rate of the
tone increase. When the vehicle is very close to
the object, the indicator stops blinking and turns
red, and the tone sounds continuously.
The intermittent tone will stop after 3 seconds
when an object is detected by only the corner
sonar and the distance does not change.
The tone will stop when the object is no longer
near the vehicle.
TURNING ON AND OFF THE
SONAR FUNCTION
When the “” keyAis selected, the indica-
tor
Bwill turn off and the sonar will be turned off
temporarily. The Moving Object Detection
(MOD) system will also be turned off at the same
time. For additional information, refer to “Moving
Object Detection (MOD) in this section. When
the key
Ais selected again, the indicator will
turn on and the sonar will turn back on.
In the below cases, the sonar will be turned back
on automatically:
● When the shift lever is placed in the “R”
(Reverse) position. ●
When the CAMERA button is pressed and a
screen other than the camera view is shown
on the display.
● When vehicle speed decreases below ap-
proximately 6 mph (10 km/h).
● When the ignition switch is placed in the
“OFF” position and turned back to the “ON”
position again. To prevent the sonar system
from activating altogether, use the “Sonar”
menu. For additional information, refer to
“Sonar function settings” in this section.
LHA4272LHA4273
Monitor, climate, audio, phone and voice recognition systems4-41

Sonar function settings
To set up the sonar function to your preferred
settings, press the SETTING button, select the
“Camera/Sonar” key and then select the “Sonar”
key on the center display.
Designs and items displayed on the screen may
vary depending on the models.
Sonar Volume:Adjust the volume of the buzzer.
Sonar: When this item is turned on, the front and
rear sonar is activated. When this item is turned
off (indicator turns off) , the front and rear sonar is
deactivated. The amber markers are displayed at
the corners of the vehicle icon and the sonar icon
will disappear from the “
” key on the Around
View® Display. The next time the ignition switch
is placed in the on position, “sonar is OFF” is
displayed briefly.
FR sensor only: When this item is turned to
“ON”, only the front sonar sensors are active.
Interrupt Display: When this item is turned to
“ON” the display screen will interrupt the current
view in the display to see the surrounding area of
the vehicle.
Sonar Sensitivity: Adjust the sensitivity level of
the sonar higher (right) or lower (left) .
SONAR SYSTEM LIMITATIONS
WARNING
Listed below are the system limitations for
the sonar function. Failure to operate the
vehicle in accordance with these system
limitations could result in serious injury or
death.
● Inclement weather or ultrasonic
sources such as an automatic car wash,
a trucks’s compressed-air brakes or a
pneumatic drill may affect the function
of the system, including reduced perfor-
mance or a false activation.
● The system is not designed to prevent
contact with small or moving objects.
● The system will not detect small objects
below the bumper, and may not detect
objects close to the bumper or on the
ground.
● The system may not detect the follow-
ing objects:
– Fluffy objects such as snow, cloth, cotton, grass or wool.
– Thin objects such as rope, wire or chain. – Wedge-shaped objects.
● If your vehicle sustains damage to the
bumper fascia, leaving it misaligned or
bent, the sensing zone may be altered
causing inaccurate measurement of ob-
jects or false alarms.
CAUTION
Excessive noise (such as audio system
volume or an open vehicle window) will
interfere with the tone and it may not be
heard.
System temporarily unavailable
When the amber markers are displayed at the
corners of the vehicle icon and the function can-
not be activated from the Camera setting menu
(the setting items are grayed out) , the sonar
system may be malfunctioning.
4-42Monitor, climate, audio, phone and voice recognition systems

SYSTEM MAINTENANCE
CAUTION
Keep the surface of the sonar sensors
(located on the front and rear bumper fas-
cia) free from accumulations of snow, ice
and dirt. Do not scratch the surface of the
sonar sensors when cleaning. If the sen-
sors are covered, the accuracy of the sonar
function will be diminished.
Monitor, climate, audio, phone and voice recognition systems4-43

1. CAMERA button
LHA3874
MOVING OBJECT DETECTION (MOD)
(if so equipped)
4-44Monitor, climate, audio, phone and voice recognition systems

WARNING
●Failure to follow the warnings and in-
structions for proper use of the Moving
Object Detection system could result in
serious injury or death.
● The MOD system is not a substitute for
proper vehicle operation and is not de-
signed to prevent contact with objects
surrounding the vehicle. When maneu-
vering, always use the outside mirrors
and rearview mirror and turn and check
the surroundings to ensure it is safe to
maneuver.
● The system is deactivated at speeds
above 6 mph (10 km/h). It is reactivated
at lower speeds.
● The MOD system is not designed to
detect surrounding stationary objects.
The MOD system can inform the driver of moving
objects near the vehicle when backing out of
garages, maneuvering in parking lots and in other
such instances.
The MOD system detects moving objects by
using image processing technology on the image
shown in the display.
MOD SYSTEM OPERATION
The MOD system will turn on automatically under
the following conditions: ● When the shift lever is in the R (Reverse)
position.
● When the CAMERA button is pressed to
activate the camera view on the display.
● When vehicle speed decreases below ap-
proximately 6 mph (10 km/h) and the camera
screen is displayed.
The MOD system operates in the following con-
ditions when the camera view is displayed:● When the shift lever is in the P (Park) or N
(Neutral) position and the vehicle is stopped,
the MOD system detects moving objects in
the bird’s-eye view. The MOD system will
not operate if the outside mirrors are moving
in or out, in the stowed position, or if either
front door is opened.
● When the shift lever is in the D (Drive) posi-
tion and the vehicle speed is below approxi-
mately 6 mph (10 km/h), the MOD system
detects moving objects in the front view.
Front and bird’s-eye views
LHA4274
Monitor, climate, audio, phone and voice recognition systems4-45

●When the shift lever is in the R (Reverse)
position and the vehicle speed is below ap-
proximately 6 mph (10 km/h), the MOD sys-
tem detects moving objects in the rear view.
The MOD system will not operate if the
liftgate is open.
The MOD system does not detect moving ob-
jects in the front-side view. The MOD icon is not
displayed on the screen when in this view.
When the MOD system detects moving objects
near the vehicle, a yellow frame will be displayed
on the view where the objects are detected. While the MOD system continues to detect mov-
ing objects, the yellow frame continues to be
displayed.
NOTE:
While the BCI chime (if so equipped) is
beeping, the MOD system does not chime.
In the bird’s-eye view, the yellow frame
1is
displayed on each camera image (front, rear,
right, left) depending on where moving objects
are detected.
The yellow frame
2is displayed on each view in
the front view and rear view modes. A blue MOD icon
3is displayed in the view
where the MOD system is operative. A gray MOD
icon is displayed in the view where the MOD
system is not operative.
If the MOD system is turned off, the MOD icon
3
is not displayed.

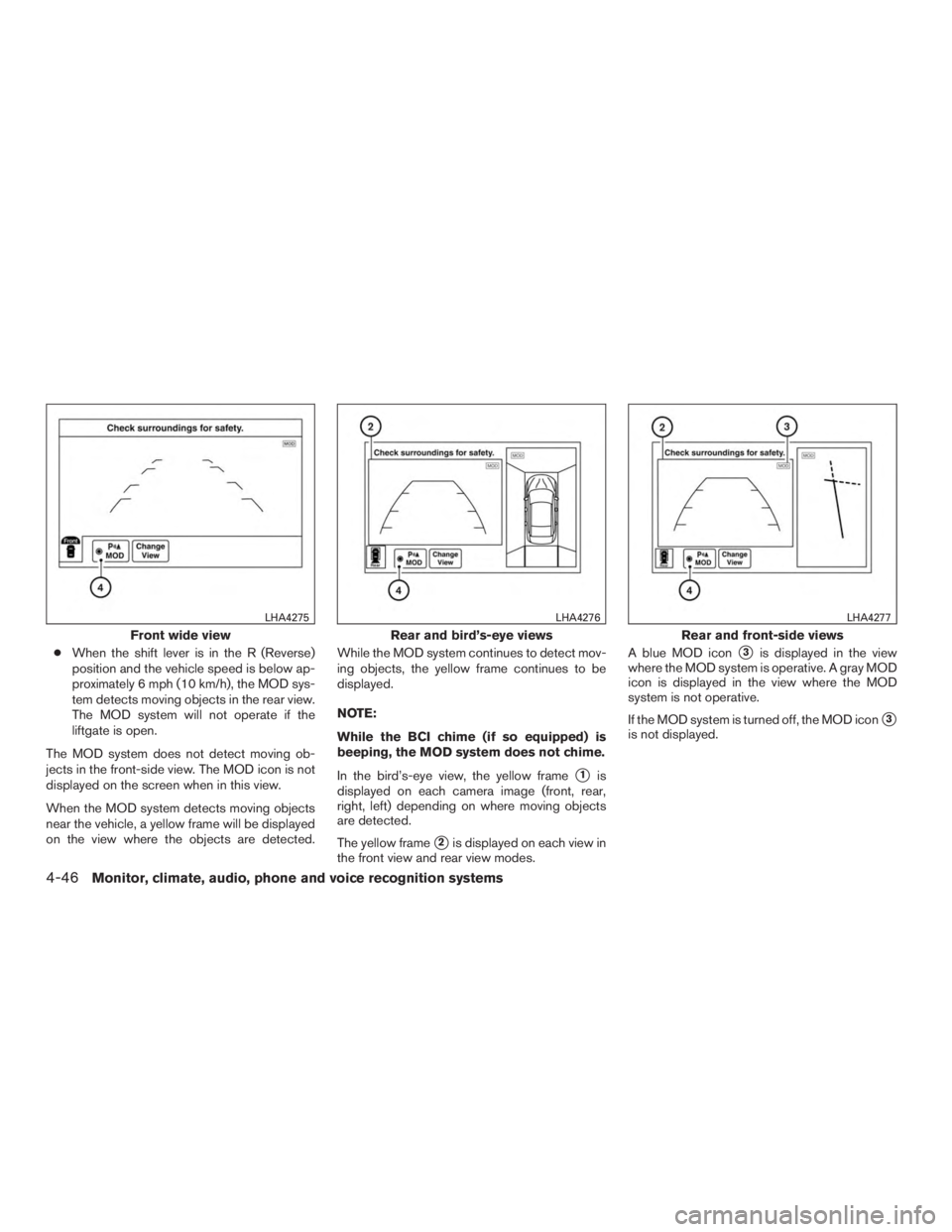

Front wide view
LHA4275
Rear and bird’s-eye views
LHA4276
Rear and front-side views
LHA4277
4-46Monitor, climate, audio, phone and voice recognition systems

TURNING MOD ON AND OFF
1. Press the SETTING button on the controlpanel
2. Touch the Camera/Sonar key
3. Select Camera
4. Touch “Moving Object Detection” to switch between ON and OFF.
You can also turn MOD on and off by pressing the
“
” key4on the display screen.
MOD SYSTEM LIMITATIONS
WARNING
Listed below are the system limitations for
MOD. Failure to operate the vehicle in
accordance with these system limitations
could result in serious injury or death.
● Do not use the MOD system when tow-
ing a trailer. The system may not func-
tion properly.
● Excessive noise (for example, audio
system volume or open vehicle window)
will interfere with the chime sound, and
it may not be heard.
● The MOD system performance will be
limited according to environmental con-
ditions and surrounding objects such
as:
– When there is low contrast between background and the moving objects.
– When there is a blinking source of light.
– When strong light such as another vehicle’s headlight or sunlight is
present. – When camera orientation is not in its
usual position, such as when a mirror
is folded.
– When there is dirt, water drops or snow on the camera lens.
– When the position of the moving ob- jects in the display is not changed.
● The MOD system might detect flowing
water droplets on the camera lens,
white smoke from the muffler, moving
shadows, etc.
● The MOD system may not function
properly depending on the speed, direc-
tion, distance or shape of the moving
objects.
● If your vehicle sustains damage to the
parts where the camera is installed,
leaving it misaligned or bent, the sens-
ing zone may be altered and the MOD
system may not detect objects properly.
● When the temperature is extremely
high or low, the screen may not display
objects clearly. This is not a
malfunction.
Rear wide view
LHA4278
Monitor, climate, audio, phone and voice recognition systems4-47
