2017 HONDA ODYSSEY Owners Manual

536
uuFuses uFuse Locations
Handling the Unexpected
Located on the lower side panel. Take off
the cover to open.
Fuse locations are shown on the fuse box
cover.
Locate the fuse in question by the fuse
number and box cover number.
■Passenger Side Fuse Box■Circuit protected and fuse rating
Circuit ProtectedAmps
1Premium Amp*(30 A)
2Rear Passenger’s Side
Power Window20 A
3ACM10 A
4−−
5Seat Heaters*(15 A)
6−−
7Front Passenger’s Power Seat Sliding(20 A)
8Front Passenger’s Power Seat Reclining(20 A)
9−−
10 − −
11−−
12 − −
13Passenger’s Side Power Sliding Door Closer*(20 A)
14 Rear Accessory Power
Socket 15 A
15−−
16 − −
17−−
18 Front Passenger’s Power
Window 20 A
19SRS10 A
20 ECU AS 7.5 A
21Headlight Adjuster*(7.5 A)
22 − −
23OPDS*(7.5 A)
24 OPDS*(7.5 A)
25Illumination (Interior)7.5 A
26 − −
27Front Accessory Power Socket15 A
28 − −
Circuit ProtectedAmps
* Not available on all models
17 US ODYSSEY (KA KC)-31TK86600.book 536 ページ ２０１６年１０月２４日　月曜日　 午後４時２分

537
uuFuses uFuse Locations
Handling the Unexpected
Located on the left side of cargo area.
Remove the cover by prying on the edge of
the cover using a flat-tip screwdriver.
u Wrap the flat-tip screwdriver with a
cloth to prevent scratches.
Fuse locations are shown on the fuse box
cover.
Locate the fuse in question by the fuse
number and box cover number.
■Rear Fuse Box■Circuit protected and fuse rating
Circuit ProtectedAmps
1Power Tailgate Closer*(20 A)
2Trailer Small Light*(7.5 A)
3−−
4Tailgate*(10 A)
5Rear Driver’s Side Door Lock7.5 A
6−−
7−−
8Trailer*(10 A)
9Trailer Charge*(20 A)
10 Trailer Back Light*(7.5 A)
11Trailer Hazard*(7.5 A)
12 Rear Wiper 10 A
13ECU RR7.5 A
14 Power Tailgate Motor*(40 A)
15AC Inverter*(30 A)
16 − −
17−−
18 − −
* Not available on all models
17 US ODYSSEY (KA KC)-31TK86600.book 537 ページ ２０１６年１０月２４日　月曜日　 午後４時２分

538
uuFuses uInspecting and Changing Fuses
Handling the Unexpected
Inspecting and Changing Fuses
1. Turn the ignition switch to LOCK (0*1. Turn
headlights and all accessories off.
2. Remove the fuse box cover.
3. Check the large fuse in the engine
compartment.
u If the fuse is blown, use a Phillips-head
screwdriver to remo ve the screw and
replace it with a new one.
4. Inspect the small fuses in the engine
compartment and the vehicle interior.
u If there is a blown fuse, remove it with
the fuse puller and replace it with a new
one.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1 Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Replace fuse with a spare fuse of the same specified
amperage.
Confirm the specified amperage using the charts on
P. 533 to 537.
There is a fuse puller in the engine compartment fuse
box (passenger side).
Blown Fuse
Blown
Fuse
Fuse Puller
17 US ODYSSEY (KA KC)-31TK86600.book 538 ページ ２０１６年１０月２４日　月曜日　 午後４時２分

539
Handling the Unexpected

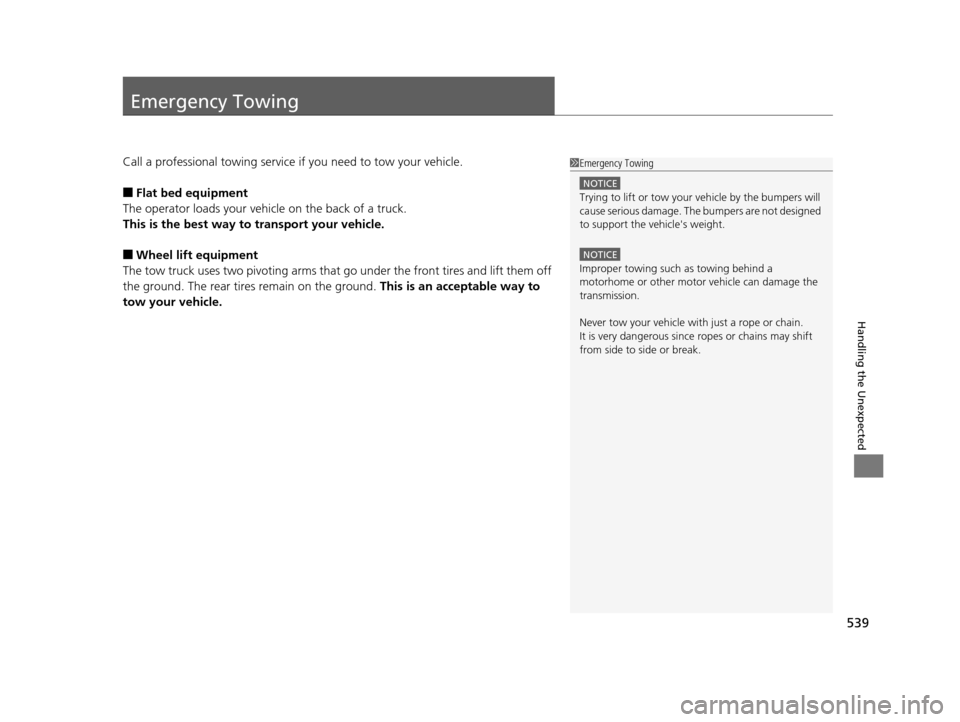

Emergency Towing
Call a professional towing service if you need to tow your vehicle.
■Flat bed equipment
The operator loads your vehicle on the back of a truck.
This is the best way to transport your vehicle.
■Wheel lift equipment
The tow truck uses two pivoti ng arms that go under the front tires and lift them off
the ground. The rear tires remain on the ground. This is an acceptable way to
tow your vehicle.
1 Emergency Towing
NOTICE
Trying to lift or tow your vehicle by the bumpers will
cause serious damage. The bumpers are not designed
to support the vehicle's weight.
NOTICE
Improper towing such as towing behind a
motorhome or other motor vehicle can damage the
transmission.
Never tow your vehicle with just a rope or chain.
It is very dangerous since ropes or chains may shift
from side to side or break.
17 US ODYSSEY (KA KC)-31TK86600.book 539 ページ ２０１６年１０月２４日　月曜日　 午後４時２分

540
Handling the Unexpected
When You Cannot Open or Close the Tailgate
If you cannot open or close the tailgate or power tailgate, use the following
procedure. 1.Use a flat-tip screwdriver and remove the
cover on the back of the tailgate.
u Wrap the flat-tip screwdriver with a cloth
to prevent scratches.
2. To open the tailgate, push the tailgate
while pushing the lever to the right.
2. To open the tailgate, push the tailgate
while pushing down the lever with the flat-
tip screwdriver.1 When You Cannot Open or Close the Tailgate
Following up:
After taking these steps, cont act a dealer to have the
vehicle checked.
When you open the tailgate from inside, make sure
there is enough space around the tailgate, and it
does not hit anyone or any object.
Cover
LeverModels with power tailgate
Lever
Models without power tailgate
17 US ODYSSEY (KA KC)-31TK86600.book 540 ページ ２０１６年１０月２４日　月曜日　 午後４時２分

541
Information
This chapter includes your vehicle's specifications, locations of identification numbers, and other
information required by regulation.
Specifications.................................... 542
Identification Numbers
Vehicle Identification Number (VIN), Engine
Number and Transmission Number .... 544
Devices that Emit Radio Waves ....... 545Reporting Safety Defects
................. 546
Emissions Testing Testing of Readiness Codes.............. 547
Warranty Coverages ........................ 549
Authorized Manuals ......................... 551
Customer Service Information ......... 552
17 US ODYSSEY (KA KC)-31TK86600.book 541 ページ ２０１６年１０月２４日　月曜日　 午後４時２分

542
Information
Specifications
■Vehicle Specifications
*1: LX model
ModelHonda Odyssey
No. of Passengers:
Front 2
Rear 2nd Row 3 (2
*1)
3rd Row 3
Total 8 (7
*1)Weights:Gross Vehicle
Weight Rating U.S.: 6,019 lbs (2,730 kg)
Canada: 2,730 kg
Gross Axle Weight
Rating (Front)U.S.: 2,910 lbs (1,320 kg)
Canada: 1,320 kg
Gross Axle Weight
Rating (Rear)U.S.: 3,340 lbs (1,515 kg)
Canada: 1,515 kg
Gross Combined
Weight Rating U.S.: 8,565 lbs (3,885 kg)
Canada: 3,885 kg
Air Conditioning:Refrigerant Type HFC-134a (R-134a)Charge Quantity24.9 – 26.6 oz (705 – 755 g)Lubricant TypeND-OIL8
■Engine Specifications
■ Fuel
■ Washer Fluid
Displacement212 cu-in (3,471 cm3)
Spark Plugs NGK DILZKR7A11G
Fuel:
TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 21 US gal (79.5 ℓ)
Tank CapacityU.S.: 2.6 US qt (2.5 ℓ)
Canada: 4.5 US qt (4.3 ℓ)
■ Light Bulbs
Headlights (Low Beam)35W (D2S)*
55W (H11)*
Headlights (High Beam) 60W (HB3)Fog Lights*55W (H11)
Front Turn Signal/Parking/Side
Marker Lights 28/8W
Side Turn Signal Lights
(on Door Mirrors)*LED
Brake Lights 21W
Rear Side Marker/TaillightsLED
Rear Turn Signal Lights 21W (Amber)
Back-Up Lights21W
Taillights LED
High-Mount Brake Light16W
Rear License Plate Lights 5W
Map Lights (Front)5W
Map Lights (Rear) 5W
Cargo Area Light8W
Vanity Mirror Lights 1.4W
Door Courtesy Lights3.8W (2CP)
Glove Box Light 1.4W
Foot Light*LED
* Not available on all models
17 US ODYSSEY (KA KC)-31TK86600.book 542 ページ ２０１６年１０月２４日　月曜日　 午後４時２分

543
uuSpecifications u
Information
■Brake Fluid
■ Automatic Transmission Fluid
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHonda Automatic Transmission Fluid
ATF DW-1
Capacity Change 3.3 US qt (3.1 ℓ)
■ Engine Oil
■ Engine Coolant
Recommended·Genuine Honda Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change 4.2 US qt (4.0 ℓ)
Change
including
filter
4.5 US qt (4.3 ℓ)
SpecifiedHonda Long-Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity1.93 US gal (7.3 ℓ)
(change including the remaining
0.225 US gal (0.85 ℓ) in the reserve tank)
■ Tire
*1: Touring models
RegularSizeP235/65R17 103T
P235/60R18 102T*1
Pressure
psi(kPa[kgf/cm2])33 (230 [2.3])
35 (240 [2.4])*1
Compact
Spare Size
T135/80D17 103M
Pressure
psi(kPa[kgf/cm
2]) 60 (420 [4.2])
Wheel SizeRegular17 x 7J
18 x 7J*1
Compact Spare17 x 4T
