2017 HONDA ODYSSEY Owners Manual

uuAdjusting the Seats uAdjusting the Seat Positions
168
Controls

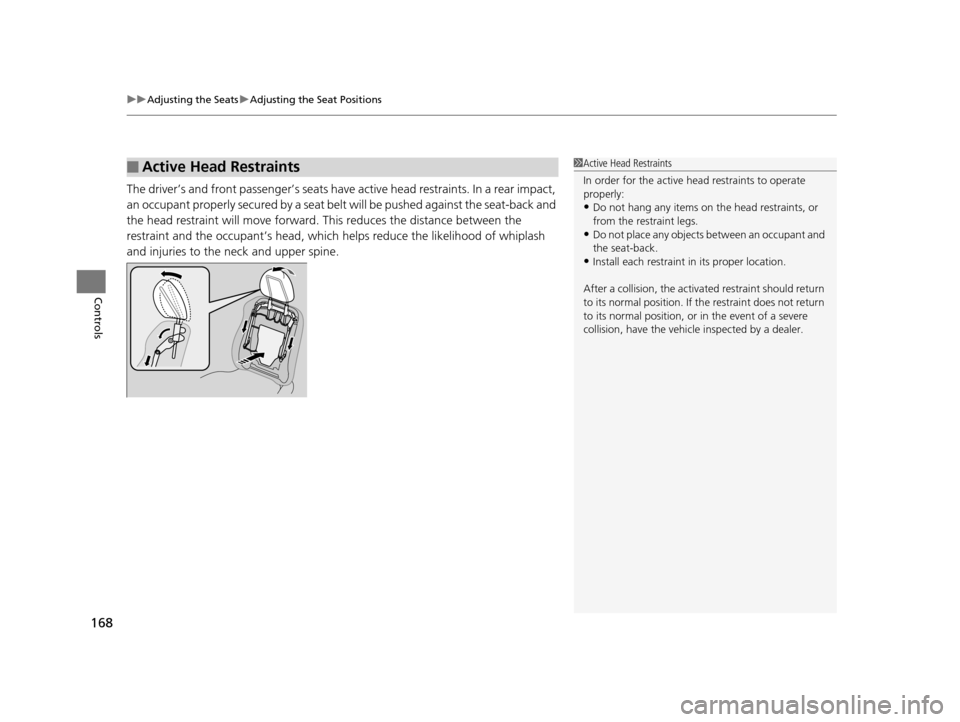

The driver’s and front passenger’s seats have active head restraints. In a rear impact,
an occupant properly secured by a seat belt will be pushed against the seat-back and
the head restraint will move forward. This reduces the distance between the
restraint and the occupant’s head, which helps reduce the likelihood of whiplash
and injuries to the neck and upper spine.
■Active Head Restraints1 Active Head Restraints
In order for the active head restraints to operate
properly:
•Do not hang any items on the head restraints, or
from the restraint legs.
•Do not place any objects between an occupant and
the seat-back.
•Install each restraint in its proper location.
After a collision, th e activated restraint should return
to its normal position. If the restraint does not return
to its normal position, or in the event of a severe
collision, have the vehicl e inspected by a dealer.
17 US ODYSSEY (KA KC)-31TK86600.book 168 ページ ２０１６年１０月２４日　月曜日　 午後４時２分

169
uuAdjusting the Seats uRear Seats
Continued
Controls

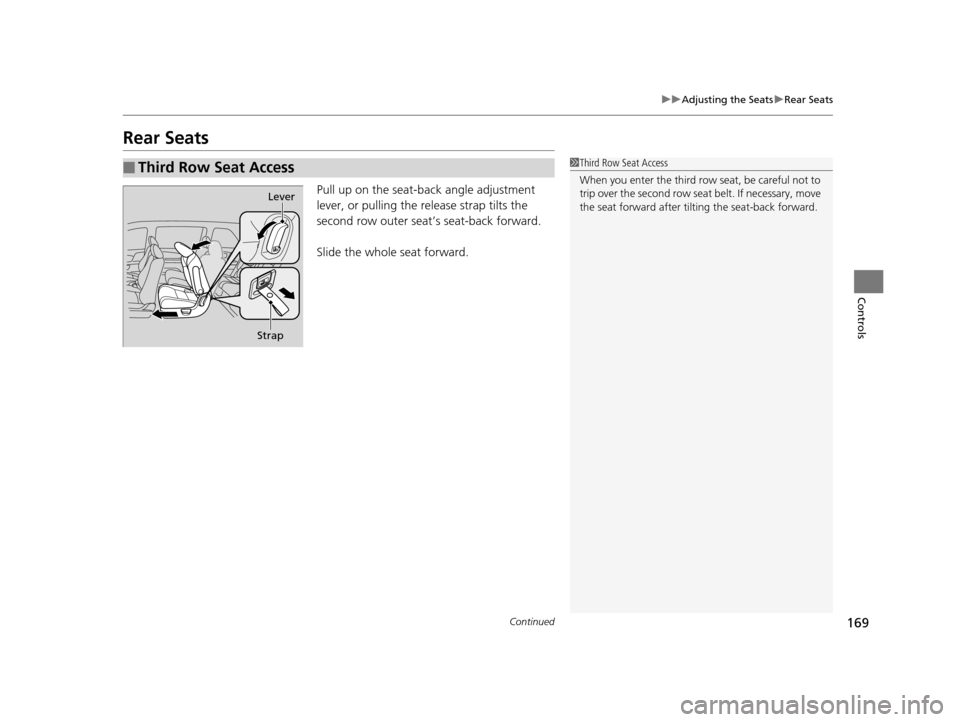

Rear Seats
Pull up on the seat-b ack angle adjustment
lever, or pulling the re lease strap tilts the
second row outer seat’s seat-back forward.
Slide the whole seat forward.
■Third Row Seat Access1 Third Row Seat Access
When you enter the third row seat, be careful not to
trip over the second row seat belt. If necessary, move
the seat forward after tilting the seat-back forward.
Lever
Strap
17 US ODYSSEY (KA KC)-31TK86600.book 169 ページ ２０１６年１０月２４日　月曜日　 午後４時２分

uuAdjusting the Seats uRear Seats
170
Controls
1. Lower the head restra int to its lowest
position.
2. Move the seat to it s rearmost position.
3. Fold the seat-back down.
4. Pull the lock release lever, and lift the rear
of the seat.
u To lift the seat, grab the handle under
the rear side of the seat cushion.
5. Pull the seat-back slig htly, then pivot it
upward.
u This unhooks the front of the seat from
the floor.
■Removing a Second Row Outer Seat1Removing a Second Row Outer Seat
Do not remove the seat while driving.
To reinstall the seat, hook the front of the seat to the
floor first. Pushing the rear of the seat-back locks the
seat in place. Make sure the seat is latched before
driving.
Handle
Seat-back Angle
adjustment Lever
Lock Release Lever
17 US ODYSSEY (KA KC)-31TK86600.book 170 ページ ２０１６年１０月２４日　月曜日　 午後４時２分

Continued171
uuAdjusting the Seats uRear Seats
Controls
1. Lower the head restraint to its lowest
position.
2. Move the seat to its rearmost position.
3. Fold the seat-back down.
4. Pull the lock release lever, and lift the rear
of the seat.
u To lift the seat, gr ab the handle under
the rear side of the seat cushion.
5. With the front of the seat hooked to the
floor, slide the seat laterally to the outer
position until it stops.
6. Lower the seat and push the rear of the
seat-back until it locks. Make sure the seat
is latched before driving.
■Sliding the Second Row Outer Seats Outward1Sliding the Second Row Outer Seats Outward
When the second row outer seats are in the original
(center) position, passengers have easier access to the
third row seats. When they are in the outer position,
you can install two or three child seats in the second
row seats.
HandleSlide
17 US ODYSSEY (KA KC)-31TK86600.book 171 ページ ２０１６年１０月２４日　月曜日　 午後４時２分

uuAdjusting the Seats uRear Seats
172
Controls
Your vehicle’s multi-functional seco nd row center seat is removable.
1. Store the center seat belt first. Insert a key
into the slot on the side of the anchor
buckle.
2. Retract the seat belt into the holder on the
ceiling.
2 Seat Belt with Detachable Anchor P. 35
3.Pull up the adjustment strap, and fold down
the seat-back.
4. Pull the lock release strap under the seat
cushion, and lift the rear of the seat.
u To lift the seat, hold the seat-back.
5. Pull the seat-back slig htly, then pivot it
upward.
u This unhooks the front of the seat from
the floor.
■Removing the Second Row Center Seat*1Removing the Second Row Center Seat*
Do not remove the seat while driving.
The multi-functional center seat can be used as the
beverage holder when folded down. 2 Beverage Holders P. 181
To reinstall the seat, hook the front of the seat to the
floor first. Pushing the rear of the seat-back locks the
seat in place. Make sure the seat is latched before
driving.
Adjustment Strap
Lock Release
Strap
* Not available on all models
17 US ODYSSEY (KA KC)-31TK86600.book 172 ページ ２０１６年１０月２４日　月曜日　 午後４時２分

Continued173
uuAdjusting the Seats uRear Seats
Controls
1. Store the center seat belt first. Insert a key
into the slot on the side of the anchor
buckle.
2. Retract the seat belt into the holder on the
ceiling.
2 Seat Belt with Detachable Anchor P. 35
3.Lower the head restrain ts to their lowest
position.
4. The right and left halves can be tucked
away separately. Pull either strap to release
the front leg lock of the third row seat.
5. Continue pulling the strap to tuck the seat
and strap away into the cargo area.

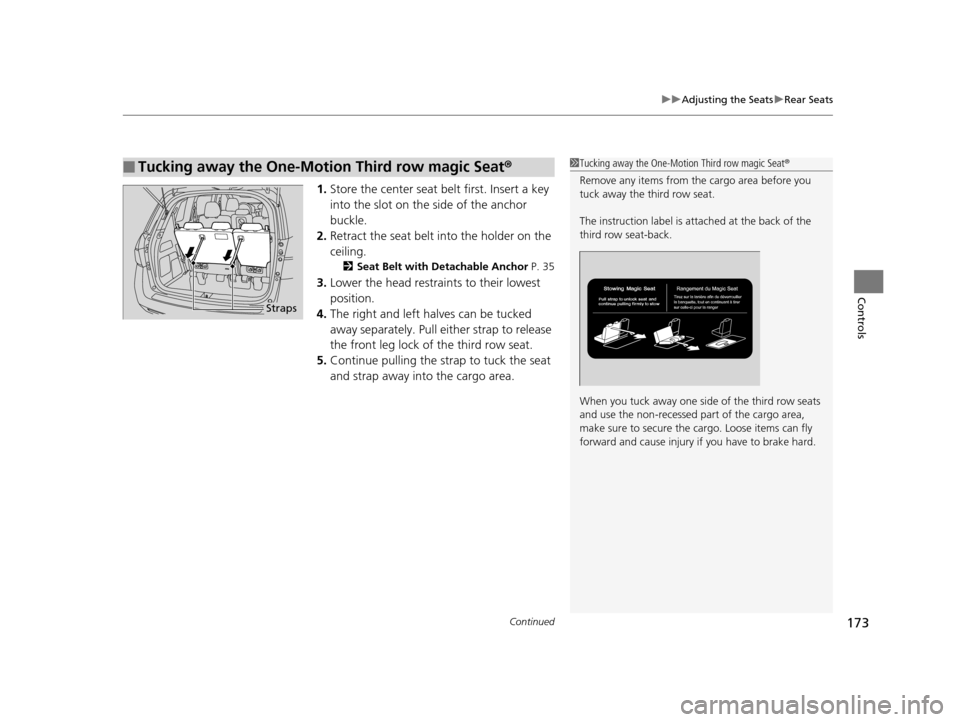

■Tucking away the One-Motion Third row magic Seat ®1Tucking away the One-Motion Third row magic Seat ®
Remove any items from the cargo area before you
tuck away the third row seat.
The instruction label is atta ched at the back of the
third row seat-back.
When you tuck away one si de of the third row seats
and use the non-recessed pa rt of the cargo area,
make sure to secure the cargo. Loose items can fly
forward and cause injury if you have to brake hard.
Straps
17 US ODYSSEY (KA KC)-31TK86600.book 173 ページ ２０１６年１０月２４日　月曜日　 午後４時２分

uuAdjusting the Seats uRear Seats
174
Controls

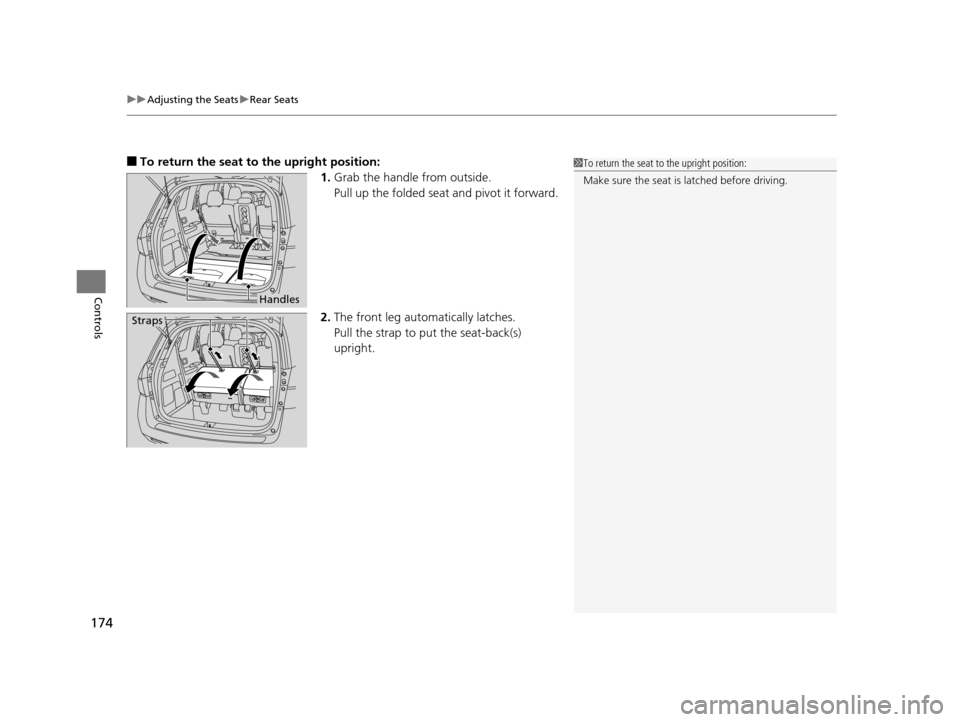

■To return the seat to the upright position:
1.Grab the handle from outside.
Pull up the folded seat and pivot it forward.
2. The front leg automatically latches.
Pull the strap to put the seat-back(s)
upright.1To return the seat to the upright position:
Make sure the seat is latched before driving.
Handles
Straps
17 US ODYSSEY (KA KC)-31TK86600.book 174 ページ ２０１６年１０月２４日　月曜日　 午後４時２分

175
uuAdjusting the Seats uArmrest
Controls

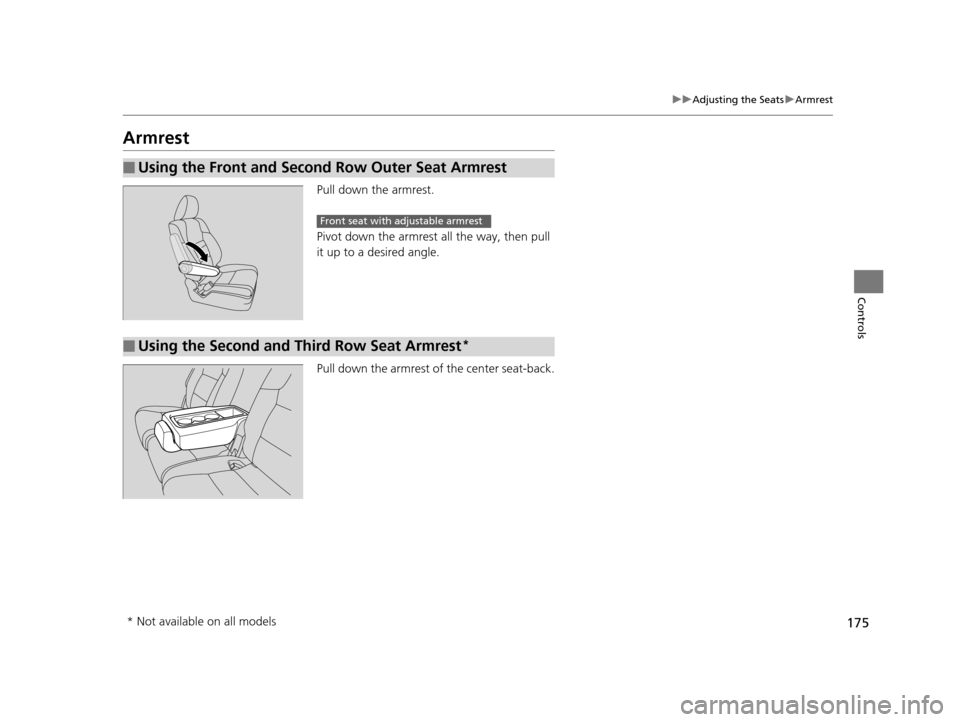

Armrest
Pull down the armrest.
Pivot down the armrest all the way, then pull
it up to a desired angle.
Pull down the armrest of the center seat-back.
■Using the Front and Second Row Outer Seat Armrest
Front seat with adjustable armrest
■Using the Second and Third Row Seat Armrest*
* Not available on all models
17 US ODYSSEY (KA KC)-31TK86600.book 175 ページ ２０１６年１０月２４日　月曜日　 午後４時２分
