2017 HONDA ODYSSEY Owners Manual

176
Controls
Interior Lights/Interior Convenience Items
Interior Lights
■ON
The interior lights come on regardless of whether
the doors or the tailgat e are open or closed.
■Door activated
The interior lights come on in the following situations:
Front:
•When any of the doors or the tailgate are opened.
•You unlock the driver's door.
• When the power mode is set to VEHICLE
OFF (LOCK)
•You remove the key from the ignition switch.
Cargo area:
When the tailg ate is open.
■OFF
The interior lights remain off regardless of
whether the doors or the tailgate are open or
closed.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Interior Light Switches1 Interior Light Switches
In the door activated position, the interior lights fade out
and go off about 30 seconds after the doors are closed.
The lights go off after 30 seconds in the following
situations:
•When you unlock the driver's door but do not open it.
•When you set the power mode to VEHICLE OFF
(LOCK) but do not open a door.
•When you remove the key from the ignition switch
but do not open a door.
You can change the inte rior light dimming time.
2 Customized Features P. 99, 295
The interior lights go off i mmediately in the following
situations:
•When you lock the driver's door.
•When you turn the ignition switch to ON ( w*1.
•When you close the driver’s door in ACCESSORY mode.
•When you close the driver's door with the key in
the ignition switch.
If you leave any of the doors open without the key in
the ignition switch, the interior lights go off after
about 15 minutes.
If you leave the tailgate open without the ignition
switch in ON
( w*1, the cargo area light goes off after
about 30 minutes.
Models with smart entry system
Models without smart entry system
Models with smart entry system
Models without smart entry system
Door
Activated
Position
Off
On
Models with smart entry system
Models without smart entry system
Door
Activated
Position
Off
On
17 US ODYSSEY (KA KC)-31TK86600.book 176 ページ ２０１６年１０月２４日　月曜日　 午後４時２分

177
uuInterior Lights/Interior Convenience Items uInterior Lights
Controls

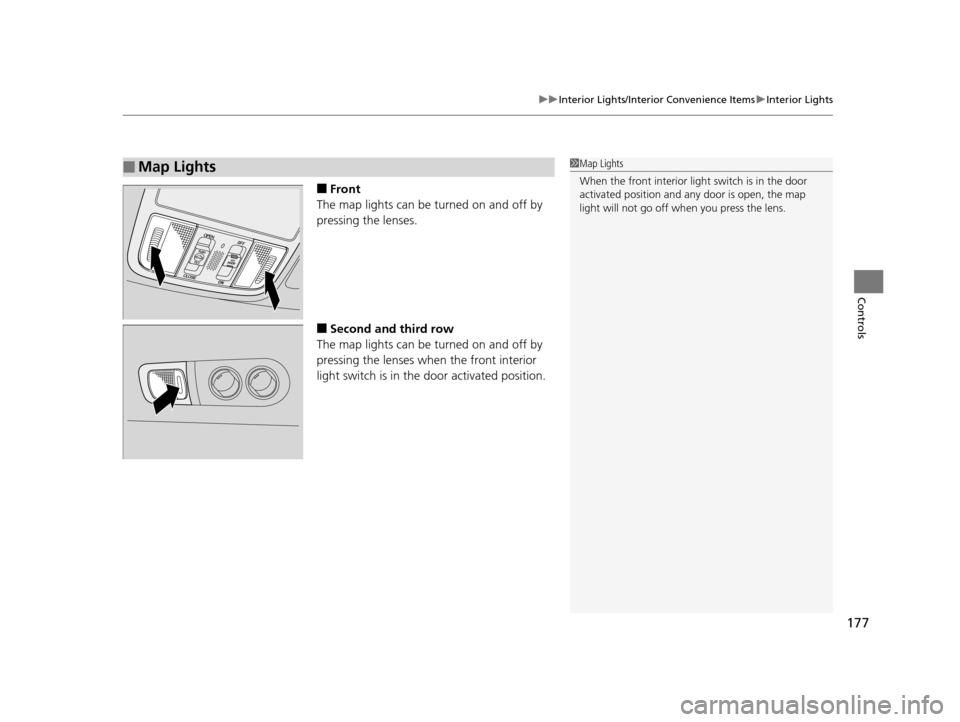

■Front
The map lights can be turned on and off by
pressing the lenses.
■Second and third row
The map lights can be turned on and off by
pressing the lenses when the front interior
light switch is in the door activated position.
■Map Lights1 Map Lights
When the front interior li ght switch is in the door
activated position and any door is open, the map
light will not go off when you press the lens.
17 US ODYSSEY (KA KC)-31TK86600.book 177 ページ ２０１６年１０月２４日　月曜日　 午後４時２分

178
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls
Interior Convenience Items
Pull the handle to open the glove box. You
can lock the glove box with the master key or
built-in key
*.
Pull up on the lever to open the console
compartment.
■Removing the center console
Pull up the handle on the front lower side and
unlock the console from the floor. Raise it
forward to remove.
■Glove Box1 Glove Box
3WARNING
An open glove box can cause serious injury
to your passenger in a crash, even if the
passenger is wearing the seat belt.
Always keep the glove box closed while
driving.
■Removable Center Console*1Removable Center Console*
When you reinstall the center console, place the rear
side on the floor first, and align the marks on the
sides with the marks on the floor. Push the center
console down and lock it. M ake sure it is securely
latched before driving.
Marks
Handle
Lever
* Not available on all models
17 US ODYSSEY (KA KC)-31TK86600.book 178 ページ ２０１６年１０月２４日　月曜日　 午後４時２分

Continued179
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls

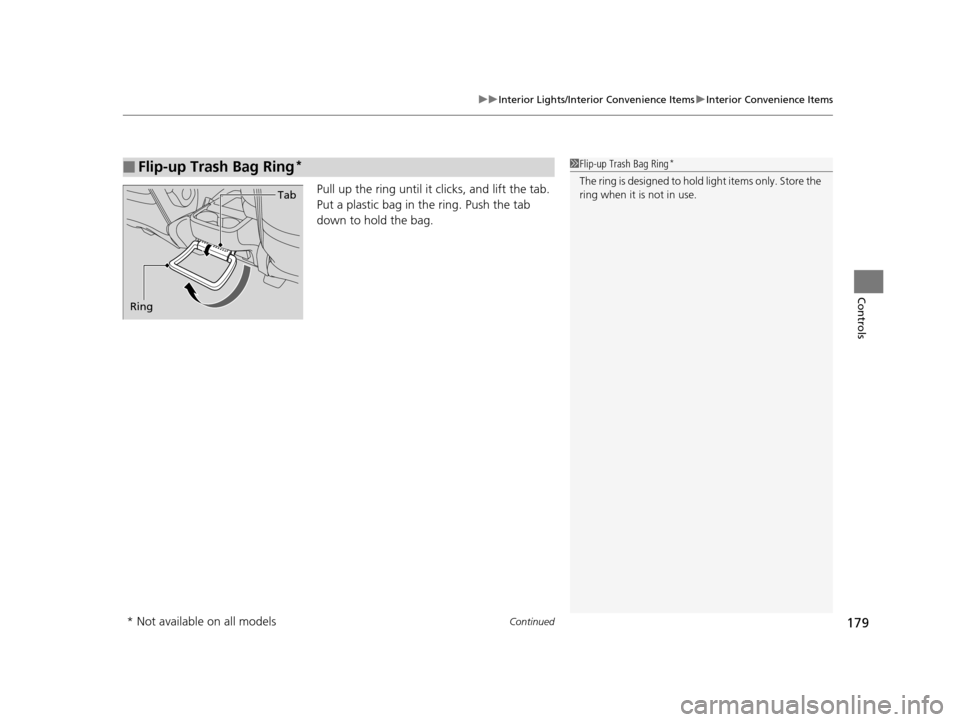

Pull up the ring until it clicks, and lift the tab.
Put a plastic bag in th e ring. Push the tab
down to hold the bag.
■Flip-up Trash Bag Ring*1 Flip-up Trash Bag Ring*
The ring is designed to hold light items only. Store the
ring when it is not in use.
Ring Tab
* Not available on all models
17 US ODYSSEY (KA KC)-31TK86600.book 179 ページ ２０１６年１０月２４日　月曜日　
午後４時２分

uuInterior Lights/Interior Convenience Items uInterior Convenience Items
180
Controls
Press the button to open the center pocket.
■Using the center pocket as a cool box*
While the air conditioner is in use, you can
store items in the center pocket to keep them
cool.
Press the COOL BOX button to cool inside the
center pocket (indicator on).
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Center Pocket
Button
1 Using the center pocket as a cool box*
NOTICE
Do not put opened cans, or uncovered containers
with loose ice inside the cool box. Spilled liquids can
damage the upholstery and electrical components in
and around the cool box.
The cool box is not a refrige rator. It only keeps chilled
beverages cool.
The climate control system continues to cool the cool
box when the heater is turned on.
Pressing the COOL BOX button automatically turns
on the air conditioning system.
The cool box automatically turns off if:
•The air conditioning system is turned off.
•You turn the ignition switch to LOCK ( 0*1.
* Not available on all models
17 US ODYSSEY (KA KC)-31TK86600.book 180 ページ ２０１６年１０月２４日　月曜日　 午後４時２分

Continued181
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls
■Front panel beverage holder*
Pull the beverage holder arm inside the front
panel tray until the ar m contacts the tray
front.
■Removable center console beverage
holders*
■Front seat beverage holders*
■Beverage Holders1 Beverage Holders
NOTICE
Spilled liquids ca n damage the upholstery, carpeting,
and electrical components in the interior.
Be careful when you are us ing the beverage holders.
Hot liquid can scald you.
Tray
Holder Arm
* Not available on all models
17 US ODYSSEY (KA KC)-31TK86600.book 181 ページ ２０１６年１０月２４日　月曜日　 午後４時２分

182
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls

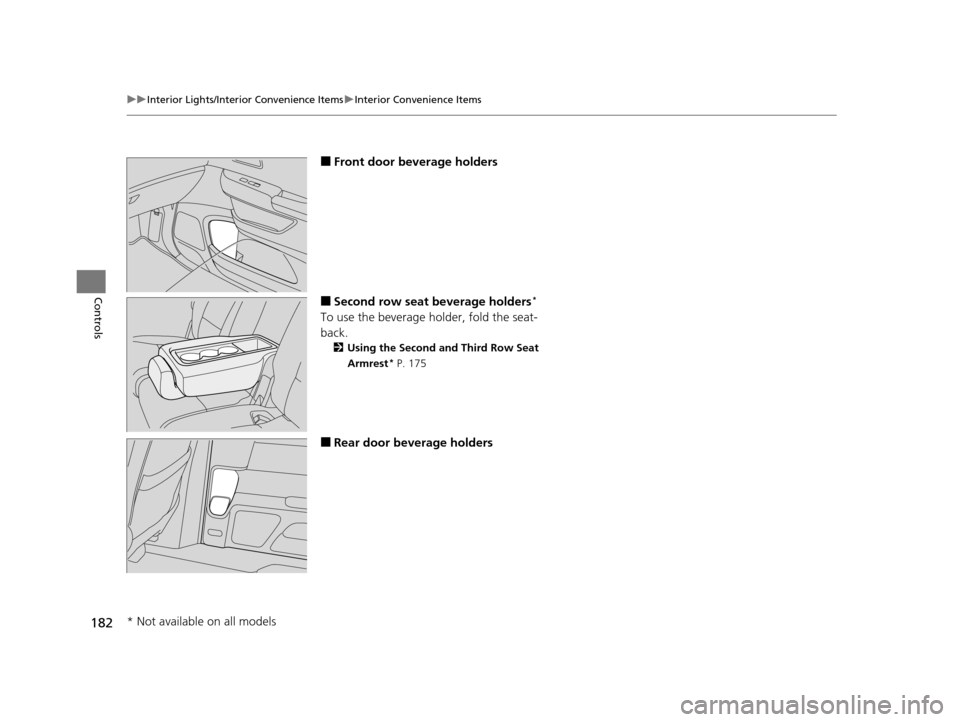

■Front door beverage holders
■Second row seat beverage holders*
To use the beverage holder, fold the seat-
back.
2 Using the Second and Third Row Seat
Armrest
* P. 175
■Rear door beverage holders
* Not available on all models
17 US ODYSSEY (KA KC)-31TK86600.book 182 ページ ２０１６年１０月２４日　月曜日　 午後４時２分

Continued183
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls
■Third row seat beverage holders
The accessory power so ckets can be used when the i gnition switch is in ACCESSORY
(q or ON (w*1.
■Accessory power socket (console panel)
Open the cover to use it.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Accessory Power Sockets1 Accessory Power Sockets
NOTICE
Do not insert an automotive type cigarette lighter
element.
This can overheat the power socket.
The accessory power socket is designed to supply
power for 12 volt DC access ories that are rated 120
watts (10 amps) or less.
To prevent battery drain, only use the power socket
with the engine running.
When each socket is bei ng used simultaneously, the
combined power rating of the accessories should not
exceed 120 watts (10 amps).
