2017 HONDA ODYSSEY Owners Manual

16
Quick Reference Guide
*1: Icons that appear on the screen vary by the source selected.
VOL/ (Volume/Power)
Knob (CD Eject) Button
Interface Dial/ ENTER Button
Presets
*1
SETTINGS Button
(P234)
Models with two displays
BACK
Button
PHONE
Button CD Slot
MENU Button
Audio/Information Screen
Button
(Skip/Seek) Icon*1 (Skip/Seek) Icon*1
Audio with Touch Screen
Audio Source
*1
(Tune Down) Icon*1 (Tune Up) Icon*1
Shortcuts*1
More*1
INFO
Button
AUDIO Button
17 US ODYSSEY (KA KC)-31TK86600.book 16 ページ ２０１６年１０月２４日　月曜日　午後４時２分

17
Quick Reference Guide
*1: Icons that appear on the screen vary by the source selected.
VOL/ (Volume/Power)
Knob (CD Eject) Button
Interface Dial/
ENTER Button
Presets
*1
SETTINGS Button
(P234, 277)
Models with two displays and rear entertainment system
BACK
Button
PHONE
Button CD Slot
MENU Button
Button
(Skip/Seek) Icon*1 (Skip/Seek) Icon*1
Audio with Touch Screen
Audio Source*1
(Tune Down) Icon*1 (Tune Up) Icon*1
Shortcuts*1
More*1
INFO Button FRONT AUDIO
Button
Audio/Information Screen
REAR (Power) Button
REAR AUDIO
Button
DVD Slot (DVD Eject) Button
17 US ODYSSEY (KA KC)-31TK86600.book 17 ページ ２０１６年１０月２４日　月曜日　午後４時２分

18
Quick Reference Guide
Driving (P395)
Release ButtonShift Lever
Depress the brake pedal and press the
release button to move out of
(P.
Move the shift lever without
pressing the release button.
Press the release button to
move the shift lever.
Automatic Transmission (P413)
● Shift to
(P and depress the brake pedal when starting the engine.
● Shifting
ParkTurn off or start the engine.
Transmission is locked.
Reverse
Used when reversing.
Neutral
Transmission is not locked.
Drive
Normal driving.
Low Strong engine braking.
D4
Press the D4 button while the shift lever is in
(D.
Used when:
●Going up or down hills●Towing a trailer in hilly terrain
D4
Button
17 US ODYSSEY (KA KC)-31TK86600.book 18 ページ ２０１６年１０月２４日　月曜日　午後４時２分

19
Quick Reference Guide
VSA® OFF Button (P427)
● The vehicle stability assist (VSA® ) system
helps stabilize the vehicle during
cornering, and helps maintain traction
while accelerating on loose or slippery
road surfaces.
● VSA ® comes on automatically every time
you start the engine.
● To turn VSA ® on or off, press and hold
the button until you hear a beep.
Cruise Control (P415)
● Cruise control allows you to maintain a
set speed without keeping your foot on
the accelerator pedal.
● To use cruise control, press the CRUISE
button, then press once you
have achieved the desired speed (above
25 mph or 40 km/h).
Tire Pressure Monitoring
System (TPMS)
(P428)
● TPMS monitors tire pressure.
● TPMS is turned on automatically every
time you start the engine.
DECEL/SET
Refueling (P446)
Fuel recommendation: Unleaded gasoline with a pump octane number 87 or
higher required
Fuel tank capacity: 21 US gal (79.5 L)
aPull the fuel fill door
release handle.
bTurn the fuel fill cap
slowly to remove the
cap.
cPlace the cap in the
holder on the fuel fill
door.
dAfter refueling, screw
the cap back on until it
clicks at least once.
17 US ODYSSEY (KA KC)-31TK86600.book 19 ページ ２０１６年１０月２４日　月曜日　午後４時２分

20
Quick Reference Guide
Maintenance (P451)
Under the Hood (P463)
● Check engine oil, engine coolant, and window washer fluid.
Add when necessary.
● Check brake fluid.
● Check the battery condition monthly.
aPull the hood release handle under the corner of the
dashboard.
bLocate the hood latch lever, pull it up, and then raise the
hood. Once you have raised the hood slightly, you can
release the lever.
cWhen finished, close the hood and make sure it is firmly
locked in place.
Lights (P475)
● Inspect all lights regularly.
Wiper Blades (P486)
● Replace blades if they leave streaks
across the windshield.
Tires (P490)
● Inspect tires and wheels regularly.
● Check tire pressures regularly.
● Install snow tires for winter driving.
17 US ODYSSEY (KA KC)-31TK86600.book 20 ページ ２０１６年１０月２４日　月曜日　午後４時２分

Quick Reference Guide
21
Handling the Unexpected (P509)
Flat Tire (P511)
● Park in a safe location and replace the
flat tire with the compact spare tire under
the floor between the front seats and the
second row seats.
Indicators Come On
(P 528)
●Identify the indica tor and consult the
owner's manual.
Engine Won't Start
(P520)
● If the battery is dead, jump start using a
booster battery.
Blown Fuse (P533)
● Check for a blown fuse if an electrical
device does not operate.
Overheating (P526)
● Park in a safe location. If you do not see
steam under the hood, open the hood,
and let the engine cool down.
Emergency Towing
(P539)
●Call a professional towing service if you
need to tow your vehicle.
17 US ODYSSEY (KA KC)-31TK86600.book 21 ページ ２０１６年１０月２４日　月曜日　午後４時２分

22
Quick Reference Guide
What to Do If
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
The ignition switch does
not turn from
(0 to (q*1.
Why?
●The steering wheel may be locked.
●Try to turn the steering wheel left and
right while turning the ignition key
*.
●Move the steering wheel left and right
while pressing the ENGINE START/STOP
button
* at the same time.
The ignition switch does
not turn from
(q to (0*1
and I cannot remove the
key. Why?
The shift lever should be moved to (P.
Why does the brake pedal
pulsate slightly when
applying the brakes?This can occur when the ABS activates, and does not indicate a
problem. Apply firm, steady pressure on the brake pedal. Never
pump the brake pedal.
2 Anti-lock Brake System (ABS) (P438)
17 US ODYSSEY (KA KC)-31TK86600.book 22 ページ ２０１６年１０月２４日　月曜日　午後４時２分

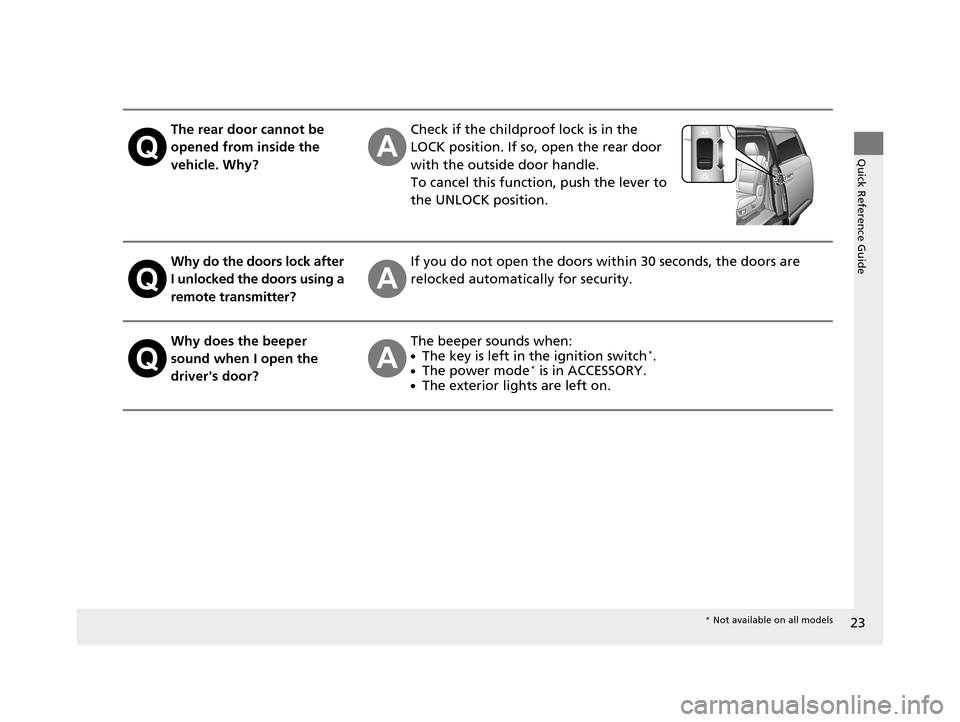

23
Quick Reference Guide
The rear door cannot be
opened from inside the
vehicle. Why?Check if the childproof lock is in the
LOCK position. If so, open the rear door
with the outside door handle.
To cancel this function, push the lever to
the UNLOCK position.
Why do the doors lock after
I unlocked the doors using a
remote transmitter?If you do not open the doors within 30 seconds, the doors are
relocked automatically for security.
Why does the beeper
sound when I open the
driver's door?The beeper sounds when:●The key is left in the ignition switch*.●The power mode* is in ACCESSORY.●The exterior lights are left on.
* Not available on all models
