2017 HONDA CLARITY FUEL CELL Owner's Manual (in English)

7
Quick Reference Guide
❙Side Airbags (P 62)
❙Side Curtain Airbags (P 64)
❙Seat Belts (P 46)
❙Seat Belt (Installing a Child Seat) (P 75)
❙Rear Seat
❙Coat Hook (P 182)
❙Map Lights (P 176)
❙Sun Visors
❙Vanity Mirrors
❙Seat Belt to Secure a Child Seat (P 77)
❙Map Lights (P 176)
❙Grab Handle
❙Sunglasses Holder
(P 184)
❙Accessory Power
Socket
(P 181)
❙Front Seat (P 169)
❙USB Ports (P 195)
❙LATCH to Secure a Child Seat (P 73)
17 CLARITY FCV PPO-31TRT6000.book 7 ページ ２０１６年１０月２７日　木曜日　午後３時１１分

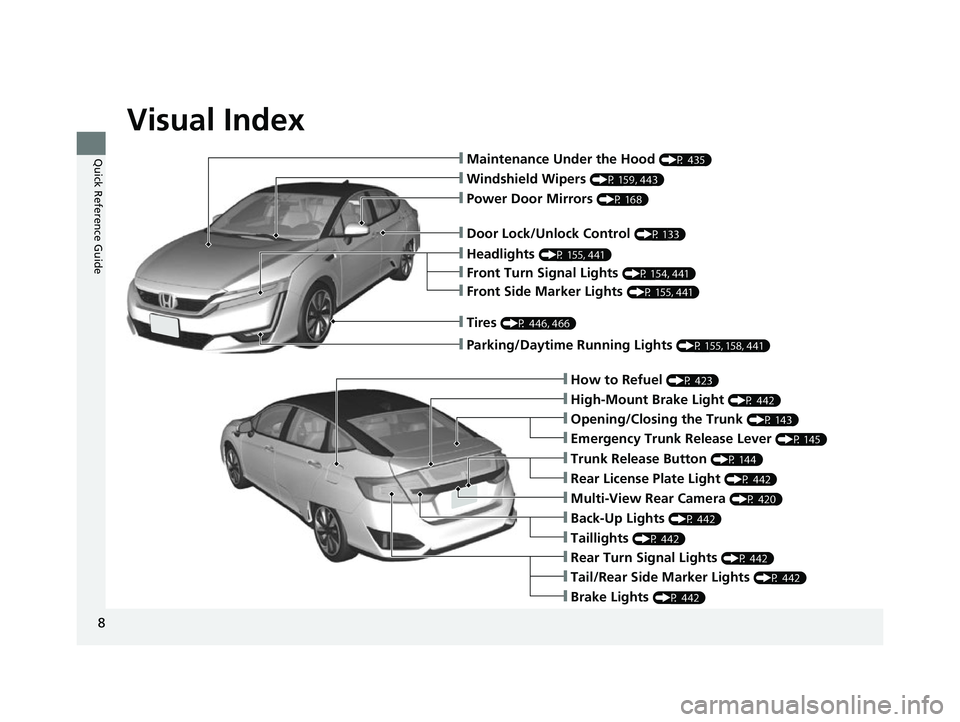

Visual Index
8
Quick Reference Guide❙Maintenance Under the Hood (P 435)
❙Windshield Wipers (P 159, 443)
❙Tires (P 446, 466)
❙Door Lock/Unlock Control (P 133)
❙Power Door Mirrors (P 168)
❙Headlights (P 155, 441)
❙Front Side Marker Lights (P 155, 441)
❙Front Turn Signal Lights (P 154, 441)
❙How to Refuel (P 423)
❙High-Mount Brake Light (P 442)
❙Emergency Trunk Release Lever (P 145)
❙Opening/Closing the Trunk (P 143)
❙Tail/Rear Side Marker Lights (P 442)
❙Brake Lights (P 442)
❙Rear Turn Signal Lights (P 442)
❙Back-Up Lights (P 442)
❙Taillights (P 442)
❙Trunk Release Button (P 144)
❙Rear License Plate Light (P 442)
❙Multi-View Rear Camera (P 420)
❙Parking/Daytime Running Lights (P 155, 158, 441)
17 CLARITY FCV PPO-31TRT6000.book 8 ページ ２０１６年１０月２７日　木曜日　午後３時１１分

9
Quick Reference Guide

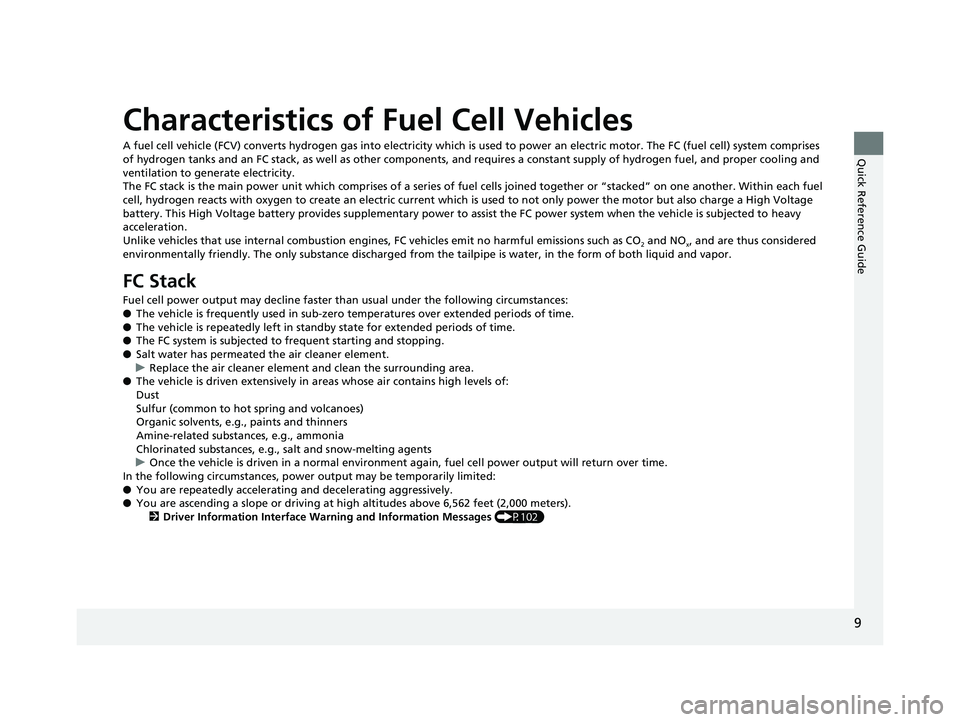

Characteristics of Fuel Cell Vehicles
A fuel cell vehicle (FCV) converts hydrogen gas into electricity which is used to power an electric motor. The FC (fuel cell) system comprises
of hydrogen tanks and an FC stack, as well as other components, and requires a constant supply of hydrogen fuel, and proper cooling and
ventilation to generate electricity.
The FC stack is the main power unit which comprises of a series of fuel cells joined together or “stacked” on one another. With in each fuel
cell, hydrogen reacts with oxygen to create an electric current whic h is used to not only power the motor but also charge a High Voltage
battery. This High Voltage battery provides supplementary power to assist the FC power system when the vehicle is subjected to heavy
acceleration.
Unlike vehicles that use internal combustion engines, FC vehicles emit no harmful emissions such as CO
2 and NOx, and are thus considered
environmentally friendly. The only substa nce discharged from the tailpipe is water, in the form of both liquid and vapor.
FC Stack
Fuel cell power output may decline faster th an usual under the following circumstances:
● The vehicle is frequently used in sub-zero temperatures over extended periods of time.
● The vehicle is repeatedly left in stand by state for extended periods of time.
● The FC system is subjected to frequent starting and stopping.
● Salt water has permeated the air cleaner element.
u Replace the air cleaner element and clean the surrounding area.
● The vehicle is driven extensively in areas whose air contains high levels of:
Dust
Sulfur (common to hot spring and volcanoes)
Organic solvents, e.g., paints and thinners
Amine-related substa nces, e.g., ammonia
Chlorinated substances, e.g., salt and snow-melting agents
u Once the vehicle is driven in a normal environment again, fuel cell power output will return over time.
In the following circumstances, power output may be temporarily limited:
● You are repeatedly accelerating and decelerating aggressively.
● You are ascending a slope or driving at high altitudes above 6,562 feet (2,000 meters).
2 Driver Information Interface Wa rning and Information Messages (P102)
17 CLARITY FCV PPO-31TRT6000.book 9 ページ ２０１６年１０月２７日　木曜日　午後３時１１分

10
Quick Reference Guide
Fuel Cell Power System
The fuel cell power system regulates the fuel cells to maintain efficient power generation in various driving conditions. The power system is
unique to fuel cell vehicles and differs to that of conventional internal combustion vehicles or electric vehicles in the following ways:
● Depending on circumstances, the system may n eed to adjust the condition of the fuel cells before shutting down; therefore, the power
system may continue to operate even after the power mode is set to OFF.
● In cold temperatures, the power system may take more time to sta rt or stop than usual as the fuel cells need to be conditioned before
they can generate power.
Hydrogen Tanks
● Outline
The hydrogen tanks are the storage containe rs that house the compressed hydrogen gas.
● Inspection
Owners of fuel cell vehicles are required by law to have these tanks inspected periodically. Filling a hydrogen tank with compr essed
hydrogen gas is prohibited by law if the tank has not passed inspection or if the tank has expired.
The hydrogen tanks are affixed with an expiration date. This date is also affixed to the underside of the hood and the hydrogen fuel lid. If a
tank has expired, replace it immediately.
● Disposal
Disposal of hydrogen tanks or hydrogen tank valves must be done in accordance with the pertinen t rules and regulations of the state or
region within which the tanks or valves are to be disposed of. For details, consult an authorized Honda Clarity Fuel Cell deale r.
● Theft
If your fuel cell vehicle is stolen, be sure to inform the polic e that the vehicle is equipped with tanks filled with compresse d hydrogen gas.
Refueling
Fuel cell vehicles need hydrogen to run. Refuel with compressed hydrogen gas at an authorized hydrogen filling station.
2 Refer to the Navigation System Manual
17 CLARITY FCV PPO-31TRT6000.book 10 ページ ２０１６年１０月２７日　木曜日　午後３時 １１分

11
Quick Reference Guide
Sounds Unique to the Fuel Cell Vehicle
When you first start driving this vehicle, you likely will hear some unfamiliar sounds, particularly when you first turn on the power system,
while driving, and just after parking. Some of these sounds are unique to this vehicle’s powertrain, fuel, and climate control systems; others
are similar to sounds generated by conventional automobiles that typically are masked by louder noises absent from a vehicle of this design.
These sounds are not a cause for concern, and you will soon recognize them as normal and thus be able to detect any new or unus ual noise
should one develop.
Certain sounds associated with your vehicle may be caused by:
● Pressurized intake air being released through the rear of the vehicle.
u This can happen if the accelerator is released suddenly when the vehicle is under a heavy load, such as when climbing a hill.
● The power system warming up.
u This sound is particularly loud when temperat ures are extremely low (below –4°F [–20°C]).
● Hydrogen gas flowing through the fuel line during refueling.
17 CLARITY FCV PPO-31TRT6000.book 11 ページ ２０１６年１０月２７日　木曜日　午後３時 １１分

12
Quick Reference Guide

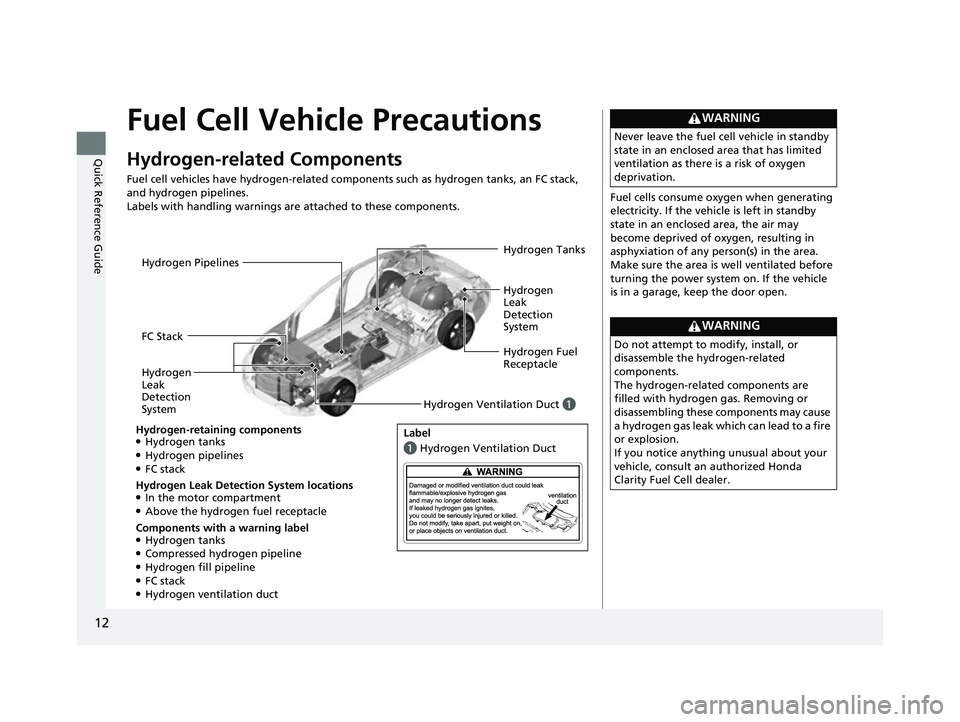

Fuel Cell Vehicle Precautions
Hydrogen-related Components
Fuel cell vehicles have hydrogen-related components such as hydrogen tanks, an FC stack,
and hydrogen pipelines.
Labels with handling warnings are attached to these components.
Hydrogen
Leak
Detection
System
FC StackHydrogen
Leak
Detection
System
Hydrogen Fuel
Receptacle Hydrogen Tanks
Hydrogen Pipelines
Hydrogen-retaining components
●Hydrogen tanks●Hydrogen pipelines●FC stack
Components with a warning label
●Hydrogen tanks●Compressed hydrogen pipeline●Hydrogen fill pipeline●FC stack●Hydrogen ventilation duct
Hydrogen Leak Detection System locations
●In the motor
compartment●Above the hydrogen fuel receptacle Hydrogen Ventilation Duct
a
Label
a Hydrogen Ventilation Duct
Fuel cells consume oxygen when generating
electricity. If the vehicle is left in standby
state in an enclosed area, the air may
become deprived of oxygen, resulting in
asphyxiation of any person(s) in the area.
Make sure the area is well ventilated before
turning the power system on. If the vehicle
is in a garage, keep the door open.
WARNING
Never leave the fuel cell vehicle in standby
state in an enclosed area that has limited
ventilation as there is a risk of oxygen
deprivation.
WARNING
Do not attempt to modify, install, or
disassemble the hydrogen-related
components.
The hydrogen-related components are
filled with hydrogen gas. Removing or
disassembling these components may cause
a hydrogen gas leak which can lead to a fire
or explosion.
If you notice anything unusual about your
vehicle, consult an authorized Honda
Clarity Fuel Cell dealer.
17 CLARITY FCV PPO-31TRT6000.book 12 ページ ２０１６年１０月２７日　木曜日　午後３時 １１分

13
Quick Reference Guide

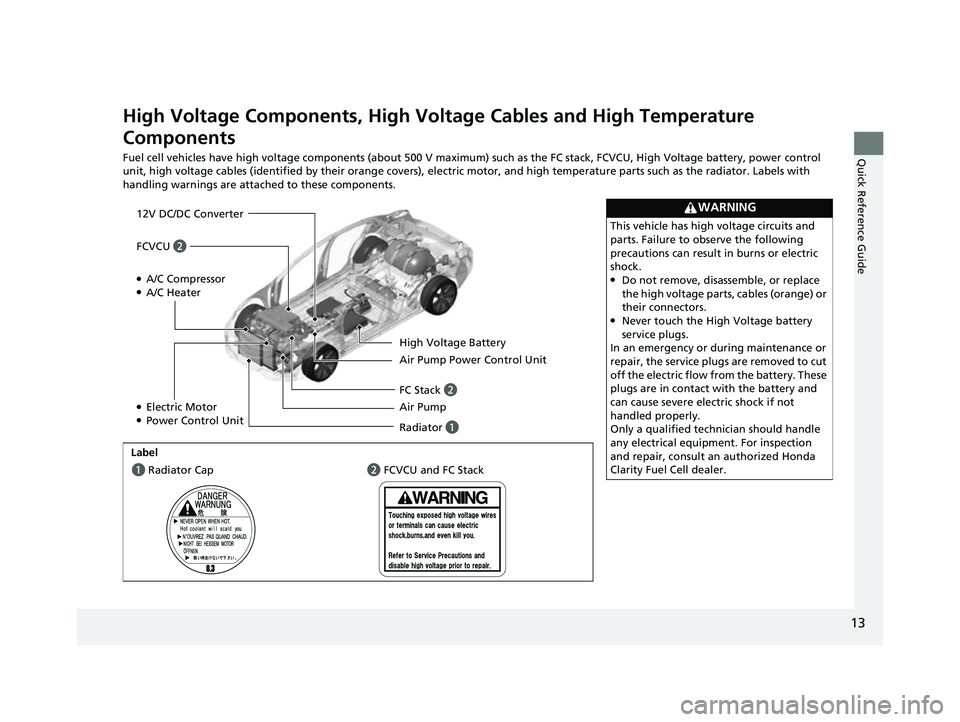

High Voltage Components, High Voltage Cables and High Temperature
Components
Fuel cell vehicles have high voltage components (about 500 V maximum) such as the FC stack, FCVCU, High Voltage battery, power control
unit, high voltage cables (identified by their orange covers), el ectric motor, and high temperature parts such as the radiator. Labels with
handling warnings are attached to these components.
WARNING
This vehicle has high voltage circuits and
parts. Failure to observe the following
precautions can result in burns or electric
shock.
●Do not remove, disassemble, or replace
the high voltage parts, cables (orange) or
their connectors.
●Never touch the High Voltage battery
service plugs.
In an emergency or during maintenance or
repair, the service plugs are removed to cut
off the electric flow from the battery. These
plugs are in contact with the battery and
can cause severe electric shock if not
handled properly.
Only a qualified technician should handle
any electrical equipment. For inspection
and repair, consult an authorized Honda
Clarity Fuel Cell dealer.
12V DC/DC Converter
●A/C Compressor●A/C Heater
Radiator a Air Pump FC Stack b Air Pump Power Control Unit High Voltage Battery
●Electric Motor●Power Control Unit
Labela Radiator Cap b FCVCU and FC Stack
FCVCU b
17 CLARITY FCV PPO-31TRT6000.book 13 ページ ２０１６年１０月２７日　木曜日　午後３時 １１分

14
Quick Reference Guide

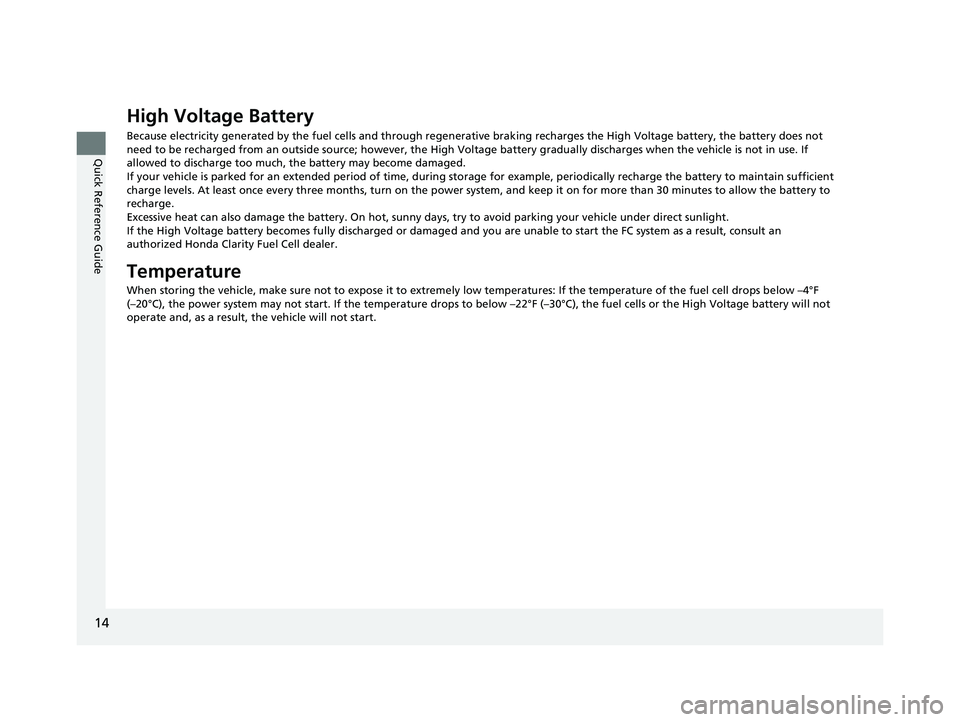

High Voltage Battery
Because electricity generated by the fuel cells and through regenerative braking recharges the High Voltage battery, the batter y does not
need to be recharged from an outside source; however, the High Voltage battery gradually discharges when the vehicle is not in use. If
allowed to discharge too much, the battery may become damaged.
If your vehicle is parked for an extended period of time, du ring storage for example, periodically recharge the battery to main tain sufficient
charge levels. At least once every three months, turn on the power system, and keep it on for more than 30 minutes to allow the battery to
recharge.
Excessive heat can also damage the batter y. On hot, sunny days, try to avoid parking your vehicle under direct sunlight.
If the High Voltage battery becomes fully discharged or damage d and you are unable to start the FC system as a result, consult an
authorized Honda Clarity Fuel Cell dealer.
Temperature
When storing the vehicle, make sure not to expose it to extrem ely low temperatures: If the temperature of the fuel cell drops b elow –4°F
(–20°C), the power system may not start. If the temperature drops to below –22°F (–30°C), the fuel cells or the High Voltage battery will not
operate and, as a result, the vehicle will not start.
