2017 HONDA CLARITY FUEL CELL Owner's Manual (in English)

175Continued
Controls
Interior Lights/Interior Convenience Items

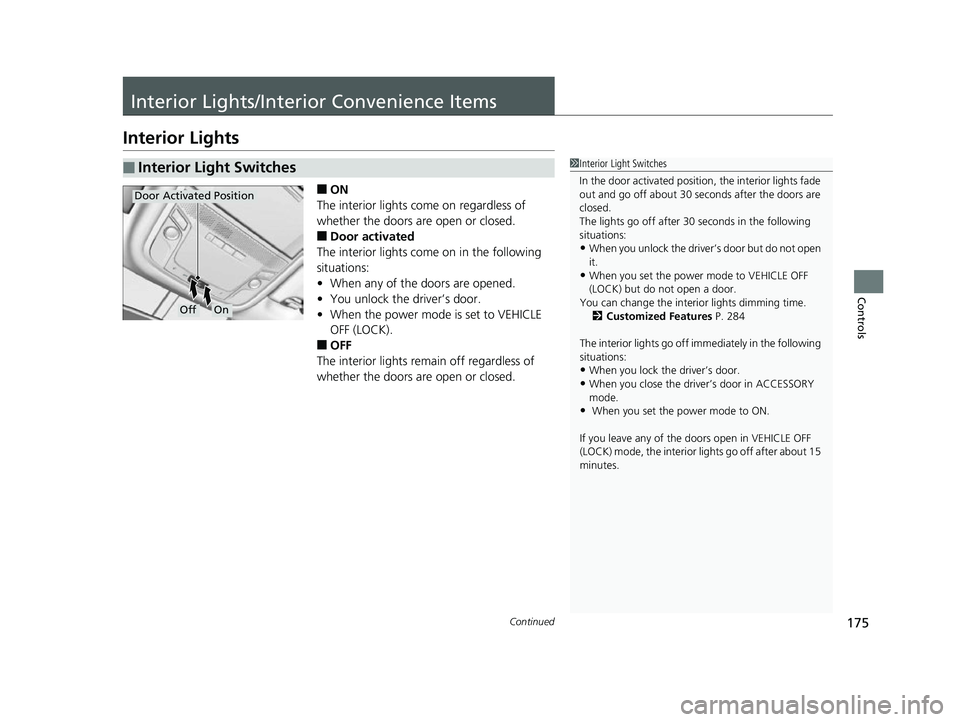

Interior Lights
■ON
The interior lights come on regardless of
whether the doors are open or closed.
■Door activated
The interior lights come on in the following
situations:
• When any of the doors are opened.
• You unlock the driver’s door.
• When the power mode is set to VEHICLE
OFF (LOCK).
■OFF
The interior lights remain off regardless of
whether the doors are open or closed.
■Interior Light Switches1 Interior Light Switches
In the door activated position, the interior lights fade
out and go off about 30 se conds after the doors are
closed.
The lights go off after 30 seconds in the following
situations:
•When you unlock the driver’s door but do not open
it.
•When you set the power mode to VEHICLE OFF
(LOCK) but do not open a door.
You can change the interi or lights dimming time.
2 Customized Features P. 284
The interior lights go off i mmediately in the following
situations:
•When you lock the driver’s door.
•When you close the driver’s door in ACCESSORY
mode.
• When you set the power mode to ON.
If you leave any of the doors open in VEHICLE OFF
(LOCK) mode, the interior lights go off after about 15
minutes.
OffOn
Door Activated Position
17 CLARITY FCV PPO-31TRT6000.book 175 ページ ２０１６年１０月２７日　木曜日　午後３ 時１１分

uuInterior Lights/Interior Convenience Items uInterior Lights
176
Controls

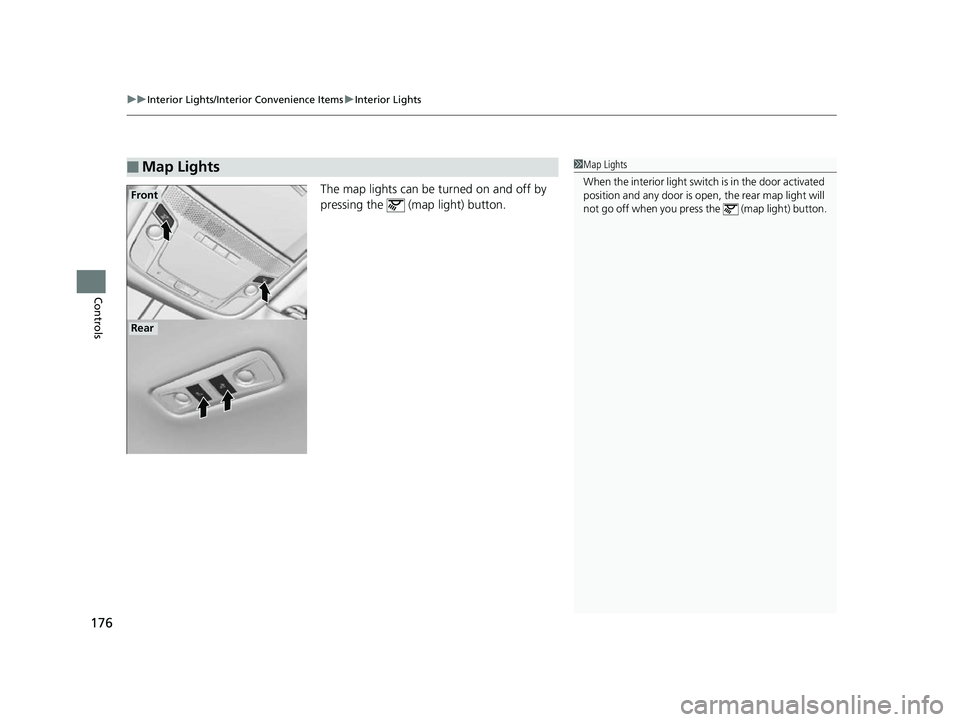

The map lights can be turned on and off by
pressing the (map light) button.
■Map Lights1Map Lights
When the interior light swit ch is in the door activated
position and any door is open, the rear map light will
not go off when you press the (map light) button.
Front
Rear
17 CLARITY FCV PPO-31TRT6000.book 176 ページ ２０１６年１０月２７日　木曜日　午後３ 時１１分

177
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Continued
Controls

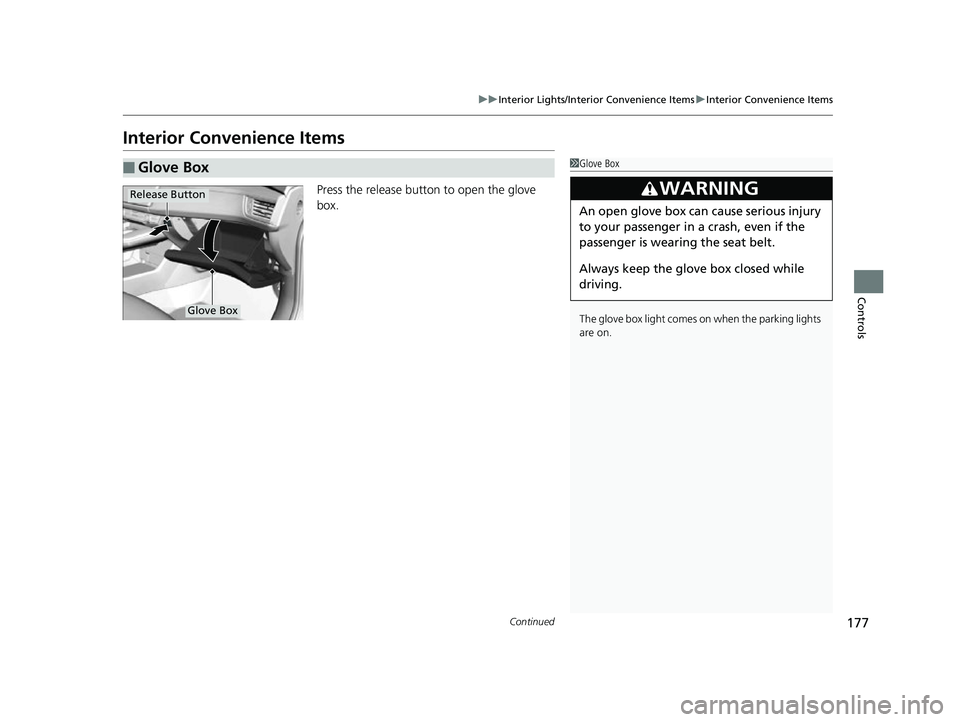

Interior Convenience Items
Press the release button to open the glove
box.
■Glove Box1Glove Box
The glove box light comes on when the parking lights
are on.
3WARNING
An open glove box can cause serious injury
to your passenger in a crash, even if the
passenger is wearing the seat belt.
Always keep the glove box closed while
driving.
Glove Box
Release Button
17 CLARITY FCV PPO-31TRT6000.book 177 ページ ２０１６年１０月２７日　木曜日　午後３ 時１１分

178
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls

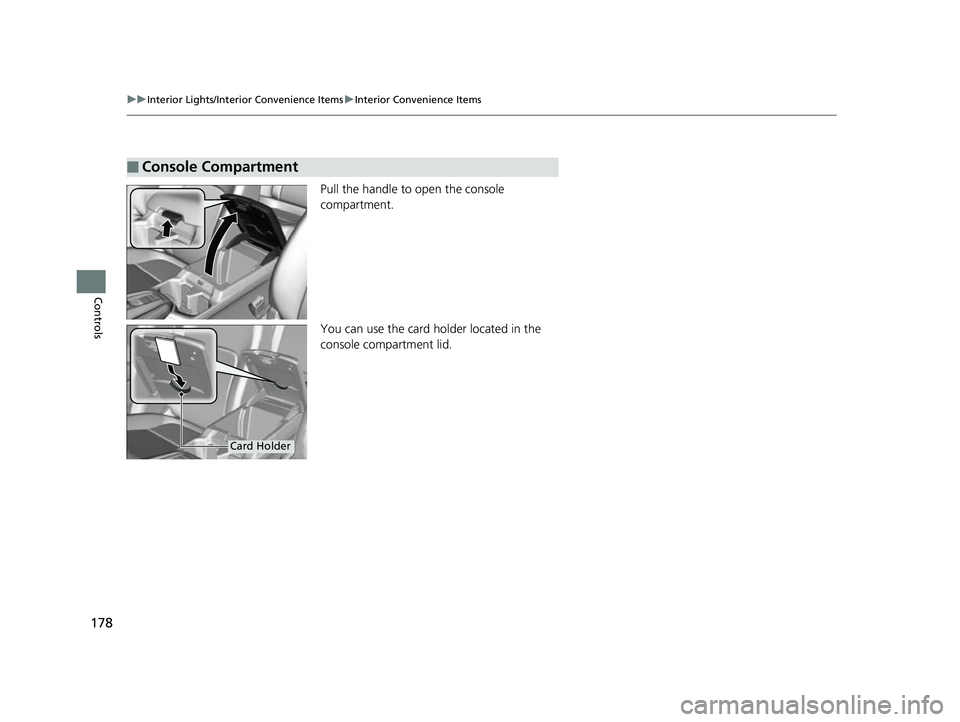

Pull the handle to open the console
compartment.
You can use the card ho lder located in the
console compartment lid.
■Console Compartment
Card Holder
17 CLARITY FCV PPO-31TRT6000.book 178 ページ ２０１６年１０月２７日　木曜日　午後３ 時１１分

Continued179
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls

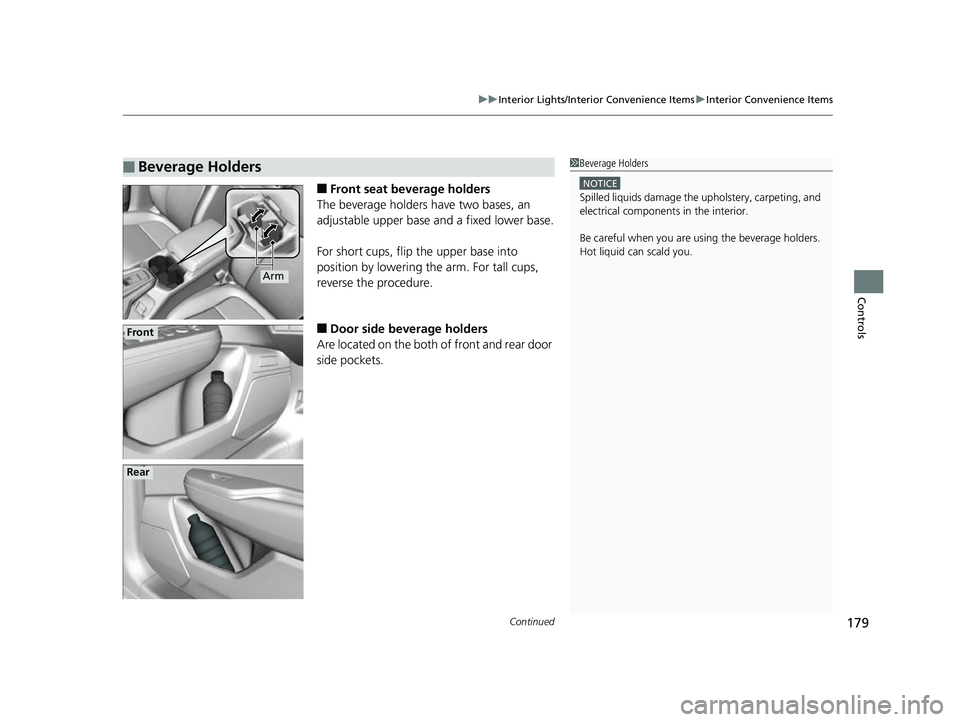

■Front seat beverage holders
The beverage holders have two bases, an
adjustable upper base and a fixed lower base.
For short cups, flip the upper base into
position by lowering the arm. For tall cups,
reverse the procedure.
■Door side beverage holders
Are located on the both of front and rear door
side pockets.
■Beverage Holders1 Beverage Holders
NOTICE
Spilled liquids damage the upholstery, carpeting, and
electrical components in the interior.
Be careful when you are us ing the beverage holders.
Hot liquid can scald you.
Arm
Front
Rear
17 CLARITY FCV PPO-31TRT6000.book 179 ページ ２０１６年１０月２７日　木曜日　午後３ 時１１分

180
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls

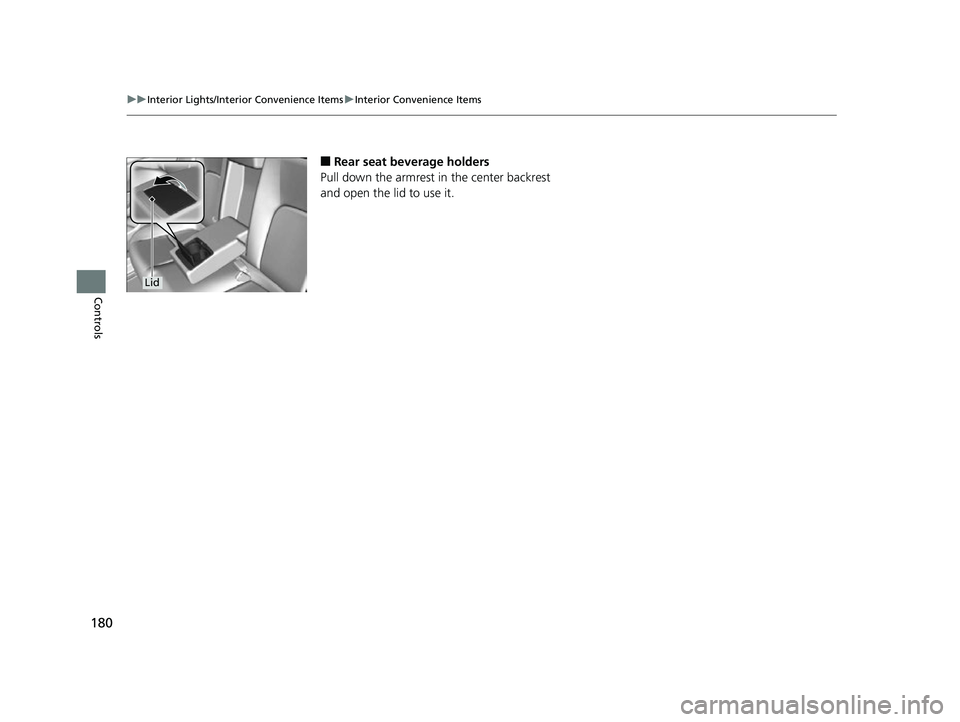

■Rear seat beverage holders
Pull down the armrest in the center backrest
and open the lid to use it.
Lid
17 CLARITY FCV PPO-31TRT6000.book 180 ページ ２０１６年１０月２７日　木曜日　午後３ 時１１分

Continued181
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls
The accessory power sockets can be used when the power mode is in ACCESSORY
or ON.
■Accessory power socket (console panel)
Open the cover to use it.
■Accessory power socket (back of the
console compartment)
Open the cover to use it.
■Accessory Power Sockets1 Accessory Power Sockets
NOTICE
Do not insert an automotive type cigarette lighter
element: The power socket can overheat.
The accessory power socket s are designed to supply
power for 12-volt DC accessories that are rated 180
watts (15 amps) or less.
To prevent 12-volt battery drain, use the power
socket only when the power system on.
17 CLARITY FCV PPO-31TRT6000.book 181 ページ ２０１６年１０月２７日　木曜日　午後３ 時１１分

uuInterior Lights/Interior Convenience Items uInterior Convenience Items
182
Controls

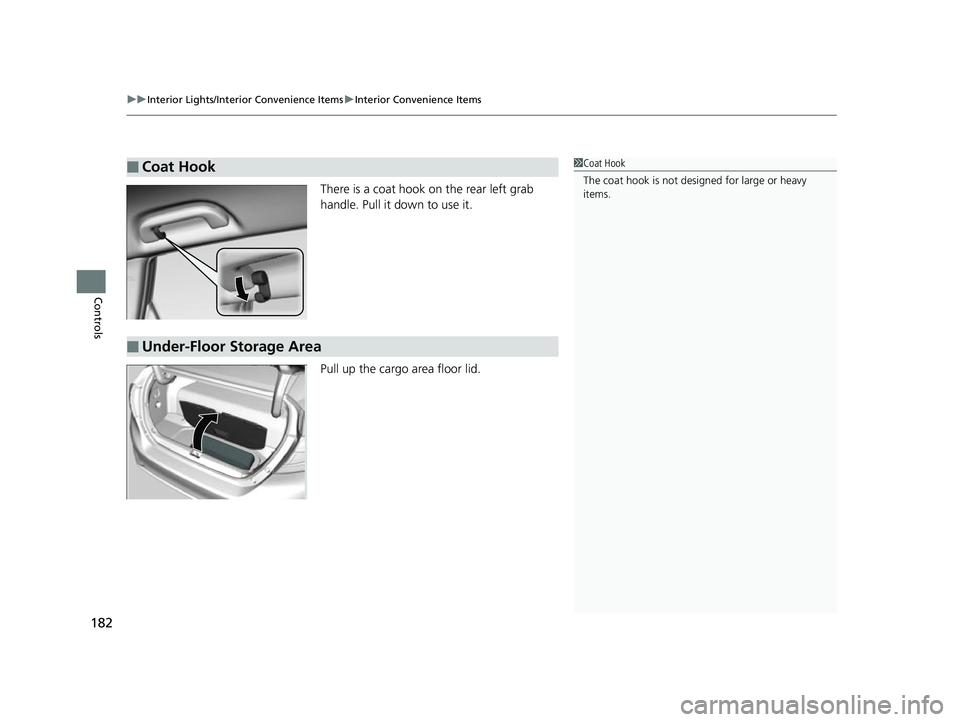

There is a coat hook on the rear left grab
handle. Pull it down to use it.
Pull up the cargo area floor lid.
■Coat Hook1Coat Hook
The coat hook is not desi gned for large or heavy
items.
■Under-Floor Storage Area
17 CLARITY FCV PPO-31TRT6000.book 182 ページ ２０１６年１０月２７日　木曜日　午後３ 時１１分
