uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears when the speed of the vehicle is too high for
you to set ACC with LSF.●Reduce the speed, then set ACC with LSF.
2Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF) P. 371
●Appears when ACC with LS F is cancelled due to
excessive vehicle speed.●Reduce the speed, then reset ACC with LSF.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF) P. 371
●Appears when the vehicle ahead of you resumes
driving, after your vehicle has been stopped
automatically by ACC with LSF.●Press the RES/+ or −/SET switch or depress the
accelerator pedal to resume.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF) P. 371
●Appears when pressing the RES/+ or −/SET switch
down while the parking brake is applied.●ACC with LSF cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF) P. 371
2 Parking Brake P. 404
●Appears when pressing the RES/+ or −/SET switch
down while the vehicle is moving and the brake
pedal is depressed.●ACC with LSF cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF) P. 371
●Appears if ACC with LSF is canceled while your
vehicle is automatically stopped by ACC with LSF.●Immediately depress the brake pedal.
17 CLARITY FCV PPO-31TRT6000.book 111 ページ ２０１６年１０月２７日　木曜日　午後３ 時１１分

112
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation

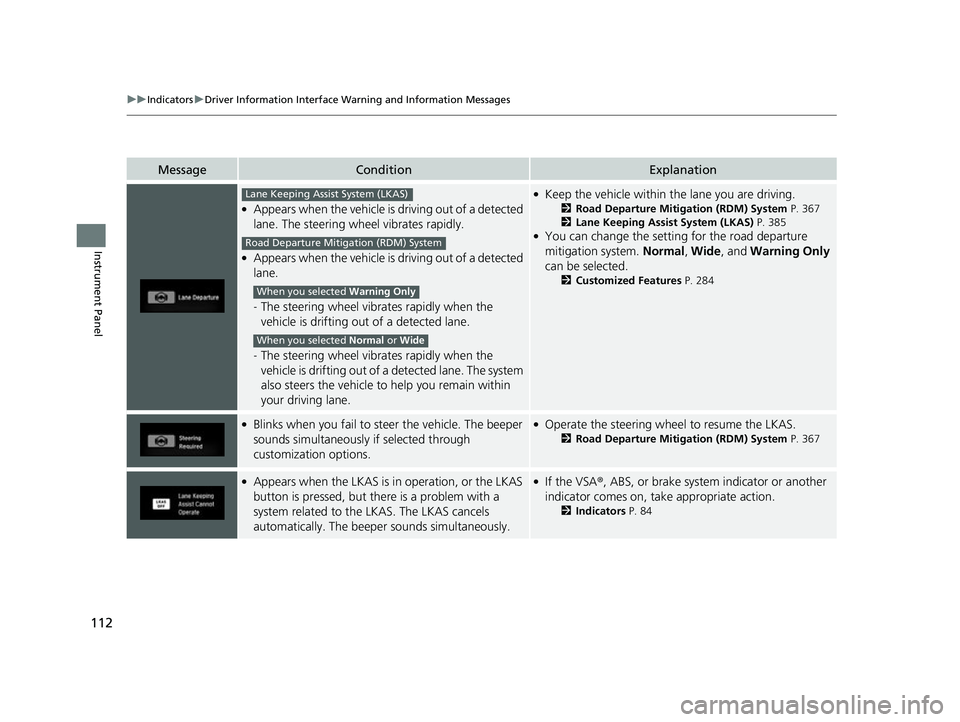

●Appears when the vehicle is driving out of a detected
lane. The steering wheel vibrates rapidly.
●Appears when the vehicle is driving out of a detected
lane.
- The steering wheel vibrates rapidly when the
vehicle is drifting out of a detected lane.
- The steering wheel vibrates rapidly when the
vehicle is drifting out of a detected lane. The system
also steers the vehicle to help you remain within
your driving lane.
●Keep the vehicle within the lane you are driving.
2 Road Departure Mitigation (RDM) System P. 367
2 Lane Keeping Assist System (LKAS) P. 385
●You can change the setti ng for the road departure
mitigation system. Normal, Wide , and Warning Only
can be selected.
2 Customized Features P. 284
●Blinks when you fail to steer the vehicle. The beeper
sounds simultaneously if selected through
customization options.●Operate the steering wheel to resume the LKAS.
2Road Departure Mitigation (RDM) System P. 367
●Appears when the LKAS is in operation, or the LKAS
button is pressed, but th ere is a problem with a
system related to the LKAS. The LKAS cancels
automatically. The beeper sounds simultaneously.●If the VSA ®, ABS, or brake system indicator or another
indicator comes on, take appropriate action.
2 Indicators P. 84
Lane Keeping Assist System (LKAS)
Road Departure Mitigation (RDM) System
When you selected Warning Only
When you selected Normal or Wide
17 CLARITY FCV PPO-31TRT6000.book 112 ページ ２０１６年１０月２７日　木曜日　午後３ 時１１分

113
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation

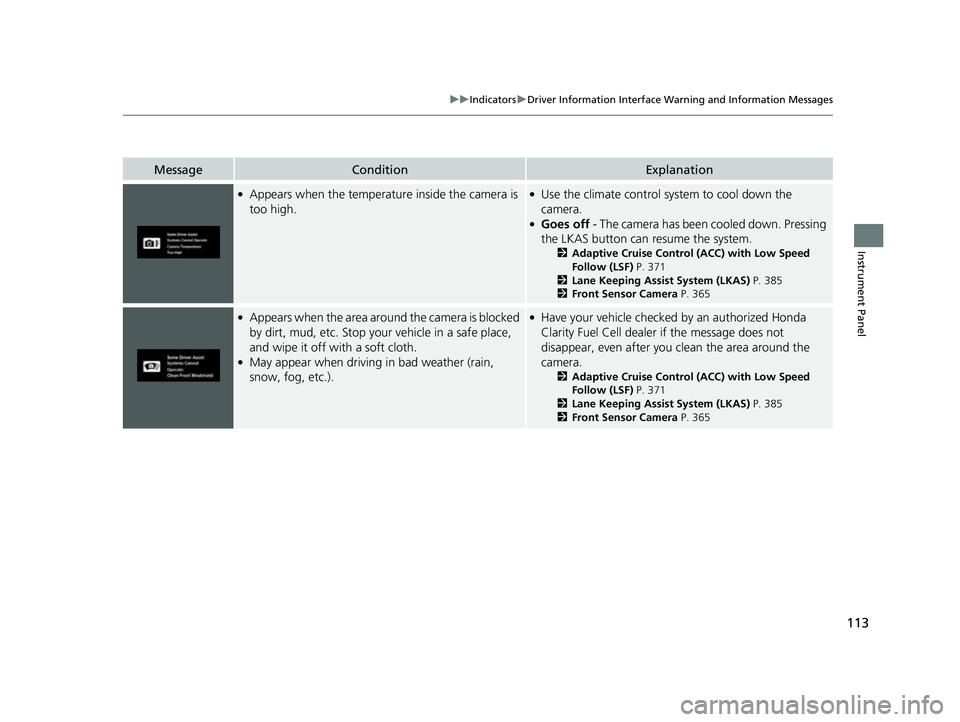

●Appears when the temperature inside the camera is
too high.●Use the climate control system to cool down the
camera.
●Goes off - The camera has been cooled down. Pressing
the LKAS button can resume the system.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF) P. 371
2 Lane Keeping Assist System (LKAS) P. 385
2 Front Sensor Camera P. 365
●Appears when the area around the camera is blocked
by dirt, mud, etc. Stop your vehicle in a safe place,
and wipe it off with a soft cloth.
●May appear when driving in bad weather (rain,
snow, fog, etc.).
●Have your vehicle checked by an authorized Honda
Clarity Fuel Cell dealer if the message does not
disappear, even after you clean the area around the
camera.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF) P. 371
2 Lane Keeping Assist System (LKAS) P. 385
2 Front Sensor Camera P. 365
17 CLARITY FCV PPO-31TRT6000.book 113 ページ ２０１６年１０月２７日　木曜日　午後３ 時１１分

114
Instrument Panel

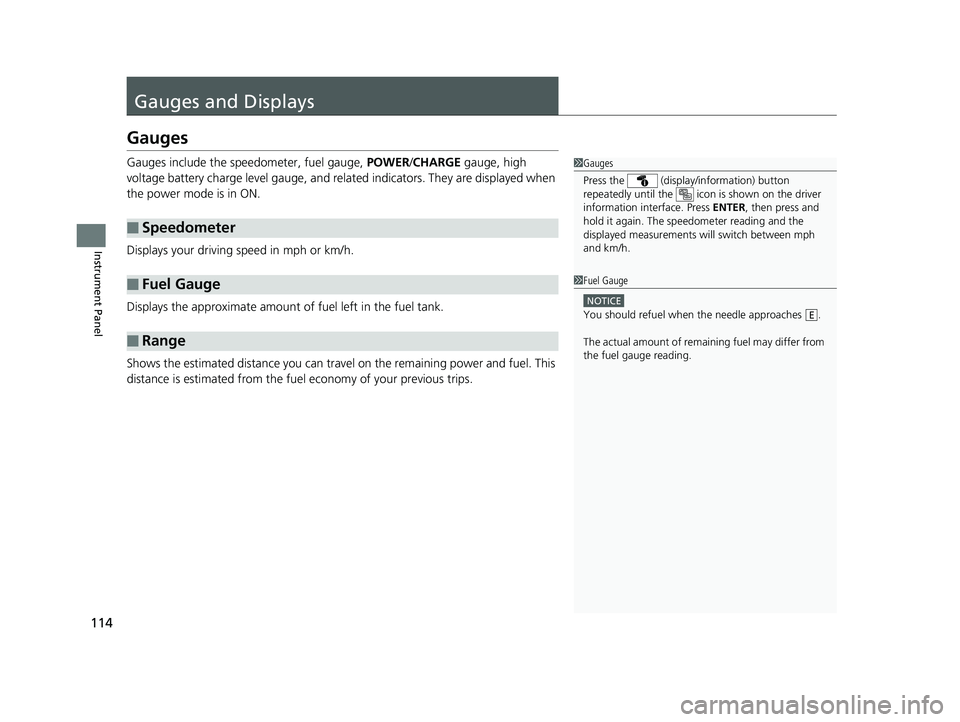

Gauges and Displays
Gauges
Gauges include the speedometer, fuel gauge, POWER/CHARGE gauge, high
voltage battery charge level gauge, and rela ted indicators. They are displayed when
the power mode is in ON.
Displays your driving speed in mph or km/h.
Displays the approximate amount of fuel left in the fuel tank.
Shows the estimated distance you can travel on the remaining power and fuel. This
distance is estimated from the fuel economy of your previous trips.
■Speedometer
■Fuel Gauge
■Range
1Gauges
Press the (display /information) button
repeatedly until the icon is shown on the driver
information interface. Press ENTER , then press and
hold it again. The spee dometer reading and the
displayed measurements wi ll switch between mph
and km/h.
1 Fuel Gauge
NOTICE
You should refuel when the needle approaches .
The actual amount of remain ing fuel may differ from
the fuel gauge reading.E
17 CLARITY FCV PPO-31TRT6000.book 114 ページ ２０１６年１０月２７日　木曜日　午後３ 時１１分

Continued115
uuGauges and Displays uGauges
Instrument Panel
■Electric motor
The degree to which the electric motor is be ing powered is displayed by the readings
on the POWER side.
: LOW POWER Traveling only by FC STACK.
: MEDIUM POWER Traveling by FC STACK,
and by assist of the high-voltage battery
depending on the situation : HIGH POWER Traveling by FC STACK and
assist of the high-voltage battery
■Battery charge in progress
The degree to which the High Voltage battery is being charged is displayed by the
readings on the CHARGE side.

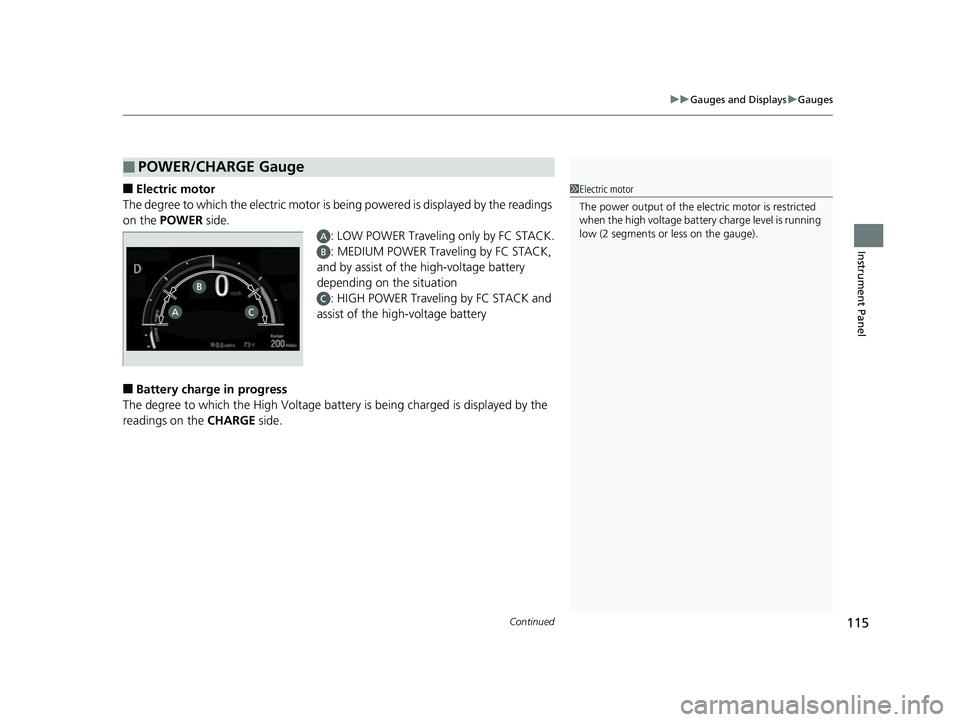

■POWER/CHARGE Gauge
1Electric motor
The power output of the elec tric motor is restricted
when the high voltage battery charge level is running
low (2 segments or less on the gauge).
17 CLARITY FCV PPO-31TRT6000.book 115 ページ ２０１６年１０月２７日　木曜日　午後３ 時１１分

uuGauges and Displays uGauges
116
Instrument Panel
Shows the remaining high voltage battery charge level.

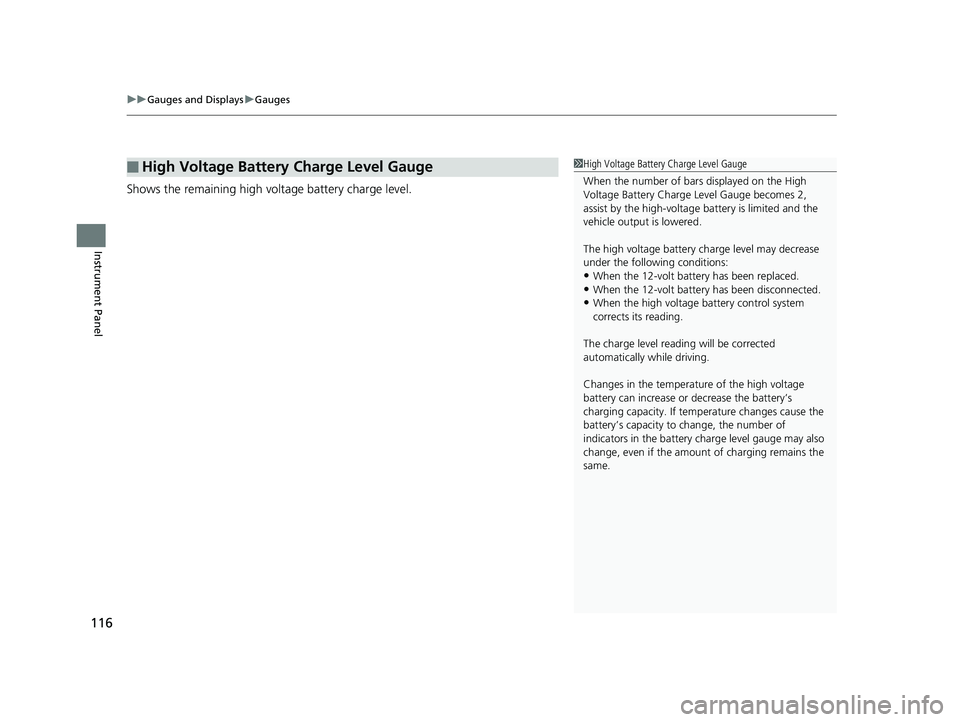

■High Voltage Battery Charge Level Gauge1High Voltage Battery Charge Level Gauge
When the number of bars displayed on the High
Voltage Battery Charge Level Gauge becomes 2,
assist by the high-voltage battery is limited and the
vehicle output is lowered.
The high voltage battery ch arge level may decrease
under the following conditions:
•When the 12-volt battery has been replaced.•When the 12-volt battery has been disconnected.
•When the high voltage battery control system
corrects its reading.
The charge level reading will be corrected
automatically while driving.
Changes in the temperature of the high voltage
battery can increase or decrease the battery’s
charging capacity. If temp erature changes cause the
battery’s capacity to change, the number of
indicators in the battery ch arge level gauge may also
change, even if the amount of charging remains the
same.
17 CLARITY FCV PPO-31TRT6000.book 116 ページ ２０１６年１０月２７日　木曜日　午後３ 時１１分

117
uuGauges and Displays uDriver Information Interface
Continued
Instrument Panel
Driver Information Interface
The driver information interface shows the odometer, trip meter, outside
temperature indicator, and other gauges. It also displays important messages such
as warnings and other helpful information.
Press the (display/information) butto n and press or to change the
display. Press ENTER to see detailed information.
*1:You can add the content using the audio/information screen.
■Switching the Display1 Switching the Display
You can edit, add, or delete the meter contents using
the audio/information screen. 2 Customizing the Meter P. 208
Press , ,
or .Speed Unit &
Disp OFF
Fuel Cell Power
Generation
Monitor
ECO Drive
Display
Mail
Warning
Messages Audio
Average Speed/
Elapsed Time Average/Instant
Fuel Economy
Navigation &
CompassMaintenance
Minder
TMAverage Fuel
Economy
Records
Phone
Press ENTER .
(Display/
Information) Button
*1
17 CLARITY FCV PPO-31TRT6000.book 117 ページ ２０１６年１０月２７日　木曜日　午後３ 時１１分

118
uuGauges and Displays uDriver Information Interface
Instrument Panel
Press the TRIP button to change the display.
Odometer Trip ATrip B
Outside temperature
TRIP Button
TRIPTRIP
TRIP
