Maintenance
Accessories and Modifications

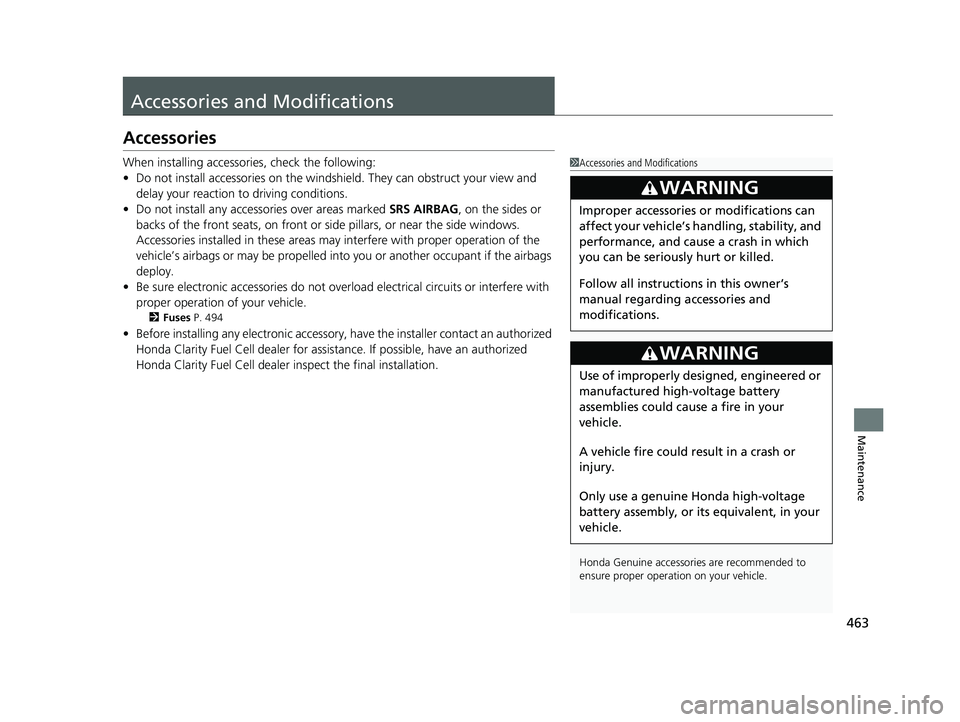

Accessories
When installing accessories, check the following:
• Do not install accessories on the windsh ield. They can obstruct your view and
delay your reaction to driving conditions.
• Do not install any accessories over areas marked SRS AIRBAG, on the sides or
backs of the front seats, on front or si de pillars, or near the side windows.
Accessories installed in these areas may interfere with proper operation of the
vehicle’s airbags or may be propelled into you or another occupant if the airbags
deploy.
• Be sure electronic accessories do not overload electrical circuits or interfere with
proper operation of your vehicle.
2 Fuses P. 494
•Before installing any electronic accessory, have the installer contact an authorized
Honda Clarity Fuel Cell dealer for assist ance. If possible, have an authorized
Honda Clarity Fuel Cell dealer inspect the final installation.
1Accessories and Modifications
Honda Genuine accessor ies are recommended to
ensure proper operati on on your vehicle.
3WARNING
Improper accessories or modifications can
affect your vehicle’s handling, stability, and
performance, and cause a crash in which
you can be seriously hurt or killed.
Follow all instruction s in this owner’s
manual regarding accessories and
modifications.
3WARNING
Use of improperly designed, engineered or
manufactured high-voltage battery
assemblies could cause a fire in your
vehicle.
A vehicle fire could result in a crash or
injury.
Only use a genuine Honda high-voltage
battery assembly, or its equivalent, in your
vehicle.
17 CLARITY FCV PPO-31TRT6000.book 463 ページ ２０１６年１０月２７日　木曜日　午後３ 時１１分

464
uuAccessories and Modifications uModifications
Maintenance

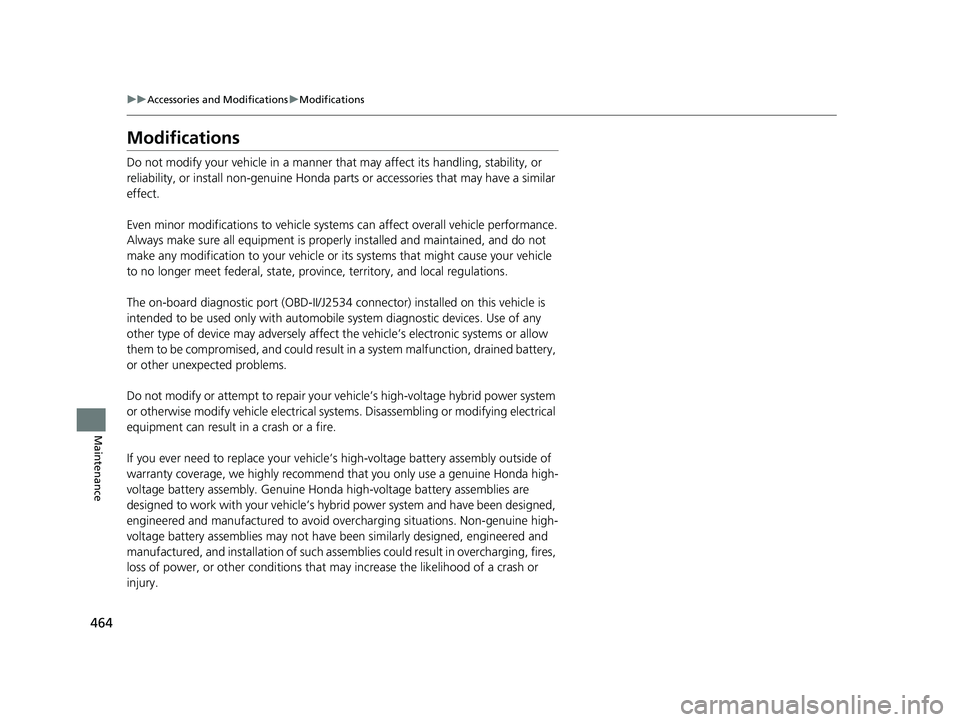

Modifications
Do not modify your vehicle in a manner that may affect its handling, stability, or
reliability, or install non-genuine Honda parts or accessories that may have a similar
effect.
Even minor modifications to vehicle systems can affect overall vehicle performance.
Always make sure all equipment is prop erly installed and maintained, and do not
make any modification to your vehicle or its systems that might cause your vehicle
to no longer meet federal, state, prov ince, territory, and local regulations.
The on-board diagnostic port (OBD-II/J2534 connector) installed on this vehicle is
intended to be used only with automobile system diagnostic devices. Use of any
other type of device may adversely affect the vehicle’s electronic systems or allow
them to be compromised, and could result in a system malfunction, drained battery,
or other unexpected problems.
Do not modify or attempt to repair your vehicle’s high-voltage hybrid power system
or otherwise modify vehicle electrical systems. Disassembling or modifying electrical
equipment can result in a crash or a fire.
If you ever need to replace your vehicle’s high-voltage battery assembly outside of
warranty coverage, we highly recommend that you only use a genuine Honda high-
voltage battery assembly. Genuine Hond a high-voltage battery assemblies are
designed to work with your vehicle’s hybrid power system and have been designed,
engineered and manufactured to avoid ov ercharging situations. Non-genuine high-
voltage battery assemblies may not have be en similarly designed, engineered and
manufactured, and installation of such assemb lies could result in overcharging, fires,
loss of power, or other conditions that may increase the likelihood of a crash or
injury.
17 CLARITY FCV PPO-31TRT6000.book 464 ページ ２０１６年１０月２７日　木曜日　午後３ 時１１分

465
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
If a Tire Goes FlatTemporarily Repairi ng a Flat Tire....... 466
Handling of the Jack ......................... 478
Power System Won’t Start Checking the Procedure ................... 479
If the Smart Entry Remote Battery is Weak .......................................... 480
Emergency Power System Off........... 481
Jump Starting .................................... 482
Overheating How to Handle Overheating ............. 485
If Hydrogen Gas is Leaking .............. 487Indicator, Coming On/Blinking
If the 12-Volt Battery Charging System Indicator Comes On ....................... 489
If the Brake System Indicator (Red) Comes On or Blinks ....................................... 490
If the Electric Power Steering (EPS) System Indicator Comes On ........................... 490If the Brake System Indicator (Red) Comes On or Blinks at the Same Time
When the Brake System Indicator
(Amber) Comes On ...................... 491
If the Low Tire Pressure/TPMS Indicator
Comes On or Blinks ....................... 492
If the Transmission System Indicator Blinks along with the Warning Message .... 493
Fuses Fuse Locations ................................. 494
Inspecting and Changing Fuses ........ 501
Emergency Towing ........................... 502
When You Cannot Unlock the Hydrogen Fuel Lid .............................................. 503
When You Cannot Open the Trunk .. 504
17 CLARITY FCV PPO-31TRT6000.book 465 ページ ２０１６年１０月２７日　木曜日　午後３ 時１１分

466
Handling the Unexpected
If a Tire Goes Flat

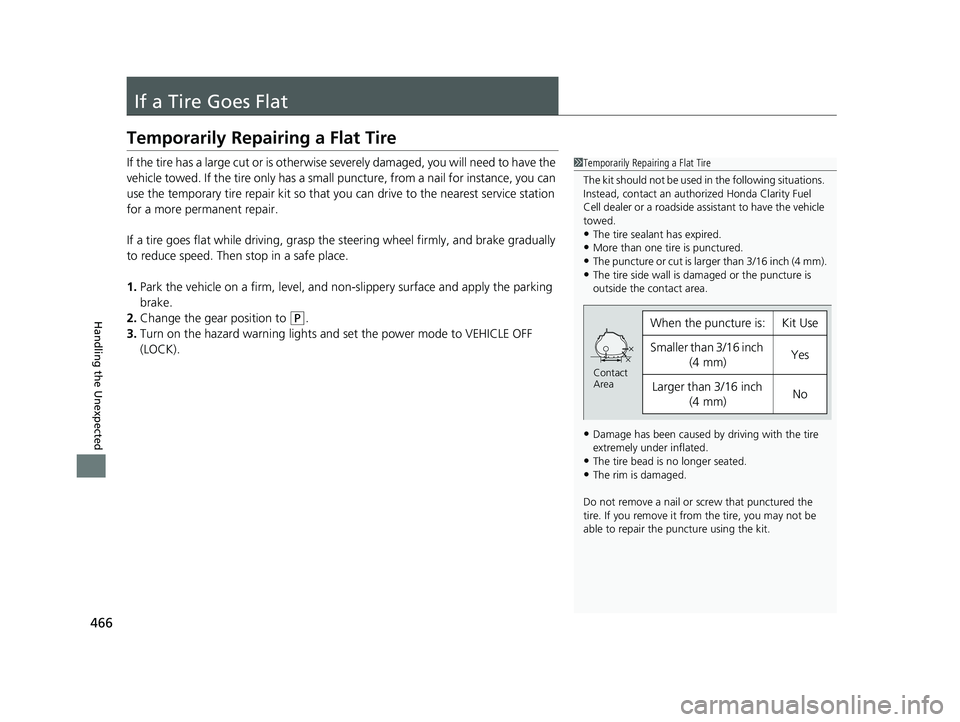

Temporarily Repairing a Flat Tire
If the tire has a large cut or is otherwise severely damaged, you will need to have the
vehicle towed. If the tire only has a smal l puncture, from a nail for instance, you can
use the temporary tire repair kit so that you can drive to the nearest service station
for a more permanent repair.
If a tire goes flat while driving, grasp the steering wheel firmly, and brake gradually
to reduce speed. Then stop in a safe place.
1. Park the vehicle on a firm, level, and non-slippery surface and apply the parking
brake.
2. Change the gear position to
(P.
3. Turn on the hazard warning lights an d set the power mode to VEHICLE OFF
(LOCK).
1 Temporarily Repairing a Flat Tire
The kit should not be used in the following situations.
Instead, contact an authorized Honda Clarity Fuel
Cell dealer or a roadside assistant to have the vehicle
towed.
•The tire sealant has expired.•More than one tire is punctured.
•The puncture or cut is larger than 3/16 inch (4 mm).
•The tire side wall is da maged or the puncture is
outside the contact area.
•Damage has been caused by driving with the tire
extremely under inflated.
•The tire bead is no longer seated.•The rim is damaged.
Do not remove a nail or screw that punctured the
tire. If you remove it from the tire, you may not be
able to repair the puncture using the kit.
When the puncture is:Kit Use
Smaller than 3/16 inch (4 mm)Yes
Larger than 3/16 inch
(4 mm)No
Contact
Area
17 CLARITY FCV PPO-31TRT6000.book 466 ページ ２０１６年１０月２７日　木曜日　午後３ 時１１分

Continued467
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
Handling the Unexpected

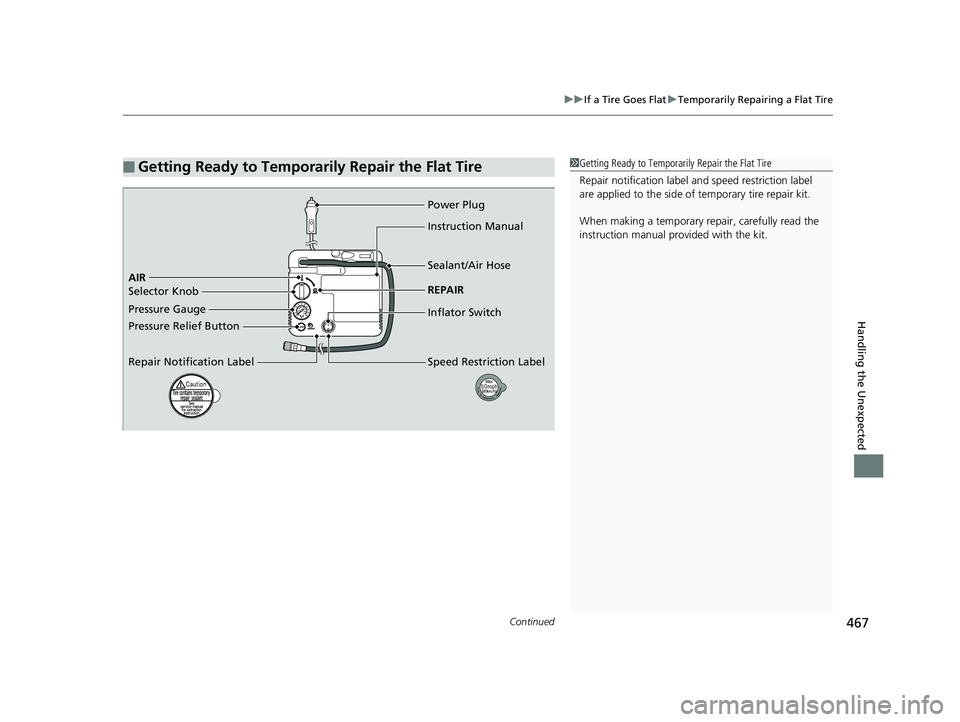

■Getting Ready to Temporarily Repair the Flat Tire1Getting Ready to Temporarily Repair the Flat Tire
Repair notificati on label and speed restriction label
are applied to the side of temporary tire repair kit.
When making a temporary repair, carefully read the
instruction manual provided with the kit.
Pressure Gauge AIR Power Plug
Pressure Relief Button
Repair Notification LabelInstruction Manual
Sealant/Air Hose
REPAIR
Inflator Switch
Speed Restriction Label
Selector Knob
17 CLARITY FCV PPO-31TRT6000.book 467 ページ ２０１６年１０月２７日　木曜日　午後３
時１１分

468
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
Handling the Unexpected

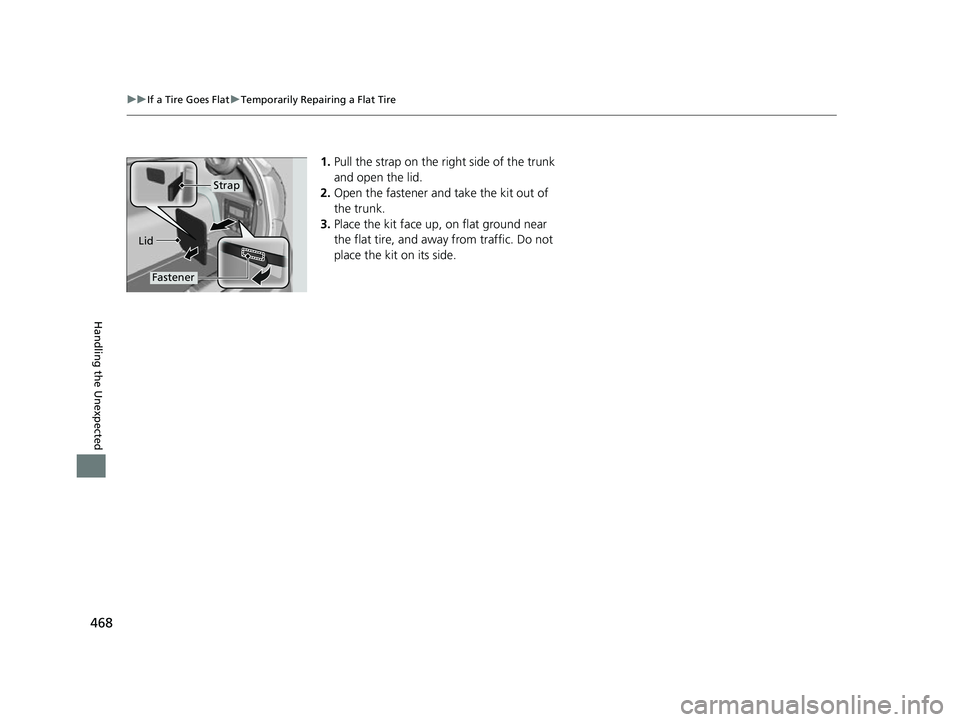

1. Pull the strap on the right side of the trunk
and open the lid.
2. Open the fastener and take the kit out of
the trunk.
3. Place the kit face up, on flat ground near
the flat tire, and away from traffic. Do not
place the kit on its side.
Lid
Fastener
Strap
17 CLARITY FCV PPO-31TRT6000.book 468 ページ ２０１６年１０月２７日　木曜日　午後３ 時１１分

Continued469
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
Handling the Unexpected

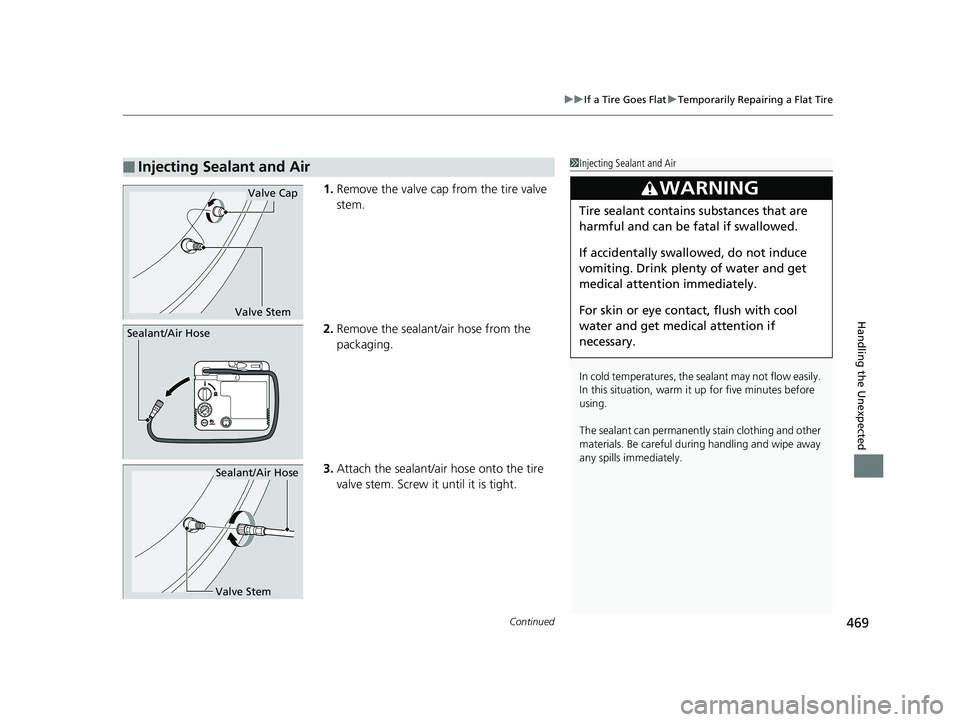

1. Remove the valve cap from the tire valve
stem.
2. Remove the sealant/air hose from the
packaging.
3. Attach the sealant/air hose onto the tire
valve stem. Screw it until it is tight.
■Injecting Sealant and Air1Injecting Sealant and Air
In cold temperatures, the sealant may not flow easily.
In this situation, warm it up for five minutes before
using.
The sealant can permanentl y stain clothing and other
materials. Be careful duri ng handling and wipe away
any spills immediately.
3WARNING
Tire sealant contains substances that are
harmful and can be fatal if swallowed.
If accidentally swallowed, do not induce
vomiting. Drink plenty of water and get
medical attention immediately.
For skin or eye contact, flush with cool
water and get medical attention if
necessary.
Valve Stem
Valve Cap
Sealant/Air Hose
Valve Stem
Sealant/Air Hose
17 CLARITY FCV PPO-31TRT6000.book 469 ページ ２０１６年１０月２７日　木曜日　午後３ 時１１分

uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
470
Handling the Unexpected

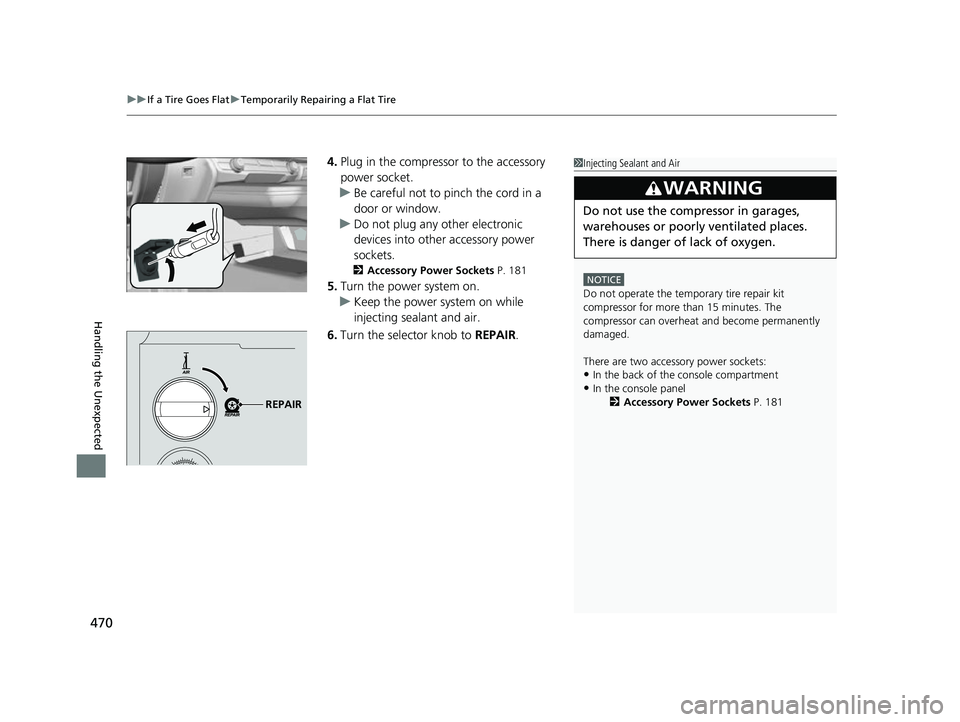

4. Plug in the compressor to the accessory
