2017 FORD EXPLORER Owners Manual

Page 409 of 541

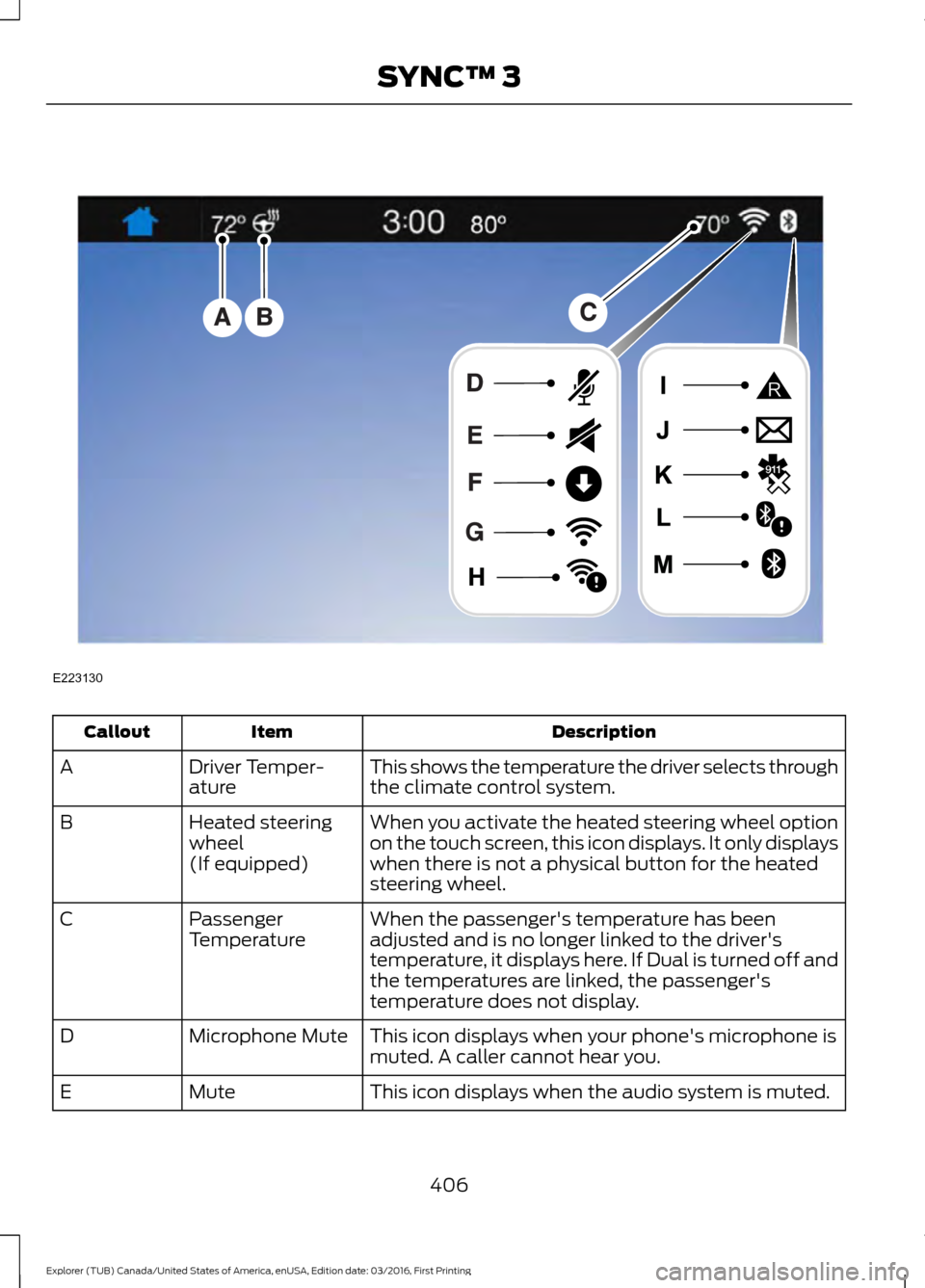

FORD EXPLORER 2017 5.G Owners Manual Description
Item
Callout
This shows the temperature the driver selects through
the climate control system.
Driver Temper-
ature
A
When you activate the heated steering wheel option
on the touch screen

Page 410 of 541

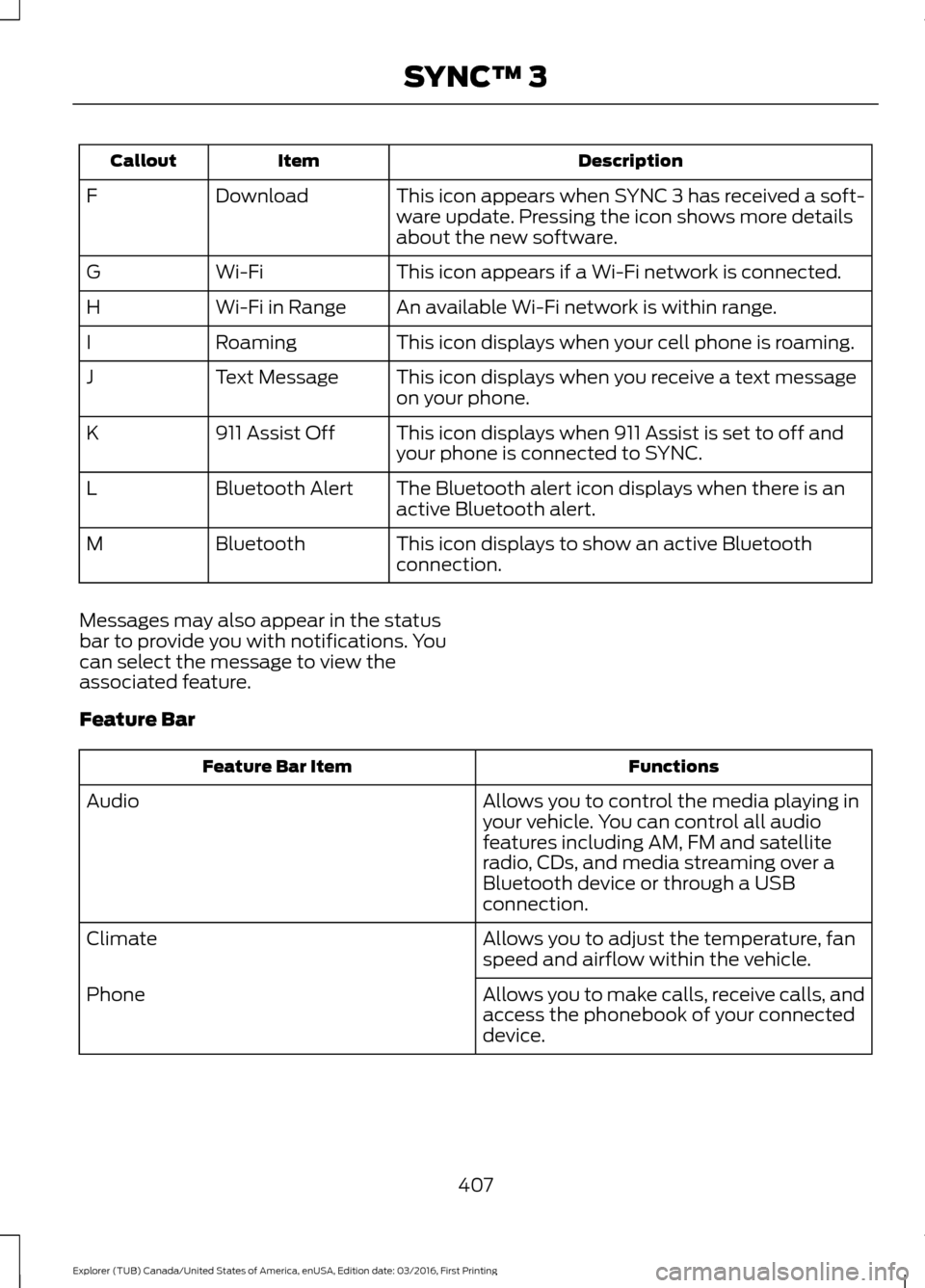

FORD EXPLORER 2017 5.G Owners Manual Description
Item
Callout
This icon appears when SYNC 3 has received a soft-
ware update. Pressing the icon shows more details
about the new software.
Download
F
This icon appears if a Wi-Fi network is

Page 411 of 541

FORD EXPLORER 2017 5.G Owners Manual Functions
Feature Bar Item
Allows you to see your vehicles location on
a virtual road map, get driving directions to
your destination and find points of interest
along your route.
Navigation
(If equi

Page 412 of 541

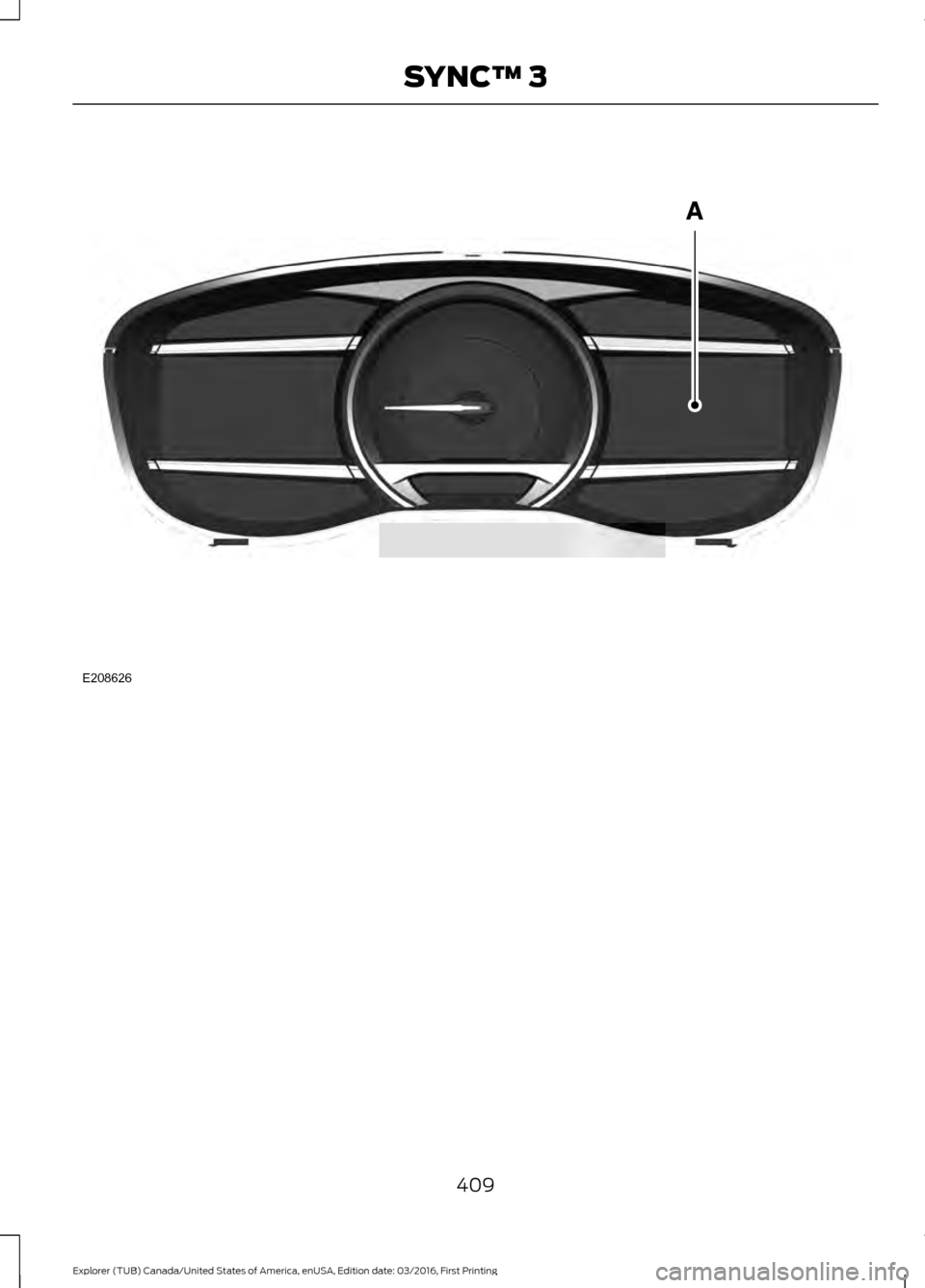

FORD EXPLORER 2017 5.G Owners Manual 409
Explorer (TUB) Canada/United States of America, enUSA, Edition date: 03/2016, First Printing SYNC™ 3E208626

Page 413 of 541

FORD EXPLORER 2017 5.G Owners Manual You can make the following adjustments
using the information display SYNC 3
screen:
Information
Option
Information for current audio playing.
Audio
Select source.
View current road and speed limit (if

Page 414 of 541

FORD EXPLORER 2017 5.G Owners Manual Information
Option
Missed calls
Outgoing calls
Incoming calls
All calls
Quick
dial
If you are on a call, the call information is displayed on the information display.
If you are receiving a call, you

Page 415 of 541

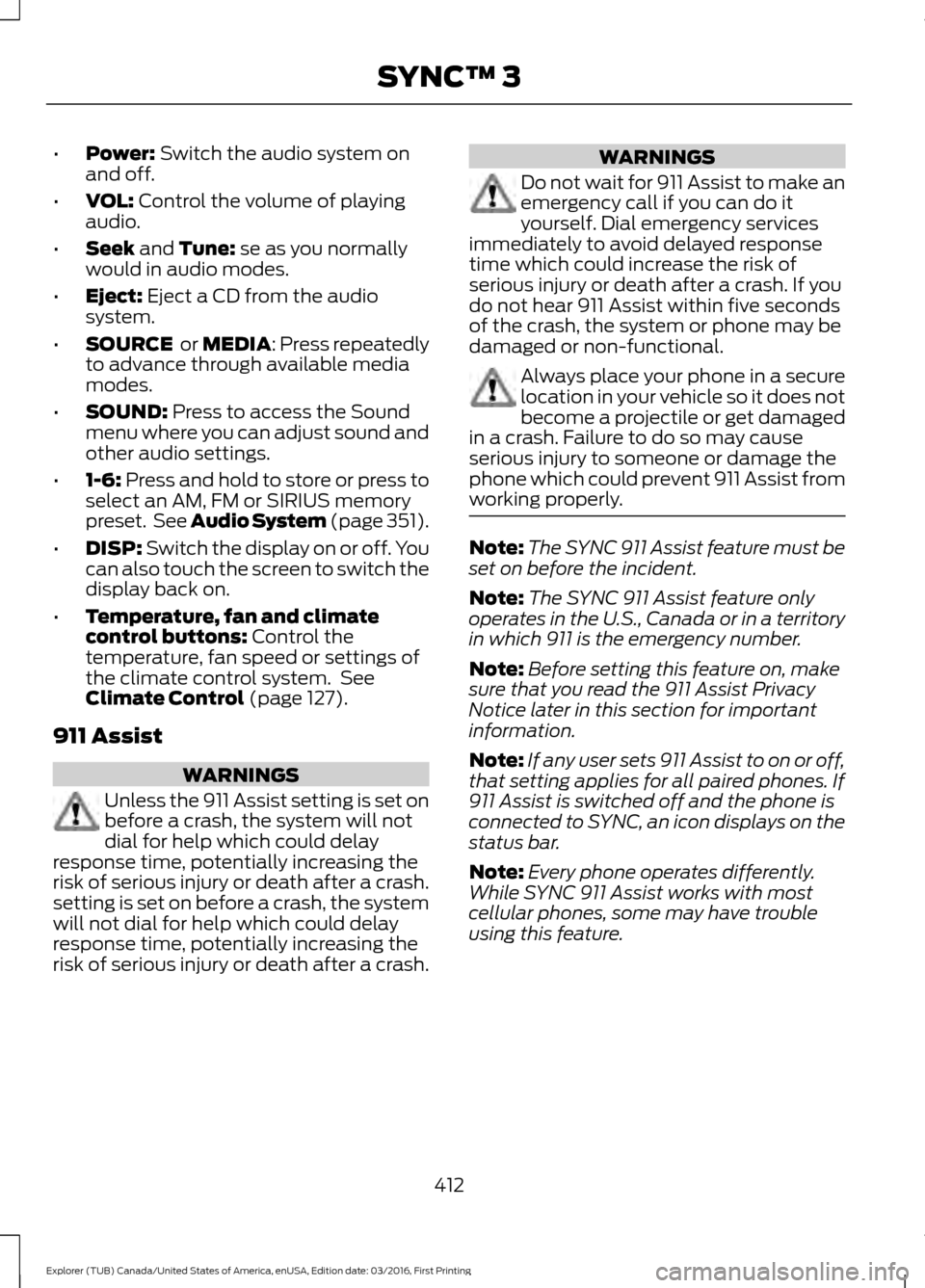

FORD EXPLORER 2017 5.G Owners Manual •
Power: Switch the audio system on
and off.
• VOL:
 Control the volume of playing
audio.
• Seek
 and Tune: se as you normally
would in audio modes.
• Eject:
 Eject a CD from the audio
system.

Page 416 of 541

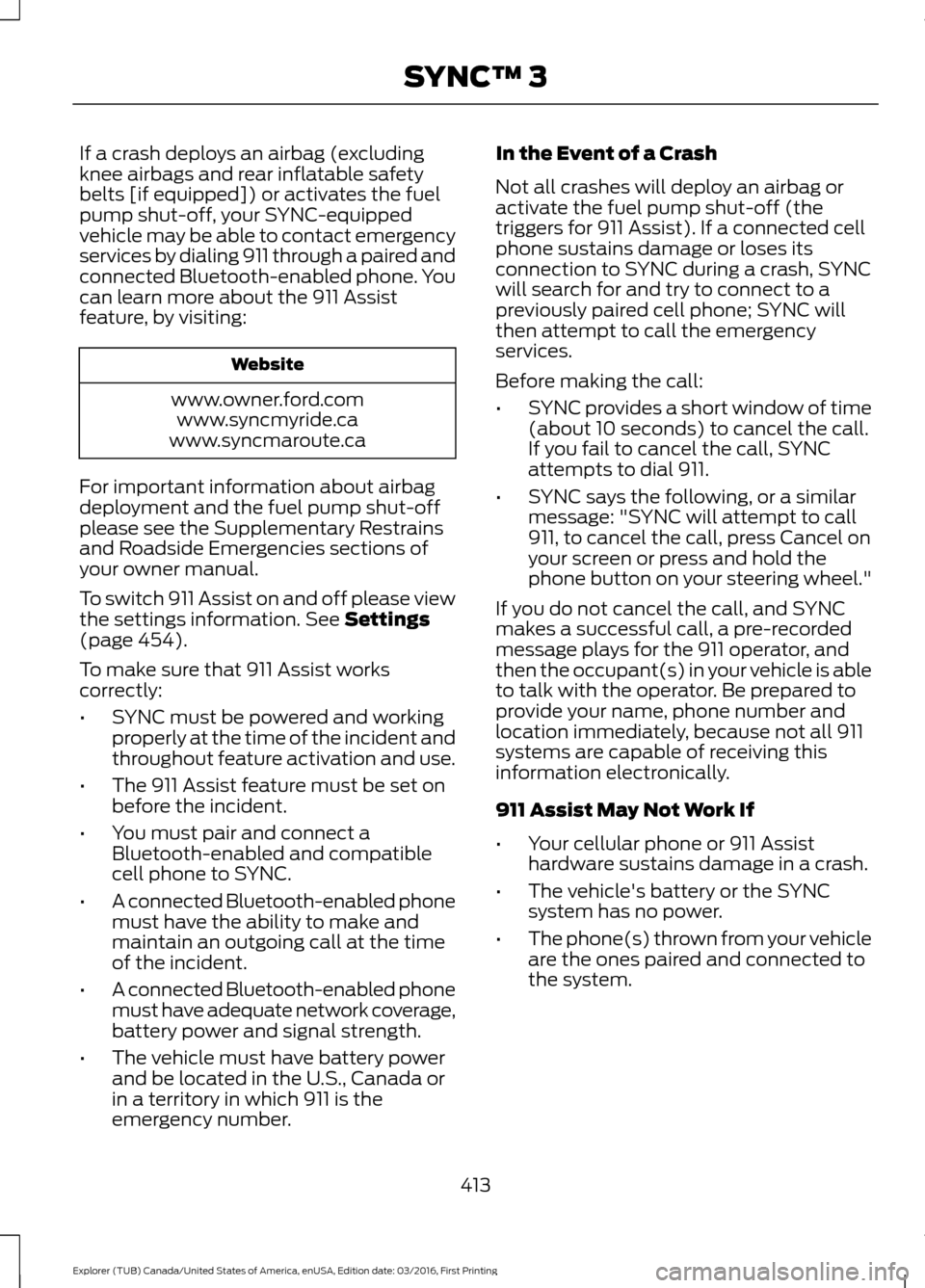

FORD EXPLORER 2017 5.G Owners Manual If a crash deploys an airbag (excluding
knee airbags and rear inflatable safety
belts [if equipped]) or activates the fuel
pump shut-off, your SYNC-equipped
vehicle may be able to contact emergency
se
