2017 FORD EXPLORER Owners Manual

Page 273 of 541

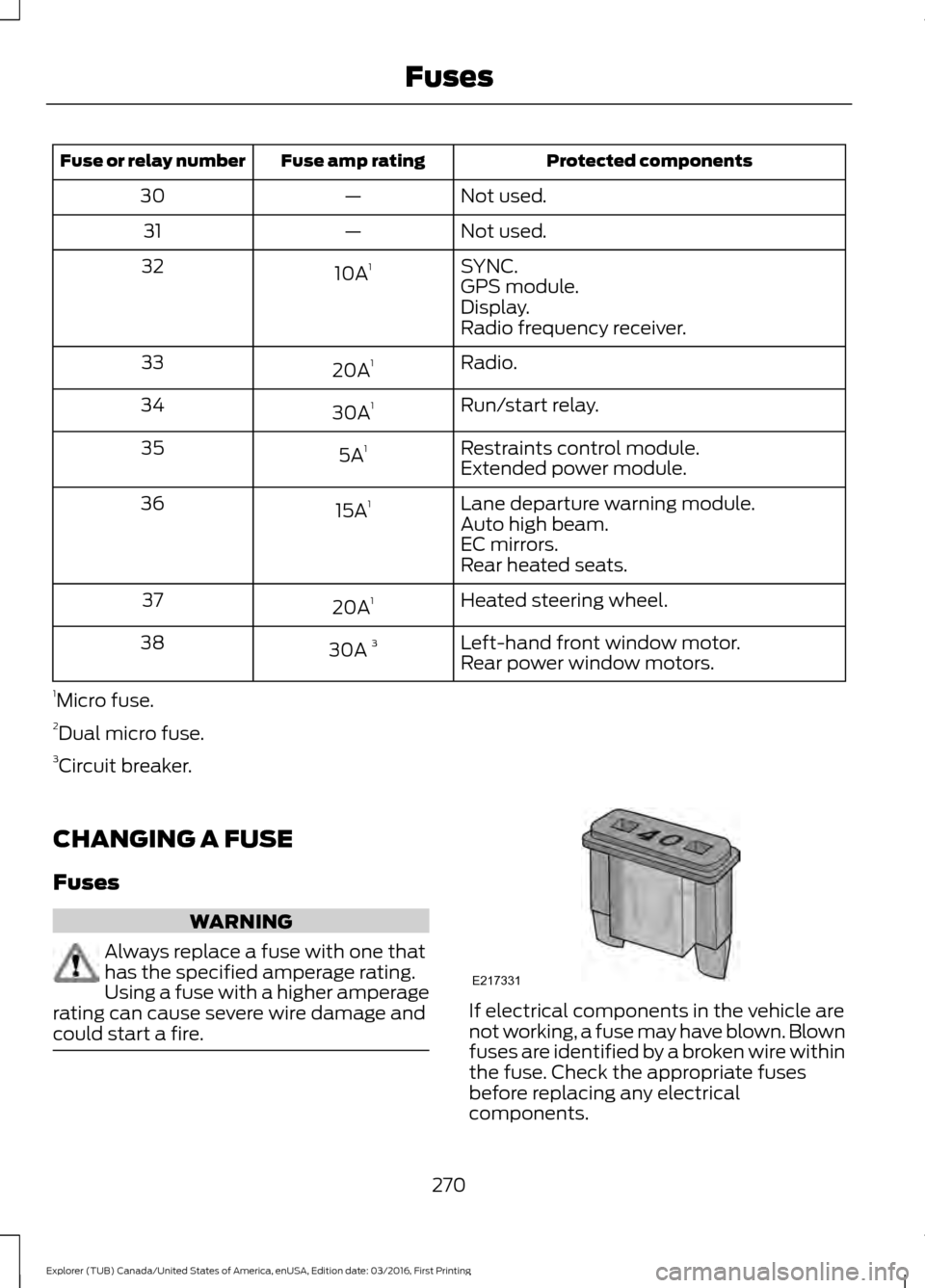

FORD EXPLORER 2017 5.G Owners Manual Protected components
Fuse amp rating
Fuse or relay number
Not used.
—
30
Not used.
—
31
SYNC.
10A 1
32
GPS module.
Display.
Radio frequency receiver.
Radio.
20A 1
33
Run/start relay.
30A 1
34
Rest

Page 274 of 541

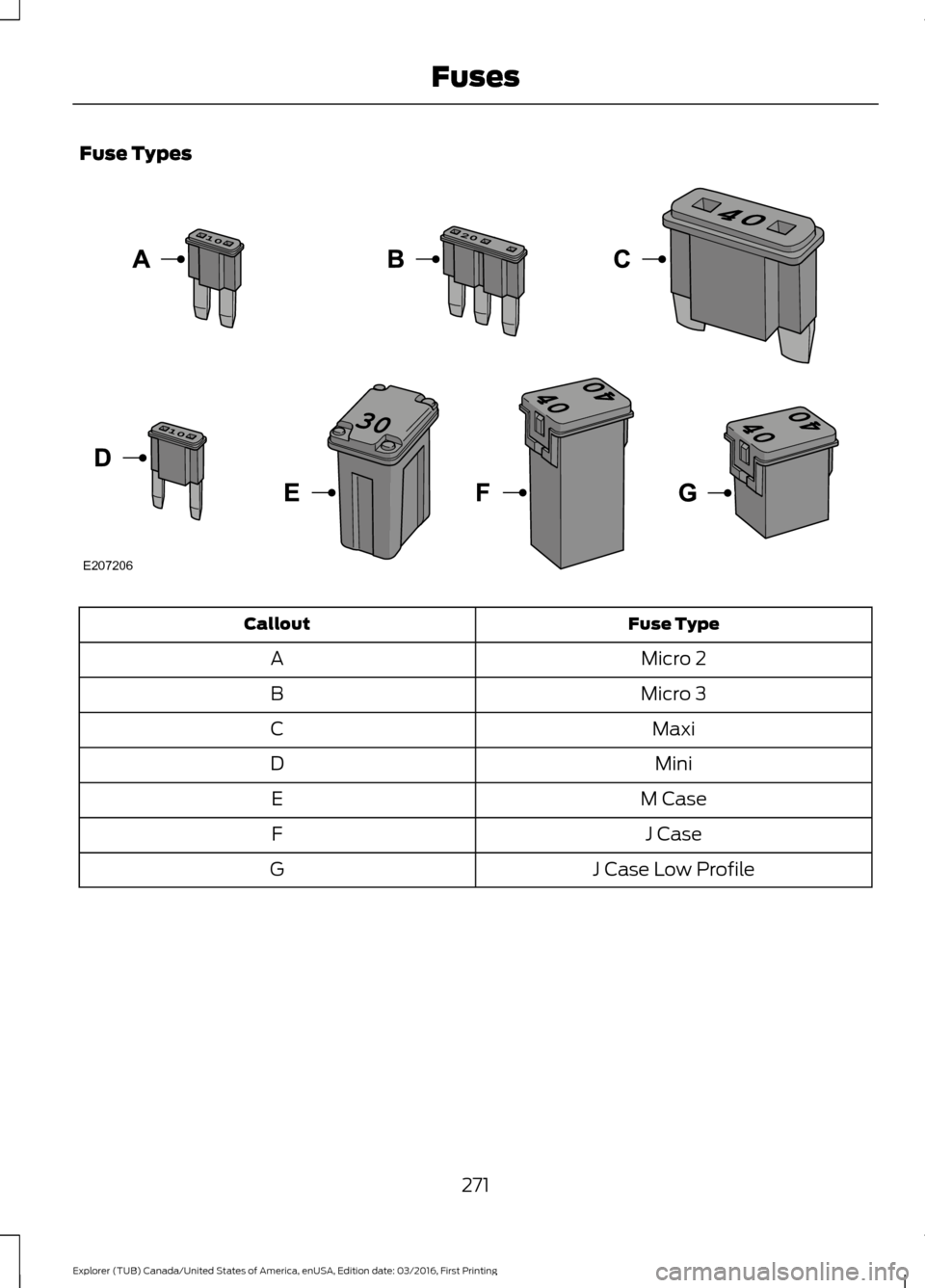

FORD EXPLORER 2017 5.G Owners Manual Fuse Types
Fuse Type
Callout
Micro 2
A
Micro 3
B
Maxi
C
Mini
D
M Case
E
J Case
F
J Case Low Profile
G
271
Explorer (TUB) Canada/United States of America, enUSA, Edition date: 03/2016, First Printing F

Page 275 of 541

FORD EXPLORER 2017 5.G Owners Manual GENERAL INFORMATION
Have your vehicle serviced regularly to help
maintain its roadworthiness and resale
value. There is a large network of
authorized dealers that are there to help
you with their prof

Page 276 of 541

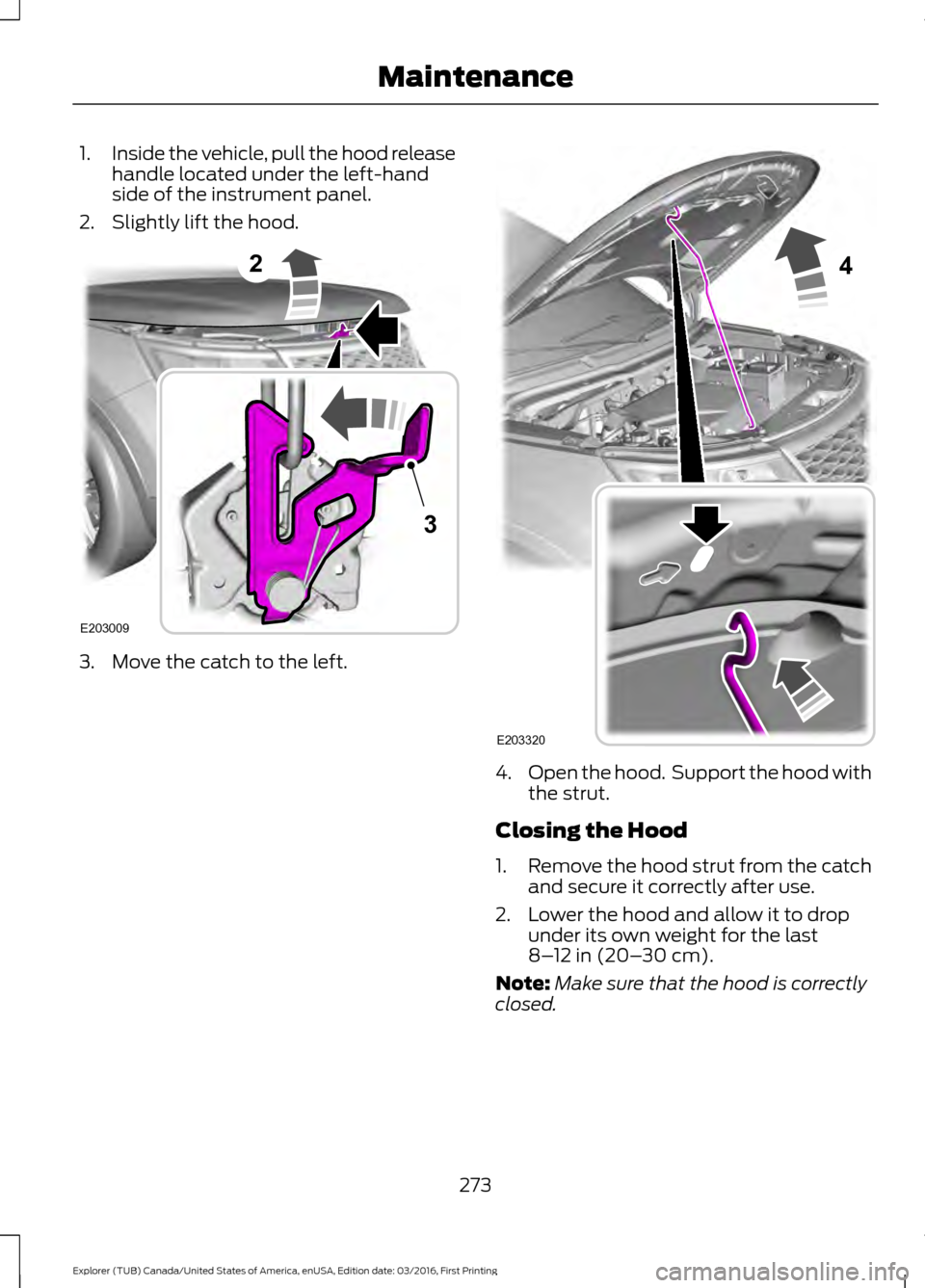

FORD EXPLORER 2017 5.G Owners Manual 1.
Inside the vehicle, pull the hood release
handle located under the left-hand
side of the instrument panel.
2. Slightly lift the hood. 3. Move the catch to the left.
4.
Open the hood.  Support the h

Page 277 of 541

FORD EXPLORER 2017 5.G Owners Manual UNDER HOOD OVERVIEW - 2.3L ECOBOOST™
Engine coolant reservoir.  See Engine Coolant Check (page 279).
A
Engine oil dipstick.  See
Engine Oil Dipstick (page 277).
B
Engine oil filler cap.  See
Engin

Page 278 of 541

FORD EXPLORER 2017 5.G Owners Manual UNDER HOOD OVERVIEW - 3.5L ECOBOOST™
Engine coolant reservoir.  See Engine Coolant Check (page 279).
A.
Engine oil filler cap.  See
Engine Oil Check (page 277).
B.
Engine oil dipstick.  See
Engine

Page 279 of 541

FORD EXPLORER 2017 5.G Owners Manual UNDER HOOD OVERVIEW - 3.5L DURATEC
Engine coolant reservoir.  See Engine Coolant Check (page 279).
A
Brake fluid reservoir.  See
Brake Fluid Check (page 285).
B
Battery.  See
Changing the 12V Batter

Page 280 of 541

FORD EXPLORER 2017 5.G Owners Manual ENGINE OIL DIPSTICK - 2.3L
ECOBOOST™
Minimum.
A
Maximum.
B
ENGINE OIL DIPSTICK - 3.5L
DURATEC/3.5L ECOBOOST™ MINA
MAX
B
ENGINE OIL CHECK
To check the engine oil level consistently
and accurately,
