2017 FORD EXPLORER Owners Manual

Page 289 of 541

FORD EXPLORER 2017 5.G Owners Manual Note:
The front and rear washer systems
are supplied from the same reservoir.
Add fluid to fill the reservoir if the level is
low. Only use a washer fluid that meets
Ford specifications.
State or loca

Page 290 of 541

FORD EXPLORER 2017 5.G Owners Manual If you see any corrosion on the battery or
terminals, remove the cables from the
terminals and clean with a wire brush. You
can neutralize the acid with a solution of
baking soda and water.
When a bat

Page 291 of 541

FORD EXPLORER 2017 5.G Owners Manual Replace the wiper blades at least annually
for optimum performance.
Front Wiper Blades
1. Lift the wiper arm and then press the
wiper blade locking buttons together.
Note: Do not hold the wiper blade

Page 292 of 541

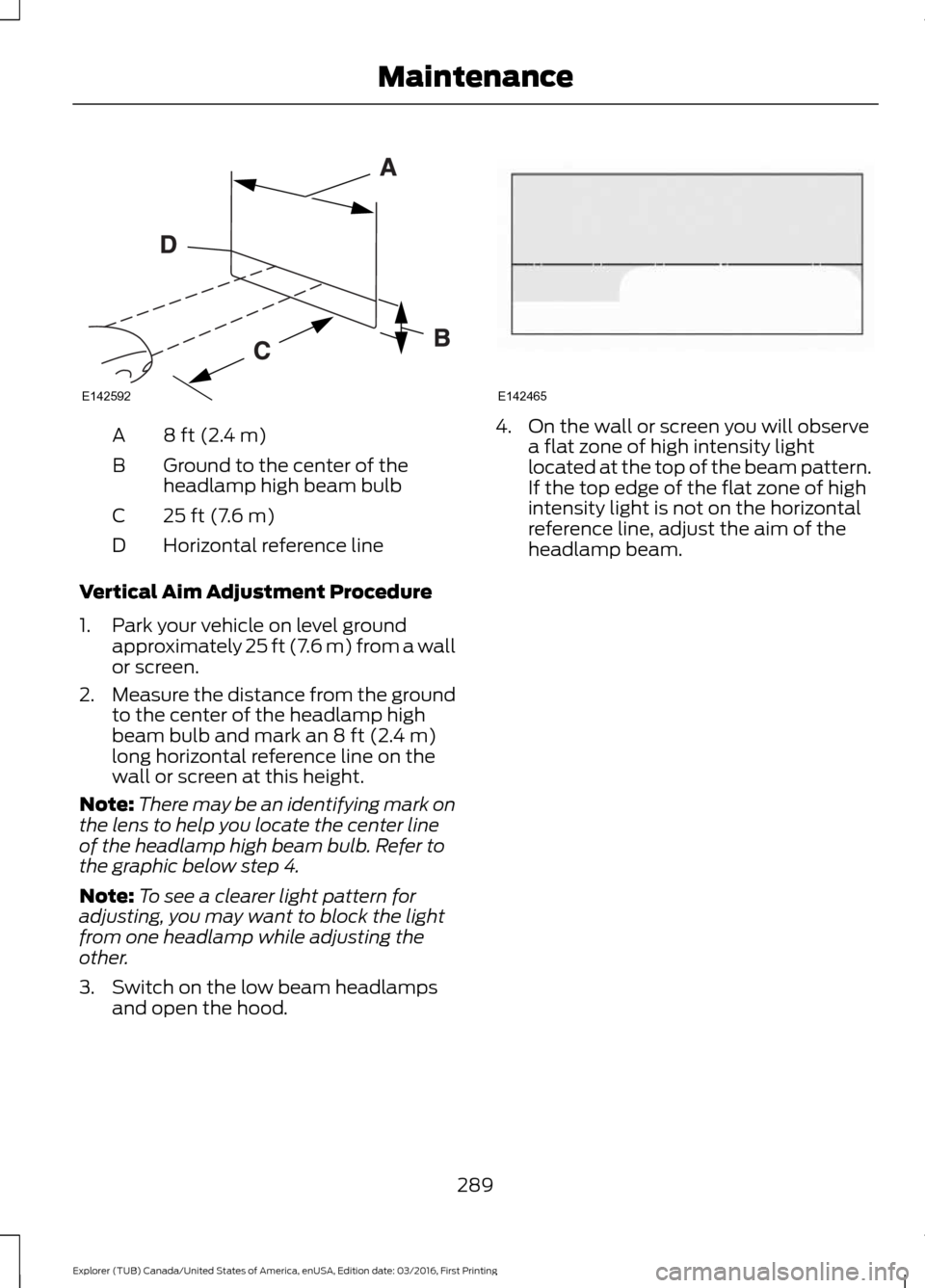

FORD EXPLORER 2017 5.G Owners Manual 8 ft (2.4 m)
A
Ground to the center of the
headlamp high beam bulb
B
25 ft (7.6 m)
C
Horizontal reference line
D
Vertical Aim Adjustment Procedure
1. Park your vehicle on level ground approximately 25

Page 293 of 541

FORD EXPLORER 2017 5.G Owners Manual 5. Use a suitable tool, for example a
screwdriver or socket wrench, to turn
the adjuster clockwise or
counterclockwise to adjust the vertical
aim of the headlamp. The horizontal
edge of the brighter l

Page 294 of 541

FORD EXPLORER 2017 5.G Owners Manual Headlamp
Headlamp high beam.
A
Front direction indicator.
B
Front Direction Indicator 1.
Switch all of the lamps and the ignition
off.
2. Disconnect the electrical connector. 3.
Turn the bulb holder c

Page 295 of 541

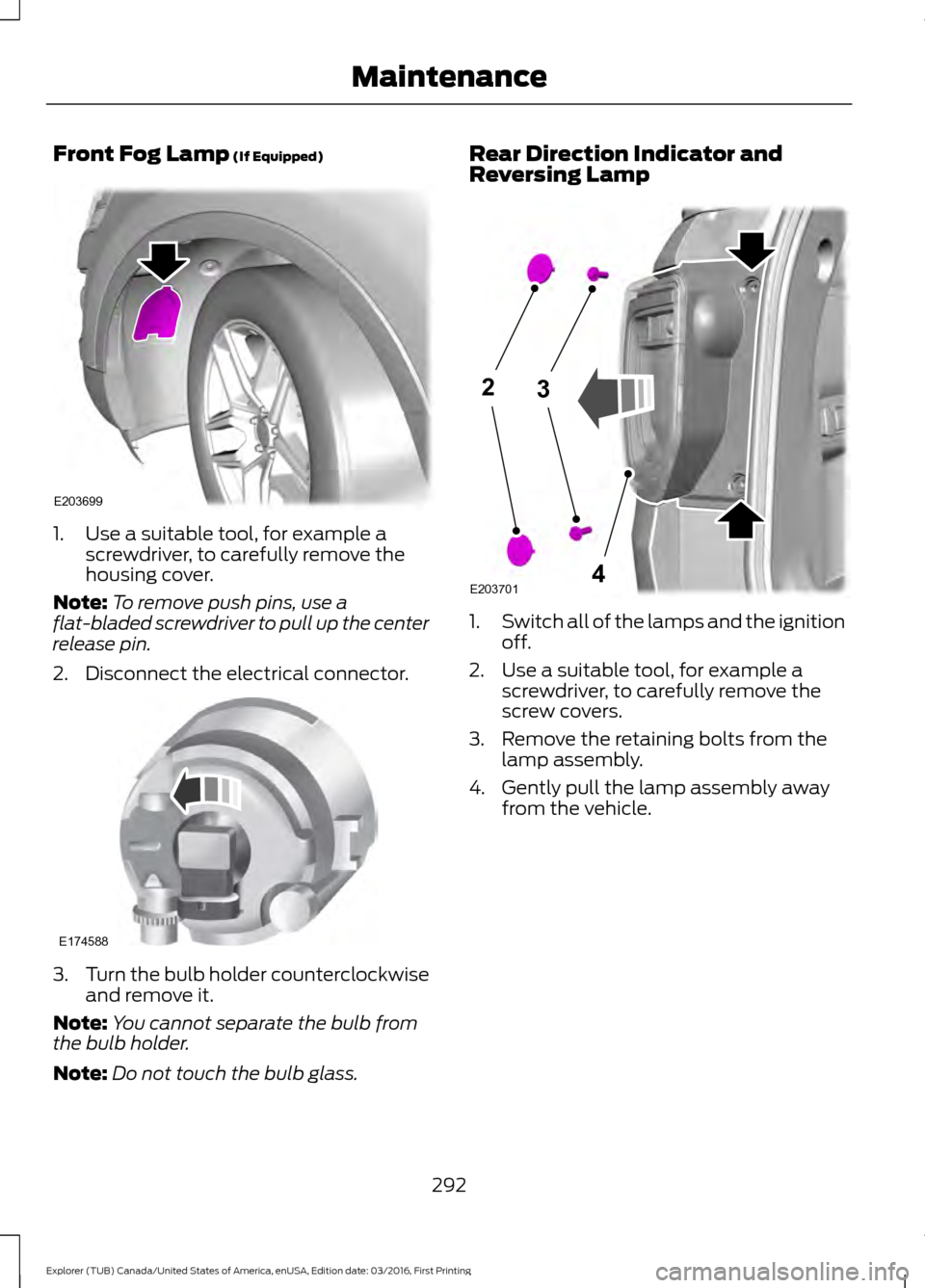

FORD EXPLORER 2017 5.G Owners Manual Front Fog Lamp (If Equipped)
1. Use a suitable tool, for example a
screwdriver, to carefully remove the
housing cover.
Note: To remove push pins, use a
flat-bladed screwdriver to pull up the center
re

Page 296 of 541

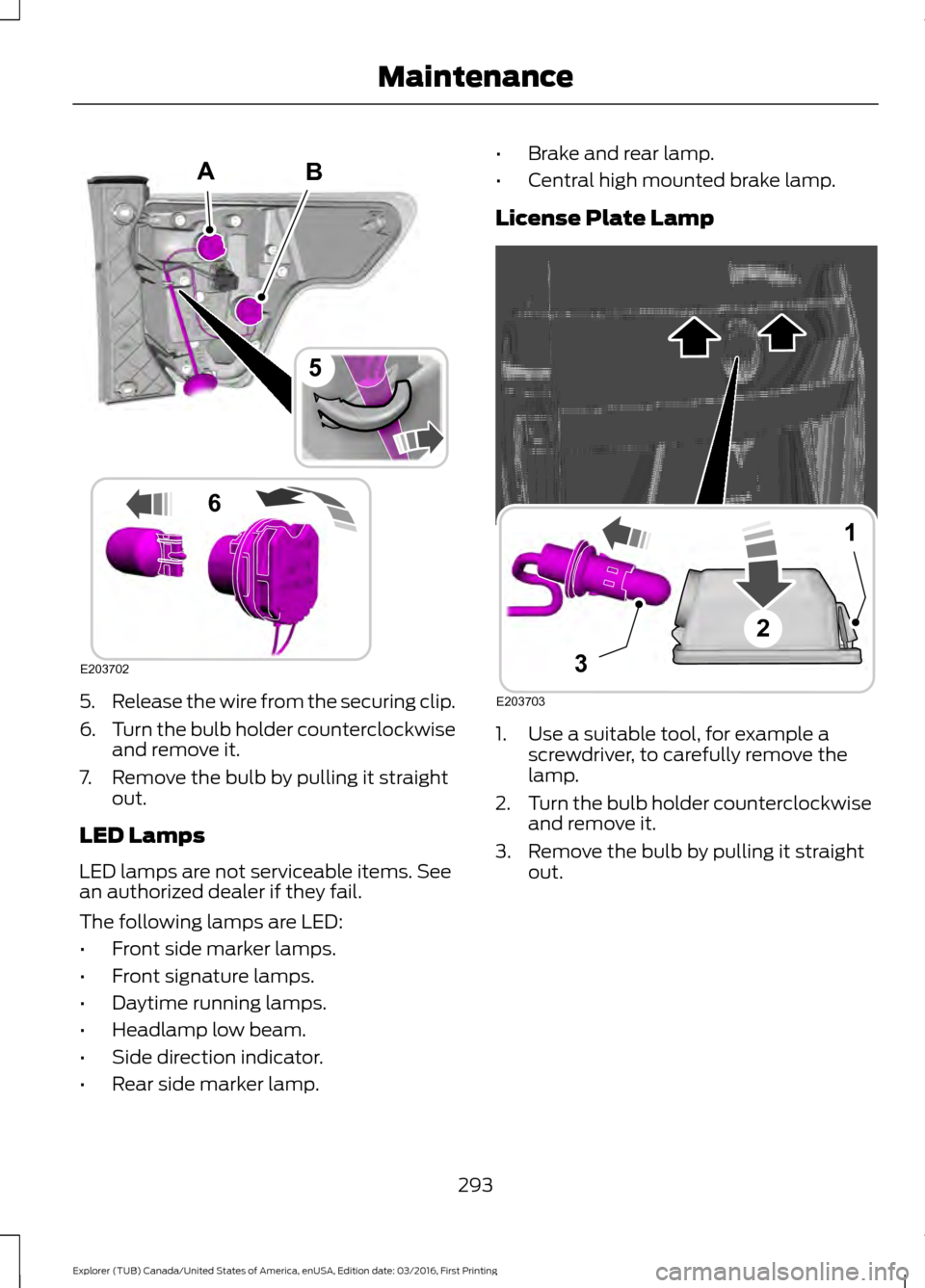

FORD EXPLORER 2017 5.G Owners Manual 5.
Release the wire from the securing clip.
6. Turn the bulb holder counterclockwise
and remove it.
7. Remove the bulb by pulling it straight out.
LED Lamps
LED lamps are not serviceable items. See
an
