2017 FORD EXPLORER Owners Manual

Page 329 of 541

FORD EXPLORER 2017 5.G Owners Manual How Temperature Affects Your Tire
Pressure
The tire pressure monitoring system
monitors tire pressure in each pneumatic
tire. While driving in a normal manner, a
typical passenger tire inflation press

Page 330 of 541

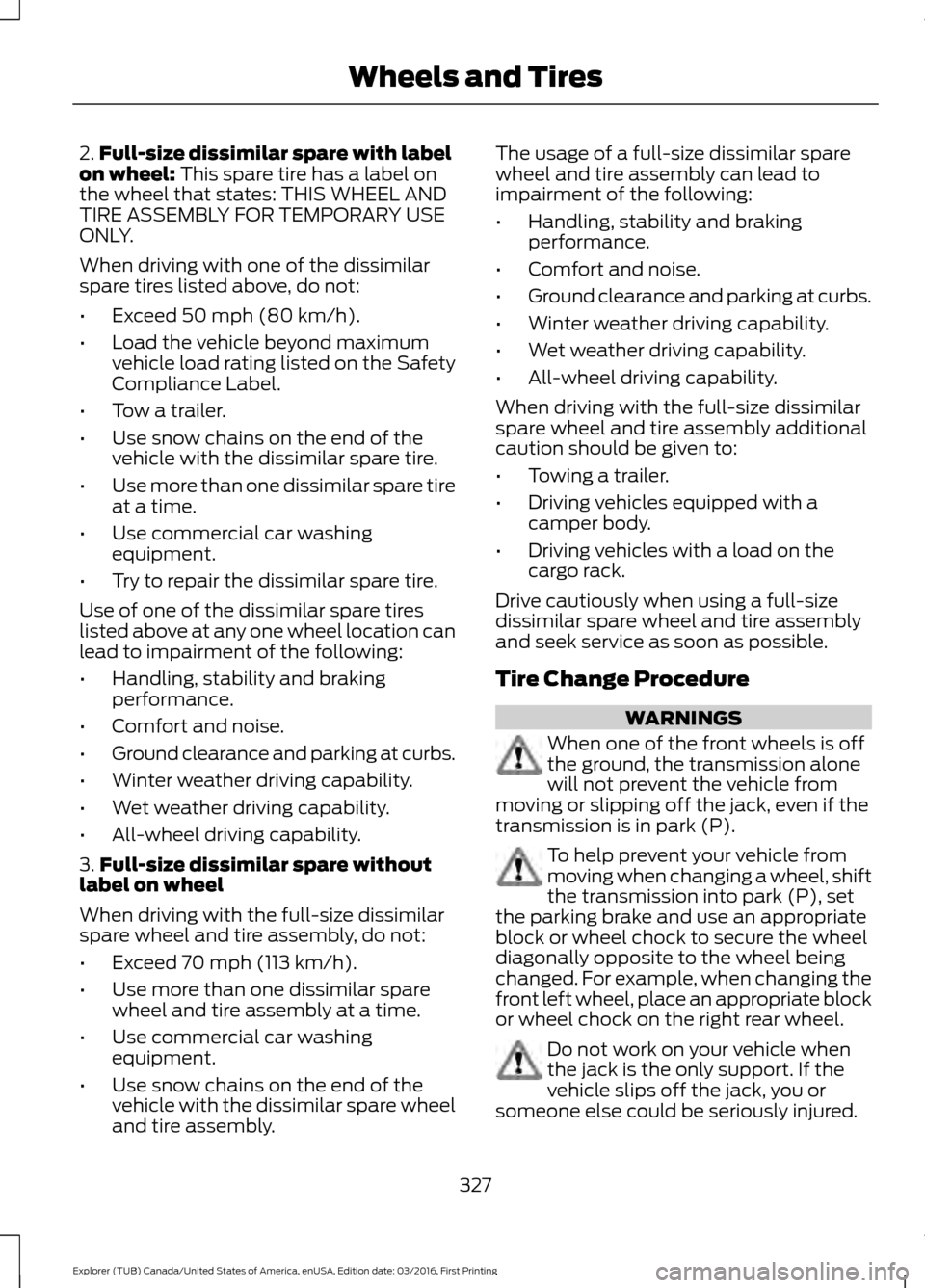

FORD EXPLORER 2017 5.G Owners Manual 2.
Full-size dissimilar spare with label
on wheel: This spare tire has a label on
the wheel that states: THIS WHEEL AND
TIRE ASSEMBLY FOR TEMPORARY USE
ONLY.
When driving with one of the dissimilar
sp

Page 331 of 541

FORD EXPLORER 2017 5.G Owners Manual WARNINGS
Do not attempt to change a tire on
the side of the vehicle close to
moving traffic. Pull far enough off the
road to avoid the danger of being hit when
operating the jack or changing the wheel

Page 332 of 541

FORD EXPLORER 2017 5.G Owners Manual 9. Turn the lead screw (where the lug
wrench attaches) of the jack by hand
to release the lug wrench from the jack.
Press the button on the wrench to
extend the handle. Fold down the
wrench socket.
10

Page 333 of 541

FORD EXPLORER 2017 5.G Owners Manual 2. Fasten the flat tire to the luggage
compartment back panel by inserting
the L-shaped bolt through one of the
lug bolt holes in the wheel.
3. Turn the L-shaped bolt clockwise into the threaded hole

Page 334 of 541

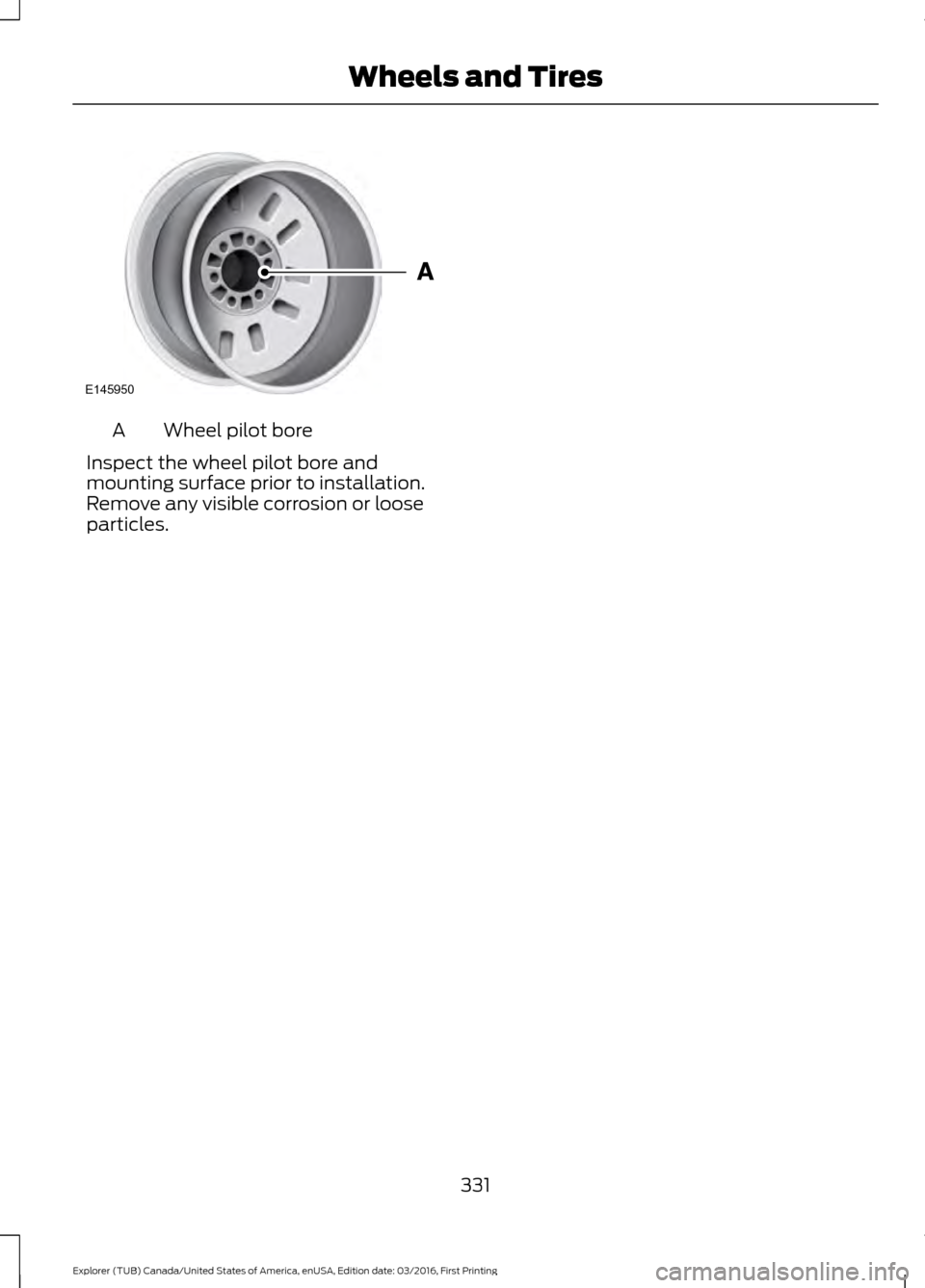

FORD EXPLORER 2017 5.G Owners Manual Wheel pilot bore
A
Inspect the wheel pilot bore and
mounting surface prior to installation.
Remove any visible corrosion or loose
particles.
331
Explorer (TUB) Canada/United States of America, enUSA,

Page 335 of 541

FORD EXPLORER 2017 5.G Owners Manual ENGINE SPECIFICATIONS - 2.3L ECOBOOST™
2.3L EcoBoost
Engine
138
Cubic inches
Minimum 87 octane
Required fuel
1-3-4-2
Firing order
Coil on plug
Ignition system
0.027 - 0.031 in (0.70 - 0.80 mm)
Spark

Page 336 of 541

FORD EXPLORER 2017 5.G Owners Manual ENGINE SPECIFICATIONS - 3.5L DURATEC
3.5L V6
Engine
214
Cubic inches
Minimum 87 octane
Required fuel
1-4-2-5-3-6
Firing order
Coil on plug
Ignition system
0.049 - 0.053 in (1.25 mm - 1.35 mm)
Spark pl
