2017 FORD EXPLORER Owners Manual

Page 345 of 541

FORD EXPLORER 2017 5.G Owners Manual An oil that displays this symbol conforms
to current engine, emission system and
fuel economy performance standards of
the International Lubricants Specification
Advisory Committee (ILSAC).
Do not use

Page 346 of 541

FORD EXPLORER 2017 5.G Owners Manual Capacity
Item
23.7 fl oz (700 ml)
Power Transfer Unit (PTU) fluid (four-
wheel drive)
Fill as required
Windshield washer fluid
18.6 gal (70.4 L)
Fuel tank
2.56 lb (1.16 kg)
A/C refrigerant (front whee

Page 347 of 541

FORD EXPLORER 2017 5.G Owners Manual Specification
Name
WSS-M97B44-D2
Engine coolant (Canada):
Motorcraft® Orange Antifreeze/Coolant Prediluted
CVC-3DIL-B
WSS-M97B44-D2
Engine coolant (Mexico):
Motorcraft® Antifreeze/Coolant Prediluted

Page 348 of 541

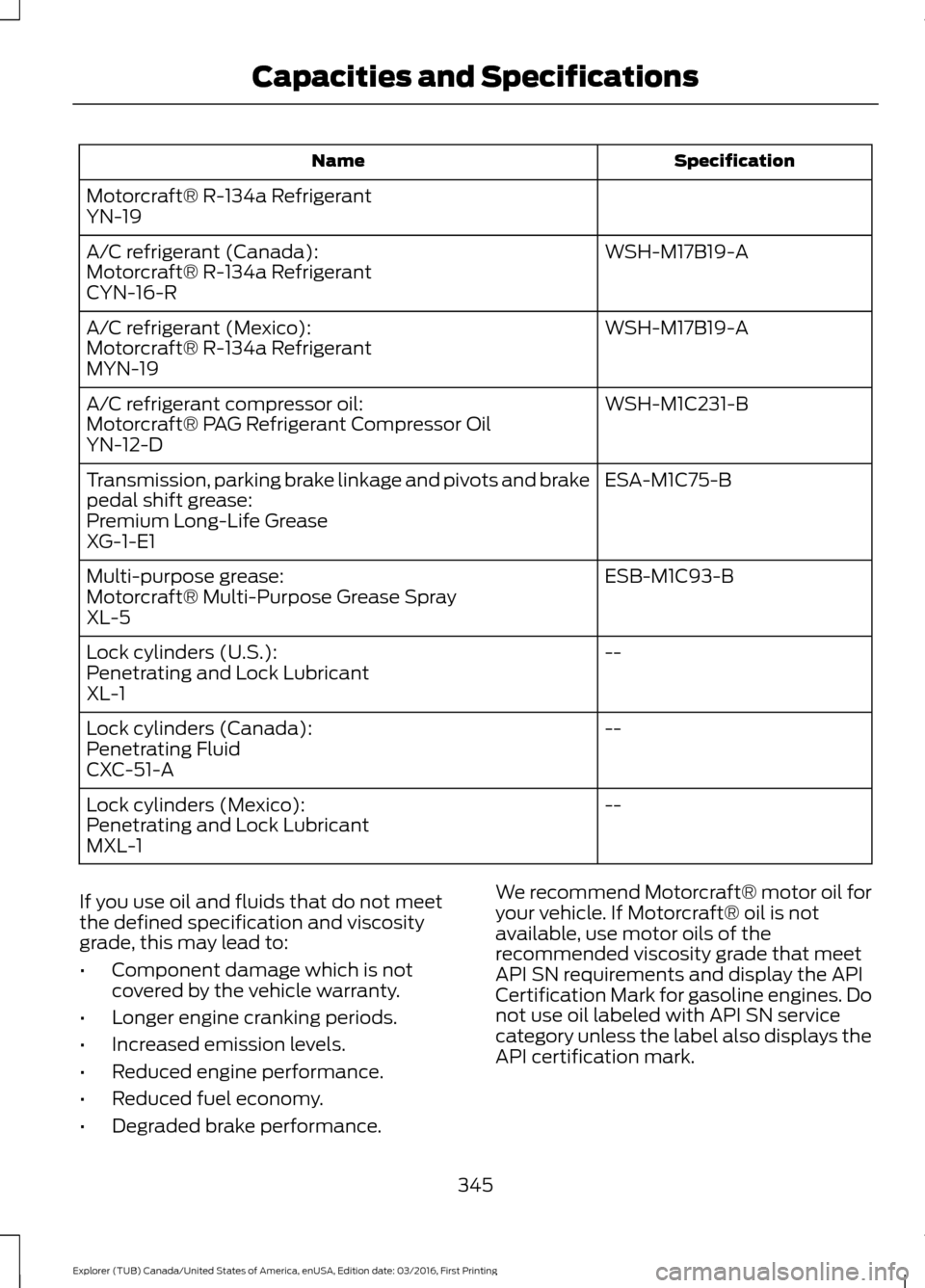

FORD EXPLORER 2017 5.G Owners Manual Specification
Name
Motorcraft® R-134a Refrigerant
YN-19 WSH-M17B19-A
A/C refrigerant (Canada):
Motorcraft® R-134a Refrigerant
CYN-16-R
WSH-M17B19-A
A/C refrigerant (Mexico):
Motorcraft® R-134a Refr

Page 349 of 541

FORD EXPLORER 2017 5.G Owners Manual An oil that displays this symbol conforms
to current engine, emission system and
fuel economy performance standards of
the International Lubricants Specification
Advisory Committee (ILSAC).
Do not use

Page 350 of 541

FORD EXPLORER 2017 5.G Owners Manual Capacity
Item
Fill as required
Windshield washer fluid
18.6 gal (70.4 L)
Fuel tank
2.8 lb (1.28 kg)
A/C refrigerant
7.3 fl oz (215 ml)
A/C refrigerant compressor oil
* Approximate dry fill capacity. A

Page 351 of 541

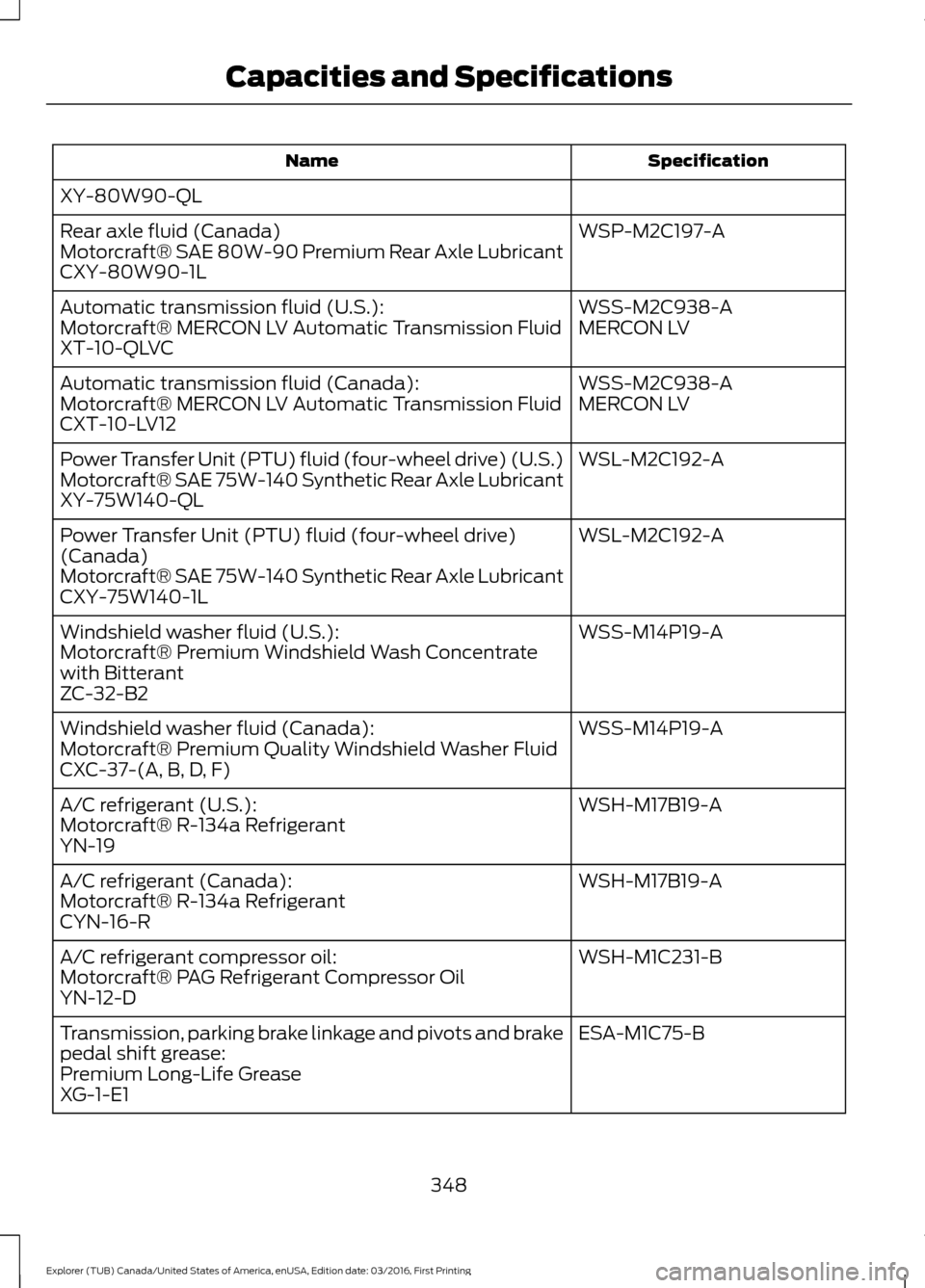

FORD EXPLORER 2017 5.G Owners Manual Specification
Name
XY-80W90-QL WSP-M2C197-A
Rear axle fluid (Canada)
Motorcraft® SAE 80W-90 Premium Rear Axle Lubricant
CXY-80W90-1L
WSS-M2C938-A
Automatic transmission fluid (U.S.):
MERCON LV
Motorc

Page 352 of 541

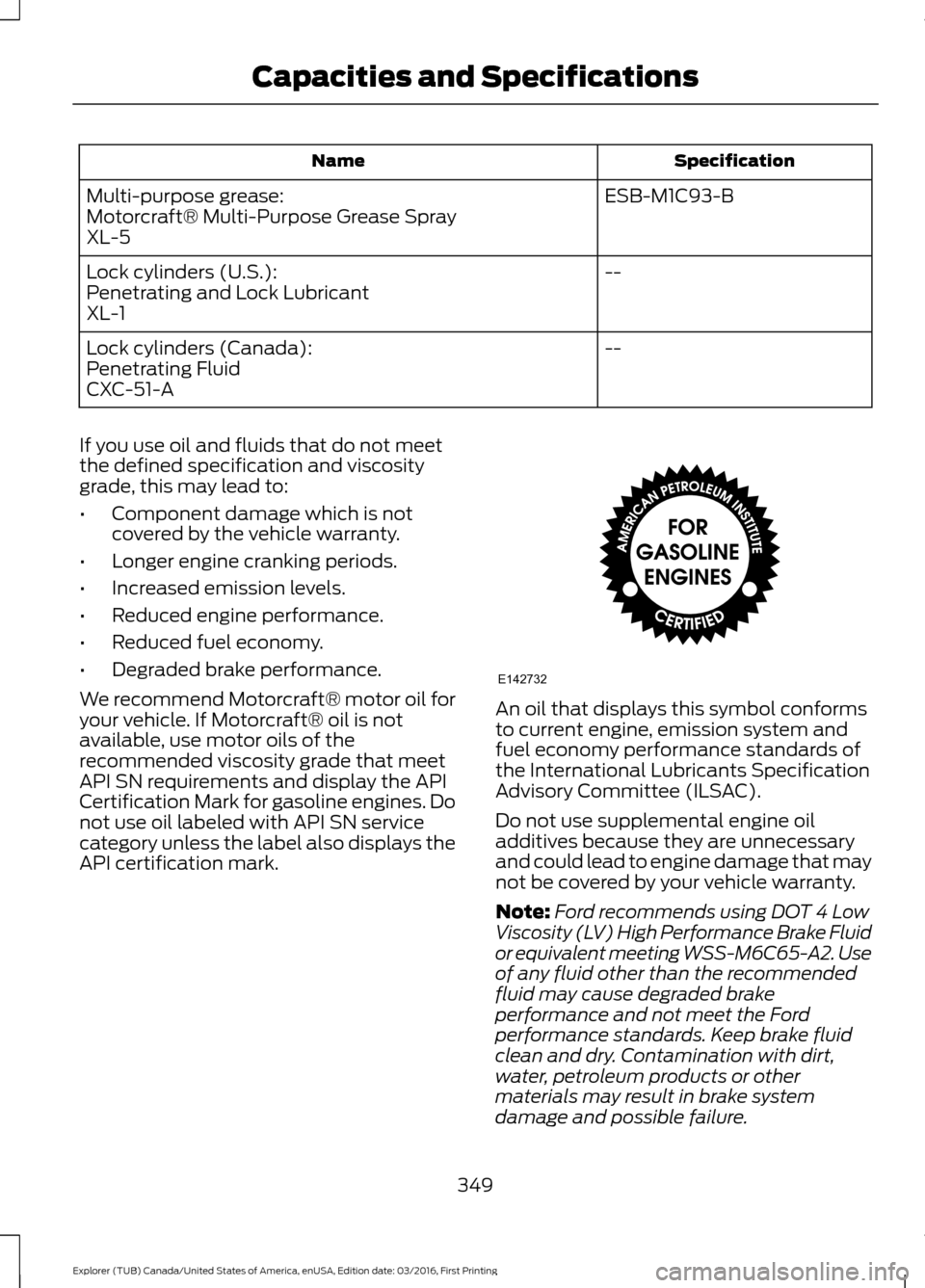

FORD EXPLORER 2017 5.G Owners Manual Specification
Name
ESB-M1C93-B
Multi-purpose grease:
Motorcraft® Multi-Purpose Grease Spray
XL-5
--
Lock cylinders (U.S.):
Penetrating and Lock Lubricant
XL-1
--
Lock cylinders (Canada):
Penetrating
