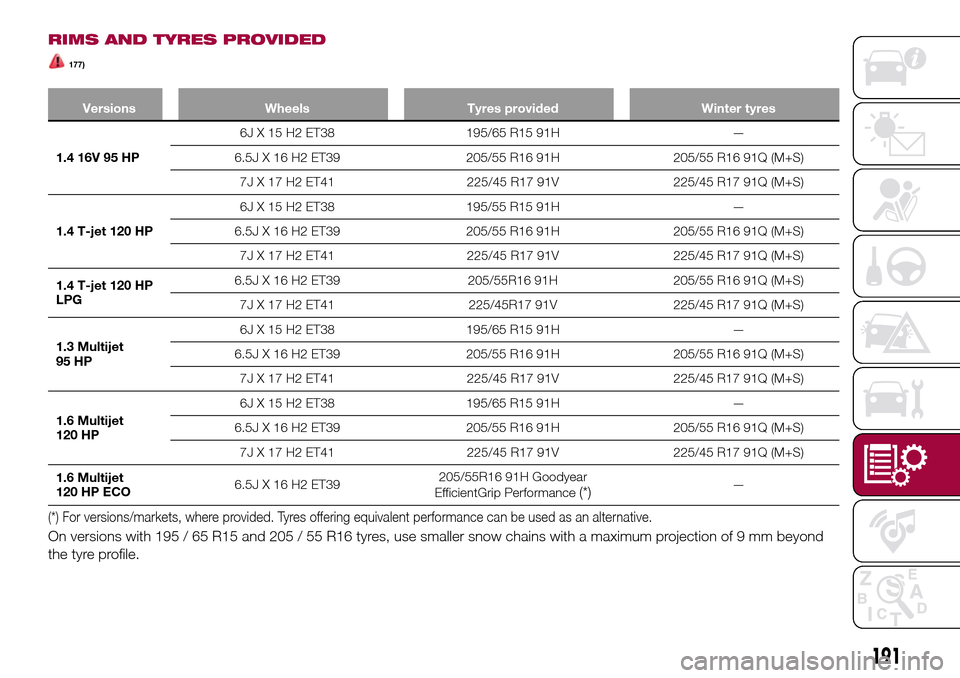

RIMS AND TYRES PROVIDED
177)
Versions Wheels Tyres provided Winter tyres
1.4 16V 95 HP6J X 15 H2 ET38 195/65 R15 91H —
6.5J X 16 H2 ET39 205/55 R16 91H 205/55 R16 91Q (M+S)
7J X 17 H2 ET41 225/45 R17 91V 225/45 R17 91Q (M+S)
1.4 T-jet 120 HP6J X 15 H2 ET38 195/55 R15 91H —
6.5J X 16 H2 ET39 205/55 R16 91H 205/55 R16 91Q (M+S)
7J X 17 H2 ET41 225/45 R17 91V 225/45 R17 91Q (M+S)
1.4 T-jet 120 HP
LPG6.5J X 16 H2 ET39 205/55R16 91H 205/55 R16 91Q (M+S)
7J X 17 H2 ET41 225/45R17 91V 225/45 R17 91Q (M+S)
1.3 Multijet
95 HP6J X 15 H2 ET38 195/65 R15 91H —
6.5J X 16 H2 ET39 205/55 R16 91H 205/55 R16 91Q (M+S)
7J X 17 H2 ET41 225/45 R17 91V 225/45 R17 91Q (M+S)
1.6 Multijet
120 HP6J X 15 H2 ET38 195/65 R15 91H —
6.5J X 16 H2 ET39 205/55 R16 91H 205/55 R16 91Q (M+S)
7J X 17 H2 ET41 225/45 R17 91V 225/45 R17 91Q (M+S)
1.6 Multijet
120 HP ECO6.5J X 16 H2 ET39205/55R16 91H Goodyear
EfficientGrip Performance
(*)—
(*) For versions/markets, where provided. Tyres offering equivalent performance can be used as an alternative.
On versions with 195 / 65 R15 and 205 / 55 R16 tyres, use smaller snow chains with a maximum projection of 9 mm beyond
the tyre profile.
191

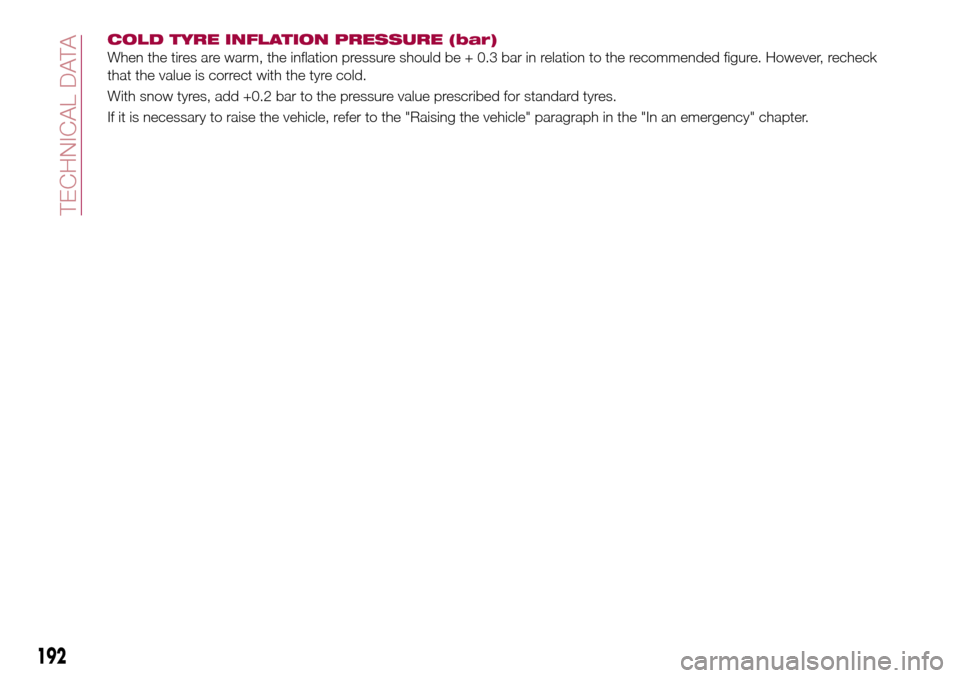

COLD TYRE INFLATION PRESSURE (bar)
When the tires are warm, the inflation pressure should be + 0.3 bar in relation to the recommended figure. However, recheck
that the value is correct with the tyre cold.
With snow tyres, add +0.2 bar to the pressure value prescribed for standard tyres.
If it is necessary to raise the vehicle, refer to the "Raising the vehicle" paragraph in the "In an emergency" chapter.
192

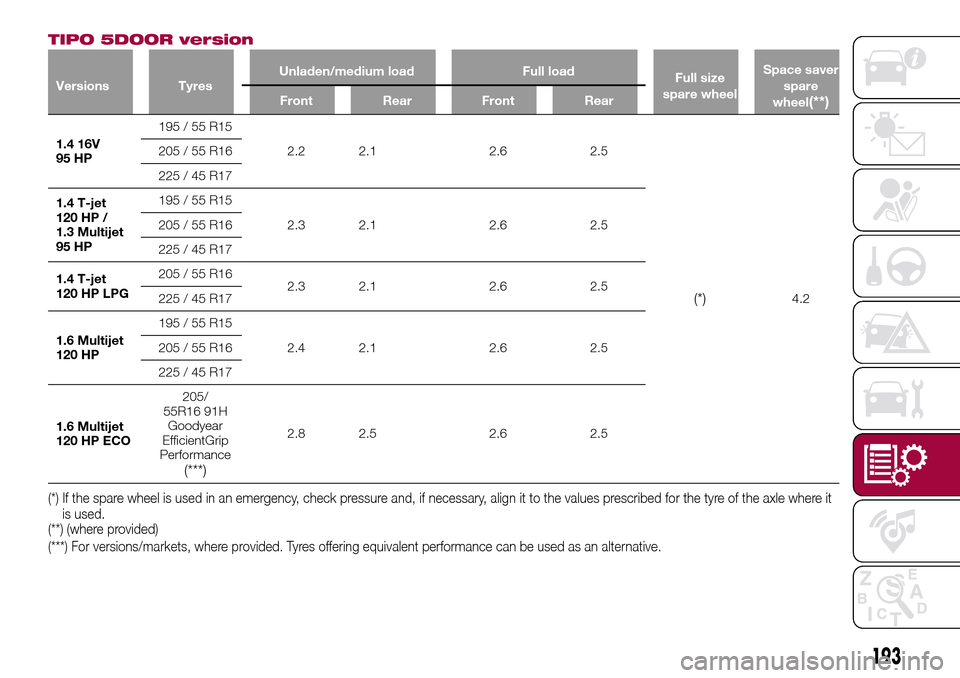

TECHNICAL DATA

TIPO 5DOOR version
Versions TyresUnladen/medium load Full load
Full size
spare wheelSpace saver
spare
wheel(**)Front Rear Front Rear
1.4 16V
95 HP195 / 55 R15
2.2 2.1 2.6 2.5
(*)4.2 205 / 55 R16
225 / 45 R17
1.4 T-jet
120 HP /
1.3 Multijet
95 HP195 / 55 R15
2.3 2.1 2.6 2.5 205 / 55 R16
225 / 45 R17
1.4 T-jet
120 HP LPG205 / 55 R16
2.3 2.1 2.6 2.5
225 / 45 R17
1.6 Multijet
120 HP195 / 55 R15
2.4 2.1 2.6 2.5 205 / 55 R16
225 / 45 R17
1.6 Multijet
120 HP ECO205/
55R16 91H
Goodyear
EfficientGrip
Performance
(***)
2.8 2.5 2.6 2.5
(**) (where provided) (*) If the spare wheel is used in an emergency, check pressure and, if necessary, align it to the values prescribed for the tyre of the axle where it
is used.
(***) For versions/markets, where provided. Tyres offering equivalent performance can be used as an alternative.
193

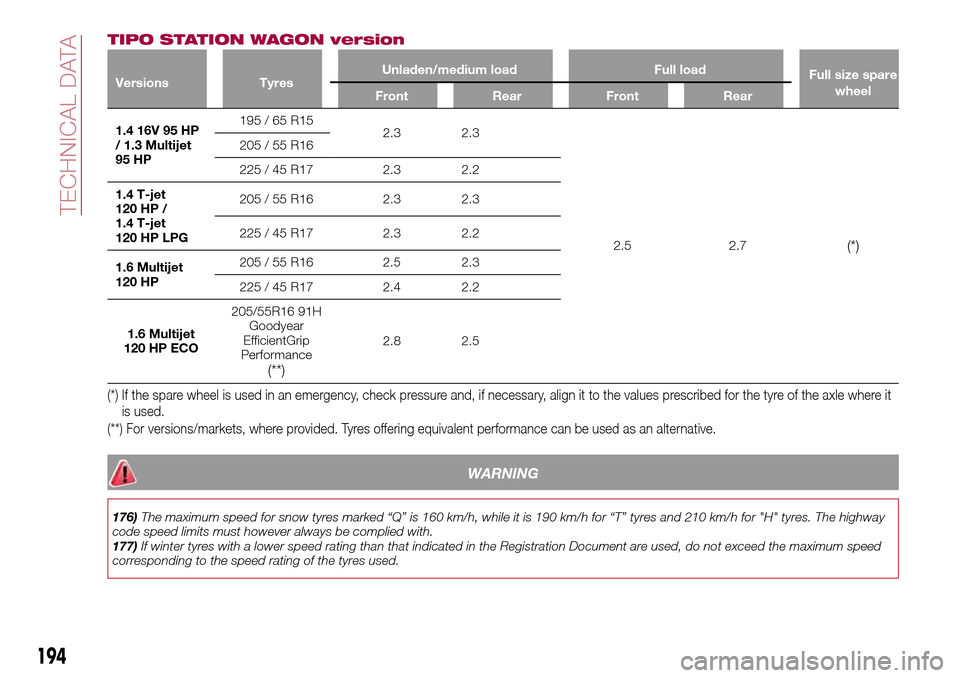

TIPO STATION WAGON version
Versions TyresUnladen/medium load Full load
Full size spare
wheel
Front Rear Front Rear
1.4 16V 95 HP
/ 1.3 Multijet
95 HP195 / 65 R15
2.3 2.3
2.5 2.7
(*)
205 / 55 R16
225 / 45 R17 2.3 2.2
1.4 T-jet
120 HP /
1.4 T-jet
120 HP LPG205 / 55 R16 2.3 2.3
225 / 45 R17 2.3 2.2
1.6 Multijet
120 HP205 / 55 R16 2.5 2.3
225 / 45 R17 2.4 2.2
1.6 Multijet
120 HP ECO205/55R16 91H
Goodyear
EfficientGrip
Performance
(**)
2.8 2.5
(*) If the spare wheel is used in an emergency, check pressure and, if necessary, align it to the values prescribed for the tyre of the axle where it
is used.
(**) For versions/markets, where provided. Tyres offering equivalent performance can be used as an alternative.
WARNING
176)The maximum speed for snow tyres marked “Q” is 160 km/h, while it is 190 km/h for “T” tyres and 210 km/h for "H" tyres. The highway
code speed limits must however always be complied with.
177)If winter tyres with a lower speed rating than that indicated in the Registration Document are used, do not exceed the maximum speed
corresponding to the speed rating of the tyres used.
194
TECHNICAL DATA

DIMENSIONS

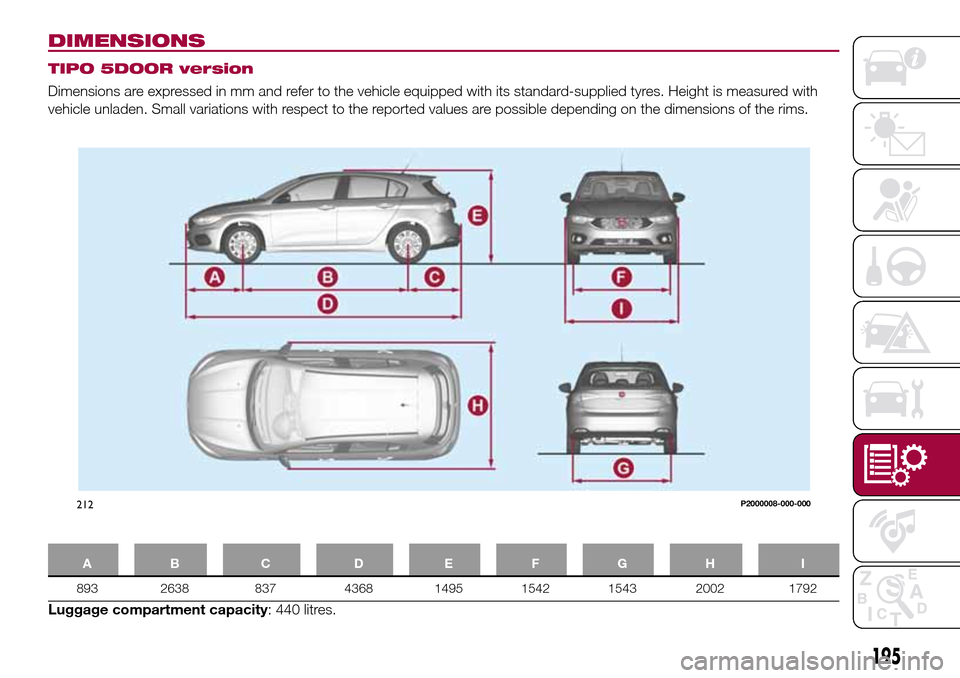

TIPO 5DOOR version
Dimensions are expressed in mm and refer to the vehicle equipped with its standard-supplied tyres. Height is measured with
vehicle unladen. Small variations with respect to the reported values are possible depending on the dimensions of the rims.
AB C D EFGH I
893 2638 837 4368 1495 1542 1543 2002 1792
Luggage compartment capacity: 440 litres.
212P2000008-000-000
195

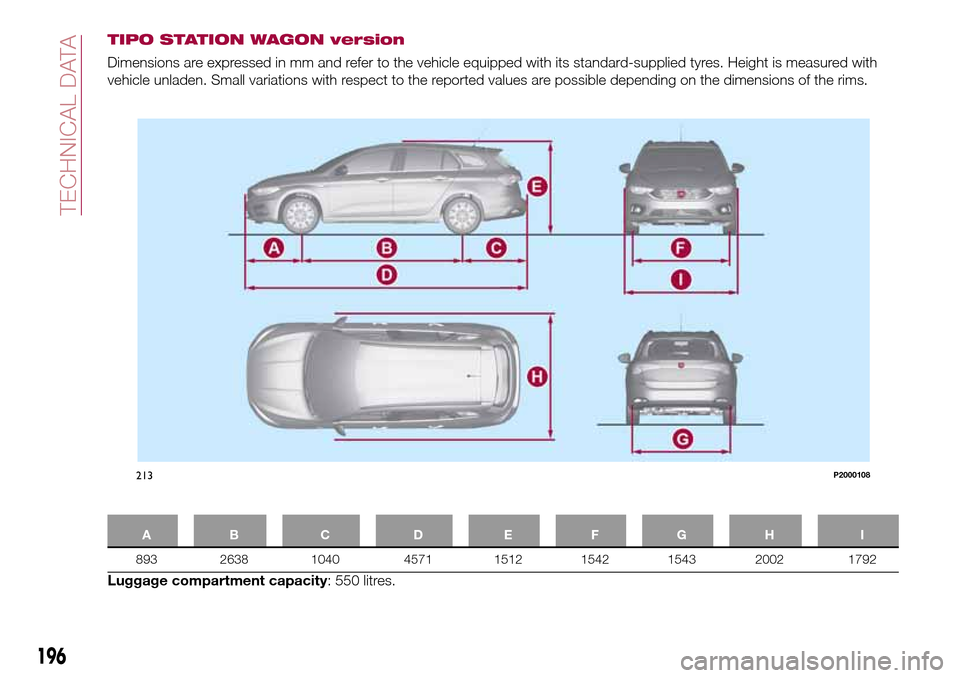

TIPO STATION WAGON version
Dimensions are expressed in mm and refer to the vehicle equipped with its standard-supplied tyres. Height is measured with
vehicle unladen. Small variations with respect to the reported values are possible depending on the dimensions of the rims.
AB C D EFGH I
893 2638 1040 4571 1512 1542 1543 2002 1792
Luggage compartment capacity: 550 litres.
213P2000108
196
TECHNICAL DATA

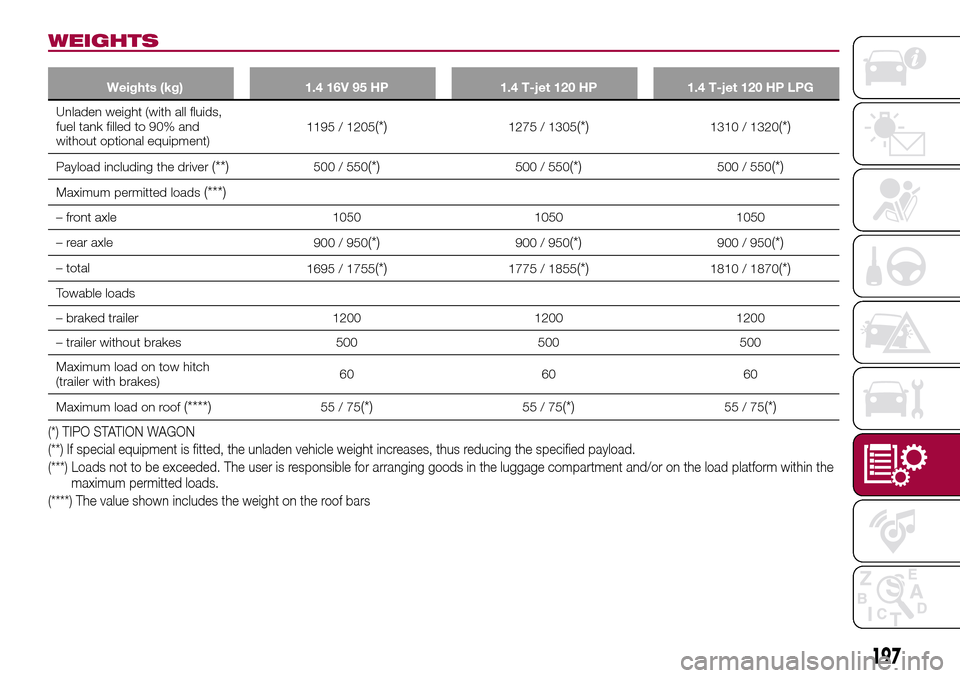

WEIGHTS
Weights (kg) 1.4 16V 95 HP 1.4 T-jet 120 HP 1.4 T-jet 120 HP LPG
Unladen weight (with all fluids,
fuel tank filled to 90% and
without optional equipment)1195 / 1205(*)1275 / 1305(*)1310 / 1320(*)
Payload including the driver(**)500 / 550(*)500 / 550(*)500 / 550(*)
Maximum permitted loads(***)
– front axle 1050 1050 1050
– rear axle
900 / 950
(*)900 / 950(*)900 / 950(*)
– total
1695 / 1755(*)1775 / 1855(*)1810 / 1870(*)
Towable loads
– braked trailer 1200 1200 1200
– trailer without brakes 500 500 500
Maximum load on tow hitch
(trailer with brakes)60 60 60
Maximum load on roof
(****)55/75(*)55/75(*)55/75(*)
(*) TIPO STATION WAGON
(**) If special equipment is fitted, the unladen vehicle weight increases, thus reducing the specified payload.
(***) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or on the load platform within the
maximum permitted loads.
(****) The value shown includes the weight on the roof bars
197

Weights (kg) 1.3 MultiJet 95 HP 1.6 Multijet 120 HP
Unladen weight (with all fluids, fuel tank filled
to 90% and without optional equipment)1290 / 1300(*)1295 / 1320(*)
Payload including the driver(**)500 / 550(*)500 / 550(*)
Maximum permitted loads(***)
– front axle 1050 1050
– rear axle
900 / 950
(*)900 / 950(*)
– total
1790 / 1850(*)1795 / 1870(*)
Towable loads
– braked trailer 1200 1200
– trailer without brakes 500 500
Maximum load on tow hitch (trailer with
brakes)60 60
Maximum load on roof
(****)55/75(*)55/75(*)
(*) TIPO STATION WAGON
(**) If special equipment is fitted, the unladen vehicle weight increases, thus reducing the specified payload.
(***) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or on the load platform within the
maximum permitted loads.
(****) The value shown includes the weight on the roof bars
198
