-Regular waxing can prevent rust spots from
forming.

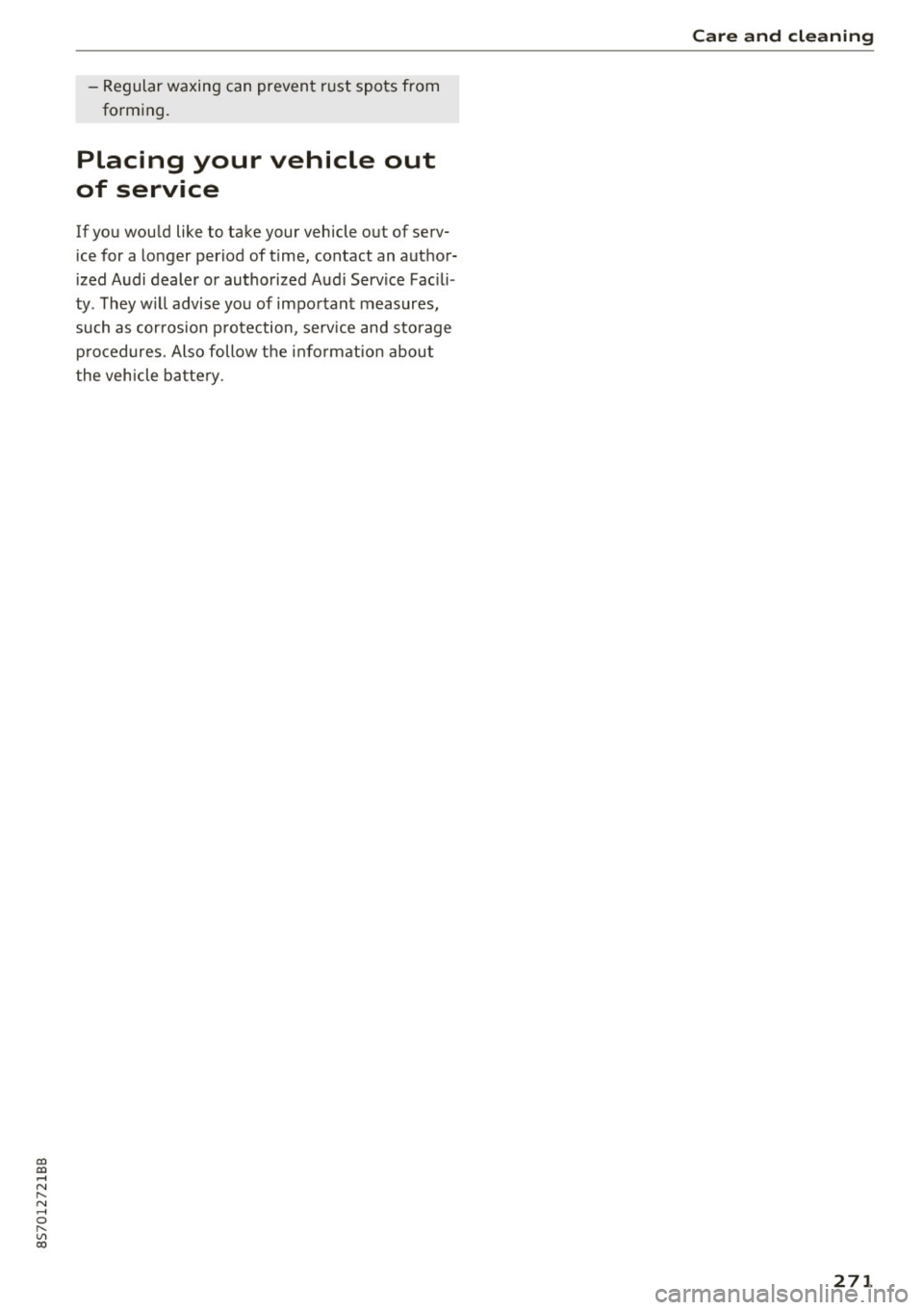

Placing your vehicle out
of service
If you would like to take your vehicle out of serv­
ice for a longer period of time, contact an author­
ized Audi dealer or authorized Aud i Service Fac ili ­
ty . They w ill advise you of important measures,
such as cor ros ion p rotection, se rvice and storage
p rocedures. Also follow the info rmat ion about
the vehicle battery .
Care and cleaning
271

Emerg ency assis ta nce
Emergency assistance
Trunk escape latch
In cas e of an emergency , the r ear lid can be
opened from the inside using the trunk escape
latch.
Fig. 192 Luggage compartment: Trunk escape latc h
• Pu sh the latch in the direction of the arrow un­
til the lock releases .
The trunk escape latch inside the rear lid is made
of fluorescent material to g low in the dark.
_& WARNING
The trunk escape latch is to be used only in an
emergency.
General information
• Park the vehicle as far as poss ible from moving
traff ic in the event of a breakdown . In the event
of a flat tire , park the vehicle on a level surface .
It you are on a steep hi ll, be especially careful.
• Set the parking brake.
• Place the selector lever in the P position.
• Switch the emergency flashers on.
• Have the passengers exit the vehicle. They
should move to a safe place, for example be ­
hind a guard rail.
_& WARNING
Follow the steps given above . This is for your
protection and the for the safety of other driv­
ers .
272
Equipment
Vehicle tool kit/tire mobility kit/
compressor
I
n
AUD I }
Fig. 193 Lu ggage compa rtmen t: cargo floor closed
The vehicle tool kit, t ire mobility kit and com­
pressor are stored in the luggage compartment
u nder the cargo floo r cover .
• Push on the plastic handle and lift up the cargo
floor .
• Open the cargo floor.
Completely retract the vehicle jack a rm before
stor ing the veh icle jack* .
_& WARNING
Improper use of the veh icle jack can cause se­
rious pe rsonal injuries.
- Never use the screw driver hex head to
tighten wheel bolts, since the bo lts cannot
attain the necessa ry tightening torque if yo u
use the hex head, potentially causing an ac ­
cide nt.
- The factory-supplied jack is intended only
for your vehicle mode l. Under no circum­
stances should it be used to lift heavy
vehicles or other loads; you risk injuring
yourse lf.
- Never start the engine when the vehicle is
raised , which cou ld cause an accident .
- Support the vehicle securely with appropri ­
ate stands if work is to be performed under­ neath the vehicle; otherwise, there is a po­
tential risk for injury.
- Never use the jack supplied with your Aud i
on another vehicle, particularly on a heavier
one. The jack is only su itab le for use on the
vehicle it came with .

CD
CD
.... N
" N ...... 0 r--. V, co
@ Tips
The vehicle jack* in your vehicle is mainte­na nee-free.
Tire mobility kit
Preparation
A ppl ies to: vehicles with tire mobility kit
~ Read and follow the impor tant safety precau-
tions r=;;,
page 2 72, General information.
~ Set the parking b rake.
~ Select the P selector lever position.
~ Check if a repair w ith the tire mobility kit is pos­
sible r=;;,
page 273.
Using the tire mobility kit
Applies to: ve hicles w ith tire mobility kit
Fig . 194 Tire : tire damage that cannot be repa ired
The tire repair is only meant for temporary use.
Change the spare tire as soon as possible r=;;, & .
If the tire is pierced by a n objec t such as a na il,
do not remove the object from the tire .
The tire repa ir set is able to be used at tempe ra­
tures as low as -4 °F ( -20 °C).
The tire mobility kit may not be u sed:
- If the t ire has cuts or punctures that are larger
than 0 .16 i n (4 mm)
(J) r=;;, fig. 194.
-If the rim is damaged @.
- if you drove with very low tire pressure or with-
out air in the tire @.
See an authorized Audi dealer or authorized Aud i
Service Faci lity for assistance in these situations.
Em ergen cy a ssis tanc e
A WARNING
--Please note that t he tire mobility kit cannot
be used in all situations, and that it may on­
ly be used temporarily.
- The tire sealant must not come in contact
with skin, eyes , or clothes.
- If tire sealant gets in your eyes or on your
skin, t horoughly rinse the affected area im­
mediately with clean water .
- Do not inha le the fumes .
- If you swa llow any of t he tire sea lant, thor-
ough ly rinse your mouth immediately and
drink a lot of water. Do not induce vomiting.
Seek med ica l attent ion immed iate ly.
- Change your clothes immediately if they get
tire sealant on them.
- If an a llergic reaction occurs, seek immedi­
ate med ical attention.
- Keep the t ire sealant away from children.
(D Tips
- If sea lant leaks, allow it to d ry in place . You
can then peel it off like a st icker .
- Note the expi ra tion date on the sea lant bo t­
tle . Rep lace the tire sealant at an a utho r­
ized Audi dea ler or a uthorized Audi Service
Facility.
- Radio reception can be interr upted when
operating the compressor*.
- Obey all laws .
273

Emerg ency assis ta nce

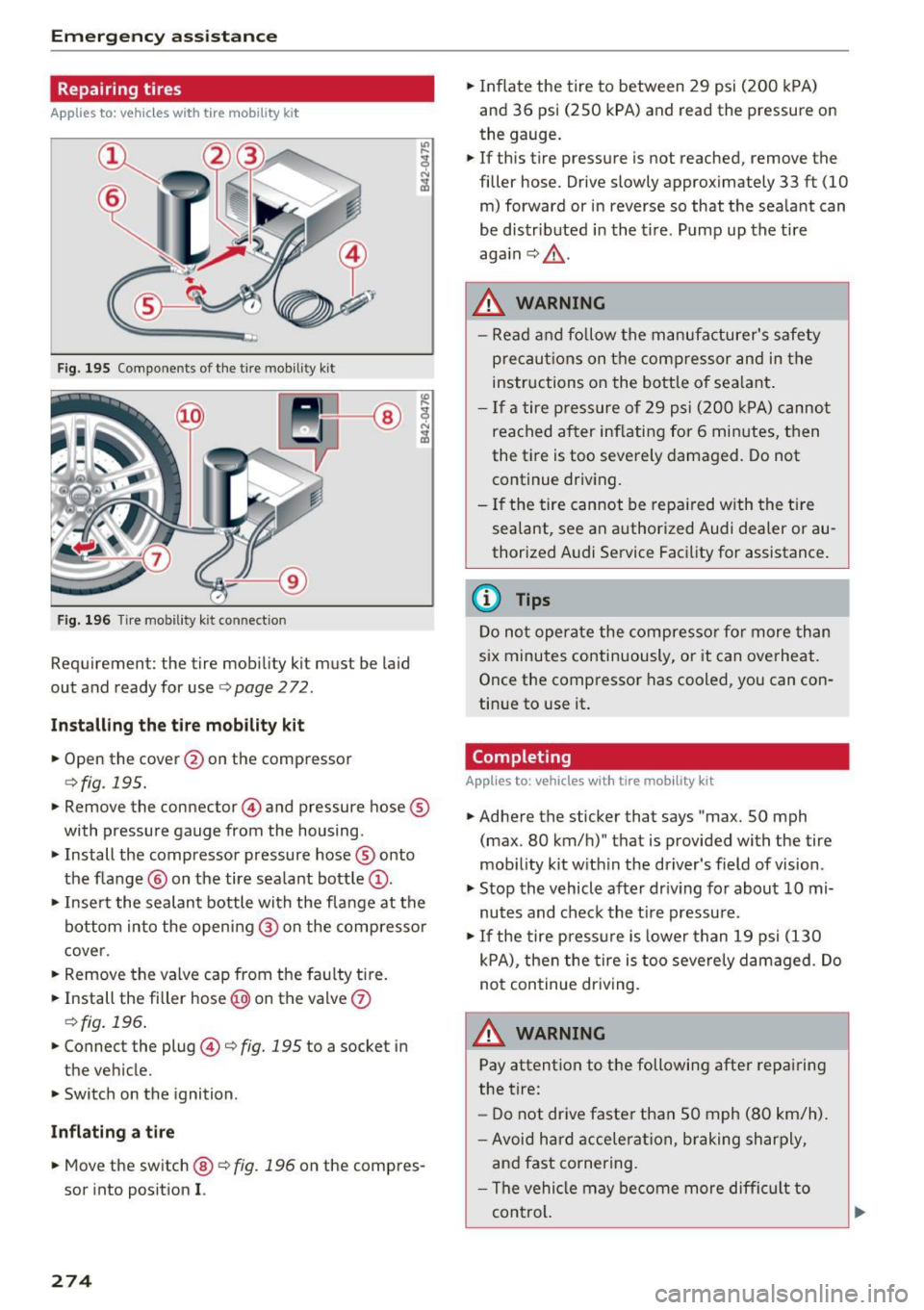

Repairing tires
Applies to: ve hicles w ith tire mob ility k it
Fig. 195 Compo nents of the ti re mobili ty k it
F ig . 196 T ire mo bility k it c onn ection
Requirement : the tire mobili ty kit mus t be laid
out and ready for use
o page 2 7 2.
In stall ing the t ir e mobility kit
.. Op en the cover @on the compressor
¢fig . 195 .
.. Remove the connector@) and pressu re hose ®
with pressure gauge from the housing.
• Install the compressor pressure hose ® onto
the f lange @ on the tire sea lant bottle
(D .
.. Inse rt the sealant bottle with the flange at the
bottom into the opening @ on the compresso r
cover .
.. Remove the valve cap from the fau lty tire.
.. Install the filler hose@) on the valve
(J)
ofig. 196 .
.. Connect the plug @¢ fig. 195 to a socket in
the vehicle.
.. Switch on the ignition .
Inflating a tire
.. Move the switch @ o fig. 196 on the compres­
sor into posit ion
I.
274
.. Inflate the tire to between 29 psi (200 kPA)
and 36 ps i (250 kPA) and read the pressur e on
the gauge .
.. If this tire p ressure is not reached , remove the
filler hose . Drive slowly approximately 33 ft (10
m) forward or in reverse so that the sea lant can
be distributed in the t ire. Pump up the tire
aga in ¢ ,&. .
.&_ WARNING
-Read a nd follow the manufacturer's safety
precaut ions on the compressor and in the
instructions on the bottle of sea lant .
- I f a tire p ressure of 29 psi (200 kPA) canno t
reached after inflating for 6 minutes, then
the tire is too severely damaged. Do not
continue driv ing.
- If the tire cannot be repa ired with the tire
sealant, see an authorized Audi dealer or au­
thorized Audi Service Facility for assistance.
(D Tips
Do not operate the compresso r fo r more than
six minutes continuously , or it can overheat.
Once the compressor has cooled, you can con­
tin ue to use it.
Completing
App lies to : vehicles wit h tire mob ility kit
.. Adhere the sticker that says "max. SO mph
(max . 80 km/h)" that is provided with the tire
mob ility kit with in the driver 's field of vision.
.. Stop the vehicle after driv ing for about 10 mi­
nutes and check the t ire pressure .
.. If the tire press ure is lower than 19 psi (130
kPA) , then the tire is too severely damaged . Do
not continue driving .
.&_ WARNING
Pay attention to the following after repairing
the tire:
- Do not drive faster than SO mph (80 km/h).
- Avoid hard acce leration, braking sh arply,
and fast cornering .
- The vehicle may become more diffi cult to
con trol.

CD
CD
.... N
" N .... 0 r--. V, co
-If the t ire is t oo severely damaged, see an
aut horized Aud i dealer or authorized Aud i
Service Facility for assistance .
@ For the sake of the environment
You can give the used tire sealant bottle to an
authorized Audi dealer or authorized A udi
Serv ice Facility for disposal.
@ Tips
Remember to obtain a new bottle of sea lant
from an authorized Audi dea ler or authorized
Aud i Service Facility after repair ing a tire.
Replacing wheels
Preparation
You must complete the preparation before
changing a tire .
.,. Read and follow the important safety precau-
t ions
¢ page 272, General information .
.,. Set the parking b rake .
• Se lect the P selector lever pos ition .
.,. Lay out the vehicle tool kit¢
page 2 72 and the
spare tire¢
page 279 .
A WARNING
If you are cha nging a tire on a steep hill, use a
block or similar object to block the oppos ite
wheel to prevent the vehicle from moving.
A WARNING
You or your passenger co uld be injured while
chang ing a wheel if you do not follow these
safety precautions:
- If you have a flat tire, move a safe distance off the road. Turn off the engine, turn the
emergency flashers on and use other warn­
ing devices to alert othe r mo to rists.
- Make sure that passengers wa it in a safe
place away from the vehicle and we ll away
from the road and traffic.
- To help prevent the vehicle from movi ng
sudden ly and possibly slipping off the jack,
always fully set t he parking brake and block
t h e whee l di agona lly o ppos ite the wheel be-
Em ergen cy a ssis tanc e
ing changed. When one front whee l is lifted
off the ground, placing the Automatic
Transmiss ion in P (Park) will
not prevent the
veh icle from moving.
- Before you change a wheel, be sure the
ground is leve l and firm.
If necessary, use a
sturdy board under the jack.
- Always store the vehicle tool kit, the jack
and the replaced tire in the luggage com­
pa rtment
¢ page 185.
@ Tips
Obey all laws.
Removing the cover
Fig . 1 97 W hee l: whee l hub cover
F ig . 1 98 W hee l: whee l bolts w ith caps
Whe el hub covers*
.,. Insert the hook (from the vehicle tool kit) into
the ho le on the whee l hub cover ¢
fig. 197.
.,. Remove the wheel h ub cover .
Wheel bolts with caps*
.,. Slide the p lastic clip (from t he veh icle too l ki t)
on to the cap unt il it engages
¢ fig . 198.
• Remove the cap with the p lastic clip .
275

Emergency assistance

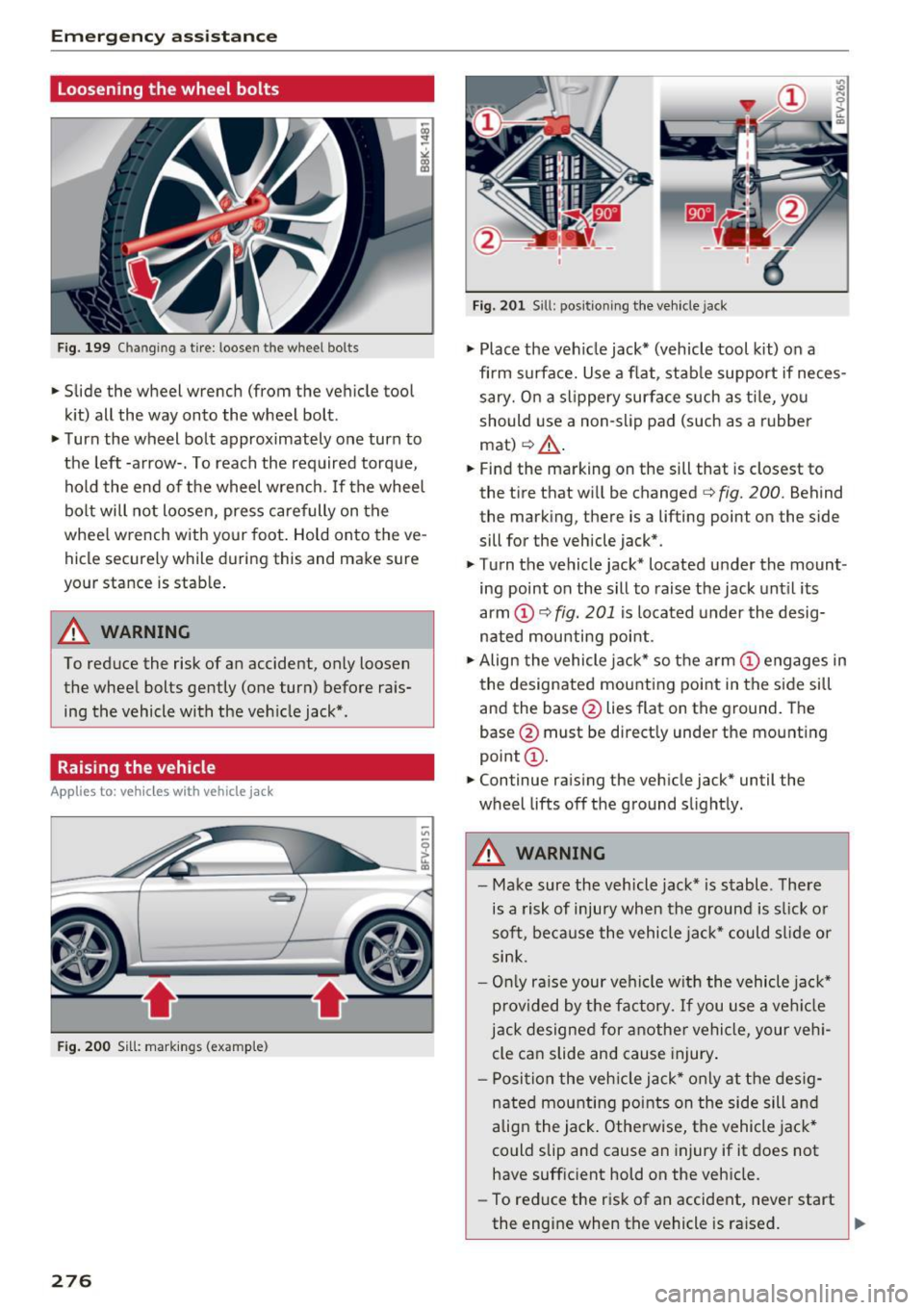

Loosening the wheel bolts
Fig. 199 Changing a tire: loosen the wheel bolts
• Slide the wheel wrench (from the vehicle tool
kit) all the way onto the wheel bolt.
• Turn the wheel bolt approximately one turn to
the left -arrow-. To reach the required torque,
hold the end of the wheel wrench. If the wheel
bolt will not loosen, press carefully on the
whee l wrench with your foot. Hold onto the ve­
hicle securely while during this and make sure
your stance is stable .
A WARNING
To reduce the risk of an accident, only loosen
the wheel bolts gently (one turn) before rais­
ing the vehicle with the veh icle jack*.
Raising the vehicle
Appl ies to: ve hicles w ith vehicle jack
- ,tr.-----,:
Fig. 200 Sill: markings (examp le)
276
Fig. 201 Sill: positio ning the vehicle jack
• Place the veh icle jack* (vehicle tool kit) on a
firm s urface. Use a flat, stable support if neces­
sary. On a slippery surface such as tile, you
should use a non-slip pad (such as a rubber
mat)
c:> & .
• Find the marking on the sill that is closest to
the tire that will be changed
c:> fig. 200. Behind
the marking, there is a lifting point on the side
sill for the vehicle jack*.
• Tu rn the vehicle jack* located u nder the mount­
ing point on the sill to raise the jack until its
arm
(D c:> fig. 201 i s located under the desig­
nated mou nting point .
• Align the vehicle jack* so the arm @engages in
the designated mounting point in the side sill
and the base @lies flat on the ground. The
base @must be direct ly under the mounting
point @.
• Continue raising the vehicle jack* until the
wheel lifts off the ground slightly.
A WARNING
- Make sure the vehicle jack* is stable. There
is a risk of injury when the ground is slick or
soft, because the vehicle jack* could slide or
sink.
- Only raise your vehicle w ith the vehicle jack*
provided by the factory. If you use a vehicle
jack designed for another vehicle, your vehi­
cle can slide and cause injury .
- Pos ition the vehicle jack* only at the desig­
nated mounting points on the side sill and
align the jack . Otherwise, the vehicle jack*
co uld slip and cause an injury if it does not
have sufficient hold on the vehicle.
- To reduce the risk of an accident, never start
the engine when the vehicle is raised.

CD
CD
.... N
" N .... 0 r--. V, co

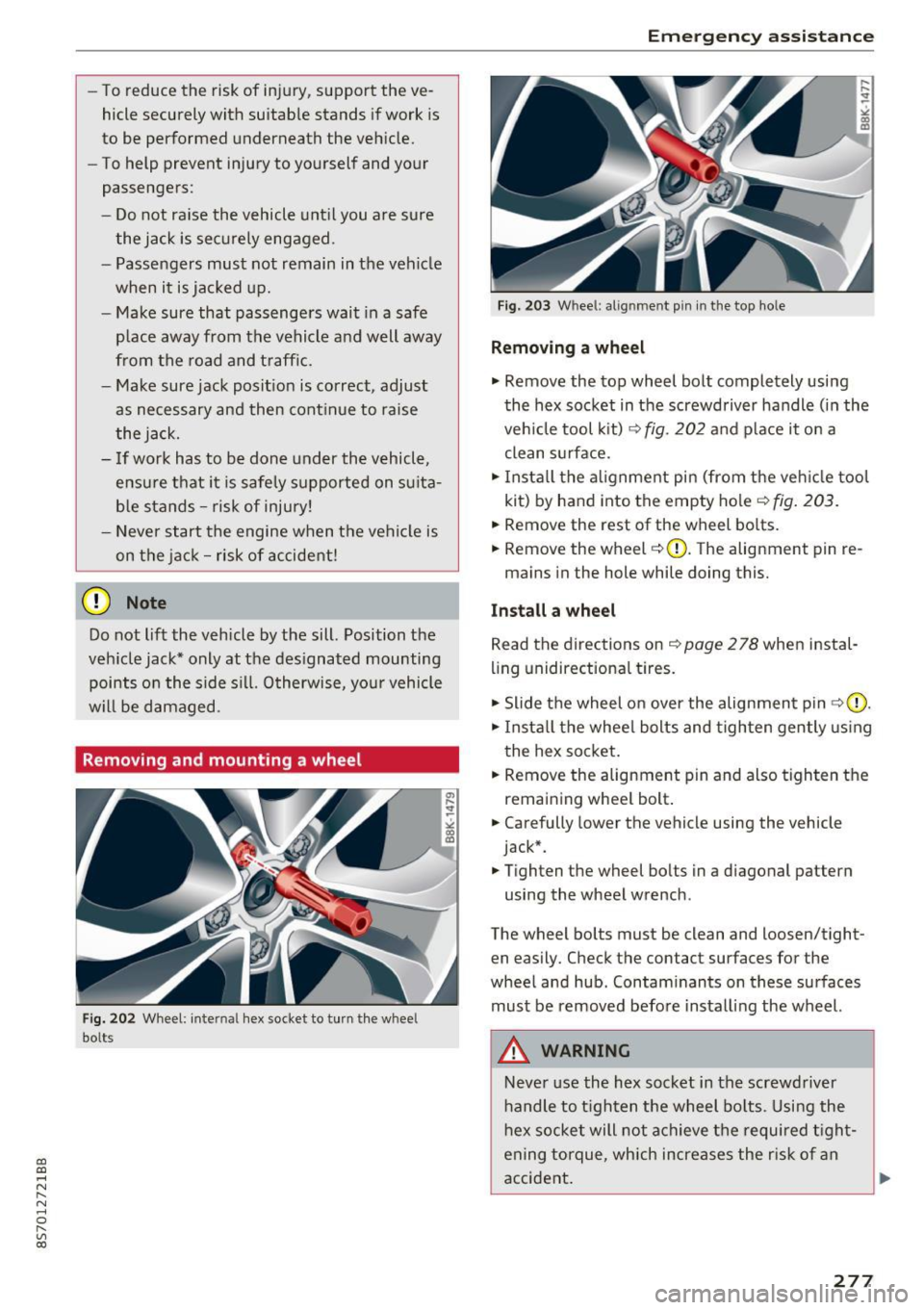

-To reduce the risk of injury, support the ve­
hicle securely with suitable stands if work is
to be performed underneath the vehicle.
- To help prevent injury to yourself and your
passengers:
- Do not raise the vehicle until you are sure
the jack is securely engaged .
- Passengers must not remain in the vehicle
when it is jacked up.
- Make sure that passengers wait in a safe
place away from the vehicle and well away
from the road and traffic.
- Make sure jack position is correct, adjust
as necessary and then continue to raise
the jack.
- If work has to be done under the vehicle,
ensure that it is safely supported on suita­
ble stands -risk of injury!
- Never start the engine when the vehicle is
on the jack -risk of accident!
(D Note
Do not lift the vehicle by the sill . Position the
vehicle jack* only at the designated mounting points on the side sill. Otherwise, your vehicle
will be damaged.
Removing and mounting a wheel
Fig. 202 Wheel : internal hex socket to turn the wheel
bolts
Emergency assistance
Fig. 203 W hee l: alignment pin in the top ho le
Removing a wheel
.,. Remove the top wheel bolt completely using
the hex socket in the screwdriver handle (in the
vehicle tool kit)
c::> fig. 202 and place it on a
clean surface.
.,. Install the alignment pin (from the vehicle tool
kit) by hand into the empty hole
c::>fig. 203 .
.,. Remove the rest of the wheel bolts.
.,. Remove the wheel
c::>0. The alignment pin re-
mains in the hole while doing this.
Install a wheel
Read the directions on c::> page 2 78 when instal­
ling unidirectional tires.
.,. Slide the wheel on over the alignment pin
c::>(D.
.,. Install the wheel bolts and tighten gently using
the hex socket.
.,. Remove the alignment pin and also tighten the
remai ning wheel bolt .
.,. Carefully lower the vehicle using the vehicle
jack* .
.,. Tighten the wheel bolts in a diagonal pattern
using the wheel wrench .
The wheel bolts must be clean and loosen/tight­
en easily. Check the contact surfaces for the
wheel and hub . Contaminants on these surfaces
must be removed before installing the wheel.
A WARNING
-
Never use the hex socket in the screwdriver
handle to tighten the wheel bolts . Using the
hex socket will not achieve the required tight­
ening torque, which increases the risk of an
accident .
277

Emergency assistance
CJ) Note
When removing or installing the whee l, the
r im could hit the brake rotor/ceramic bra ke
rotor* and damage the rotor. Work ca refu lly
and have a second person help yo u.
@ Tips
-W hen mounting tires w ith unidirectional
tread design
ma ke s ure the t read pattern is
po inted the r ight way
¢ page 278 .
- The wheel bolts should be clean and easy to
turn. Check for d irt and cor ros ion on the
mating s urfaces of both th e wheel and the
h ub. Remove all dirt from t hese surfaces be­
fo re re mount ing th e wheel.
Unidirectional tires
A unid irec tional tire p rofile is ident ified by a rrows
th at poin t in the run nin g dir e cti on o n the tire
sidewall. You mus t always a dhere to the speci ­
fied running d irec tion. This is necessary ens ure
the t ire's optim um perfo rmance in regar d to a d­
hes ion, r unning noise, fr iction and hydrop la ning.
T o be nefi t fu lly fro m the adv ant ages of the uni­
d irect ional tire des ign, you sho uld replace faulty
tires as soon as possi ble an d restore the correct
r u nning di rect io n on all of the tires.
Finishing
.,. Reinstall the caps on the whee l bolts if neces­
sary .
.,. Store the vehicle tool kit in its designated
place .
.,. If the re m oved whee l does not fi t in the sp are
whee l we ll, store it se cur ely in t he luggage
com partmen t
¢page 18 5.
.,. Check the tire press ure on the ins talled whee l
as soon as possible.
.,. Check the tire press ure and store it in the Info ­
ta inment system.
.,. The w heel bo lt tightening specification must be
90 ft lbs (120 Nm) . Check it as soon as poss ible
with a torq ue wrenc h. Drive ca refully unt il then .
.,. Have th e faulty wheel rep laced as quic kly as
poss ib le.
278
(D Tips
- If you not ice that t he w heel bo lts a re cor­
rode d and difficult to tur n while changing a
t ir e, t hey s hou ld be replaced befo re yo u
check the t ightening torque.
- Drive at red uce d speed unti l yo u have the
t ightening to rques checked.
· Notes on wheel changing
Please read t he informat ion¢ page 253 if yo u
are going to use a spa re t ire wh ic h is diffe re nt
fro m the t ires on your ve hicle.
After you change a tire:
- Check the tire pressure on the spa re immedi­
ately after installation.
- Have the wheel bolt tightening torque
checked with a torque wrench as soon as pos­
sible by your authorized Audi dealer or a
qualified service station .
- With steel and alloy wheel rims, the wheel
bolts are cor rectly tightened at a torque of
90 ft lb (120 Nm) .
-If you notice that the wheel bolts are corroded
and difficult to turn while changing a tire,
they should be replaced before you check the
tightening torque .
- Replace the flat tire with a new one and have
it installed on your vehicle as soon as possi ­
ble. Remount the wheel cover .
Until then, dr ive with e xtra care and at reduced
speeds.
A WARNING
- If you are going to equip yo ur vehicle wi th
t ires or r ims which diffe r from those which
we re fac to ry insta lled , th en be su re to read
t he informa tion
¢ page 253 .
-Always make sure the damage d w heel or
ev en a fla t tire and the jack and to ol kit ar e
p ro p erl y se cured in t he lug gage co mpart ­
me nt an d ar e no t lo o se in the pas senge r
co mp artme nt.
- I n an ac cident or su dde n man euver they
co uld fl y forw ard , injur ing an yone i n t he ve ­
hicle.
