@ Tips
-You can still open and close the windows for
approximately 10 minutes after turn ing the
ignition off. The power windows do not
switch off until the driver's door or front passenger's door has been opened.
- When opening the doors and when open­
i ng/closing the power top, the windows au­
tomatically lower approximately 10 mm.
Convenience opening/closing
All windows can be opened and closed at the
same time.
Convenience opening feature
• Press the Im button on the remote control key
until all windows reach the desired position.
Convenience closing feature
• Press the {D button on the remote control key
u nti l all windows are closed¢
A or
Convenience closing with the convenience
key*
• Touch the sensor* on the door handle long
enough until all windows and the power top*
are closed . Do not place your hand in the door
hand le when doing this.
Setting convenience opening in the
Infotainment system
• Select in the Infotainment system: !MENUI but ­
ton
> Vehicle> left control button >Vehicle set­
tings .
To enable the convenience window opening func­
tion, the
Long press to open windows function
must be switched
on.
.&_ WARNING
- Never close the windows or power top* care­ lessly or in an uncontrolled manner, be­
cause this increases the risk of injury.
- For security reasons, the windows and the
power top* can only be opened and closed
with the remote control key at a maximum
distance of approximately 6 ft (2 m) away
Open ing and closing
from the vehicle . Always pay attention when
pressing the
Im button to close the w indows
and the power top* so that no one is
pinched. The closing process w ill stop im­
mediately when the
Im button is released .
Correcting power window malfunctions
You can reactivate the one-touch up/down func­
tion if it malfunctions.
• Pull the power window switch up until the win­
dow is completely raised.
• Release the switch and pull it up aga in for at
least one second .
Garage door opener
(Homelink)
Description
Applies to : veh icles w ith garage door o pen er (Home link)
Fig. 25 Garage door opener: examples of usage for differ­
ent systems
With the garage door opener ( Homelink), you
can activate systems such as the garage doors,
security systems or house lights from inside your
vehicle. Up to three remote control functions can
be programmed to the three buttons that are in­
tegrated in the control unit above the rearview
mirror.
T o be able to operate systems using the garage
door opener, the buttons in the control unit must
first be programmed.
A WARNING ~
When operating or programming the garage
door opener, make sure that no people or ob­
jects are in the area immediately surrounding ..,.
31

Opening and closing

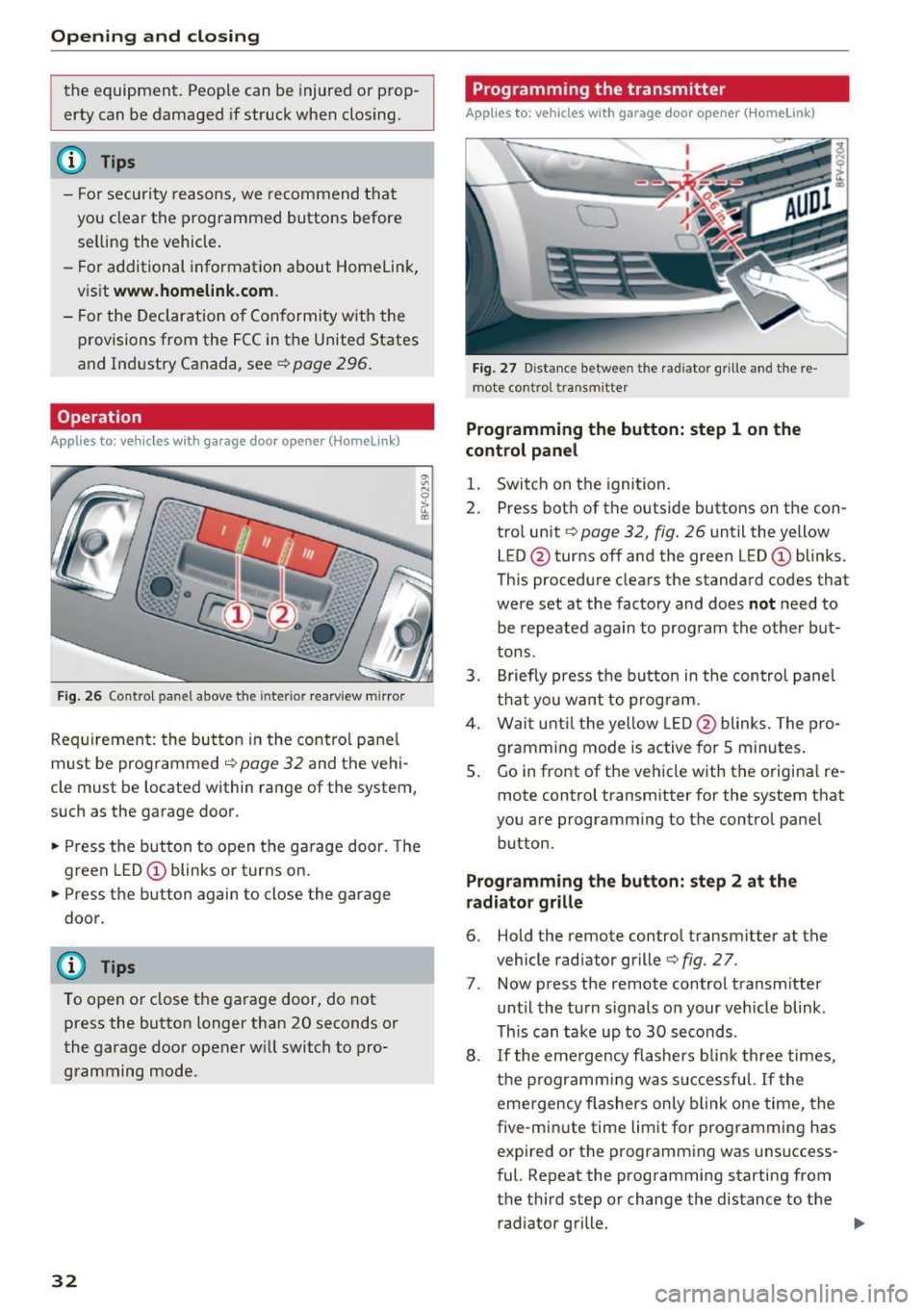

the equipment. Peop le can be injured or prop­
erty can be damaged if struck when closing.
(D Tips
- For secu rity reasons, we recommend that
you clear the programmed buttons before
selling the vehicle.
- For additional information about Homelink,
v is it
www .homelink .com.
- For the Declaration of Conformity with the
provisions from the FCC in the United States
and Industry Canada, see¢
page 296 .
Operation
Applies to: ve hicles w ith garage doo r opener (Homeli nk)
Fig. 26 Contro l pa nel above the inter io r rearview mirror
Requirement: the but ton in the control panel
m ust be programmed
i:!> page 32 and the vehi­
cle must be located within range of the system,
such as the garage door .
.. Press the button to open the garage door. The
green LED
CD blinks or turns on.
.. Press the button again to close the garage
door.
(D} Tips
To open or close the garage door, do not
press the button longer than 20 seconds or
the garage door opener w ill switch to pro­
gramming mode.
32
Programming the transmitter
App lies to : vehicles wit h garage door o pener (Horne link)
Fig. 27 D istance between the rad iator g rille and the re­
mote contro l transm itter
Programming the button: step 1 on the
control panel
1. Switch on the ignition.
2. Press both of the outside buttons on the con ­
trol unit ¢
page 32, fig. 26 until the yellow
LED @turns off and the green LED
CD blinks.
This procedure clears the standard codes that
were set at the factory and does
not need to
be repeated again to program the other but­
tons.
3. Briefly press the button in the control panel
that you want to program.
4. Wait until the yellow LED@blinks. The pro­
gramming mode is active for S minutes.
5. Go in front of the vehicle w ith the origina l re­
mote control transmitter for the system that
you are programming to the control panel button .
Programming the button: step 2 at the
radiator grille
6. Hold the remote control transmitter at the
vehicle radiator grille¢
fig. 27.
7 . Now press the remote control transm itter
until the turn signals on your veh icle blink .
This can take up to 30 seconds .
8. If the eme rgency flashers blink three times,
the programming was successful. If the
emergency flashers only blink one time, the
five -min ute time limit for programming has
expired or the programming was unsuccess­
ful. Repeat the programming starting from
the third step or change the distance to the radiator grille.

co
co
.... N
" N .... 0
" "' c:o

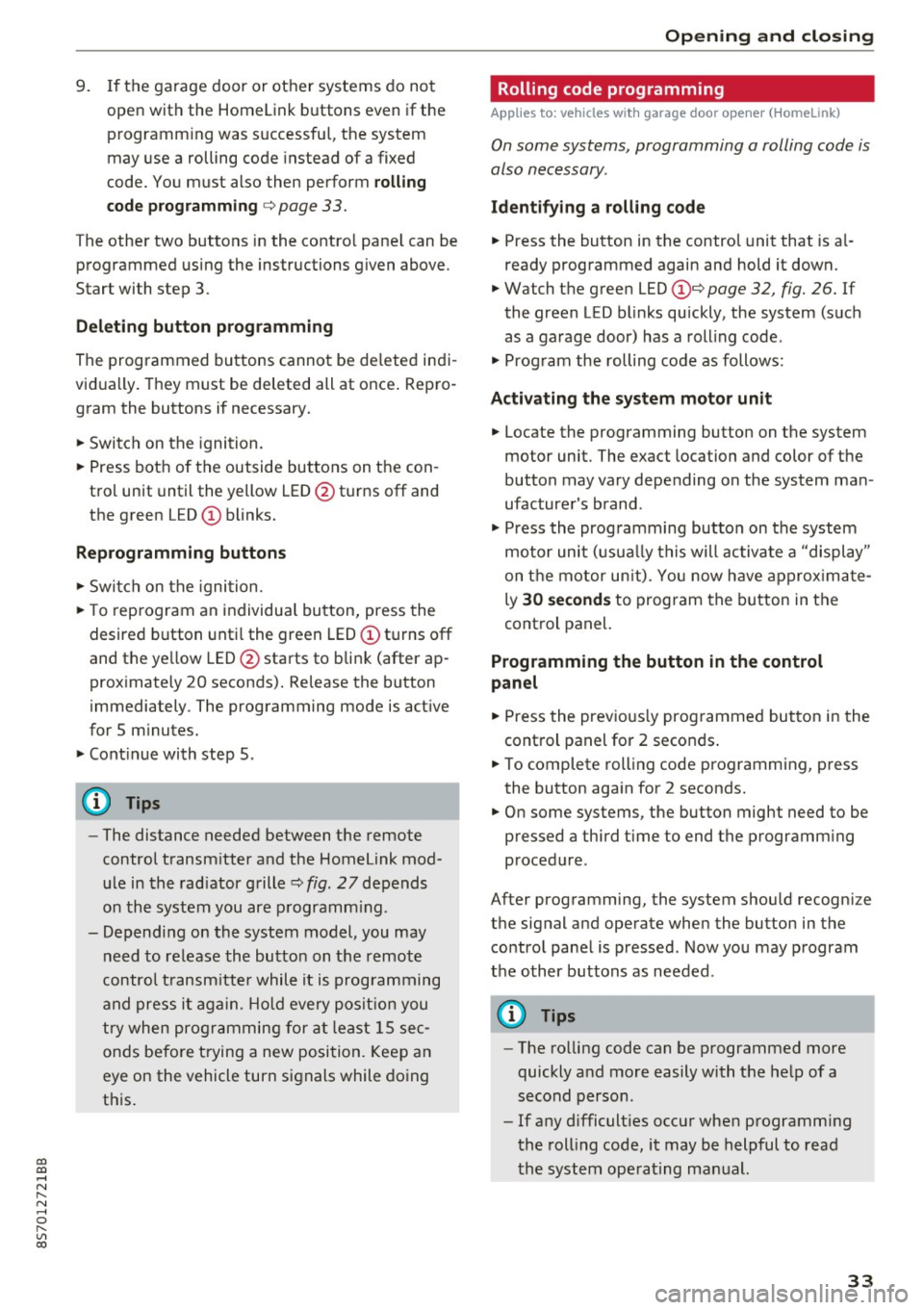

9. If the garage door or other systems do not
open with the Home link buttons even if the programm ing was successfu l, the system
may use a rolling code instead of a fixed
code. You must also then perform
ro lling
c o de progr amm ing
c:> page 33 .
The other two buttons in the contro l pane l can be
programmed using the instructions given above.
Star t wi th step 3 .
Dele ting button prog ramm ing
The programmed buttons cannot be de leted indi­
vidually. They must be deleted all at once . Repro­
gram the buttons if necessary.
"' Switch on the ignition.
.. Press both of the outside buttons on the con ­
trol unit until the yellow LED @turns off and
the green LED@ blinks.
Reprogramming button s
"'Switch on the ignition.
"'T o reprogram an individua l button, press the
desired b utton until the green LED(!) turns off
and the ye llow LED @star ts to blink (after ap­
proximately 20 seconds). Release the button
immediately. The programming mode is active
for S m inutes.
"' Cont inue with step 5 .
@ Tips
-The distance needed between the remote
control transm itter and the Homelink mod­
ule in the rad iator grille c:>
fig. 27 depends
on the system you are programm ing .
- Depending on the system model, you may need to release the button on the remote
control t ransm itter while it is programming
and press it again. Hold every posit ion you
try when programming for at least 15 sec­
onds befo re trying a new posi tion. Keep an
eye on the vehicle turn signals while doing
this .
Op ening and cl osing
Rolling code programming
Applies to: vehicles with garage door opener (Home link)
On some systems, programming a rolling code is
also necessary.
Id enti fying a rolling c ode
"' Press the button in the control unit that is a l­
ready programmed again and hold it down.
"' Watch the green LED (!)c:>
page 32 , fig. 26. If
the green L ED bl inks quickly, the system (such
as a garage door) has a roll ing code .
"' Program the rolling code as follows:
Acti vating the sys tem moto r unit
.. Locate the programming button on the system
motor unit. The exact location and color of the
button may vary depending on the system man ­
ufacturer 's brand .
"' Press the programming button on the system
motor unit (usua lly this will activa te a "display "
on the motor un it) . You now have approx ima te­
ly
30 se cond s to prog ram the button in the
control panel.
Programming the button in the control
pan el
.. Press the previous ly programmed button in the
control panel for 2 seconds .
.. To complet e rolling code programming, press
the button again for 2 seconds.
.. On some systems, the button might need to be
pressed a third time to end the programm ing
procedure .
After programming, the system should recogni ze
the signal and operate when the button in the
control panel is pressed . Now you may program
the other buttons as needed .
(D Tips
-The ro lling code can be programmed more
quickly and more easily with the help of a
second person .
- If any d ifficult ies occur when programm ing
the roll ing code, it may be helpful to read
the system operating manual.
33

Power top
Power top
Power top
General information
The power top opens and closes automatically .
When open, the power top is stored completely
in the power top compartment. The power top
can be opened or closed at speeds up to 30 mph
(SO km/h).
Under normal conditions, the power top is wind­
and waterproof. In rare cases, small droplets of
water may form under extreme weather condi­
tions such as torrential or prolonged rain. That is
normal and no cause for concern.
Follow the care instructions to keep the power
top free of leaks and to maintain its appearance
~ page 266, Core and cleaning. Also observe the
following:
- Open and stow the power top only when it is
clean and dry . Sharp-edged dirt particles can
cause damage to the rear window and the pow­
er top . Stowing the power top when it is damp
can create imprints in it, and if it is left that
way for long periods of time, mildew and other
damage can form .
- Do not leave the power top open for several weeks or the creases in it may become discol­
ored.
- Remove ice and snow before opening the power
top. Do not use any sharp edged objects to re­ move ice and snow or the power top could be
scratched or damaged . The rear window may be
cleared with a standard ice scraper .
- Do not open the power top when the tempera­
ture is below 32 °F (0 °C). The fabric in the
power top loses elasticity in sub-zero tempera­
tu res .
34
Opening and closing the power top
Fig. 28 Center conso le: power top sw itch
Opening/closing the power top
.,. Switch on the ignition.
.,. To open or close the power top, pull/press and
hold the button during the entire process.
Opening/closing the power top using the
one-touch function
.,. Switch on the ignition .
.,. To open/close the power top all the way, briefly
pull/press the power top switch. It is not neces­
sary to hold the switch. The one-touch function
is only available at speeds between 4 mph (6
km/h) and 30 mph (SO km/h).
The status of the power top is shown in the in­
strument cluster when operating the power top
switch.
A message will appear in the instrument cluster
if the power top cannot be opened or closed
~ page 35.
A WARNING
-When operating the power top, make sure
the function is not affected by wind or other
factors and that it does not interfere with
other drivers.
- Never drive when the power top is not
locked correctly. The wind from driving
could cause the power top to open. This can
result in injuries and damage to the vehicle .
- Make sure no one will be injured by the pow­
er top supports and other moving compo­
nents when opening and closing the top.

CD
CD
.... N
" N ...... 0 r--. V, co
-When operating the power top, visibility to
the rear is limited. Avoid operating the top
while driving in reverse.
(D Note
-To prevent damage to the power top:
- do not store any objects in the power top
storage compartment .
- make sure there is enough space above
the vehicle when opening or closing the
power top.
(D Tips
- To prevent the vehicle battery from draining
unnecessarily, do not open or close the pow­
er top repeatedly when the engine is switch­
ed off.
- A message will appear in the instrument cluster if there is a malfunction in the power
top
¢ page 35.
- The power top can also be operated manual­
l y temporarily if there is a malfunction
¢ page 3 7, Power top emergency opera­
tion.
An authori zed A udi dealer or au thor­
i zed Audi Service Facility should diag nose
and correct the cause of the ma lfunction as
soon as possib le .
- If the vehicle is parked with the power top open, the vehicle interior is not p rotected
from damaging weather or unauthorized ac­
cess. Lock any items you leave behind in the
l uggage compartment. Close the power top
before leaving the vehicle .
- The side windows automat ically lower
slight ly when opening or closing the power
top.
P owe r top
Power top convenience opening and closing
Fig. 29 Turning the key to open and close
Conven ience opening with the dri ver door
lock
.,. Press the 63 button on the remote control key
to un lock the vehicle .
.,. Turn the key once in the driver door lock to the
open ing pos ition
© ¢fig. 29.
.,. Turn the key to the opening posi tion again
within tw o second s and hold it there until the
power top opens completely.
Convenience closing with the driver door lock
.,. Turn the key once in the driver door lock to the
clos ing position @¢
fig. 29.
.,. Tur n the key to the closing position again
with­
in two second s
and ho ld it there un til the pow­
er top closes complete ly .
Releasing the key s tops the opening or clos ing
process
immedi ate ly.
A WARNING
-
Read and fo llow the important safety preca u­
tions
¢ .&. in Opening and closing the power
top on page 34.
Messages
Pow er top : operation n ot pos sibl e
This message appears when there is a malfunc­
t ion. The power top can be operated manually
¢ page 37. ..,.
35

Power top
Pow er top: op erati on curr ently not poss ible
I f the power top is operated continuo usly for a
long period of time, the overload protection acti ­
vates for approximate ly 15 to 30 minutes. You
can open or close the power top again after that .
Power top: operation currently not possible.
Engine mu st b e running
The power top is automatically deactivated if the
battery voltage is low. You can open or close the
power top again after starting the engine.
P ower top: op erati on curr ently not possible.
Out sid e temp eratur e too l ow
The power top will not open when the tempera­
ture is below 5 °F ( -15
°() .
Pow er top: operation not po ssib le. Speed too
h igh
If you go above 30 mph (SO km/h), the power
top cannot be operated due to safety reasons. Reduce the vehicle speed to close or open the
power top.
Power top : not secur e. Spe ed too high
This message appears if you go above 30 mph
(SO km/h) when operating the power top. Reduce
the vehicle speed and operate the power top again.
Power top: malfunction! You may continu e
dri ving (limited functionality ). See owner' s
manual
This message appears if there is a malfunction in
the system . Try to open or close the power top
again. If the message st ill appea rs , then have an
author ized Audi dealer or author ized Audi Se rvice
F acility correct the malf unct ion. Do not dr ive
more than 30 mph (SO km/h) until it is correct­
ed .
.&,. WARNING
Never drive whe n the power top is not locked
correctly . The wind from driving cou ld cause
the power top to open. This can result in inju­
r ies and damage to the vehicle.
36
Wind deflector
Appl ies to: vehicles with wind deflector
The wind deflector reduces air movement in the
passenger compartment in order to increase driving comfort.
Fi g. 30 Ce nter conso le: switch for ope ra ting t he w ind de ­
flector
A power mechanism extends and retracts the
wind deflector.
., To extend the wind deflector, pu ll the wind de­
flector switch unti l the wind def lector is com­
pletely extended .
., To retract the wind deflector, press the wind
deflector switch until the retracting process is
complete .
.&,. WARNING
-Do not use the w ind deflector to secure car­
go .
- Always pay careful attention when clos ing
the wind deflector. Pinch ing could ca use se­
r ious inju ries .
(j) Tips
-If the w ind deflector sw itch is released
wh ile it is extending, the process will stop
immediately .
- T he wind deflec to r works best when all of
the windows are rolled up while driving .

CD
CD
.... N
" N .... 0 r--. V, co
Power top emergency
operation
General information
The power top can be closed manually if there is
a malfunction .
• Set the parking brake .
• Open all windows.
• Switch the ignition off.
Only close the power top manually in an emer­
gency. Have a second person assist. Drive to an
authorized Audi dealer or authorized Audi Service
F acility immediately to have the malfunction cor­
rected.
A WARNING
- There is a risk of pinching the hands or other
people during all of the power top emergen­
cy operation steps .
- Make sure all windows are lowered during
emergency operation.
- Do not reach into the power top supports
or other moving components.
- Never drive when the power top is not
locked correctly. The w ind from dr iving
cou ld cause the power top to open. This can
resu lt in injuries and damage to the vehicle.
Step 1: Position the covers
Fig. 31 Closed covers
Power top
Fig. 32 Open covers
• Disconnect the push rod from the ball head
¢ fig. 31.
• Fold up the cover on the d river's and front pas­
senger's side
r:::;, fig. 32 .
Step 2 : Release the power top drive
Fig. 33 Luggage compa rt me nt: t ools for power top eme r·
gency operat io n
Fig. 34 D river 's s ide: inserte d hex socket w re nch
• Open the luggage compartment lid .
• Open the cargo floor .
• Remove the plastic floor panels
r:::;, page 51,
fig . 59 .
• Remove the screwdr iver, the crank (D and the
hex socketwrench @r:::;,fig .
33. .,..
37

Power top
• Insert the hex socket wrench into the bolt and
remove it completely ¢
fig. 34. Also remove
the bolt on the front passenger's side.
Step 3: Close the power top
Fig. 35 Power top in power top s torage bay
Fig. 36 Inner side o f th e powe r top: re m ov ing the cover
• Lift the power top out of the storage compart­
ment ¢,& .
• Pull the power top out completely.
• Remove the cover in the center of the power
top using a screwdriver ¢
fig. 36.
• Insert the crank (Torx head) into the opening
until the stop ring rests on the motor
¢page 38, fig . 37 .
• Turn the crank counter-clockwise all the way so
that the locking hooks are completely opened.
• Press the power top onto the windshield frame.
Have a second person assist when positioning the
power top. That person should stand on the op­
posite side of the vehicle and perform the same
steps.
_& WARNING
- When positioning the power top, avoid con­
tact with the supports or other moving
38
parts. Otherwise you could pinch your
hands.
- When pressing the power top down onto
the windshield frame, make sure that you
do not pinch yourself or anyone else . There
is a risk of injury.
(D Note
Make sure that both covers are completely
open and the push rods are clipped in to avoid
damage when opening the power top.
Step 4: Lock the power top
Fig. 37 Inside of the power top: crank for emergency oper­
ation
• Pull the power top downward at the side.
• Turn the crank clockwise until the power top is
completely locked .
•Pullout the crank.
(D Tips
Make sure the locking mechanisms are locked
securely.
