2. Remove the blown fuse, and then install a
new fuse of the specified amperage.
WARNING! Always use a fuse of the spec- ified rating, and never use a substitute ob-
ject in place of the proper fuse. An
improper fuse or a substitute object can
cause damage to the electrical system,
which could lead to a fire.
[EWB02173]
3. Turn the key to “ON” and turn on the electrical circuits to check if the devices operate.
4. If the fuse immediately blows again, have a Yamaha dealer check the electrical system.EBU34030Removing a wheel1. Place the ATV on a level surface.
2. Loosen the wheel bolts. 3. Elevate the ATV and place a suitable stand
under the frame.
4. Remove the bolts from the wheel.
5. Remove the wheel.
EBU34040Installing a wheel1. Place the ATV on a level surface.
2. Install the wheel and the bolts.TIPWhen installing the wheel, make sure its arrow
mark points toward the rotating direction of
the wheel.
Specified fuse: 7.5 A
1. Wheel bolt
1
1
UBD360E0.book Page 34 Wednesd ay, February 25, 2015 2:41 PM
Page 114 of 128
8-35
83. Lower the ATV to the ground.
4. Tighten the wheel bolts to the specified
torques.
EBU25721TroubleshootingAlthough Yamaha ATVs receive a thorough in-
spection before shipment from the factory, trouble
may occur during operation. Any problem in the
fuel, compression, or ignition systems, for exam-
ple, can cause poor starting and loss of power.
The following troubleshooting chart represents a
quick and easy procedure for checking these vital
systems yourself. However, should your ATV re-
quire any repair, take it to a Yamaha dealer, whose
skilled technicians have the necessary tools, ex-
perience, and know-how to service the ATV prop-
erly.
Use only genuine Yamaha replacement parts. Im-
itation parts may look like Yamaha parts, but they
are often inferior, have a shorter service life and
can lead to expensive repair bills.
WARNING
EWB02281Do not smoke when checking the fuel system.
Fuel can ignite or explode, causing severe inju-
ry or property damage. Make sure there are no
open flames or sparks in the area, including pi-
lot lights from water heaters or furnaces.
1. Arrow markTightening torques:Front wheel bolt:45 Nm (4.5 m·kgf, 33 ft·lbf)
Rear wheel bolt: 45 Nm (4.5 m·kgf, 33 ft·lbf)
1
UBD360E0.book Page 35 Wednesd ay, February 25, 2015 2:41 PM
Page 115 of 128
8-36
8
EBU25754Troubleshooting chart
Check the fuel level in
the fuel tank.1. Fuel
There is enough fuel.There is no fuel.
Check the battery.
Supply fuel.
The engine does not start.
Check the battery.
The engine does not start.
Check the ignition.
Operate the electric starter.4. Compression
There is compression.
There is no compression.
The engine does not start. Have a Yamaha dealer check the ATV.Have a Yamaha dealer check the ATV.
Remove the spark plug
and check the electrodes.3. Ignition
Wipe off with a dry cloth and correct the
spark plug gap, or replace the spark plug. Have a Yamaha dealer check the ATV.
The engine does not start.
Check the compression.
Operate the electric starter.2. Battery
The engine turns over
quickly.
The engine turns over
slowly.
The battery is good.Check the battery lead connections,
and have a Yamaha dealer charge
the battery if necessary.
DryWet
Open the throttle halfway and operate
the electric starter.
UBD360E0.book Page 36 Wednesd ay, February 25, 2015 2:41 PM
Page 116 of 128
9-1
9
EBU25861
CLEANING AND STORAGE
EBU25903CleaningFrequent, thorough cleaning of your ATV will not
only enhance its appearance but will improve its
general performance and extend the useful life of
many components.1. Before cleaning the ATV: a. Block off the end of the exhaust pipe toprevent water entry. A plastic bag and
strong rubber band may be used.
b. Make sure the spark plug and all filler caps are properly installed.
2. If the engine case is excessively greasy, apply degreaser with a paint brush. Do not apply
degreaser to the chain, sprockets or wheel
axles.
3. Rinse the dirt and degreaser off with a garden hose. Use only enough pressure to do the
job. WARNING! Wet brakes may have re-
duced stopping ability, increasing the
chance of an accident. Test the brakes af-
ter washing. Apply the brakes several
times at slow speeds to let friction dry out
the linings.
[EWB02312]
NOTICE: Excessive wa- ter pressure may cause water seepage
and deterioration of wheel bearings,
brakes, transmission seals and electrical
devices. Many expensive repair bills have
resulted from improper high-pressure de-
tergent applications such as those avail-
able in coin-operated car washers.
[ECB00712]
4. Once most of the dirt has been hosed off,
wash all surfaces with warm water and mild,
detergent-type soap. An old toothbrush or
bottle brush is handy for hard-to-reach plac-
es.
5. Rinse the ATV off immediately with clean wa- ter and dry all surfaces with a chamois, clean
towel or soft absorbing cloth.
6. Dry the chain and lubricate it to prevent it from rusting.
7. Clean the seat with a vinyl upholstery cleaner to keep the cover pliable and glossy.
8. Automotive type wax may be applied to all painted and chrome plated surfaces. Avoid
combination cleaner-waxes. Many contain
UBD360E0.book Page 1 Wednesd ay, February 25, 2015 2:41 PM
Page 117 of 128
9-2
9
abrasives which may mar the paint or protec-
tive finish. When finished cleaning, start the
engine and let it idle for several minutes.
EBU30361StorageShort-term
Always store your ATV in a cool, dry place and, if
necessary, protect it against dust with a porous
cover.
NOTICE: Storing the ATV in a poorly ven-
tilated room or covering it with a tarp while it is
still wet, will allow water and humidity to seep
in and cause rust. To prevent corrosion, avoid
damp cellars, stables (because of the presence
of ammonia) and areas where strong chemi-
cals are stored.
[ECB00722]
Long-term
Before storing your ATV for several months: 1. Follow all the instructions in the “Cleaning” section of this chapter.
2. Turn the fuel cock lever to “OFF”.
3. Drain the carburetor float chamber by loosen- ing the drain bolt; this will prevent fuel depos-
its from building up. Pour the drained fuel into
the fuel tank. 4. Fill up the fuel tank and add fuel stabilizer (if
available) to prevent the fuel from deteriorat-
ing.
5. Perform the following steps to protect the cyl- inder, piston rings, etc. from corrosion.a. Remove the spark plug cap and spark plug.
b. Pour a teaspoonful of engine oil into the spark plug bore.
c. Install the spark plug cap onto the spark plug, and then place the spark plug on the
cylinder head so that the electrodes are
grounded. (This will limit sparking during
the next step.)
d. Turn the engine over several times with the starter. (This will coat the cylinder wall
with oil.)
e. Remove the spark plug cap from the spark plug, and then install the spark plug and
the spark plug cap.
6. Lubricate all control cables and the pivoting points of all levers.
Specified amount:
7.5 ml of stabilizer to each liter of fuel (or 1
oz of stabilizer to each gallon of fuel)UBD360E0.book Page 2 Wednesd ay, February 25, 2015 2:41 PM
Page 118 of 128
9-3

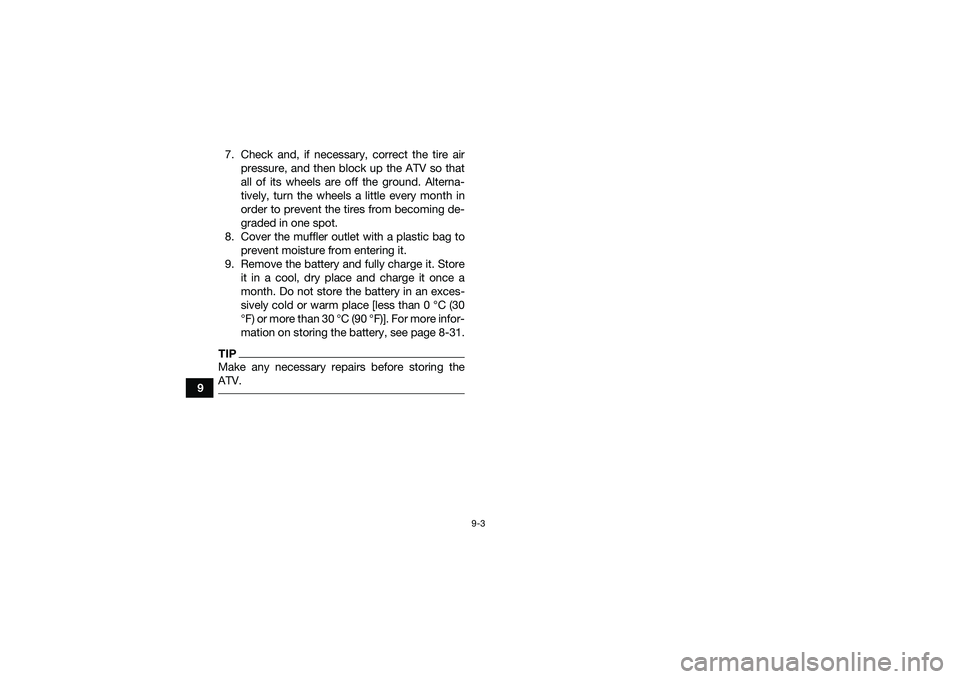

97. Check and, if necessary, correct the tire air
pressure, and then block up the ATV so that
all of its wheels are off the ground. Alterna-
tively, turn the wheels a little every month in
order to prevent the tires from becoming de-
graded in one spot.
8. Cover the muffler outlet with a plastic bag to prevent moisture from entering it.
9. Remove the battery and fully charge it. Store it in a cool, dry place and charge it once a
month. Do not store the battery in an exces-
sively cold or warm place [less than 0 °C (30
°F) or more than 30 °C (90 °F)]. For more infor-
mation on storing the battery, see page 8-31.
TIPMake any necessary repairs before storing the
ATV. UBD360E0.book Page 3 Wednesd ay, February 25, 2015 2:41 PM
Page 119 of 128
10-1
10
EBU25962
SPECIFICATIONS
Dimensions:Overall length:1485 mm (58.5 in)
Overall width: 1020 mm (40.2 in)
Overall height:
955 mm (37.6 in)
Seat height: 750 mm (29.5 in)
Wheelbase: 1030 mm (40.6 in)
Ground clearance:
100 mm (3.9 in)
Minimum turning radius: 3000 mm (118 in)Weight:Curb weight:
126.5 kg (279 lb)Noise and vibration level:Noise level (77/311/EEC):73.0 dB(A) (EUR,FRA,GBR)
Uncertainty of measurement:
3.0 dB(A) (EUR,FRA,GBR)
Vibration on seat (EN1032, ISO5008): 0.6 m/s² (EUR,FRA,GBR)
Uncertainty of measurement: 0.3 m/s² (EUR,FRA,GBR) Vibration on handle (EN1032, ISO5008):
6.3 m/s² (EUR,FRA,GBR)
Uncertainty of measurement: 1.3 m/s² (EUR,FRA,GBR)
Engine:Engine type:
Air cooled 4-stroke, SOHC
Cylinder arrangement: Single cylinder
Displacement: 89 cm³
Bore × stroke:
47.0 × 51.8 mm (1.85 × 2.04 in)
Compression ratio: 9.2 : 1
Starting system: Electric starter and kickstarter
Lubrication system:
Wet sumpEngine oil:Recommended brand:YAMALUBE
Type:
SAE 10W-50
Recommended engine oil grade: API service SG type or higher, JASO standard MA
Engine oil quantity: Periodic oil change:0.90 L (0.95 US qt, 0.79 Imp.qt)
UBD360E0.book Page 1 Wednesd ay, February 25, 2015 2:41 PM
Page 120 of 128
10-2
10
Transmission oil:Type:SAE 80W-90
Quantity:
0.35 L (0.37 US qt, 0.31 Imp.qt)Air filter:Air filter element:Wet elementFuel:Recommended fuel:Regular unleaded gasoline only
Fuel tank capacity: 6.6 L (1.74 US gal, 1.45 Imp.gal)
Fuel reserve amount:
0.9 L (0.24 US gal, 0.20 Imp.gal)Carburetor:Type × quantity:
H66D x 1Spark plug (s):Manufacturer/model: NGK/CR6HSA
Spark plug gap: 0.6–0.7 mm (0.024–0.028 in)Clutch:Clutch type:Dry, centrifugal automaticTransmission:Secondary reduction system:
Chain drive
Secondary reduction ratio: 35/14 (2.500) Transmission type:
V-belt automatic
Operation: Centrifugal automatic type
Chassis:Frame type:Steel tube frame
Caster angle: 3.4 °
Trail:
19.8 mm (0.78 in)Front tire:Type:Tubeless
Size:
AT18 x 7-8
Manufacturer/model: MAXXIS/M939
Manufacturer/model: DURO/DI2017Rear tire:Type:Tubeless
Size: AT18 x 9-8
Manufacturer/model:
MAXXIS/M940
Manufacturer/model: DURO/DI2016
UBD360E0.book Page 2 Wednesd ay, February 25, 2015 2:41 PM
