ment removed. This will allow unfiltered air
to enter the engine, causing rapid engine
wear and possible engine damage. Addi-
tionally, operation without the air filter ele-
ment will affect carburetor jetting with
subsequent poor performance and possi-
ble engine overheating.
[ECB00462]
10. Install the seat.TIPThe air filter element should be cleaned every 20–
40 hours. It should be cleaned and lubricated
more often if the ATV is operated in extremely dusty areas. When servicing the air filter element,
be sure to check the air inlet of the air filter case
for obstructions.
EBU33941Cleaning the spark arresterBe sure the exhaust pipe and muffler are cool be-
fore cleaning the spark arrester.
1. Remove the tailpipe bolt and nut.
2. Remove the spark arrester by pulling it out of the muffler.1. Spark arrester
2. Tailpipe bolt
3. Nut
1
2
3
UBD360E0.book Page 18 Wednesd ay, February 25, 2015 2:41 PM

8-19
83. Tap the spark arrester lightly, and then use a
wire brush to remove any carbon deposits.
4. Insert the spark arrester into the muffler and align the bolt hole.
5. Install the tailpipe bolt and nut, and then tight- en the nut to the specified torque.
WARNING
EWB02341Do not start the engine when cleaning the
spark arrester, otherwise it could cause injury
to the eyes, burns, carbon monoxide poison-
ing, possibly leading to death, and start a fire.
Always let the exhaust system cool prior to
touching exhaust components. EBU23941Adjusting the carburetorThe carburetor should be checked and, if neces-
sary, adjusted at the intervals specified in the pe-
riodic maintenance and lubrication chart. The
carburetor is an important part of the engine and
requires very sophisticated adjustment. There- fore, most carburetor adjustments should be left
to a Yamaha dealer, who has the necessary pro-
fessional knowledge and experience. The adjust-
ment described in the following section, however,
may be performed by the owner as part of routine
maintenance.
NOTICEECB00481The carburetor has been set and extensively
tested at the Yamaha factory. Changing these
settings without sufficient technical knowl-
edge may result in poor performance of or
damage to the engine. EBU24001Adjusting the engine idling speedThe engine idling speed must be checked and, if
necessary, adjusted as follows at the intervals
specified in the periodic maintenance and lubrica-
tion chart.TIPA diagnostic tachometer is needed to make this
adjustment. 1. Start the engine and warm it up.
Tightening torque:
Tailpipe nut:10 Nm (1.0 m·kgf, 7.2 ft·lbf)
UBD360E0.book Page 19 Wednesd ay, February 25, 2015 2:41 PM

8-20
8
TIPThe engine is warm when it quickly responds to
the throttle. 2. Attach the tachometer to the spark plug lead.

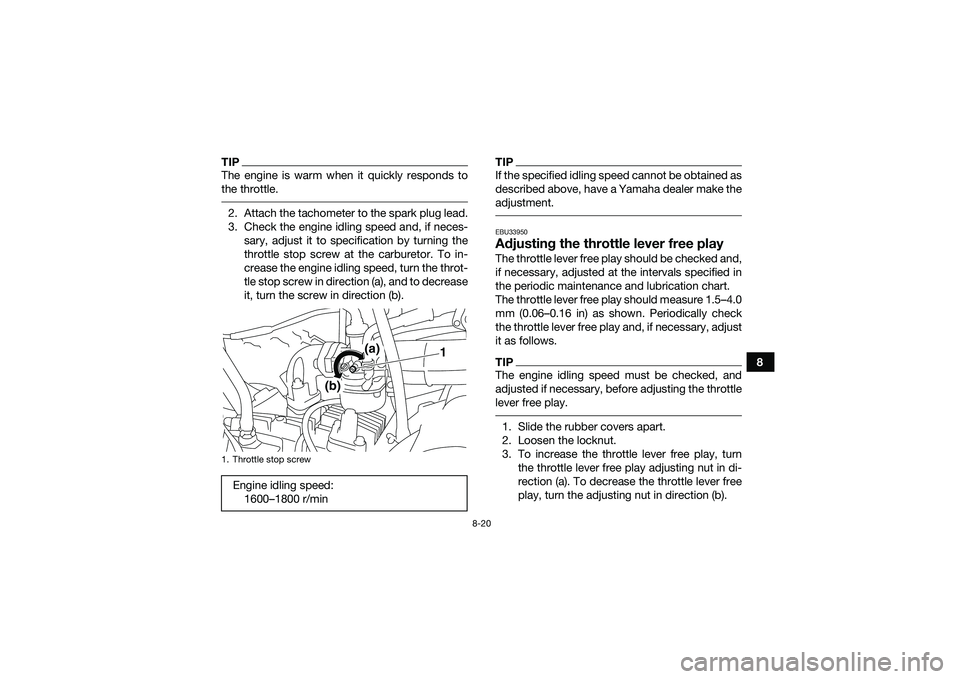

3. Check the engine idling speed and, if neces-sary, adjust it to specification by turning the
throttle stop screw at the carburetor. To in-
crease the engine idling speed, turn the throt-
tle stop screw in direction (a), and to decrease
it, turn the screw in direction (b).
TIPIf the specified idling speed cannot be obtained as
described above, have a Yamaha dealer make the
adjustment. EBU33950Adjusting the throttle lever free playThe throttle lever free play should be checked and,
if necessary, adjusted at the intervals specified in
the periodic maintenance and lubrication chart.
The throttle lever free play should measure 1.5–4.0
mm (0.06–0.16 in) as shown. Periodically check
the throttle lever free play and, if necessary, adjust
it as follows.TIPThe engine idling speed must be checked, and
adjusted if necessary, before adjusting the throttle
lever free play. 1. Slide the rubber covers apart.
2. Loosen the locknut.
3. To increase the throttle lever free play, turnthe throttle lever free play adjusting nut in di-
rection (a). To decrease the throttle lever free
play, turn the adjusting nut in direction (b).
1. Throttle stop screwEngine idling speed:1600–1800 r/min
(a)
(b)
1
UBD360E0.book Page 20 Wednesd ay, February 25, 2015 2:41 PM

8-21
84. Tighten the locknut.
5. Slide the rubber covers to their original posi-
tions.
EBU24061Valve clearanceThe valve clearance changes with use, resulting in
improper air-fuel mixture and/or engine noise. To
prevent this from occurring, the valve clearance
must be adjusted by a Yamaha dealer at the inter-
vals specified in the periodic maintenance and lu-
brication chart.
EBU29602BrakesReplacement of brake components requires pro-
fessional knowledge. Brake service should be
performed by a Yamaha dealer.
WARNING
EWB02572Operating with improperly serviced or adjust-
ed brakes could lead to a loss in braking ability
and an accident. EBU34511Checking the front and rear brake
shoesThe front and rear brake shoes must be checked
for wear at the intervals specified in the periodic
maintenance and lubrication chart. Without disas-
sembling the brake, this can be performed by
checking the position of the brake lever free play
adjusting bolts or nut.
Front brakes
To check front brake shoe wear, check the posi-
tion of the adjusting bolts. If a bolt extends more
than 12 mm (0.47 in) from its locknut, the brake
shoes need to be replaced.
1. Rubber cover
2. Throttle lever free play adjusting nut
3. Locknut
4. Throttle lever free play
1
3
2
1
4
(a)
(b)
UBD360E0.book Page 21 Wednesd ay, February 25, 2015 2:41 PM

8-22
8

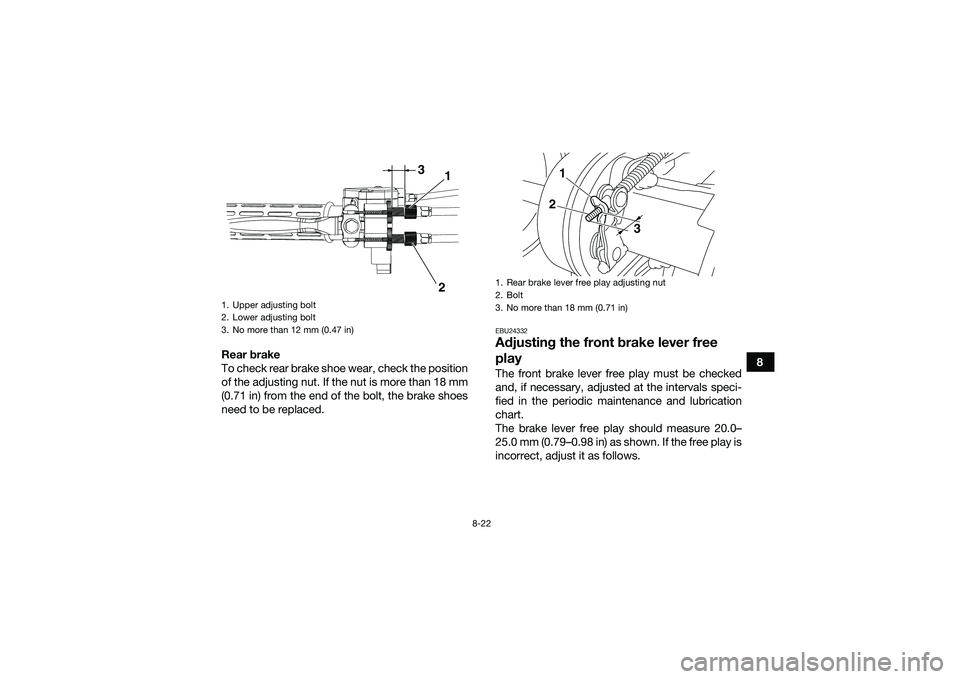

Rear brake
To check rear brake shoe wear, check the position
of the adjusting nut. If the nut is more than 18 mm
(0.71 in) from the end of the bolt, the brake shoes
need to be replaced.
EBU24332Adjusting the front brake lever free
playThe front brake lever free play must be checked
and, if necessary, adjusted at the intervals speci-
fied in the periodic maintenance and lubrication
chart.
The brake lever free play should measure 20.0–
25.0 mm (0.79–0.98 in) as shown. If the free play is
incorrect, adjust it as follows.
1. Upper adjusting bolt
2. Lower adjusting bolt
3. No more than 12 mm (0.47 in)
3
2 1
1. Rear brake lever free play adjusting nut
2. Bolt
3. No more than 18 mm (0.71 in)
12
3
UBD360E0.book Page 22 Wednesd ay, February 25, 2015 2:41 PM

8-23

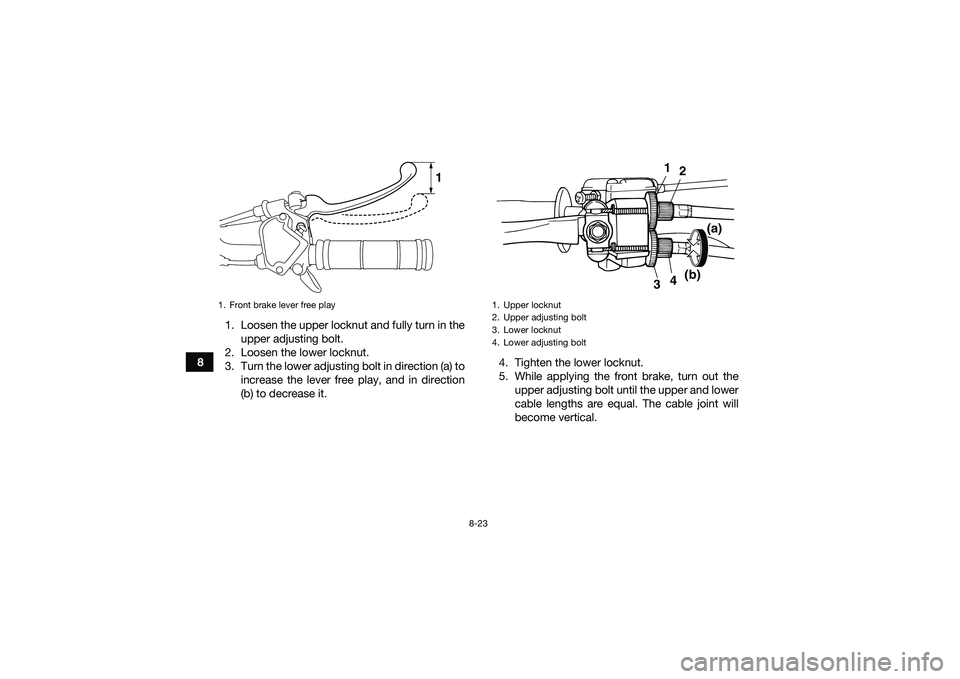

81. Loosen the upper locknut and fully turn in the
upper adjusting bolt.
2. Loosen the lower locknut.
3. Turn the lower adjusting bolt in direction (a) to increase the lever free play, and in direction
(b) to decrease it. 4. Tighten the lower locknut.
5. While applying the front brake, turn out the
upper adjusting bolt until the upper and lower
cable lengths are equal. The cable joint will
become vertical.
1. Front brake lever free play
1
1. Upper locknut
2. Upper adjusting bolt
3. Lower locknut
4. Lower adjusting bolt
12
4
3 (a)
(b)
UBD360E0.book Page 23 Wednesd ay, February 25, 2015 2:41 PM

8-24
8
6. Tighten the upper locknut.
TIPAfter adjusting the brake lever free play, check the
front brake shoes for wear. EBU33781Adjusting the rear brake lever free playThe rear brake lever free play must be checked
and, if necessary, adjusted at the intervals speci-
fied in the periodic maintenance and lubrication

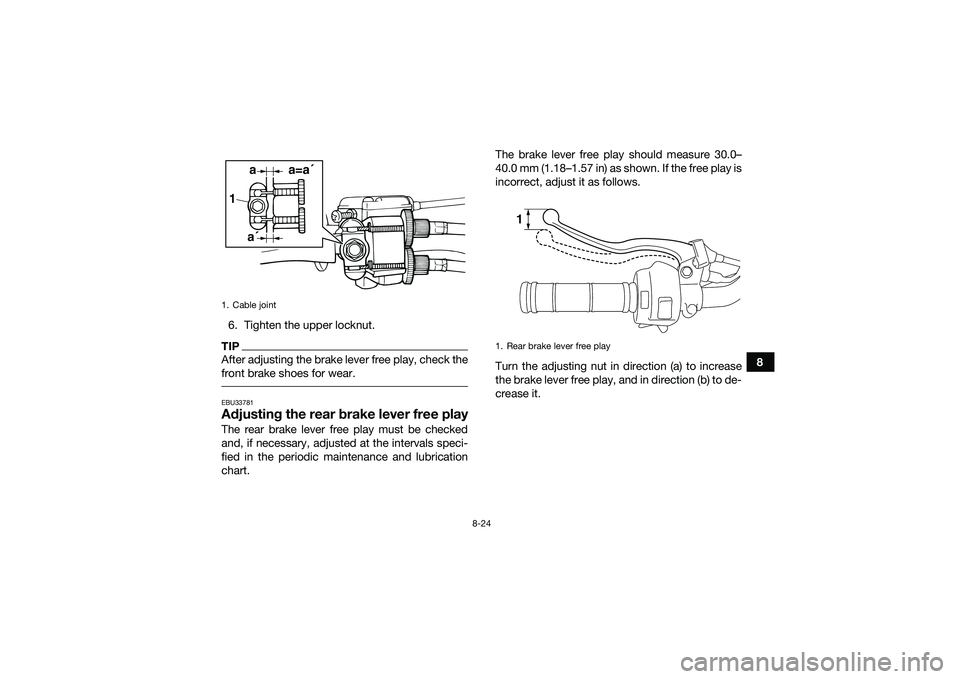

chart. The brake lever free play should measure 30.0–
40.0 mm (1.18–1.57 in) as shown. If the free play is
incorrect, adjust it as follows.
Turn the adjusting nut in direction (a) to increase
the brake lever free play, and in direction (b) to de-
crease it.1. Cable joint1
aa´
a=a´
1. Rear brake lever free play
1
UBD360E0.book Page 24 Tuesday, March 24, 2015 4:08 PM

8-25
8
TIPAfter adjusting the brake lever free play, check the
rear brake shoes for wear. EBU34012Drive chain slackThe drive chain slack should be checked before
each ride and adjusted if necessary.
To check the drive chain slack1. Place the ATV on a level surface.
TIPWhen checking and adjusting the drive chain
slack, there should be no weight on the ATV and

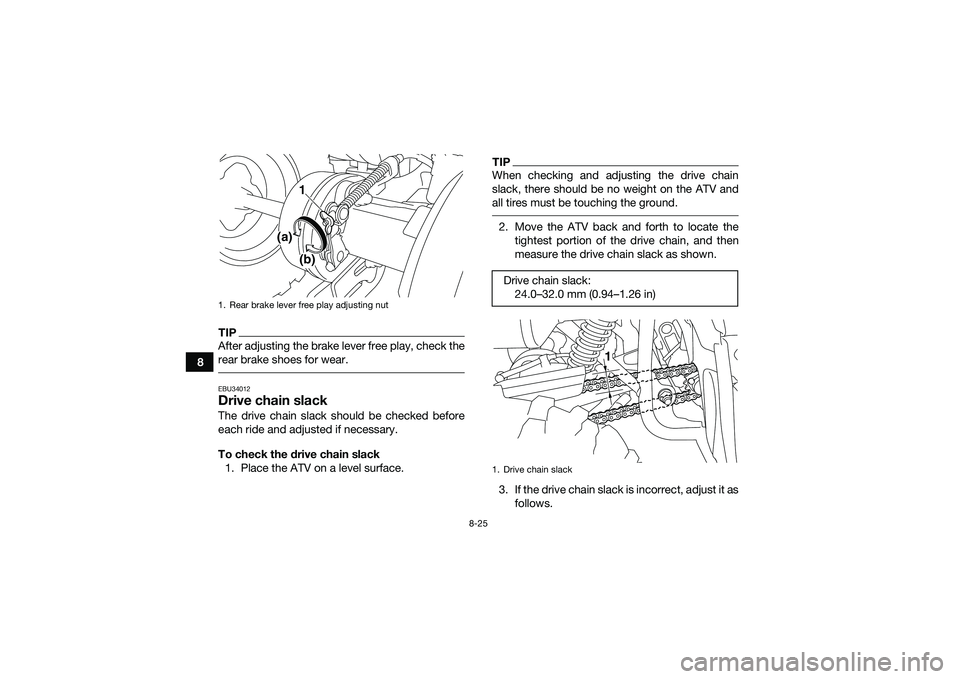

all tires must be touching the ground. 2. Move the ATV back and forth to locate the tightest portion of the drive chain, and then
measure the drive chain slack as shown.
3. If the drive chain slack is incorrect, adjust it as follows.
1. Rear brake lever free play adjusting nut
1
(a)
(b)
Drive chain slack:24.0–32.0 mm (0.94–1.26 in)1. Drive chain slack
1
