2016 YAMAHA YFM90 Owners Manual

8-10
8
TIPIf the spark plug shows a distinctly different color,
the engine could be operating improperly. Do not
attempt to diagnose such problems yourself. In-
stead, have a Yamaha dealer check the ATV. 2. Check the spark plug for electrode erosionand excessive carbon or other deposits, and
replace it if necessary.
3. Measure the spark plug gap with a wire thick- ness gauge and, if necessary, adjust the gap
to specification.
To install the spark plug1. Clean the surface of the spark plug gasket and its mating surface, and then wipe off any
grime from the spark plug threads.
2. Install the spark plug with the spark plug wrench, and then tighten it to the specified
torque.
Specified spark plug:
NGK/CR6HSA
1. Spark plug gapSpark plug gap:0.6–0.7 mm (0.024–0.028 in)
UBD360E0.book Page 10 Wednesd ay, February 25, 2015 2:41 PM

8-11
8
TIPIf a torque wrench is not available when installing
the spark plug, a good estimate of the correct
torque is 1/4–1/2 turn past finger tight. However,
the spark plug should be tightened to the speci-
fied torque as soon as possible. 3. Install the spark plug cap.EBU23269Engine oilThe engine oil level should be checked before
each ride. In addition, the oil must be changed at
the intervals specified in the periodic maintenance
and lubrication chart.
To check the engine oil level1. Place the ATV on a level surface.
2. Check the engine oil level on a cold engine.
TIPIf the engine was started before checking the oil
level, be sure to warm up the engine sufficiently,
and then wait at least ten minutes until the oil set-
tles for an accurate reading. 3. Remove the engine oil filler cap, and then wipe the engine oil dipstick off with a clean
rag.
4. Insert the dipstick into the filler hole (without screwing it in), and then remove it again to
check the oil level.
Tightening torque:
Spark plug:12 Nm (1.2 m·kgf, 8.7 ft·lbf)1. Engine oil filler cap
1
UBD360E0.book Page 11 Wednesd ay, February 25, 2015 2:41 PM

8-12
8
TIPThe engine oil should be between the minimum
and maximum level marks. 5. If the engine oil is at or below the minimumlevel mark, add sufficient oil of the recom-
mended type to raise it to the correct level.
NOTICE: Be sure the engine oil is at the
correct level, otherwise engine damage
may result.
[ECB00852]
6. Insert the dipstick into the oil filler hole, and then tighten the engine oil filler cap.
To change the engine oil 1. Place the ATV on a level surface.
2. Start the engine, warm it up for several min- utes, and then turn it off.
3. Place an oil pan under the engine to collect the used oil.
4. Remove the engine oil filler cap, and then re- move the engine oil drain bolt to drain the oil
from the crankcase. NOTICE: When remov-
ing the engine oil drain bolt, the compres-
sion spring, oil strainer and O-ring will fall
out. Take care not to lose these parts.
[ECB00312]
1. Engine oil filler cap
2. Engine oil dipstick
3. Maximum level mark
4. Minimum level mark
1342
UBD360E0.book Page 12 Wednesd ay, February 25, 2015 2:41 PM

8-13
85. Clean the oil strainer with solvent.
6. Apply a thin coat of clean engine oil to a new
O-ring.
7. Install the oil strainer, the compression spring, the new O-ring and the engine oil
drain bolt. Tighten the engine oil drain bolt to
the specified torque. NOTICE: Before in-
stalling the engine oil drain bolt, be sure to
install the O-ring, compression spring and
oil strainer.
[ECB00322]
8. Refill with the specified amount of the recom- mended engine oil, and then install and tight-
en the engine oil filler cap.TIPBe sure to wipe off spilled oil on any parts after the
engine and exhaust system have cooled down. NOTICEECB00331Do not use oils with a diesel specification of
“CD” or oils of a higher quality than speci-
fied. In addition, do not use oils labeled “EN-
ERGY CONSERVING II” or higher.
 Make sure that no foreign material enters the
crankcase.
1. Engine oil drain bolt
2. O-ring
3. Compression spring
4. Oil strainer
4321
Tightening torque:
Engine oil drain bolt:14.5 Nm (1.45 m·kgf, 10.4 ft·lbf)
Recommended oil: See page 10-1.
Oil quantity: 0.90 L (0.95 US qt, 0.79 Imp.qt)
UBD360E0.book Page 13 Wednesd ay, February 25, 2015 2:41 PM

8-14
8
9. Start the engine, and then let it idle for several
minutes while checking it for oil leakage. If oil
is leaking, immediately turn the engine off and
check for the cause.
10. Turn the engine off, wait at least ten minutes, and then check the oil level and correct it if
necessary.
EBU34471Transmission oilThe transmission case must be checked for oil
leakage before each ride. If any leakage is found,
have a Yamaha dealer check and repair the ATV.
In addition, the transmission oil must be changed
at the intervals specified in the periodic mainte-
nance and lubrication chart.
To change the transmission oil1. Place the ATV on a level surface.
2. Place an oil pan under the transmission case to collect the used oil.
3. Remove the transmission oil filler cap and its O-ring from the transmission case. 4. Remove the transmission oil drain bolt and its
gasket to drain the oil from the transmission
case.
1. Transmission oil filler cap
2. O-ring12
UBD360E0.book Page 14 Wednesd ay, February 25, 2015 2:41 PM

8-15
85. Install the transmission oil drain bolt and its
new gasket, and then tighten the bolt to the
specified torque.
6. Refill with the specified amount of the recom- mended oil. WARNING! Make sure that no
foreign material enters the transmission
case.
[EWB03550]
7. Install the transmission oil filler cap and its new O-ring, and then tighten the oil filler cap.
8. Check the transmission case for oil leakage. If oil is leaking, check for the cause.EBU34110Cleaning the air filter elementThe air filter element should be serviced at the in-
tervals specified in the periodic maintenance and
lubrication chart. Clean or, if necessary, replace
the air filter element more frequently if you are rid-
ing in unusually wet or dusty areas.TIPThere is a check hose at the bottom of the air filter
case. If dust or water collects in this hose, empty
the hose and clean the air filter element and air fil-
ter case.
1. Transmission oil drain bolt
2. GasketTightening torque:Transmission oil drain bolt:21.5 Nm (2.15 m·kgf, 15.5 ft·lbf)
12
Recommended oil:See page 10-1.
Oil quantity: 0.35 L (0.37 US qt, 0.31 Imp.qt)
UBD360E0.book Page 15 Wednesd ay, February 25, 2015 2:41 PM

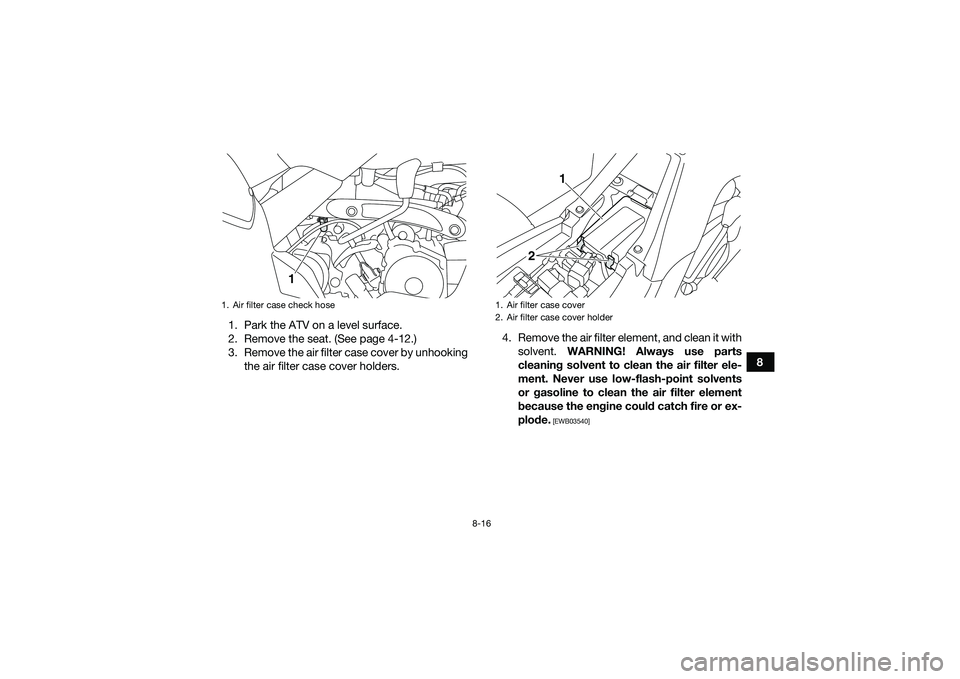

8-16
8
1. Park the ATV on a level surface.
2. Remove the seat. (See page 4-12.)
3. Remove the air filter case cover by unhooking
the air filter case cover holders. 4. Remove the air filter element, and clean it with
solvent. WARNING! Always use parts
cleaning solvent to clean the air filter ele-
ment. Never use low-flash-point solvents
or gasoline to clean the air filter element
because the engine could catch fire or ex-
plode.
[EWB03540]
1. Air filter case check hose
1
1. Air filter case cover
2. Air filter case cover holder
1
2
UBD360E0.book Page 16 Wednesd ay, February 25, 2015 2:41 PM

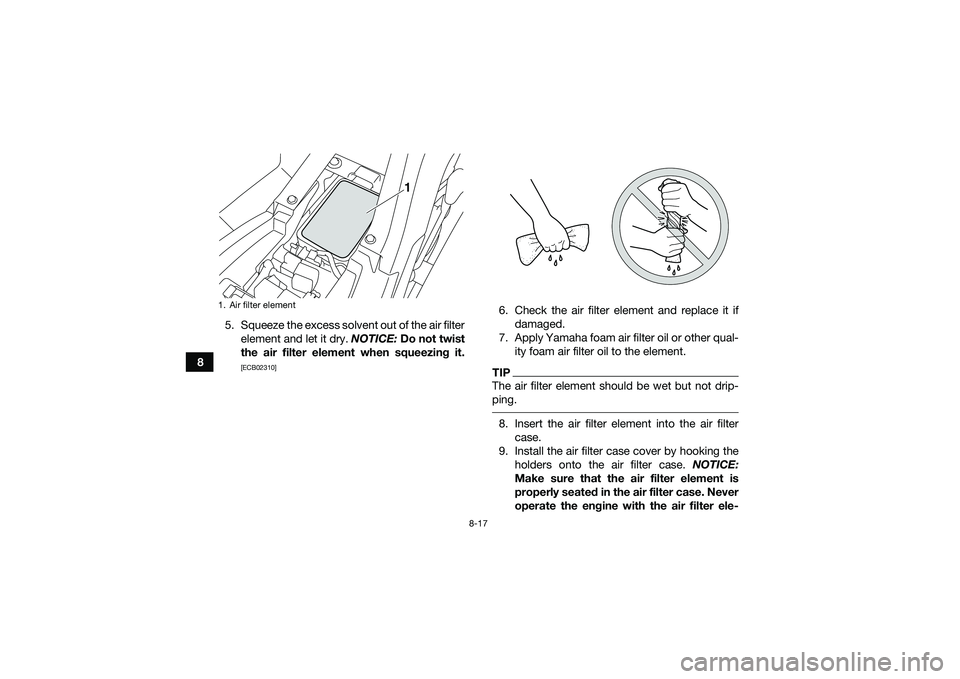

8-17
85. Squeeze the excess solvent out of the air filter
element and let it dry. NOTICE: Do not twist
the air filter element when squeezing it.
[ECB02310]
6. Check the air filter element and replace it if damaged.
7. Apply Yamaha foam air filter oil or other qual- ity foam air filter oil to the element.TIPThe air filter element should be wet but not drip-
ping. 8. Insert the air filter element into the air filtercase.
9. Install the air filter case cover by hooking the holders onto the air filter case. NOTICE:
Make sure that the air filter element is
properly seated in the air filter case. Never
operate the engine with the air filter ele-
1. Air filter element
1
UBD360E0.book Page 17 Wednesd ay, February 25, 2015 2:41 PM
