2016 TOYOTA FR-S Accessories, Audio & Navigation (in English)

113
5. SETUP
5
SETUP
3. Bluetooth® SETTINGS
1Press the button.
2Touch “Bluetooth*”.
3Touch the desired item to be set.*: Bluetooth is a registered trademark of
Bluetooth SIG, Inc.
You can confirm and change the set-
tings for Bluetooth
®.
“Bluetooth* Setup” SCREEN
No.FunctionPage
Editing the Bluetooth®
device information11 6
Connecting a Bluetooth®
device62
Registering a Bluetooth®
device11 4
Bluetooth® system set-
tings11 7
Deleting a Bluetooth®
device11 5

114
5. SETUP
1Display the “Bluetooth* Setup” screen.
(→P.113)
2Registered devices are displayed in
this screen.
*: Bluetooth is a registered trademark of
Bluetooth SIG, Inc.
Sometimes you cannot register your Blue-
tooth® device in a case that it is connect-
ing with another Bluetooth® device. Check
Your Bluetooth® device.
Check to make sure “Bluetooth
* Power”
is set to “ON” on the Bluetooth® device
before registering.
1Touch “Add” in the “Bluetooth* Setup”
screen.
2When this screen is displayed, search
for the device name displayed on this
screen on the screen of your
Bluetooth
® device.
3Input the PIN-code displayed on the
screen into your Bluetooth
® device.
A PIN-code is not required for SSP
(Secure Simple Pairing) compatible Blue-
tooth
® phones. Depending on the type of
Bluetooth® phone being connected, a
message confirming registration may be
displayed on the Bluetooth
® phone’s
screen. Respond and operate the Blue-
tooth
® phone according to the confirma-
tion message.
If you want to cancel it, touch “Cancel”.
If the Bluetooth
® phone to be registered
has a Bluetooth® audio function, this can
be registered at the same time.
4Input the PIN-code displayed on the
screen into your Bluetooth
® device.
A PIN-code is not required for SSP
(Secure Simple Pairing) compatible Blue-
tooth
® phones. Depending on the type of
Bluetooth® phone being connected, a
message confirming registration may be
displayed on the Bluetooth
® phone’s
screen. Respond and operate the Blue-
tooth
® phone according to the confirma-
tion message.
If you want to cancel it, touch “Cancel”.
If the Bluetooth
® phone to be registered
has a Bluetooth® audio function, this can
be registered at the same time.
REGISTERED DEVICE
ADDING A NEW DEVICE

115
5. SETUP
5
SETUP
5When the connection is completed,
this screen is displayed.
Once you have registered it, the system
automatically connects to your Bluetooth®
device every time you start your vehicle.
*: Bluetooth is a registered trademark of
Bluetooth SIG, Inc.
1Display the “Bluetooth* Setup” screen.
(→P.113)
2Touch “Remove”.
3Touch the desired device.
4Touch “Yes” when the confirmation
screen appears.
5Check that a confirmation screen is
displayed when the operation is
complete.
*: Bluetooth is a registered trademark of
Bluetooth SIG, Inc.
The system cannot automatically con-
nect to your Bluetooth® device if the
Bluetooth® device is connecting with
another Bluetooth® device. (For auto-
matic connection, see “CHANGING
THE Bluetooth
® POWER” on page 118.)
The system will not automatically con-
nect if the Bluetooth
® device is discon-
nected on purpose, such as when you
turn off your Bluetooth
® phone. Recon-
nect the Bluetooth® phone manually.
INFORMATION
For details on device discovery for your
Bluetooth® phone, refer to the Blue-
tooth® phone’s user’s guide.
When you register your phone, Blue-
tooth
® audio will disconnect.
If the Bluetooth
® device has Bluetooth®
phone and Bluetooth® audio functions, it
will register phone and audio simultane-
ously. If an on-screen message appears,
follow the message and register either
or both Bluetooth
® phone and/ or Blue-
tooth® audio functions.
DELETING A Bluetooth®
DEVICE
INFORMATION
When deleting a Bluetooth® phone, the
contact data will be deleted at the same
time.

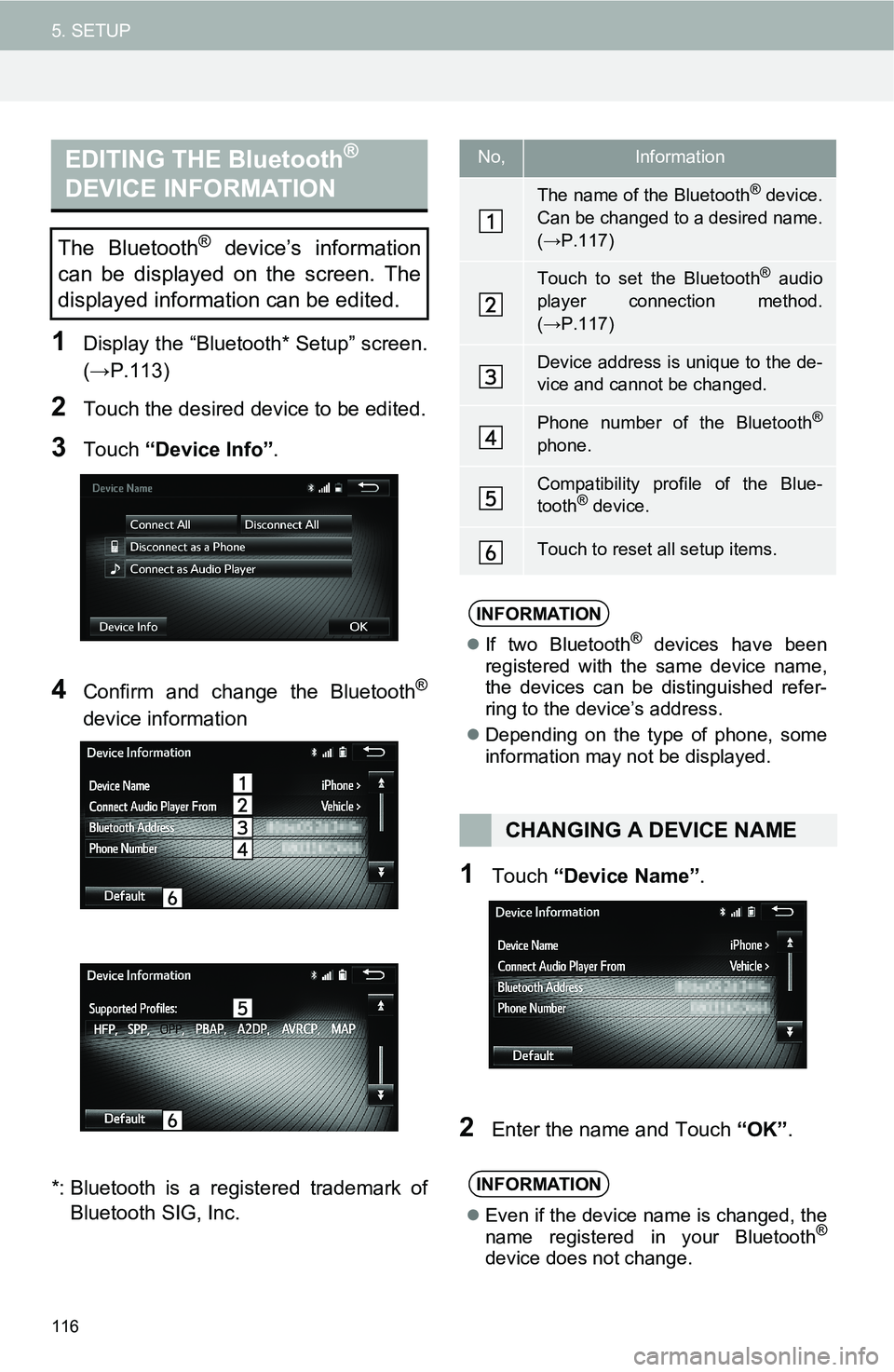

116
5. SETUP
1Display the “Bluetooth* Setup” screen.
(→P.113)
2Touch the desired device to be edited.
3Touch “Device Info”.
4Confirm and change the Bluetooth®
device information
*: Bluetooth is a registered trademark of
Bluetooth SIG, Inc.
1Touch “Device Name”.
2Enter the name and Touch “OK”.
EDITING THE Bluetooth®
DEVICE INFORMATION
The Bluetooth® device’s information
can be displayed on the screen. The
displayed information can be edited.
No,Information
The name of the Bluetooth® device.
Can be changed to a desired name.
(→P.117)
Touch to set the Bluetooth® audio
player connection method.
(→P.117)
Device address is unique to the de-
vice and cannot be changed.
Phone number of the Bluetooth®
phone.
Compatibility profile of the Blue-
tooth® device.
Touch to reset all setup items.
INFORMATION
If two Bluetooth® devices have been
registered with the same device name,
the devices can be distinguished refer-
ring to the device’s address.
Depending on the type of phone, some
information may not be displayed.
CHANGING A DEVICE NAME
INFORMATION
Even if the device name is changed, the
name registered in your Bluetooth®
device does not change.

117
5. SETUP
5
SETUP
1Touch “Connect Audio Player
From”.
“Vehicle”: Touch to connect the audio
system to the audio player.
“Device”: Touch to connect the audio
player to the audio system.
Depending on the audio player, the “Vehi-
cle” or “Device” connection method may
be best. As such, refer to the manual that
comes with the audio player.
To reset the connection method, touch
“Default”.
1Display the “Bluetooth* Setup” screen.
(→P.113)
2Touch “System Settings”.
3Touch the desired item to be set.
*: Bluetooth is a registered trademark of
Bluetooth SIG, Inc.
SETTING AUDIO PLAYER
CONNECTION METHODDETAILED Bluetooth®
SETTINGS
The Bluetooth® settings can be con-
firmed and changed.

118
5. SETUP
1Touch “Bluetooth* Power”.
When “Bluetooth* Power” is on:
Vehicles without a smart key system
The Bluetooth
® device is automatically
connected when the engine switch is
turned to the “ACC” or “ON” position.
Vehicles with a smart key system The
Bluetooth
® device is automatically con-
nected when the “POWER” <“ENGINE
START STOP”> switch is turned to AC-
CESSORY or ON
mode.
When “Bluetooth* Power” is off:
The Bluetooth
® device is disconnected,
and the system will not connect to it next
time.
*: Bluetooth is a registered trademark of
Bluetooth SIG, Inc.
1Touch “Bluetooth* Name”.
2Enter a name and touch “OK”.
*: Bluetooth is a registered trademark of
Bluetooth SIG, Inc.
1Touch “Bluetooth* PIN”.
2Enter a PIN-code and touch “OK”.
*: Bluetooth is a registered trademark of
Bluetooth SIG, Inc.
No.InformationPage
Touch to set Bluetooth®
connection on/off.11 8
Displays system name.
Can be changed to a de-
sired name.11 8
PIN-code used when the
Bluetooth® device was
registered. Can be
changed to a desired
code.
11 8
Device address is
unique to the device and
cannot be changed.

Touch to set the phone
connection status dis-
play on/off.

Touch to set the connec-
tion status display of the
audio player on/off.
Compatibility profile of
the system device.
Touch to reset all setup
items.
CHANGING THE Bluetooth®
POWER
INFORMATION
While driving, the auto connection state
can be changed from off to on, but can-
not be changed from on to off.
EDITING THE Bluetooth® NAME
EDITING THE PIN-CODE

119
5. SETUP
5
SETUP
1Touch “Display Phone Status”.
2Touch “On” or “Off”.
On: The status is displayed.
Off: The status is not displayed.
1Touch “Default”.
If the state of “Bluetooth* Power” is
changed from “Off” into “On”, Bluetooth®
connection will begin.
*: Bluetooth is a registered trademark of
Bluetooth SIG, Inc.
CHANGING THE DISPLAY
PHONE STATUS
INITIALINZING THE Bluetooth®
SETTINGS
You can initialize the settings.

120
5. SETUP
4. PHONE SETTINGS
1Press the button.
2Touch “Phone”.
3Touch the desired item to be set.
PHONE/MESSAGE SETTINGS
SCREEN
No.InformationPage
Registering/connecting a
phone87
Sound settings121
Contact/call history set-
tings122
Messaging settings129
Phone display settings130
