2016 RENAULT DUSTER Owners Manual

1.43
WARNING LIGHTS (3/7)
A
ÀOil pressure warning light
This lights up when the ignition
is switched on and goes out after a few
seconds.
If it lights up on the road and, depend-
ing on the vehicle, is accompanied by
a beep, stop immediately and cut the
ignition.
Check the oil level (refer to “Engine oil
level: general information” in Section 4).
If the level is normal, the light has come
on for another reason: Consult an au-
thorised dealer straight away.
ÉPreheating warning light (on
diesel version)
This should come on when the igni-
tion is switched on. It indicates that the
heater plugs are in operation. It goes
out after preheating is sufficient and the
engine can be started.
åAirbag warning light
This lights up when the igni-
tion is switched on and goes out after
a few seconds. If it does not light up
when the ignition is switched on, if it
lights up when the engine is running,
or if it flashes, it indicates a fault in the
system.
Contact an approved Dealer as soon as
possible.
ÚBattery charge warning light
It should go out as soon as the
engine starts.
If it comes on when you are driving, it
indicates that the circuit is overcharged
or has discharged. Stop and consult an
authorised dealer as soon as possible.
xAnti-lock braking warning
light
This lights up when the ignition is
switched on and goes out after a few
seconds.
If it does not go out after the ignition is
switched on, or lights up when driving,
there is a fault with the ABS. Braking
will then be as normal, without the ABS
system.
Contact an approved Dealer as soon as
possible.
LLow fuel level warning light This comes on when the igni-
tion is switched on and goes out after
a few seconds. If it comes on when
driving and, depending on the vehicle,
is accompanied by a beep, fill up with
fuel as soon as possible. There is only
approximately 30 miles (50 km) worth
of fuel left after the warning light first
comes on.
The presence and operation of the warning lights DEPEND ON THE EQUIPMENT\
AND COUNTRY.

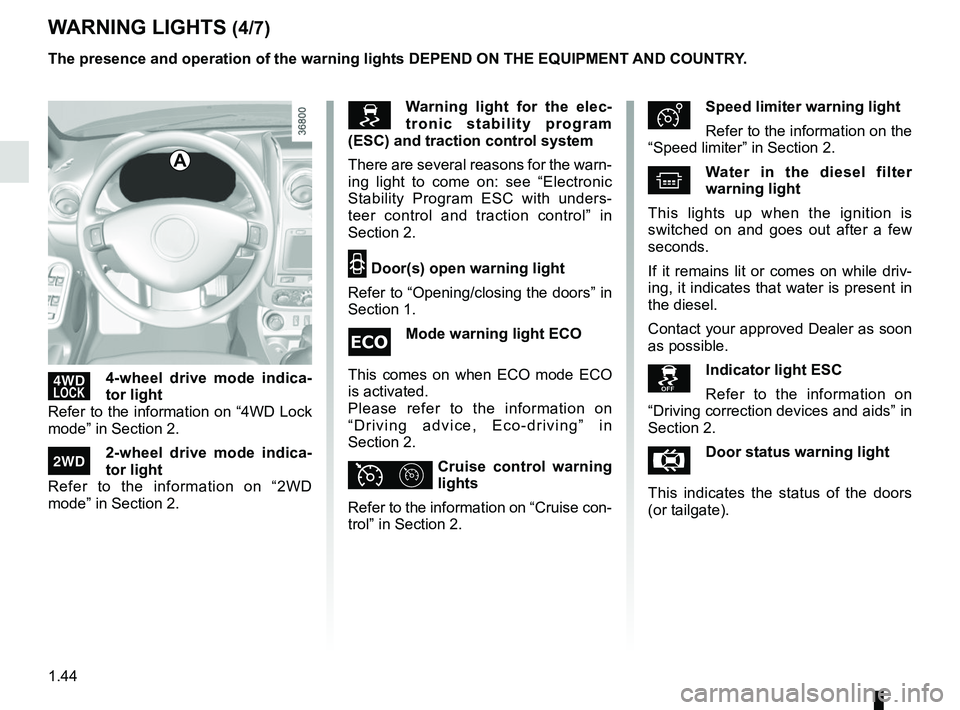

1.44
’4-wheel drive mode indica-
tor light
Refer to the information on “4WD Lock
mode” in Section 2.
‘2-wheel drive mode indica-
tor light
Refer to the information on “2WD
mode” in Section 2.
ÐSpeed limiter warning light
Refer to the information on the
“Speed limiter” in Section 2.
^Water in the diesel filter
warning light
This lights up when the ignition is
switched on and goes out after a few
seconds.
If it remains lit or comes on while driv-
ing, it indicates that water is present in
the diesel.
Contact your approved Dealer as soon
as possible.
Indicator light ESC
Refer to the information on
“Driving correction devices and aids” in
Section 2.
ÅDoor status warning light
This indicates the status of the doors
(or tailgate).
WARNING LIGHTS (4/7)
A
Warning light for the elec-
tronic stability program
(ESC) and traction control system
There are several reasons for the warn-
ing light to come on: see “Electronic
Stability Program ESC with unders-
teer control and traction control” in
Section 2.
2 Door(s) open warning light
Refer to “Opening/closing the doors” in
Section 1.
Mode warning light ECO

This comes on when ECO mode ECO
is activated.
Please refer to the information on
“Driving advice, Eco-driving” in
Section 2.
ϦCruise control warning
lights
Refer to the information on “Cruise con-
trol” in Section 2.
The presence and operation of the warning lights DEPEND ON THE EQUIPMENT\
AND COUNTRY.

1.45
áMain beam headlight tell-tale
light
kDipped beam headlight tell-
tale
gFront fog light tell-tale light
fRear fog light tell-tale
cLeft-hand direction indicator
tell-tale
bRight-hand direction indica-
tor tell-tale
ä æGear change indicator
This lights up to advise
you to change to a higher gear (up
arrow) or lower gear (down arrow).
Excess speed warning light
A beep will sound and the warn-
ing light will come on if the vehicle ex-
ceeds 70 mph (120 km/h).
The presence and operation of the warning lights DEPEND ON THE EQUIPMENT\
AND COUNTRY.
A
#Engine oil change warning
light
This lights up on the instrument panel
when an oil change is required.
Change the oil or have it changed as
soon as possible.
Only the distance travelled between two
oil changes is taken into account; the
time interval between two oil changes
is not.
The oil should always be changed
when the first threshold is reached, i.e.
either the distance travelled or the inter-
val specified in your vehicle’s mainte-
nance document. This means you may
have to change the oil before the warn-
ing light comes on.
Refer to the information on the “Oil
change” in Section 4.
VRear screen de-icing/de-
misting indicator light
dDirection indicator tell-tale
light
êEngine immobiliser system
warning light
This light performs several functions.
Refer to the information on the “Engine
immobiliser” in Section 1.
WARNING LIGHTS (5/7)

1.46
6
Electronic fault or diesel
preheating warning light
With the ignition switched on,
this light comes on; it indicates that the
heater plugs are operating.
It goes out after preheating is sufficient
and the engine can be started.
If it remains lit or comes on when you
are driving, it indicates an electrical or
electronic fault. Contact an approved
dealer as soon as possible.
ÆSTOP light
This lights up when the ignition
is switched on and goes out as soon as
the engine is started. It lights up at the
same time as other warning lights, and
is accompanied by a beep.
It requires you to stop immediately, for
your own safety, as soon as traffic con-
ditions allow.
Switch off the engine and do not restart
it.
Consult an approved dealer.
ÄWarning light for monitoring
exhaust gas
It comes on when the ignition is
switched on and then goes out.
– If it lights up continuously, consult an authorised dealer as soon as possi-
ble;
– If it flashes, reduce the engine speed until the light stops flashing. Contact
your approved Dealer as soon as
possible.
Please refer to the information on
“Maintenance and anti-pollution advice”
in Section 2.
ùIndicator light ESC
See “Electronic Stability
Program ESC with understeer control
and traction control” in Section 2.
Tyre pressure loss warning
Please refer to the information
on the “Tyre pressure loss warning” in
Section 2.
Engine standby warning
light
Please see information in the para-
graph on “Stop and Start Function” in
Section 2.
\bUnavailability of engine
standby warning light
Please see information in the para-
graph on “Stop and Start Function” in
Section 2.
ÜNot used.
îNot used.
A
The presence and operation of the warning lights DEPEND ON THE EQUIPMENT\
AND COUNTRY.
WARNING LIGHTS (6/7)

1.47
WARNING LIGHTS (7/7)
Warning lights on console B
]Front passenger air bag de-
activation warning light.
Refer to the information on “Child
safety: deactivating, activating the front
passenger airbag".
B
ßSeat belt reminder light
It comes on when the engine
is started if the driver and/or passenger
seat belt is not fastened (depending on
the vehicle). When the vehicle is being
driven, it comes on and a beep sounds
for approximately 2 minutes until the
driver’s seat belt is fastened.
The presence and operation of the warning lights DEPEND ON THE EQUIPMENT\
AND COUNTRY.

1.48
DISPLAY AND INDICATORS (1/2)
Speedometer 2 (kph or mph)
12
Rev counter 1 (rpm x 1,000)Automatic gearbox display 3
This indicates the gear engaged. Refer
to information on the “Automatic gear-
box” in Section 2.
3

1.49
DISPLAY AND INDICATORS (2/2)
In 4x4 ( 4WD) mode on rough ter-
rain, there is a risk that incorrect in-
formation on the fuel level may be
displayed. Wait until you are on flat
ground again for a stable reading of
the oil level indicators.
Fuel gauge warning light 4
or 5
The number of squares lit shows the
fuel level. When it is at minimum, the
squares disappear and the low fuel
level warning light comes on, depen-
ding on the vehicle.
Trip computer and warning
system A or B
Refer to the information on the “Trip
computer and warning system” in
Section 1.
45
AB

1.50
ON-BOARD COMPUTER (1/6)
1
2
The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT \
AND COUNTRY.
Trip computer and warning
system 1
Display selection key 2
Press button 2 to repeatedly to scroll
through the following information:
a) Total mileage recorder
b) Trip mileage recorder
c) Fuel consumed
d) Average fuel consumption
e) Current fuel consumption f) Estimated range
g) Distance travelled
h) Average speed
i) Oil change interval
j) Reset the tyre pressure
k) speed limiter.
l) Time
m) Outside temperature information.
Refer to the table on the following
pages showing display examples.
Resetting the trip mileage
To reset the trip mileage recorder, the
display must show the Trip mileometer
function.
Press and hold button
2.
