5.23
INDICATOR LIGHTS: changing bulbs
Unclip indicator light 1 (using a flat-
blade screwdriver or similar positioned
at A to move the indicator light towards
the outside of the vehicle).
Turn bulb holder 2 a quarter of a turn
(movement B ) and take out bulb 3
(movement C).
Bulb type: WY5W.
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.
A
1
B
2
3
C

5.24

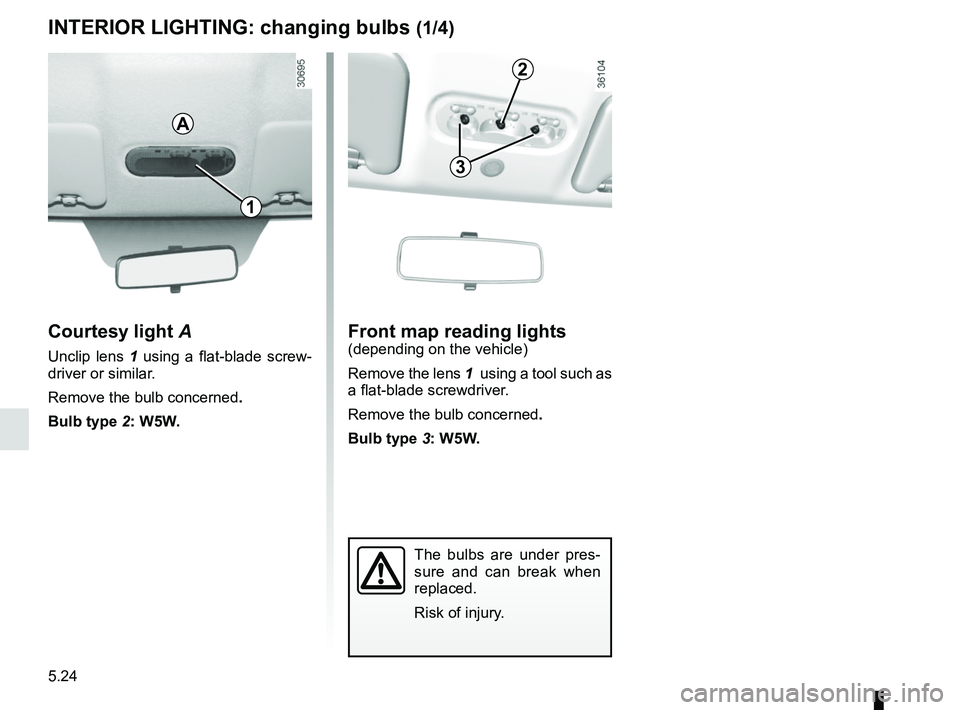

INTERIOR LIGHTING: changing bulbs (1/4)
Courtesy light A
Unclip lens 1 using a flat-blade screw-
driver or similar.
Remove the bulb concerned .
Bulb type 2: W5W.
Front map reading lights(depending on the vehicle)
Remove the lens 1 using a tool such as
a flat-blade screwdriver.
Remove the bulb concerned .
Bulb type 3: W5W.
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.
1
2
3
A

5.25

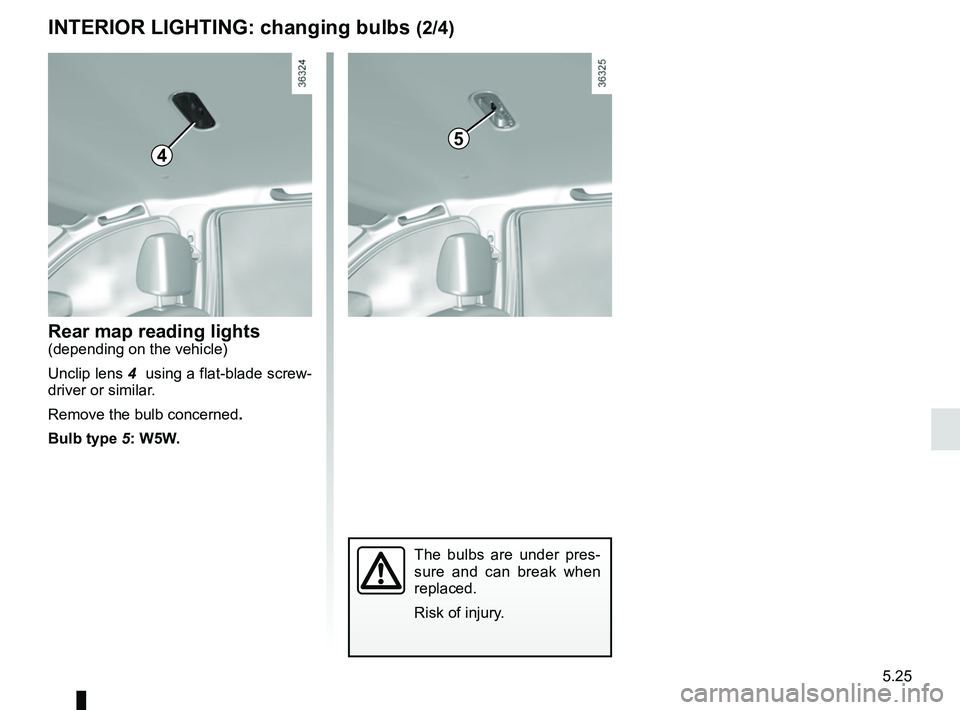

INTERIOR LIGHTING: changing bulbs (2/4)
Rear map reading lights(depending on the vehicle)
Unclip lens 4 using a flat-blade screw-
driver or similar.
Remove the bulb concerned .
Bulb type 5: W5W.
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.
45

5.26
INTERIOR LIGHTING: changing bulbs (3/4)
Glove box light(depending on the vehicle)
Unclip light 6 using a flat-blade screw-
driver or similar, by pressing on the tab
to move the light towards the inside of
the unit.
Disconnect the light. Press the tab 7
to release the lens 9
and gain access to the bulb 8.
Type of bulb 8: W5W.
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.
789
6

5.27

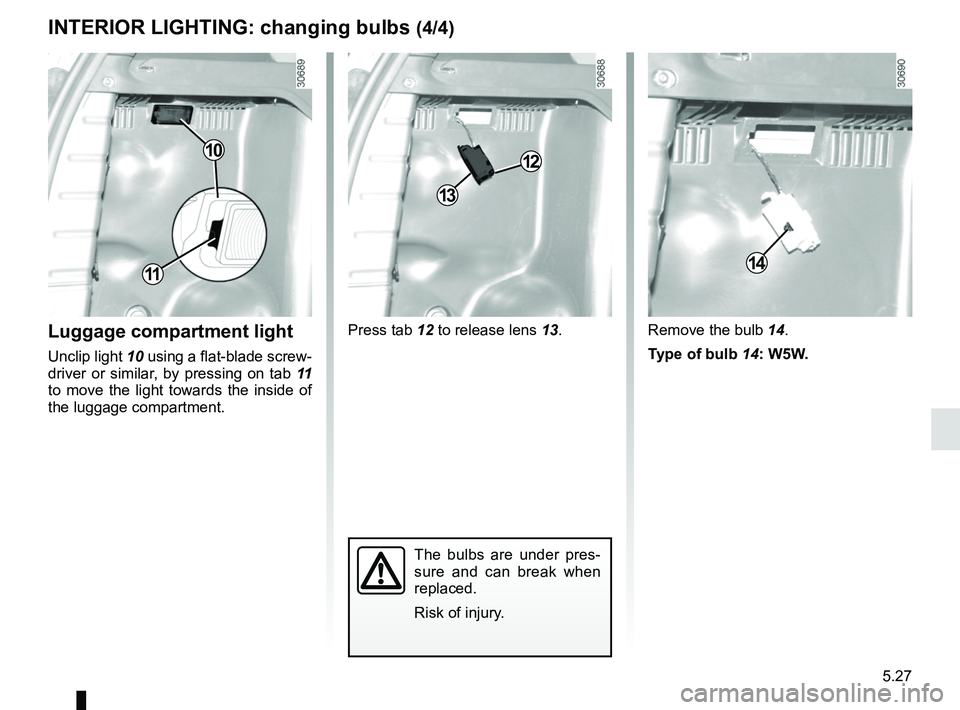

INTERIOR LIGHTING: changing bulbs (4/4)
Luggage compartment light
Unclip light 10 using a flat-blade screw-
driver or similar, by pressing on tab 11
to move the light towards the inside of
the luggage compartment. Press tab 12 to release lens
13.Remove the bulb 14.
Type of bulb 14: W5W.
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.
10
11
13
14
12

5.28
Passenger compartment fuses
If any electrical component does not
work, check the condition of the fuses.
Unclip flap A using notch 1 to help you.
Depending on the vehicle, to identify
the fuses, refer to the fuse allocation
label located at the back of the flap A
and shown on the following pages.
Check the fuse in question
and replace it, if necessary,
with a fuse of the same
rating.
If a fuse is fitted where the rating is
too high, it may cause the electrical
circuit to overheat (risk of fire) in the
event of an item of equipment using
an excessive amount of current.
To comply with current legislation,
or as a precaution, you can obtain
an emergency kit from your appro-
ved Dealer containing a set of spare
bulbs and fuses.

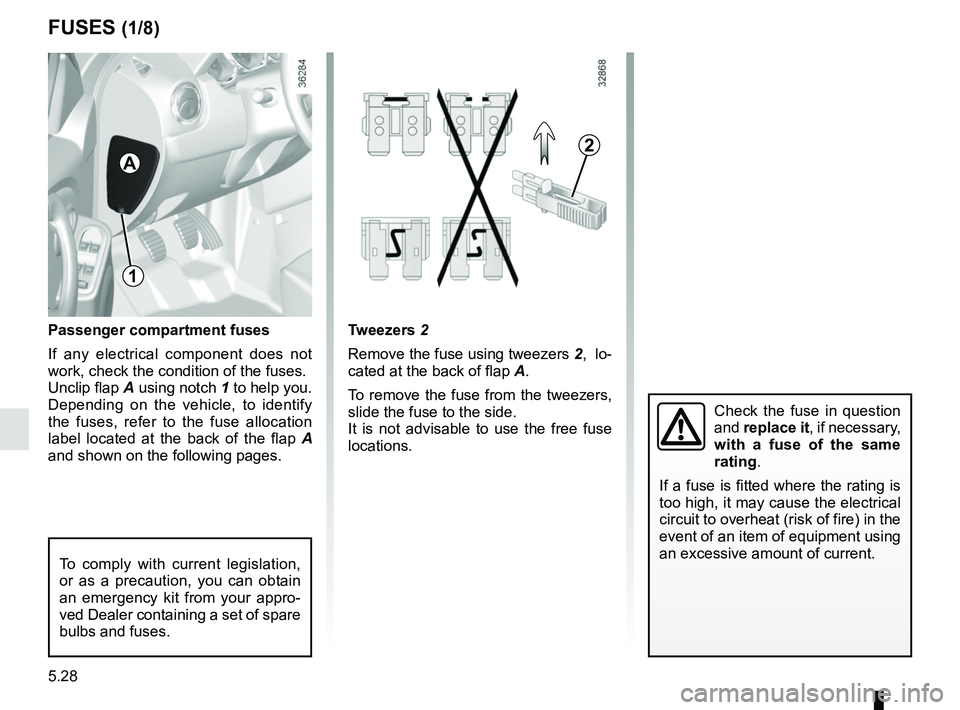

FUSES (1/8)
Tweezers 2
Remove the fuse using tweezers 2, lo-
cated at the back of flap A.
To remove the fuse from the tweezers,
slide the fuse to the side.
It is not advisable to use the free fuse
locations.
2
1
A

5.29
FUSES (2/8)
Fuses in engine compartment B
Some functions are protected by fuses
located in the engine compartment
(unit B).
However, because of their reduced
accessibility, we advise you to have
your fuses replaced by an approved
dealer.
B
Special features of LPG versions
The specific LPG circuit shut-off fuse 3
is located in the box B.
3
When working in the engine
compartment, ensure that
the windscreen wiper stalk
is in the park position.
Risk of injury.
Deactivate the Stop and
Start function for any opera-
tion performed in the engine
compartment.

5.30

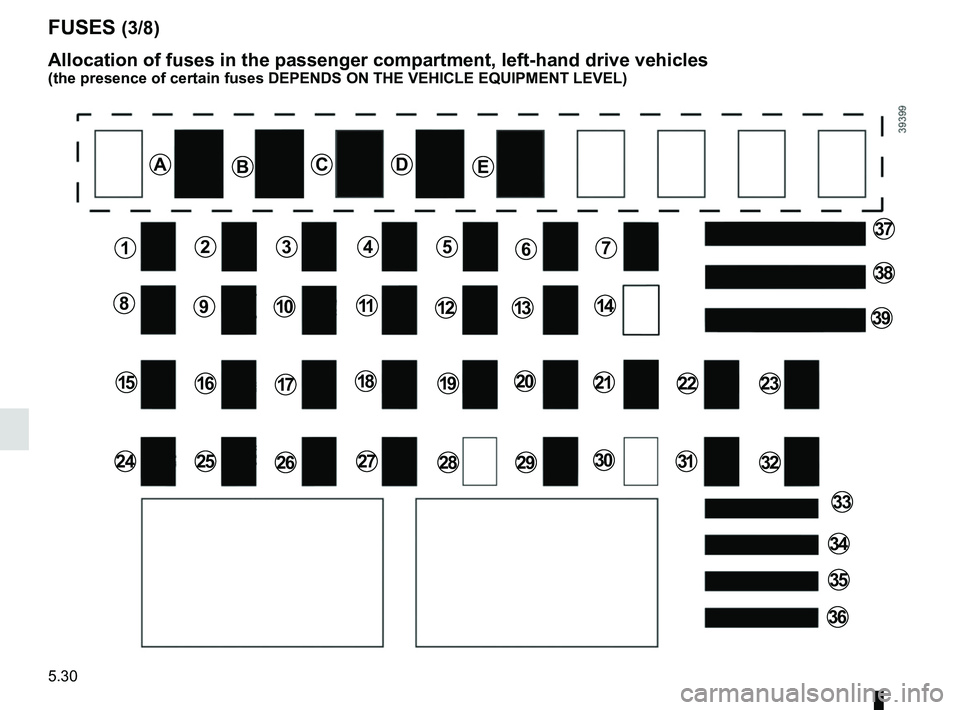

FUSES (3/8)
Allocation of fuses in the passenger compartment, left-hand drive vehicl\
es
(the presence of certain fuses DEPENDS ON THE VEHICLE EQUIPMENT LEVEL)\
ABCDE
1
8
15
24
2
9
16
25
3
10
17
26
4
11
18
27
5
12
19
28
6
13
20
29
7
14
21
30
22
31
23
32
37
38
39
33
34
35
36
