2016 RENAULT DUSTER Owners Manual

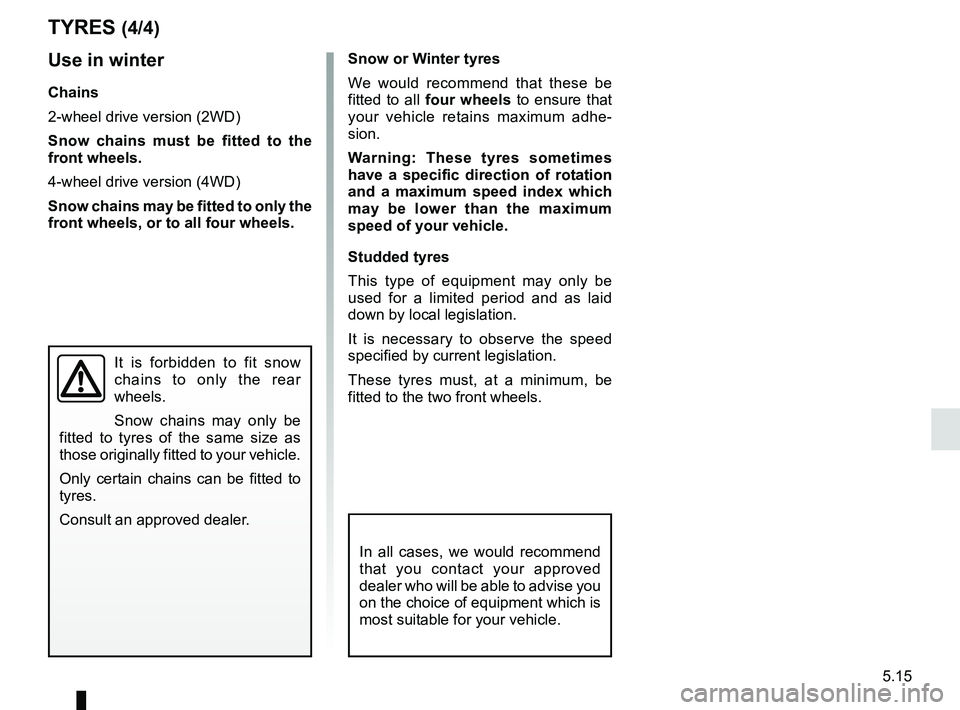

5.15
TYRES (4/4)
Snow or Winter tyres
We would recommend that these be
fitted to all four wheels to ensure that
your vehicle retains maximum adhe-
sion.
Warning: These tyres sometimes
have a specific direction of rotation
and a maximum speed index which
may be lower than the maximum
speed of your vehicle.
Studded tyres
This type of equipment may only be
used for a limited period and as laid
down by local legislation.
It is necessary to observe the speed
specified by current legislation.
These tyres must, at a minimum, be
fitted to the two front wheels.
In all cases, we would recommend
that you contact your approved
dealer who will be able to advise you
on the choice of equipment which is
most suitable for your vehicle.
Use in winter
Chains
2-wheel drive version (2WD)
Snow chains must be fitted to the
front wheels.
4-wheel drive version (4WD)
Snow chains may be fitted to only the
front wheels, or to all four wheels.
It is forbidden to fit snow
chains to only the rear
wheels.
Snow chains may only be
fitted to tyres of the same size as
those originally fitted to your vehicle.
Only certain chains can be fitted to
tyres.
Consult an approved dealer.

5.16
FRONT LIGHTS: changing bulbs
Dipped beams
Remove cover A.
Tilt bulb holder 5 to release it and then
replace the bulb.
Bulb type: H7.
Main beam headlightRemove cover B.
Remove the bulb connector 2. Unclip
the spring 3 and take out the bulb.
Bulb type: H1. It is essential to use anti-U.V. 55W
bulbs so as not to damage the plastic
on the headlights.
Do not touch the bulb glass. Hold it
by its base.
Mark the bulb’s position before remo-
val to ensure correct positioning when
replacing.
When the bulb has been changed,
make sure you refit the cover correctly.
Daytime running light, front
side light
Turn the bulb holder a quarter of a
turn 1 and take out the bulb.
Bulb type: W21/5W.
Direction indicator lights
Turn the bulb holder 4 a quarter of a
turn and take out the bulb.
Bulb type: PY21W.A
B
5
1
3
2
4
The engine may be hot
during operations in close
proximity. In addition, the
engine cooling fan may
come on at any moment.
Risk of injury.
To comply with current legislation,
or as a precaution, you can obtain
an emergency kit from your appro-
ved dealer containing a set of spare
bulbs and fuses.
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.

5.17
Additional lights
If you wish to fit fog lights to your ve-
hicle, please see an authorised dealer.
FOG LIGHTS: changing bulbs
Front fog lights 1
Consult an approved dealer.
Bulb type: H16
or depending on vehicle, H11.
Any operation on (or modi-
fication to) the electrical
system must be performed
by an approved Dealer
since an incorrect connection might
damage the electrical equipment
(harness, components and in partic-
ular the alternator). In addition, your
Dealer has all the parts required for
fitting these units.
The engine may be hot
during operations in close
proximity. In addition, the
engine cooling fan may
come on at any moment.
Risk of injury.
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.
1
To comply with local legislation, or
as a precaution, you can obtain an
emergency kit containing a set of
spare bulbs and fuses from an ap-
proved Dealer.
Rear fog lights 2(depending on vehicle)
Consult an approved dealer.
Bulb type: P21W.
2

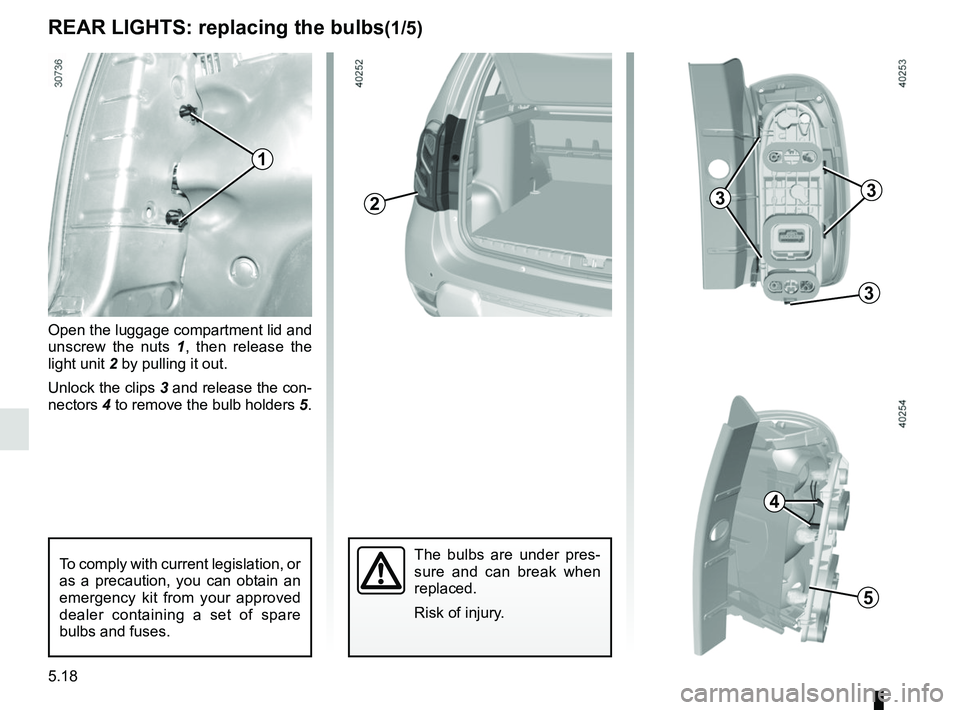

5.18
REAR LIGHTS: replacing the bulbs(1/5)
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.
1
233
3
4
5
Open the luggage compartment lid and
unscrew the nuts 1, then release the
light unit 2 by pulling it out.
Unlock the clips 3 and release the con-
nectors 4 to remove the bulb holders 5.
To comply with current legislation, or
as a precaution, you can obtain an
emergency kit from your approved
dealer containing a set of spare
bulbs and fuses.

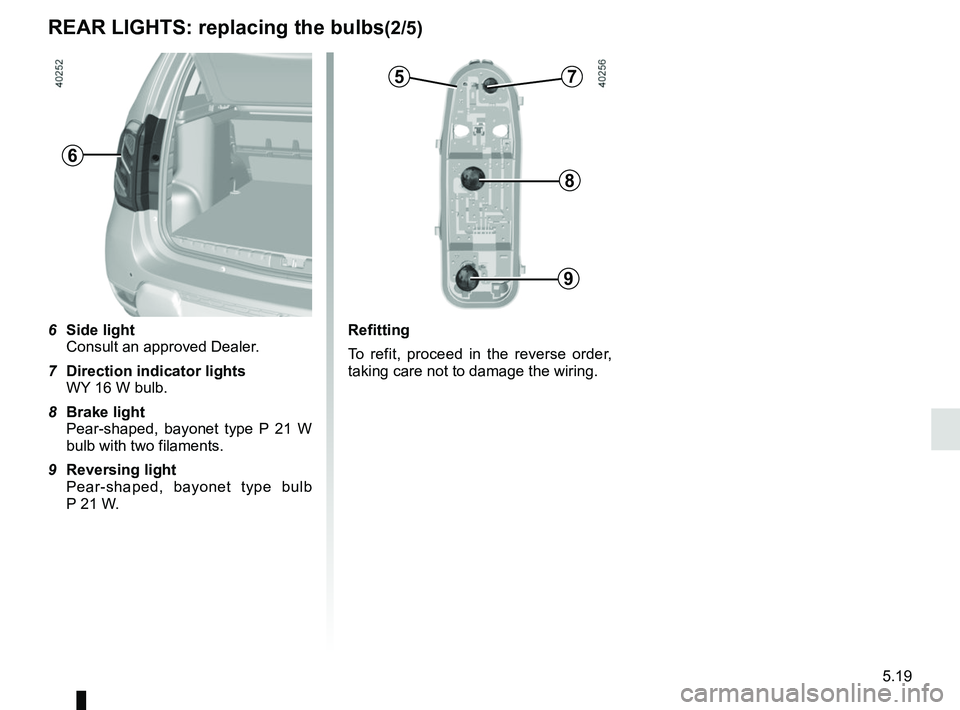

5.19
REAR LIGHTS: replacing the bulbs(2/5)
6 Side light
Consult an approved Dealer.
7 Direction indicator lights
WY 16 W bulb.
8 Brake light
Pear-shaped, bayonet type P 21 W
bulb with two filaments.
9 Reversing light
Pear-shaped, bayonet type bulb
P 21 W.
6
Refitting
To refit, proceed in the reverse order,
taking care not to damage the wiring.
7
8
9
5

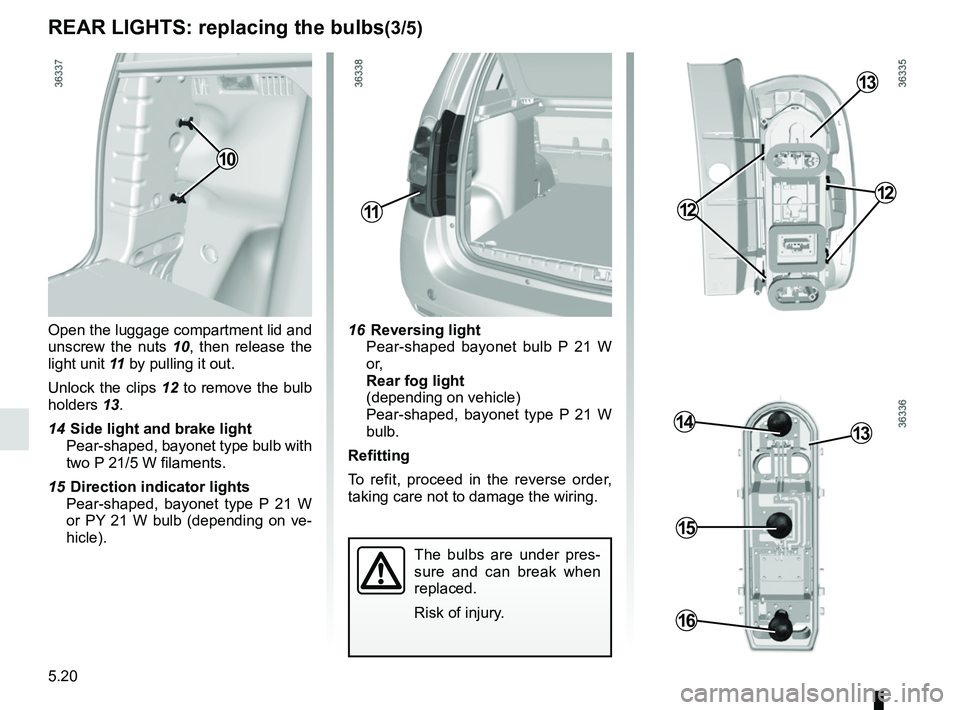

5.20
REAR LIGHTS: replacing the bulbs(3/5)
Open the luggage compartment lid and
unscrew the nuts 10, then release the
light unit 11 by pulling it out.
Unlock the clips 12 to remove the bulb
holders 13.
14 Side light and brake light
Pear-shaped, bayonet type bulb with
two P 21/5 W filaments.
15 Direction indicator lights
Pear-shaped, bayonet type P 21 W
or PY 21 W bulb (depending on ve-
hicle). 16
Reversing light
Pear-shaped bayonet bulb P 21 W
or,
Rear fog light
(depending on vehicle)
Pear-shaped, bayonet type P 21 W
bulb.
Refitting
To refit, proceed in the reverse order,
taking care not to damage the wiring.
10
111212
13
14
15
16
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.
13

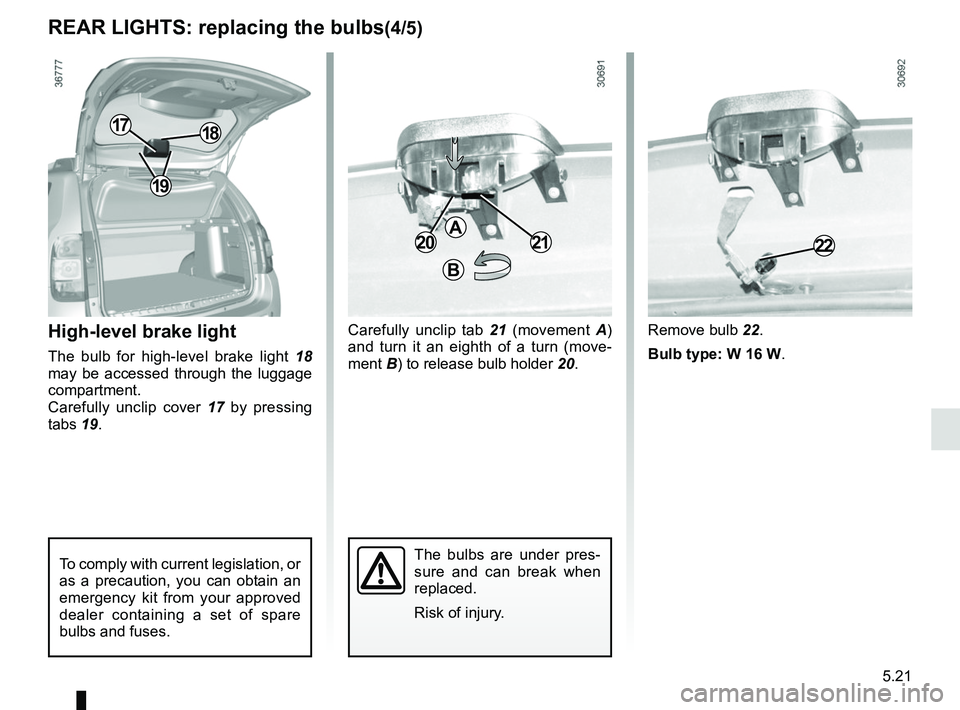

5.21
REAR LIGHTS: replacing the bulbs(4/5)
High-level brake light
The bulb for high-level brake light 18
may be accessed through the luggage
compartment.
Carefully unclip cover 17 by pressing
tabs 19. Carefully unclip tab
21 (movement A)
and turn it an eighth of a turn (move-
ment B) to release bulb holder 20.Remove bulb
22.
Bulb type: W 16 W.
1718
19
20A
B
2122
To comply with current legislation, or
as a precaution, you can obtain an
emergency kit from your approved
dealer containing a set of spare
bulbs and fuses.The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.

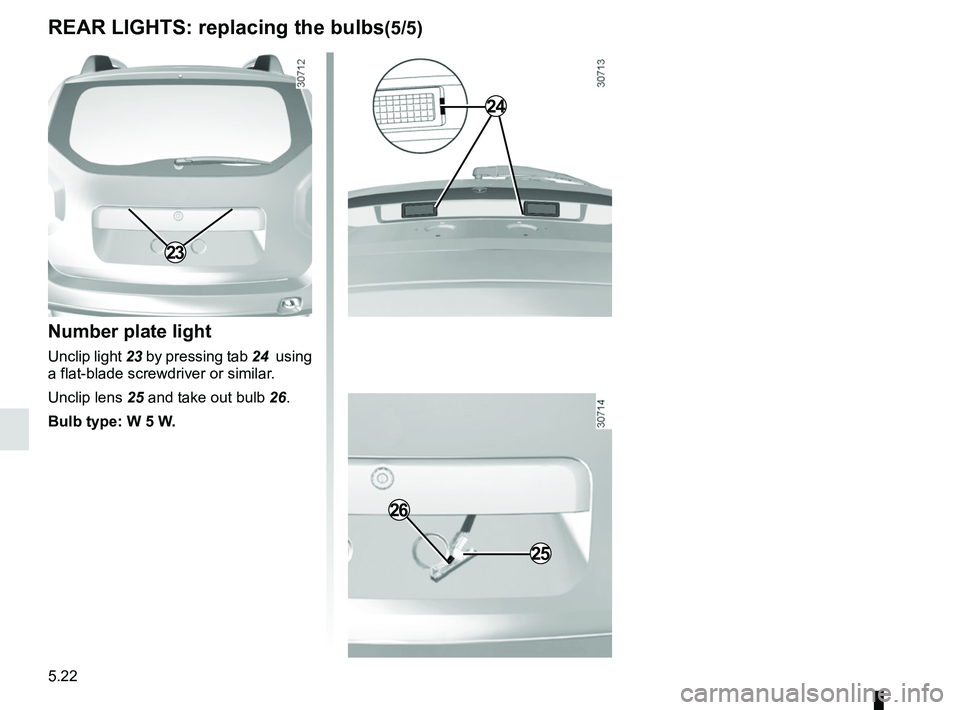

5.22
REAR LIGHTS: replacing the bulbs(5/5)
Number plate light
Unclip light 23 by pressing tab 24 using
a flat-blade screwdriver or similar.
Unclip lens 25 and take out bulb 26.
Bulb type: W 5 W.
23
24
25
26
