2016 RENAULT DUSTER Owners Manual

2.13
SPECIAL FEATURES OF LPG VERSIONS (2/3)
Changing fuel while driving
To switch from petrol to LPG
Press control C. The vehicle will switch to LPG the next time the accelerator
pedal is pressed.
The LPG fuel level A is activated. The
yellow warning light B goes out and the
green warning light D flashes quickly to
confirm that LPG has been selected,
then stops flashing when LPG mode is
active.
Pressing control C stops the beep from
sounding and only the yellow warning
light B stays on.
To switch from LPG to petrol.
Release the accelerator pedal and
press the control C.
Petrol mode is indicated by the yellow
warning light B. Automatic switch to petrol
The system automatically switches to
petrol mode if there is no more LPG
remaining in the tank. You will be in-
formed by:
– the green
D and yellow B warning
lights coming on;
– a beep sounds.
Pressing control C stops the beep from
sounding and only the yellow warning
light B stays on.
Depending on the vehicle, under certain
conditions of use, the system may opt to
temporarily switch back to petrol mode
(the green warning light D flashes wi-
thout any beep sounding, for example,
during strong acceleration). Once the
suitable conditions are present once
again, it will automatically switch back
to LPG mode. After several unsuccess-
ful attempts, the system may decide to
remain in petrol mode for the current
driving session. A further attempt may
be made after the engine has been at a
complete stop for 1 minute.
DCB
A
C

2.14
SPECIAL FEATURES OF LPG VERSIONS (3/3)
If driving under severe
conditions
If driving under severe conditions (hea-
vily laden vehicle, high outside tempe-
rature, starting on a steep slope, etc),
you are recommended to switch to
petrol mode.
At temperatures close to 0°C or less, it
is recommended to use ECO mode to
maximise the use of LPG. Please refer
to the information on “Driving advice,
Eco-driving” in Section 2.
In the event of an accident
The main precautions to be taken are
the same as with petrol vehicles:
– apply the handbrake;
– stop the engine (a safety device that stops LPG from entering the engine
is automatically triggered);
– switch off the ignition;
– observe local regulations.
LPG has a very specific
smell so you will be able to
detect any leaks easily. If
you smell gas in your vehi-
cle or immediately surrounding your
vehicle:
– switch to petrol mode immedia- tely and make sure there are no
flames or sources of fire near the
vehicle;
– go to an authorised dealer.
Do not touch, hit or dis-
mantle any part of the LPG
system components.
Operating fault
In the event of a fault which may affect
the correct operation of the engine, the
system automatically switches from
LPG to petrol mode.
This is confirmed by:
– the appearance of the yellow war- ning light B;
– slow flashing of the green warning light D;
– a beep sounds.

2.15

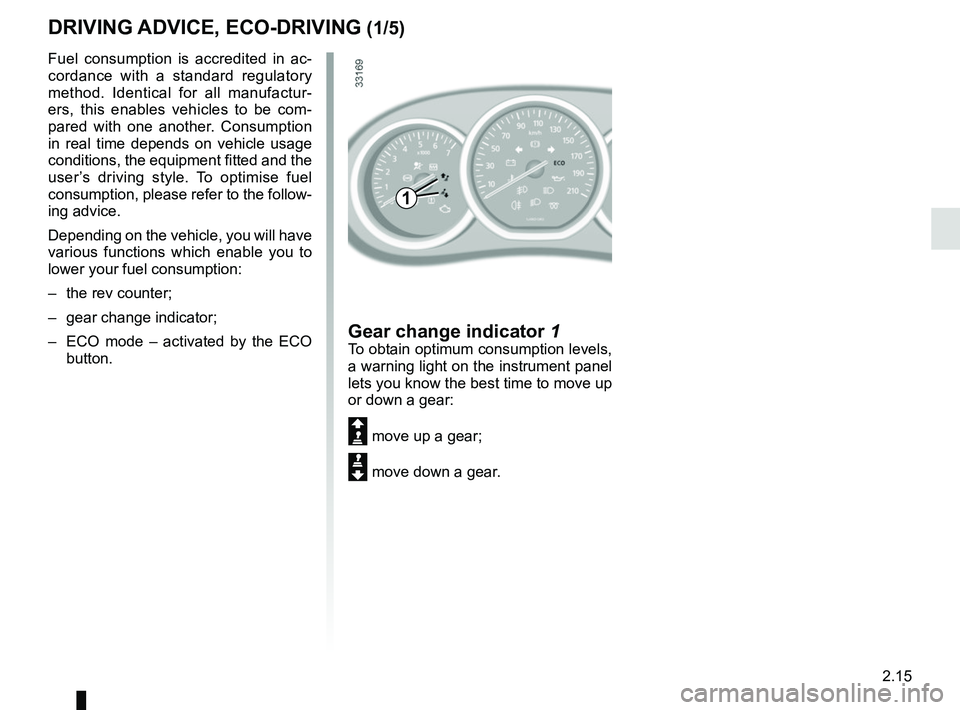

Fuel consumption is accredited in ac-
cordance with a standard regulatory
method. Identical for all manufactur-
ers, this enables vehicles to be com-
pared with one another. Consumption
in real time depends on vehicle usage
conditions, the equipment fitted and the
user’s driving style. To optimise fuel
consumption, please refer to the follow-
ing advice.
Depending on the vehicle, you will have
various functions which enable you to
lower your fuel consumption:
– the rev counter;
– gear change indicator;
– ECO mode – activated by the ECO button.
Gear change indicator 1To obtain optimum consumption levels,
a warning light on the instrument panel
lets you know the best time to move up
or down a gear:
Š move up a gear;
‰ move down a gear.
DRIVING ADVICE, ECO-DRIVING (1/5)
1

2.16
DRIVING ADVICE, ECO-DRIVING (2/5)
ECO mode
ECO mode is a function which opti-
mises fuel consumption. This acts on
certain consumption components, such
as the engine.
Activating the function
Press switch 3.
The 2
 warning light comes on on
the instrument panel to confirm activa-
tion.
While driving, it is possible to leave the
ECO mode temporarily in order to im-
prove engine performance.
To do this, press the accelerator pedal
firmly and fully.
ECO mode is reactivated when you
take pressure off the accelerator pedal.
Disabling the function
Press switch 3.
The 2
 light goes out on the in-
strument panel to confirm deactivation.
2
3

2.17
DRIVING ADVICE, ECO-DRIVING (3/5)
– Avoid sudden acceleration.
– Brake as little as possible. If you an-ticipate an obstacle or bend in ad-
vance, you may then simply release
the accelerator pedal.
– Do not try to maintain the same speed up a hill, accelerate no more
than you would on the level. Keep
your foot in the same position on the
accelerator pedal.
– Double declutching and accelerating before switching off are unnecessary
in modern vehicles.
On versions with an automatic gear-
box, it is preferable to keep the gear
lever in position D.
Vehicles with 4x4 (4WD) trans-
mission
On flat, level ground, with the vehi-
cle unladen, you are recommended
to start in second gear.
Driving advice, Eco-driving
Behaviour
– Drive carefully for the first few miles
until the engine reaches its normal
operating temperature, rather than
let it warm up while the vehicle is sta-
tionary.
– Speed is expensive.
– Sporty driving uses a lot of fuel: drive with a light right foot.
– Do not overrev the engine in the in- termediate gears.
You should always use the highest gear possible.
Driving problems
On the driver’s side, only
use mats specially adapted
for the vehicle and attached
to prefitted devices. Check regularly
to make sure they are secure. Do
not overlay several mats.
Risk of pedals jamming .

2.18
DRIVING ADVICE, ECO-DRIVING (4/5)

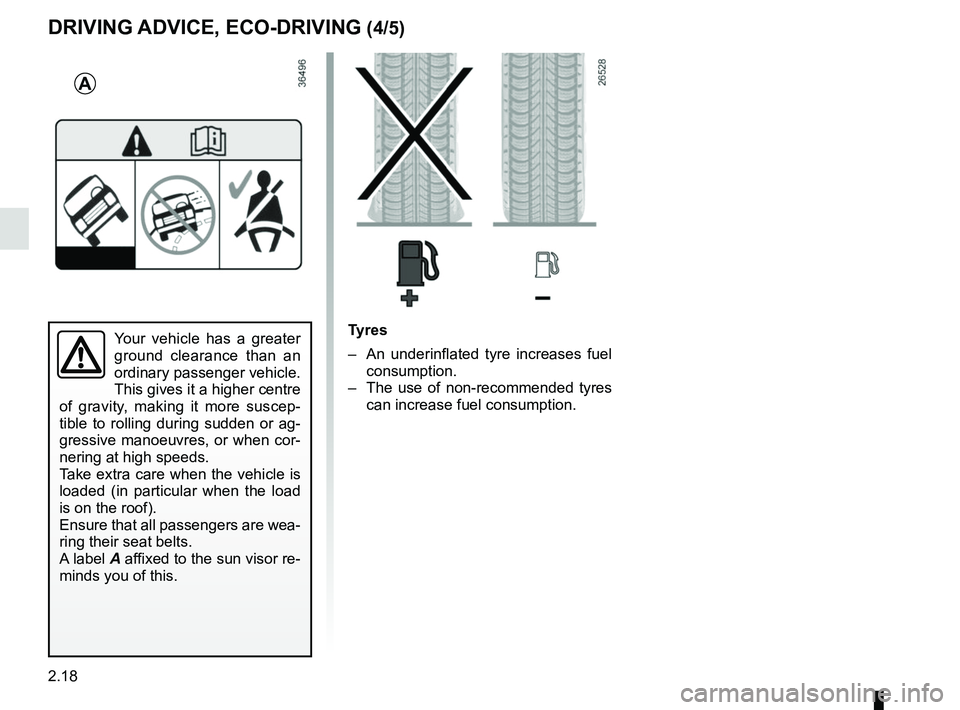

Your vehicle has a greater
ground clearance than an
ordinary passenger vehicle.
This gives it a higher centre
of gravity, making it more suscep-
tible to rolling during sudden or ag-
gressive manoeuvres, or when cor-
nering at high speeds.
Take extra care when the vehicle is
loaded (in particular when the load
is on the roof).
Ensure that all passengers are wea-
ring their seat belts.
A label A affixed to the sun visor re-
minds you of this.
A
Tyres
– An underinflated tyre increases fuel consumption.
– The use of non-recommended tyres can increase fuel consumption.

2.19
DRIVING ADVICE, ECO-DRIVING (5/5)
– In vehicles fitted with air condi-
tioning, it is normal to observe an
increase in fuel consumption (es-
pecially in urban conditions) when
it is used. For vehicles fitted with
manual air conditioning, switch off
the system when it is not required.
Advice for reducing consumption
and therefore helping to preserve
the environment:
If the vehicle has been parked in the
sun, open the doors for a few mo-
ments to let the hot air escape before
starting the engine.
– Do not leave an empty roof rack fitted to the vehicle.
– It is better to fit a trailer for bulky ob- jects.
– When towing a caravan, fit a wind deflector and adjust it carefully.
– Avoid using the car for door-to-door calls (short journeys with long waits
in between) because the engine
never reaches its normal operating
temperature.
Advice on use
– Favour ECO mode.
– Electricity is fuel; switch off all the
electrical components which are
not really needed. However (safety
first), keep your lights on when the
visibility is bad (“see and be seen”).
– Use the air vents. Driving with the windows open at 60 mph (100 km/h)
will increase fuel consumption by
4%.
– Never fill the fuel tank right to the brim to avoid overflow.

2.20
MAINTENANCE AND ANTIPOLLUTION ADVICE
Your vehicle complies with criteria for
recycling and recovering vehicles at the
end of their service life, which will come
into force in 2015.
Some of the parts on your vehicle have
been designed to be recycled later.
These parts are easily removable in
order to be collected and reprocessed
in recycling networks.
Furthermore, by virtue of its design,
moderate fuel consumption and initial
settings, your vehicle also conforms
to current anti-pollution regulations.
The manufacturer is actively striving
to reduce pollutant exhaust gas emis-
sions and to save energy. However,
the fuel consumption of your vehicle
and the level of pollutant exhaust gas
emissions are also your responsibility.
Ensure that it is maintained and used
correctly.Maintenance
It is important to remember that fail-
ure to respect anti-pollution regulations
could lead to legal action being taken
against the vehicle owner.
In addition, replacing engine, fuel
supply system and exhaust compo-
nents with parts other than those origi-
nally recommended by the manufac-
turer may alter your vehicle so that it
no longer complies with anti-pollution
regulations.
Have your vehicle adjusted and
checked by an authorised dealer, in ac-
cordance with the instructions given in
your maintenance schedule: they will
have all the equipment necessary for
ensuring that your vehicle is maintained
to its original standard.
Engine adjustments
– Air filter, fuel filter: a choked ele-
ment will reduce efficiency. It must
be replaced.
– Idle speed: no adjustment is needed.
Exhaust gas monitoring
system
The exhaust gas monitoring system will
detect any operating faults in the vehi-
cle’s antipollution system.
If this system malfunctions, toxic sub-
stances may be released into the at-
mosphere or damage may occur.
ÄThis warning light on the in-
strument panel will indicate if
there are any faults in the system:
This lights up when the ignition is
switched on and goes out when the
engine is started.
– If it lights up continuously, consult an approved Dealer as soon as possi-
ble;
– if it flashes, reduce the engine speed until the light stops flashing. Contact
an authorised dealer as soon as pos-
sible.
