2016 Peugeot 508 Owner's Manual - RHD (UK, Australia)

103

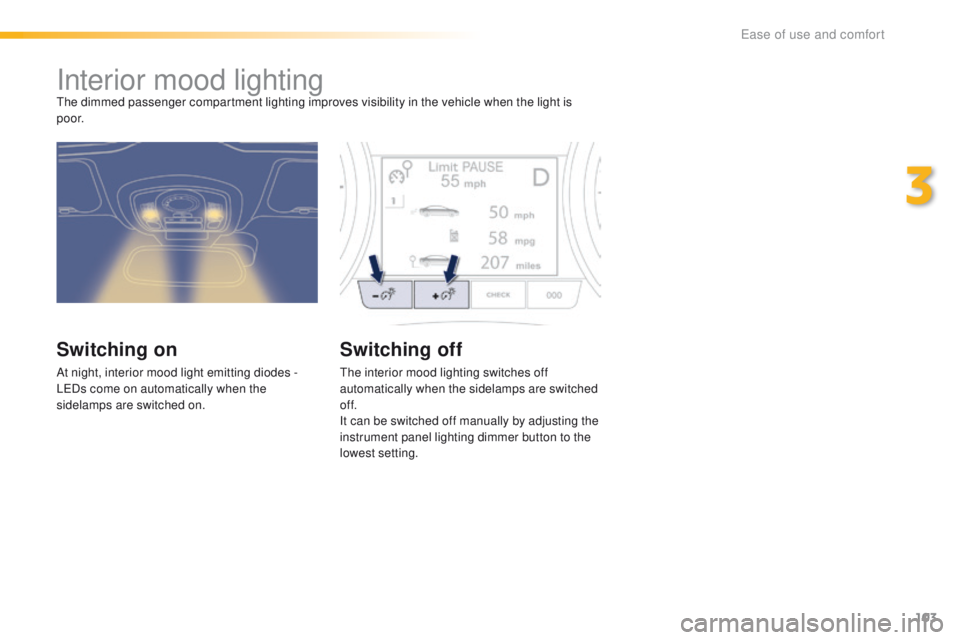

Interior mood lightingthe dimmed passenger compartment lighting improves visibility in the vehicle when the light is
p o o r.
Switching on
At night, interior mood light emitting diodes -
LeD s come on automatically when the
sidelamps are switched on.
Switching off
the interior mood lighting switches off
automatically when the sidelamps are switched
of f.
It can be switched off manually by adjusting the
instrument panel lighting dimmer button to the
lowest setting.
3
ease of use and comfort

104

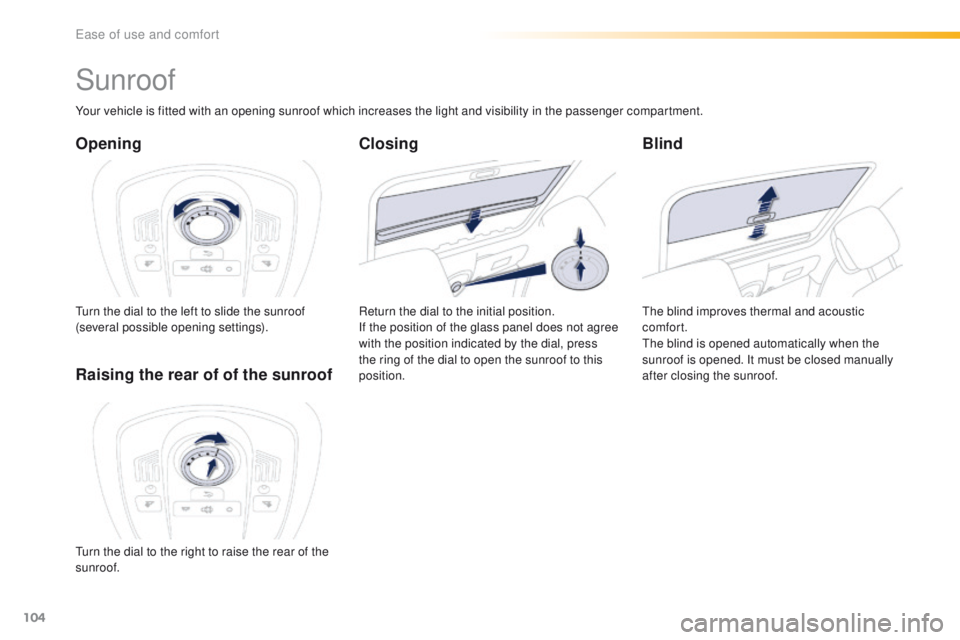

Sunroof
Opening
turn the dial to the left to slide the sunroof
(several possible opening settings).
Blind
the blind improves thermal and acoustic
comfort.
the
blind is opened automatically when the
sunroof is opened. It must be closed manually
after closing the sunroof.
Raising the rear of of the sunroof
Your vehicle is fitted with an opening sunroof which increases the light and visibility in the passenger compartment.
Return the dial to the initial position.
If the position of the glass panel does not agree
with the position indicated by the dial, press
the ring of the dial to open the sunroof to this
position.
Closing
turn the dial to the right to raise the rear of the
sunroof.
ease of use and comfort

105

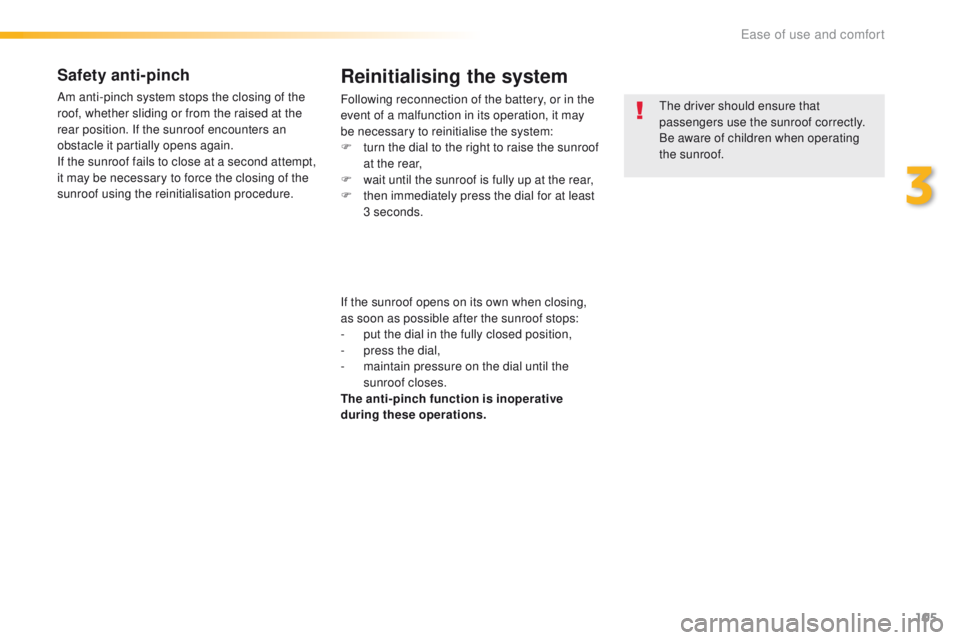

Safety anti-pinch
Am anti-pinch system stops the closing of the
roof, whether sliding or from the raised at the
rear position. If the sunroof encounters an
obstacle it partially opens again.
If the sunroof fails to close at a second attempt,
it may be necessary to force the closing of the
sunroof using the reinitialisation procedure.
Reinitialising the system
Following reconnection of the battery, or in the
event of a malfunction in its operation, it may
be necessary to reinitialise the system:
F
t
urn the dial to the right to raise the sunroof
at the rear,
F

w
ait until the sunroof is fully up at the rear,
F

t
hen immediately press the dial for at least
3 seconds.
If the sunroof opens on its own when closing,
as soon as possible after the sunroof stops:
-

p
ut the dial in the fully closed position,
-

p
ress the dial,
-

m
aintain pressure on the dial until the
sunroof closes.
The anti-pinch function is inoperative
during these operations.th e driver should ensure that
passengers use the sunroof correctly.
Be aware of children when operating
the sunroof.
3
Ease of use and comfort

106

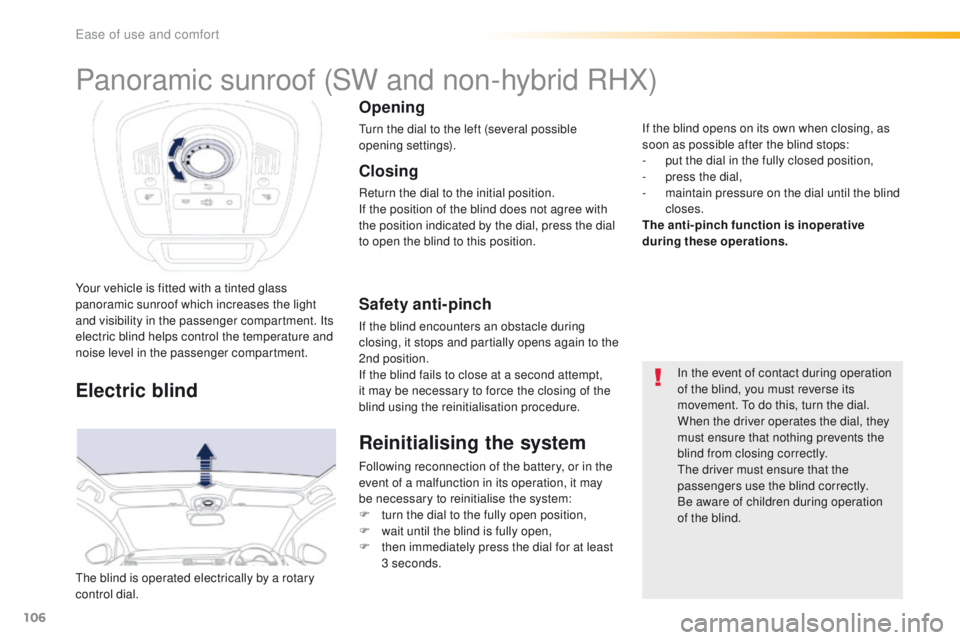

Your vehicle is fitted with a tinted glass
panoramic sunroof which increases the light
and visibility in the passenger compartment. Its
electric blind helps control the temperature and
noise level in the passenger compartment.
th
e blind is operated electrically by a rotary
control dial.
Opening
turn the dial to the left (several possible
opening settings).
Safety anti-pinch
If the blind encounters an obstacle during
closing, it stops and partially opens again to the
2nd position.
If the blind fails to close at a second attempt,
it may be necessary to force the closing of the
blind using the reinitialisation procedure.
Closing
Return the dial to the initial position.
If the position of the blind does not agree with
the position indicated by the dial, press the dial
to open the blind to this position.
Electric blind
In the event of contact during operation
of the blind, you must reverse its
movement.
t
o d
o this, turn the dial.
When the driver operates the dial, they
must ensure that nothing prevents the
blind from closing correctly.
th

e driver must ensure that the
passengers use the blind correctly.
Be aware of children during operation
of the blind.
Reinitialising the system
Following reconnection of the battery, or in the
event of a malfunction in its operation, it may
be necessary to reinitialise the system:
F

t
urn the dial to the fully open position,
F

w
ait until the blind is fully open,
F

t
hen immediately press the dial for at least
3 seconds. If the blind opens on its own when closing, as
soon as possible after the blind stops:
-

p
ut the dial in the fully closed position,
-
p
ress the dial,
-
m
aintain pressure on the dial until the blind
closes.
The anti-pinch function is inoperative
during these operations.
Panoramic sunroof (SW and non-hybrid RHX)
ease of use and comfort

107

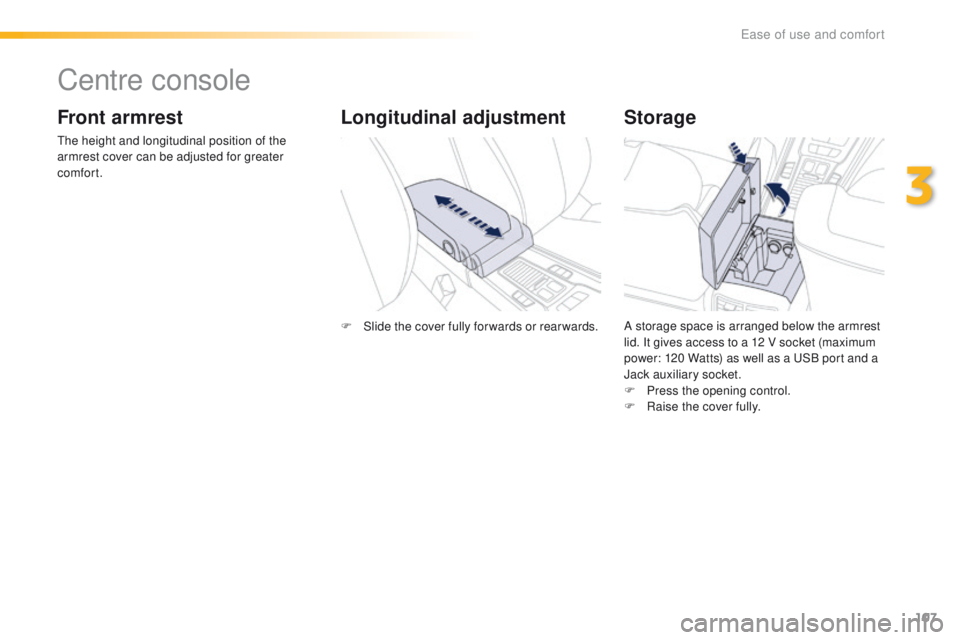

Centre console
Front armrest
the height and longitudinal position of the
armrest cover can be adjusted for greater
comfort.
Storage
A storage space is arranged below the armrest
lid. It gives access to a 12 V socket (maximum
power: 120 Watts) as well as a u
S
B port and a
Jack auxiliary socket.
F

P
ress the opening control.
F

Ra
ise the cover fully.
Longitudinal adjustment
F Slide the cover fully for wards or rear wards.
3
ease of use and comfort

108

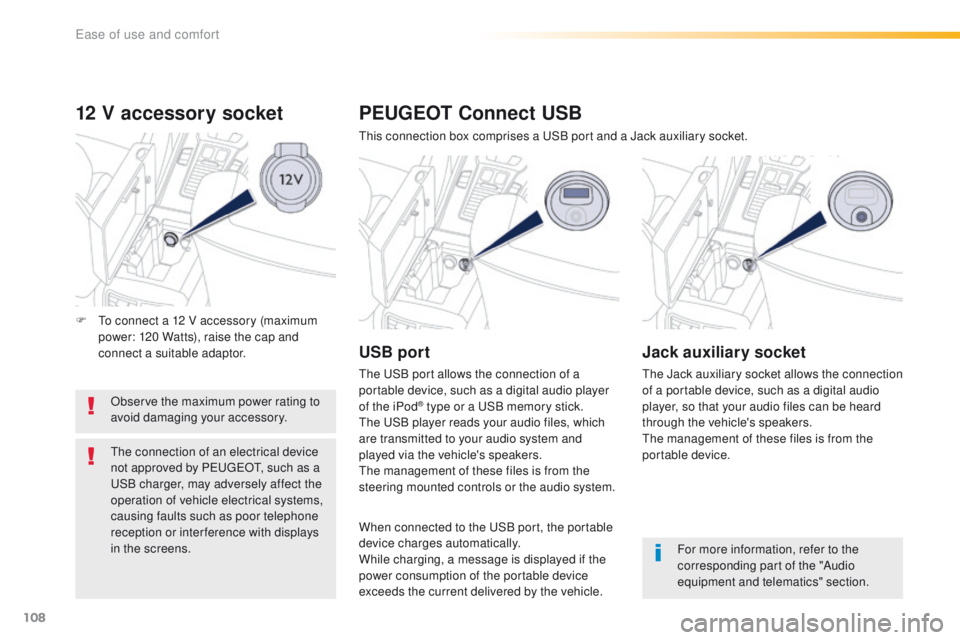

12 V accessory socket
Observe the maximum power rating to
avoid damaging your accessory.
th
e connection of an electrical device
not approved by P
e

uge
Ot, s
uch as a
uS

B charger, may adversely affect the
operation of vehicle electrical systems,
causing faults such as poor telephone
reception or inter ference with displays
in the screens.
PEUGEOT Connect USB
this connection box comprises a uS B port and a Jack auxiliary socket.
USB port
the uSB port allows the connection of a
portable device, such as a digital audio player
of the iPod
® type or a uS B memory stick.th
e
uS
B player reads your audio files, which
are transmitted to your audio system and
played via the vehicle's speakers.
th

e management of these files is from the
steering mounted controls or the audio system.
Jack auxiliary socket
the Jack auxiliary socket allows the connection
of a portable device, such as a digital audio
player, so that your audio files can be heard
through the vehicle's speakers.
th

e management of these files is from the
portable device.
For more information, refer to the
corresponding part of the "Audio
equipment and telematics" section.
When connected to the
u
S

B port, the portable
device charges automatically.
While charging, a message is displayed if the
power consumption of the portable device
exceeds the current delivered by the vehicle.
F
t
o c

onnect a 12 V accessory (maximum
power: 120 Watts), raise the cap and
connect a suitable adaptor.
Ease of use and comfort

109

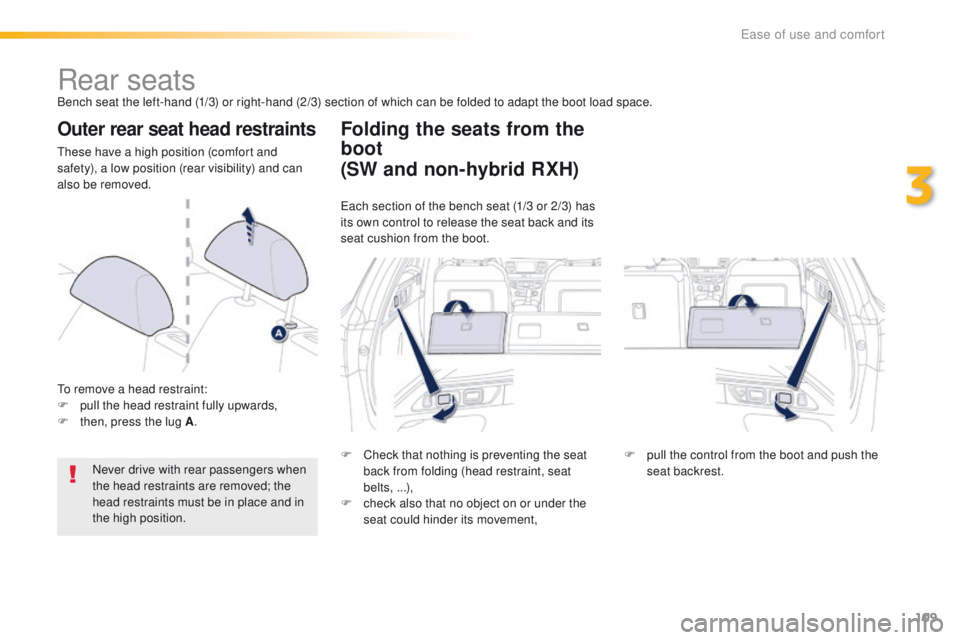

Rear seatsBench seat the left-hand (1/3) or right-hand (2/3) section of which can be folded to adapt the boot load space.
Outer rear seat head restraints
these have a high position (comfort and
safety), a low position (rear visibility) and can
also be removed.
to r
emove a head restraint:
F

p
ull the head restraint fully upwards,
F

t
hen, press the lug A .
Never drive with rear passengers when
the head restraints are removed; the
head restraints must be in place and in
the high position.
Folding the seats from the
boot
F Check that nothing is preventing the seat back from folding (head restraint, seat
belts, ...),
F

c
heck also that no object on or under the
seat could hinder its movement, F
p ull the control from the boot and push the
seat backrest.
(SW and non-hybrid RXH)
each section of the bench seat (1/3 or 2/3) has
its own control to release the seat back and its
seat cushion from the boot.
3
ease of use and comfort

110

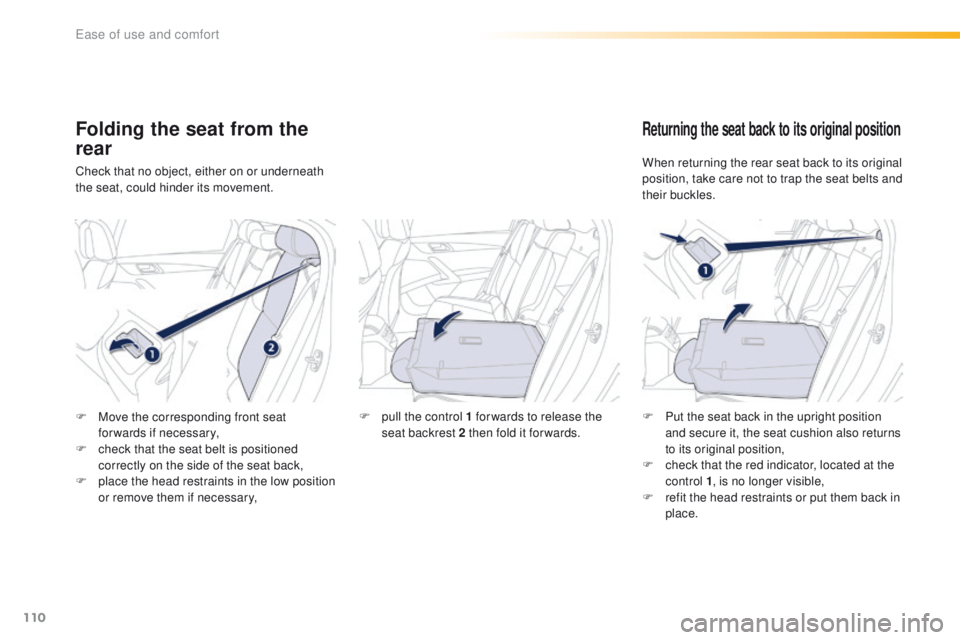

Folding the seat from the
rear
Check that no object, either on or underneath
the seat, could hinder its movement.
Returning the seat back to its original position
When returning the rear seat back to its original
position, take care not to trap the seat belts and
their buckles.
F

M

ove the corresponding front seat
forwards if necessary,
F

c

heck that the seat belt is positioned
correctly on the side of the seat back,
F

p

lace the head restraints in the low position
or remove them if necessary, F

p

ull the control 1 for wards to release the
seat backrest 2 then fold it forwards. F

P
ut the seat back in the upright position
and secure it, the seat cushion also returns
to its original position,
F

c
heck that the red indicator, located at the
control 1 , is no longer visible,
F

r
efit the head restraints or put them back in
place.
Ease of use and comfort
