2016 Peugeot 508 Owner's Manual - RHD (UK, Australia)

79

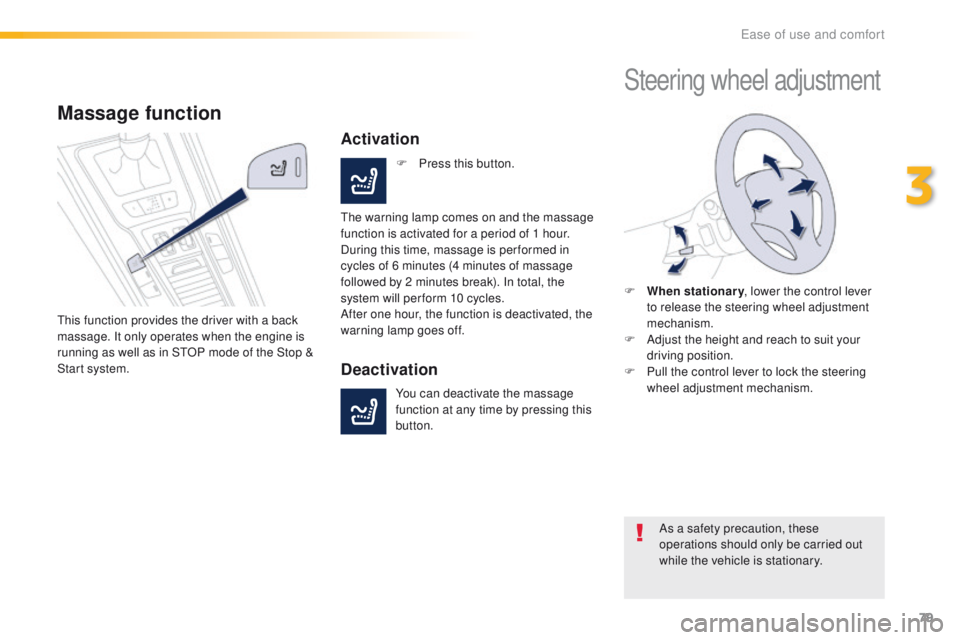

Massage function
this function provides the driver with a back
massage. It only operates when the engine is
running as well as in S
tO
P mode of the Stop &
Start system.
Activation
F Press this button.
th

e warning lamp comes on and the massage
function is activated for a period of 1 hour.
During this time, massage is per formed in
cycles of 6 minutes (4 minutes of massage
followed by 2 minutes break). In total, the
system will per form 10 cycles.
After one hour, the function is deactivated, the
warning lamp goes off.
Deactivation
You can deactivate the massage
function at any time by pressing this
button.
Steering wheel adjustment
F When stationary , lower the control lever
to release the steering wheel adjustment
mechanism.
F

A
djust the height and reach to suit your
driving position.
F

P
ull the control lever to lock the steering
wheel adjustment mechanism.
As a safety precaution, these
operations should only be carried out
while the vehicle is stationary.
3
Ease of use and comfort

80

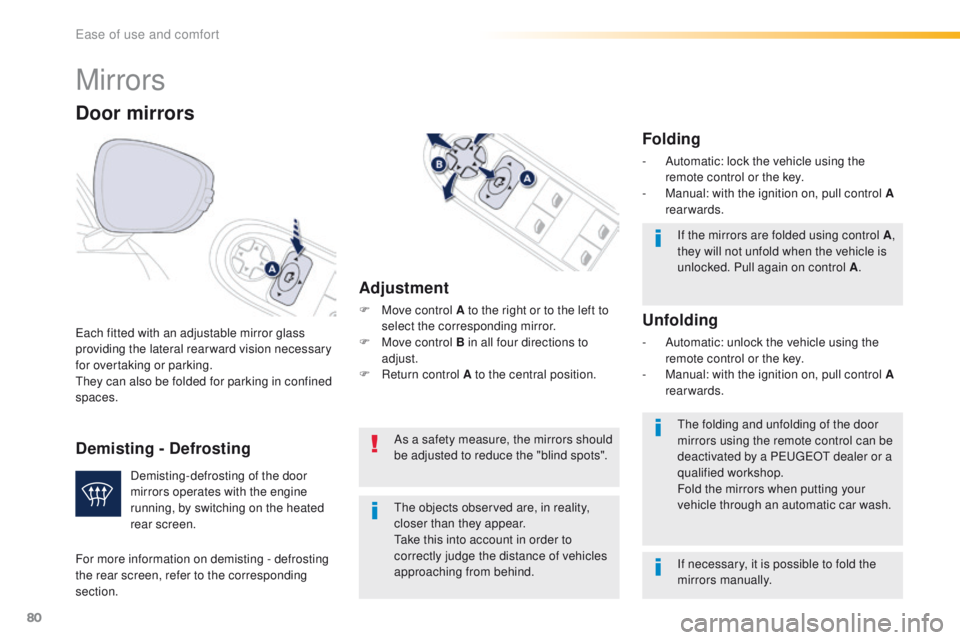

Mirrors
each fitted with an adjustable mirror glass
providing the lateral rear ward vision necessary
for overtaking or parking.
th
ey can also be folded for parking in confined
spaces.
Door mirrors
If the mirrors are folded using control A ,
they will not unfold when the vehicle is
unlocked. Pull again on control A .
th

e folding and unfolding of the door
mirrors using the remote control can be
deactivated by a P
e

uge
Ot
dealer or a
qualified workshop.
Fold the mirrors when putting your
vehicle through an automatic car wash.
th

e objects observed are, in reality,
closer than they appear.
ta

ke this into account in order to
correctly judge the distance of vehicles
approaching from behind.
Demisting-defrosting of the door
mirrors operates with the engine
running, by switching on the heated
rear screen.
Adjustment
F Move control A to the right or to the left to
select the corresponding mirror.
F

M
ove control B in all four directions to
adjust.
F

R
eturn control A to the central position.
Folding
- Automatic: lock the vehicle using the remote control or the key.
-

M
anual: with the ignition on, pull control A
rearwards.
Unfolding
- Automatic: unlock the vehicle using the remote control or the key.
-

M
anual: with the ignition on, pull control A
rearwards.
As a safety measure, the mirrors should
be adjusted to reduce the "blind spots".
If necessary, it is possible to fold the
mirrors manually.
For more information on demisting - defrosting
the rear screen, refer to the corresponding
section.
Demisting - Defrosting
ease of use and comfort

81

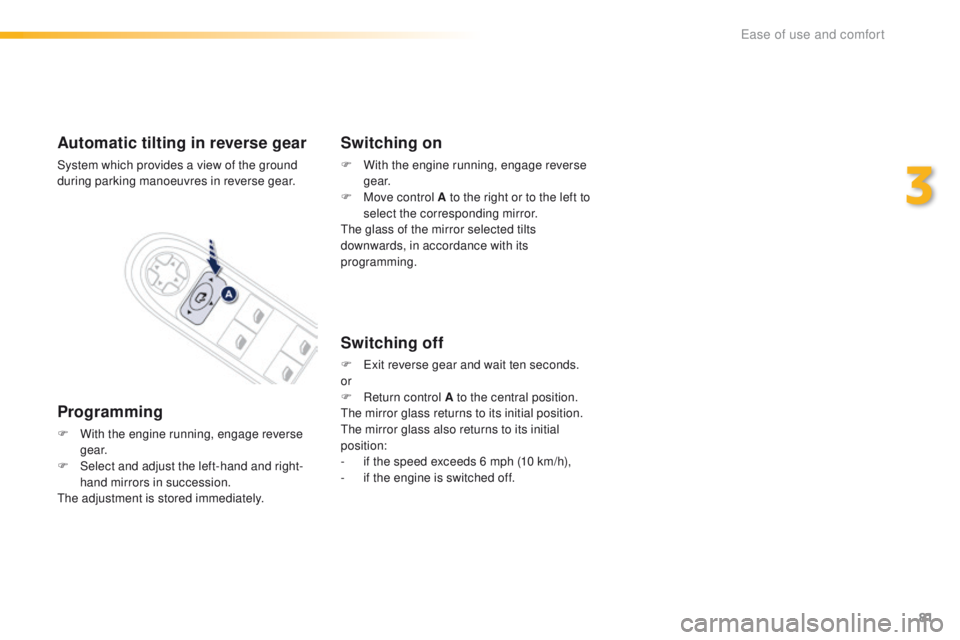

Automatic tilting in reverse gear
System which provides a view of the ground
during parking manoeuvres in reverse gear.
Programming
F With the engine running, engage reverse g e a r.
F

S
elect and adjust the left-hand and right-
hand mirrors in succession.
th

e adjustment is stored immediately.
Switching on
F With the engine running, engage reverse g e a r.
F

M
ove control A to the right or to the left to
select the corresponding mirror.
th

e glass of the mirror selected tilts
downwards, in accordance with its
programming.
Switching off
F exit reverse gear and wait ten seconds.
or
F

R
eturn control A to the central position.
th

e mirror glass returns to its initial position.
th

e mirror glass also returns to its initial
position:
-

i
f the speed exceeds 6 mph (10 km/h),
-

i
f the engine is switched off.
3
Ease of use and comfort

82

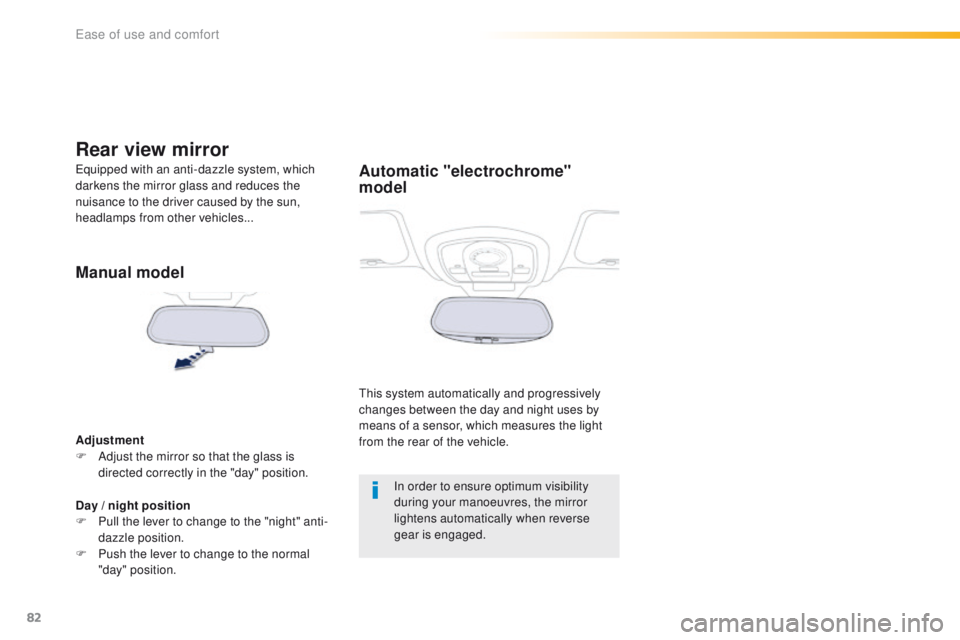

Automatic "electrochrome"
model
this system automatically and progressively
changes between the day and night uses by
means of a sensor, which measures the light
from the rear of the vehicle.
eq

uipped with an anti-dazzle system, which
darkens the mirror glass and reduces the
nuisance to the driver caused by the sun,
headlamps from other vehicles...
Rear view mirror
Manual model
Adjustment
F A djust the mirror so that the glass is
directed correctly in the "day" position.
Day
/ night position
F

P
ull the lever to change to the "night" anti-
dazzle position.
F

P
ush the lever to change to the normal
"day" position. In order to ensure optimum visibility
during your manoeuvres, the mirror
lightens automatically when reverse
gear is engaged.
Ease of use and comfort

83

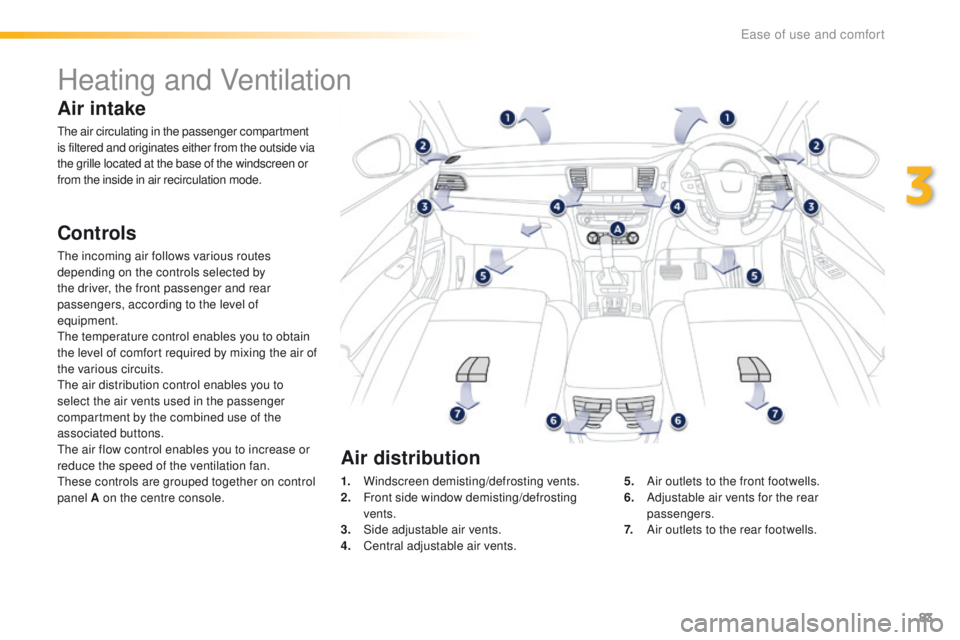

Heating and Ventilation
Air intake
the air circulating in the passenger compartment
is filtered and originates either from the outside via
the grille located at the base of the windscreen or
from the inside in air recirculation mode.
Controls
the incoming air follows various routes
depending on the controls selected by
the driver, the front passenger and rear
passengers, according to the level of
equipment.
th
e temperature control enables you to obtain
the level of comfort required by mixing the air of
the various circuits.
th

e air distribution control enables you to
select the air vents used in the passenger
compartment by the combined use of the
associated buttons.
th

e air flow control enables you to increase or
reduce the speed of the ventilation fan.
th

ese controls are grouped together on control
panel A on the centre console. 1.
W

indscreen demisting/defrosting vents.
2.
F

ront side window demisting/defrosting
vents.
3.
S

ide adjustable air vents.
4.
C

entral adjustable air vents.5.
A

ir outlets to the front footwells.
6.
A

djustable air vents for the rear
passengers.
7.
A

ir outlets to the rear footwells.
Air distribution
3
ease of use and comfort

84
Digital air conditioning: use fully automatic operation in preference, by pressing the "AUTO" button.

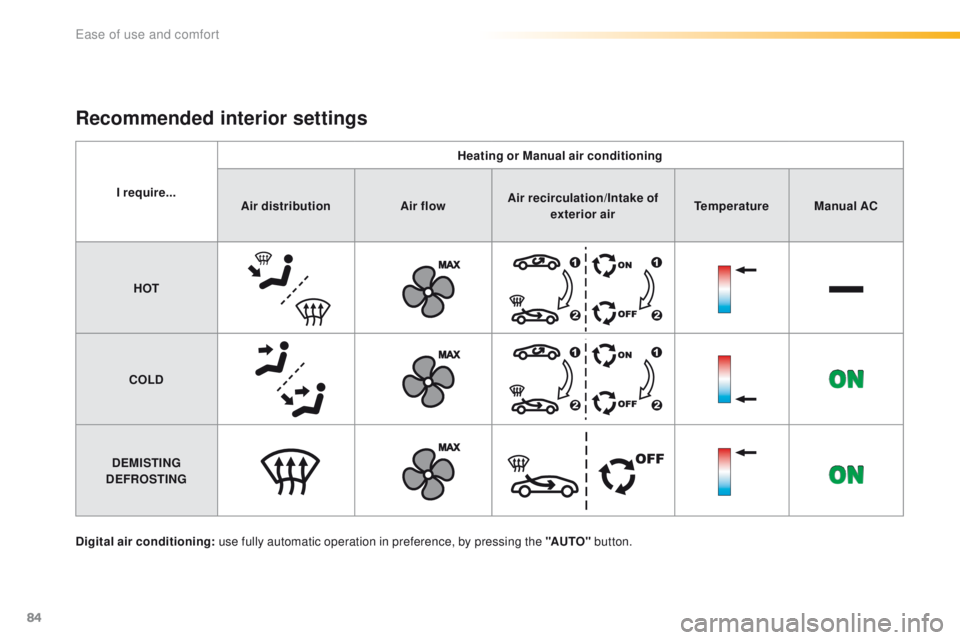

Recommended interior settings
I require...Heating or Manual air conditioning
Air distribution Air flowAir recirculation/Intake of
exterior air Temperature Manual AC
HOT
COLD
DEMISTING
DEFROSTING
Ease of use and comfort

85

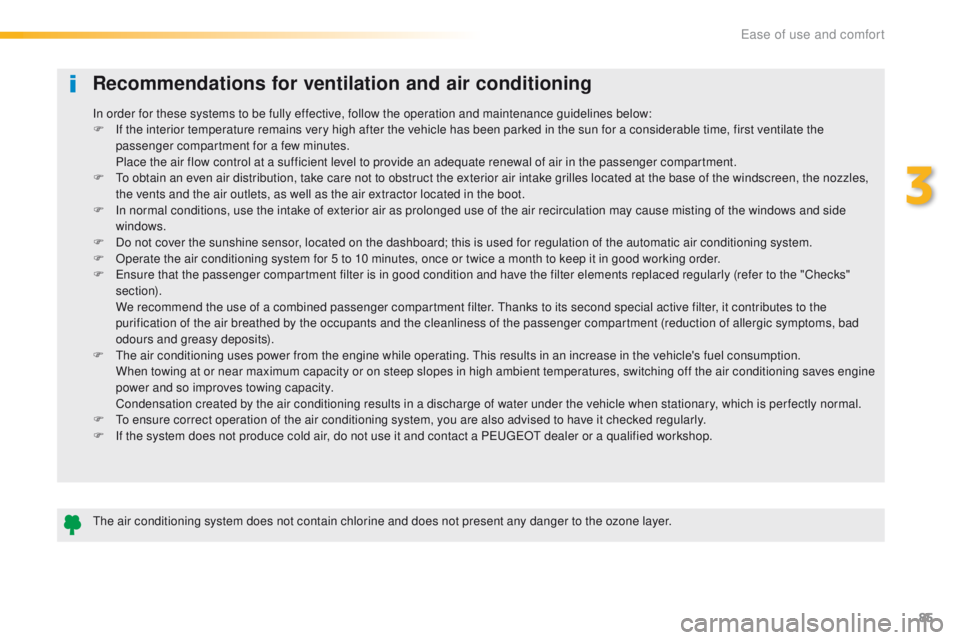

Recommendations for ventilation and air conditioning
the air conditioning system does not contain chlorine and does not present any danger to the ozone layer. In order for these systems to be fully effective, follow the operation and maintenance guidelines below:
F
I
f the interior temperature remains very high after the vehicle has been parked in the sun for a considerable time, first ventilate the
passenger compartment for a few minutes.
P
lace the air flow control at a sufficient level to provide an adequate renewal of air in the passenger compartment.
F t
o o
btain an even air distribution, take care not to obstruct the exterior air intake grilles located at the base of the windscreen, the nozzles,
the vents and the air outlets, as well as the air extractor located in the boot.
F
I
n normal conditions, use the intake of exterior air as prolonged use of the air recirculation may cause misting of the windows and side
windows.
F
D
o not cover the sunshine sensor, located on the dashboard; this is used for regulation of the automatic air conditioning system.
F
O
perate the air conditioning system for 5 to 10 minutes, once or twice a month to keep it in good working order.
F e
n
sure that the passenger compartment filter is in good condition and have the filter elements replaced regularly (refer to the "Checks"
section).
W
e recommend the use of a combined passenger compartment filter. t
h
anks to its second special active filter, it contributes to the
purification of the air breathed by the occupants and the cleanliness of the passenger compartment (reduction of allergic symptoms, bad
odours and greasy deposits).
F t
h
e air conditioning uses power from the engine while operating. t
h
is results in an increase in the vehicle's fuel consumption.
W

hen towing at or near maximum capacity or on steep slopes in high ambient temperatures, switching off the air conditioning saves engine
power and so improves towing capacity.
C
ondensation created by the air conditioning results in a discharge of water under the vehicle when stationary, which is per fectly normal.
F t
o e
nsure correct operation of the air conditioning system, you are also advised to have it checked regularly.
F
I
f the system does not produce cold air, do not use it and contact a P
e
uge
Ot
dealer or a qualified workshop.
3
Ease of use and comfort

86

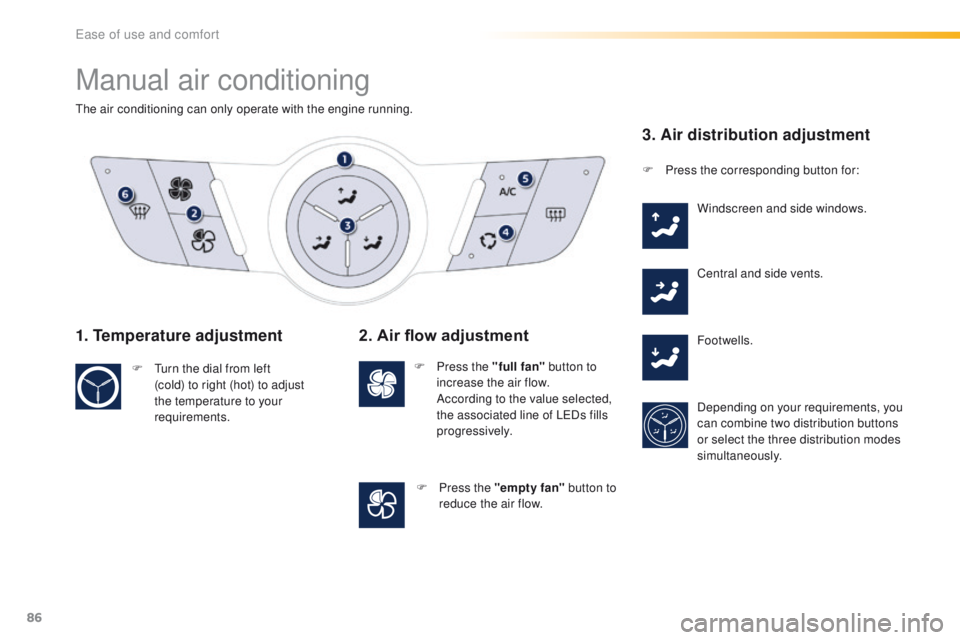

Manual air conditioning
the air conditioning can only operate with the engine running.
1. Temperature adjustment
F turn the dial from left (cold) to right (hot) to adjust
the temperature to your
requirements.
2. Air flow adjustment
F Press the "full fan" button to
increase the air flow.
A

ccording to the value selected,
the associated line of L
eD

s fills
progressively.
F

P
ress the "empty fan"

button to
reduce the air flow.
3. Air distribution adjustment
F Press the corresponding button for:
Windscreen and side windows.
Central and side vents.
Footwells.
Depending on your requirements, you
can combine two distribution buttons
or select the three distribution modes
simultaneously.
ease of use and comfort
