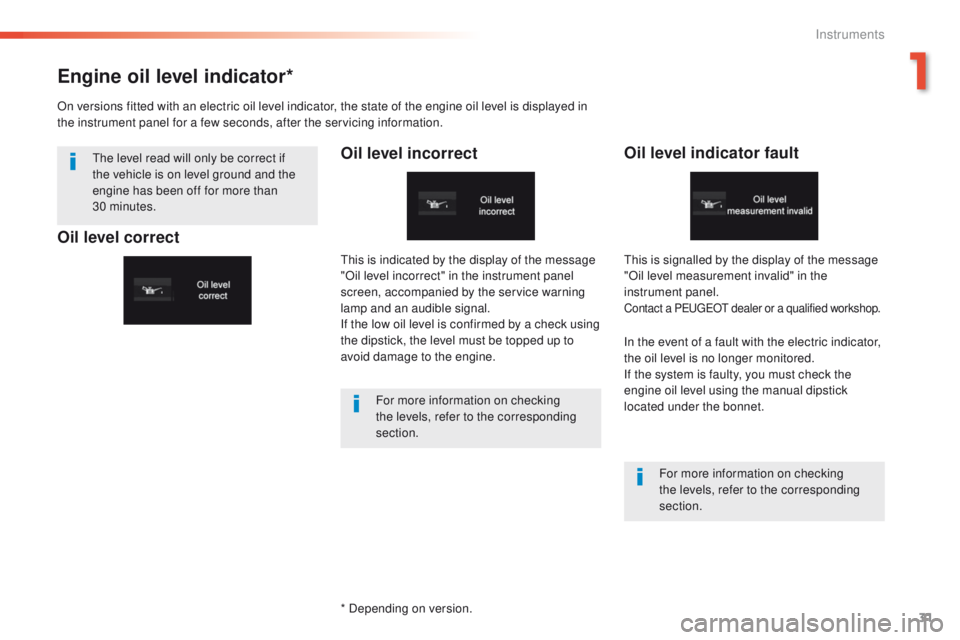

Engine oil level indicator*
Oil level incorrectOil level indicator fault
In the event of a fault with the electric indicator,
the oil level is no longer monitored.
If the system is faulty, you must check the
engine oil level using the manual dipstick
located under the bonnet.
On versions fitted with an electric oil level indicator, the state of the engine oil level is displayed in
the instrument panel for a few seconds, after the servicing information.
th

e level read will only be correct if
the vehicle is on level ground and the
engine has been off for more than
30


minutes.
Oil level correct
* Depending on version.
For more information on checking
the levels, refer to the corresponding
section.
For more information on checking
the levels, refer to the corresponding
section.
th
is is indicated by the display of the message
"Oil level incorrect" in the instrument panel
screen, accompanied by the service warning
lamp and an audible signal.
If the low oil level is confirmed by a check using
the dipstick, the level must be topped up to
avoid damage to the engine.
th
is is signalled by the display of the message
"Oil level measurement invalid" in the
instrument panel.
Contact a Pe ugeOt dealer or a qualified workshop.
1
Instruments

32
* According to country.

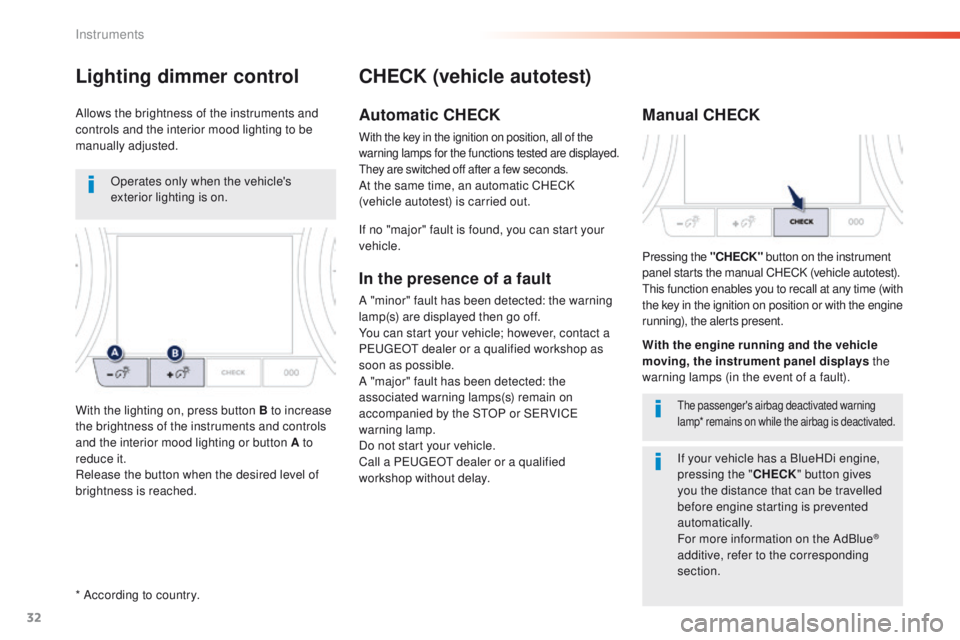

CHECK (vehicle autotest)
Automatic CHECK
With the key in the ignition on position, all of the
warning lamps for the functions tested are displayed.
th
ey are switched off after a few seconds.
At the same time, an automatic CHeC K
(vehicle autotest) is carried out.
In the presence of a fault
A "minor" fault has been detected: the warning
lamp(s) are displayed then go off.
You can start your vehicle; however, contact a
P
e

uge
Ot
dealer or a qualified workshop as
soon as possible.
A "major" fault has been detected: the
associated warning lamps(s) remain on
accompanied by the S
tO

P or S
eR
VIC
e

warning lamp.
Do not start your vehicle.
Call a P
e

uge
Ot
dealer or a qualified
workshop without delay.
Manual CHECK
Pressing the "CHECK" button on the instrument
panel starts the manual CHeC K (vehicle autotest).
th

is function enables you to recall at any time (with
the key in the ignition on position or with the engine
running), the alerts present.
the passenger's airbag deactivated warning
lamp* remains on while the airbag is deactivated.
With the engine running and the vehicle
moving, the instrument panel displays the
warning lamps (in the event of a fault).
If no "major" fault is found, you can start your
vehicle.
Lighting dimmer control
Allows the brightness of the instruments and
controls and the interior mood lighting to be
manually adjusted.
If your vehicle has a BlueHDi engine,
pressing the "CHECK" button gives
you the distance that can be travelled
before engine starting is prevented
automatically.
For more information on the AdBlue
®
additive, refer to the corresponding
section.
Operates only when the vehicle's
exterior lighting is on.
With the lighting on, press button B to increase
the brightness of the instruments and controls
and the interior mood lighting or button A to
reduce it.
Release the button when the desired level of
brightness is reached.
Instruments

33

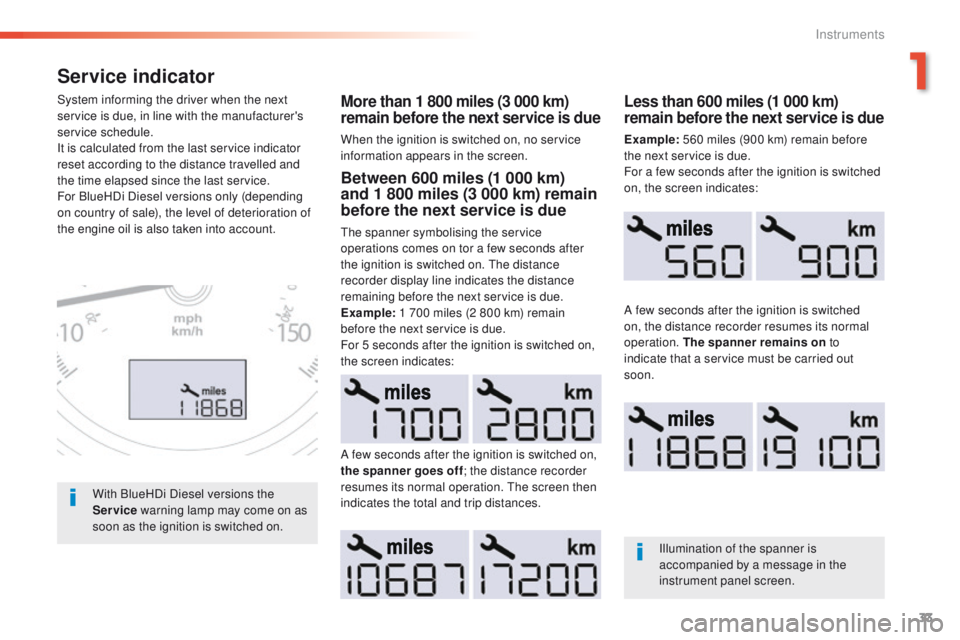

Service indicator
More than 1 800 miles (3 000 km)
remain before the next service is due
When the ignition is switched on, no service
information appears in the screen.
System informing the driver when the next
service is due, in line with the manufacturer's
service schedule.
It is calculated from the last service indicator
reset according to the distance travelled and
the time elapsed since the last service.
For BlueHDi Diesel versions only (depending
on country of sale), the level of deterioration of
the engine oil is also taken into account.
Between 600 miles (1 000 km)
and 1 800 miles (3 000 km) remain
before the next service is due
the spanner symbolising the service
operations comes on tor a few seconds after
the ignition is switched on.
t
h
e distance
recorder display line indicates the distance
remaining before the next service is due.
Example: 1 700 miles (2 800 km) remain
before the next service is due.
For 5 seconds after the ignition is switched on,
the screen indicates:
A few seconds after the ignition is switched on,
the spanner goes off ; the distance recorder
resumes its normal operation.
t
h
e screen then
indicates the total and trip distances.
Less than 600 miles (1 000 km)
remain before the next service is due
Example: 560 miles (900 km) remain before
the next service is due.
For a few seconds after the ignition is switched
on, the screen indicates:
A few seconds after the ignition is switched
on, the distance recorder resumes its normal
operation. The spanner remains on to
indicate that a service must be carried out
soon.
Illumination of the spanner is
accompanied by a message in the
instrument panel screen.
With BlueHDi Diesel versions the
Service
warning lamp may come on as
soon as the ignition is switched on.
1
Instruments

34
Service overdue
the spanner flashes for a few seconds after
the ignition is switched on, to indicate that the
service must be carried out as soon as possible.
Example: the service is overdue by 180 miles
(3 0 0 k m).
For a few seconds after the ignition is switched
on, the screen indicates:
the
mileage remaining may be
weighted by the time factor, depending
on the driving conditions in which the
vehicle is used.
th

e spanner may also come on if
you have exceeded the period since
the last service, as indicated in the
manufacturer's service schedule.
With BlueHDi Diesel versions, the
spanner can also come on in advance
of the service interval, according to the
level of deterioration of the engine oil,
which depends on the driving conditions
in which the vehicle is used. If you have to disconnect the battery
following this operation, lock the vehicle
and wait at least five minutes for the
reset to be registered.
A few seconds after the ignition is switched
on, the distance recorder resumes its normal
operation. The spanner remains on
.
Resetting the service
indicator
After each service, the service indicator must
be reset to zero.
Retrieving the service
information
You can access the service information at any
time.
F

P
ress the trip distance recorder zero reset
button.


t
h
e service information is displayed for a
few seconds, then disappears.
If you have carried out the service on your
vehicle yourself:
F

s
witch off the ignition,
F
p
ress and hold the trip distance recorder
zero reset button,
F
s
witch on the ignition; the distance recorder
display begins a countdown,
F
w
hen the display indicates "=0"
, release
the button; the spanner disappears.
Instruments

35

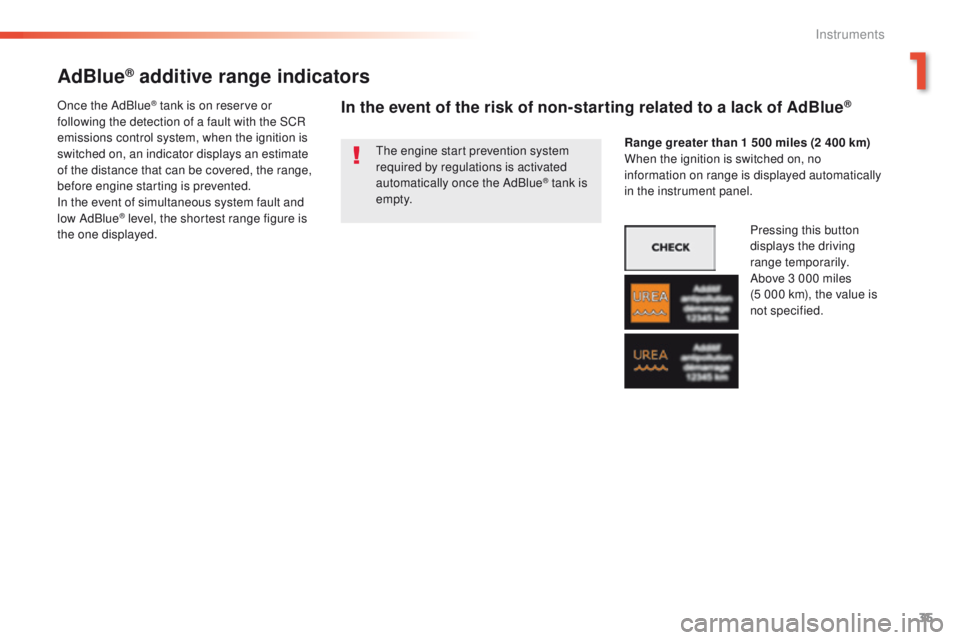

AdBlue® additive range indicators
the engine start prevention system
required by regulations is activated
automatically once the AdBlue
® tank is
e m pt y.
Once the AdBlue
® tank is on reserve or
following the detection of a fault with the SCR
emissions control system, when the ignition is
switched on, an indicator displays an estimate
of the distance that can be covered, the range,
before engine starting is prevented.
In the event of simultaneous system fault and
low AdBlue
® level, the shortest range figure is
the one displayed. Range greater than 1 500 miles (2 400 km)
When the ignition is switched on, no
information on range is displayed automatically
in the instrument panel.
Pressing this button
displays the driving
range temporarily.
Above 3 000 miles
(5
000 km), the value is
not specified.
In the event of the risk of non-starting related to a lack of AdBlue®
1
Instruments

36
Remaining range between 350 and 1500 miles (600 and 2 400 km)
When switching on the ignition, the uReA warning lamp comes on, accompanied
by an audible signal and the display of a
message (e.g.: "
to

p up emissions additive:
Starting prevented in 900 miles") indicating
the remaining range expressed in miles or
kilometres.
When driving, the message is displayed every
200 miles (300 km) until the additive tank has
been topped-up.
go t

o a P
e
uge
Ot
dealer or a qualified
workshop to have the AdBlue
® tank topped-up.
You can also top-up the tank yourself.
For more information on topping-up the
AdBlue
® additive, refer to the corresponding
section.
Remaining range between 0 and 350 miles (0 and 600 km)
When switching on the ignition, the SeR VICe
warning lamp comes on and the uReA w arning
lamp flashes, accompanied by an audible
signal and the display of a message (e.g. "
to

p
up emissions additive: Starting prevented in
350 miles") indicating the remaining range
expressed in miles or kilometres.
When driving, the message is displayed every
30
seconds until the additive tank has been
topped-up.
go t

o a P
e
uge
Ot
dealer or a qualified
workshop to have the AdBlue
® tank topped-up.
You can also top-up the tank yourself.
Other wise you will not be able to restart your
engine.
Breakdown related to a lack of AdBlue® additive
When switching on the ignition, the SeR VICe
warning lamp comes on and the uReA w arning
lamp flashes, accompanied by an audible
signal and the display of the message "
to

p up
emissions additive: Starting prevented".
th

e AdBlue
® tank is empty: the system required
by regulations prevents engine starting.
to b

e able to start the engine,
we recommend that you call on a
P
e

uge
Ot
dealer or a qualified
workshop for the top-up required.
If you carry out the top-up yourself, it
is essential to add at least 3.8 litres of
AdBlue
® to the tank.
For more information on topping-up the
AdBlue
® additive, refer to the corresponding
section.
Instruments

37

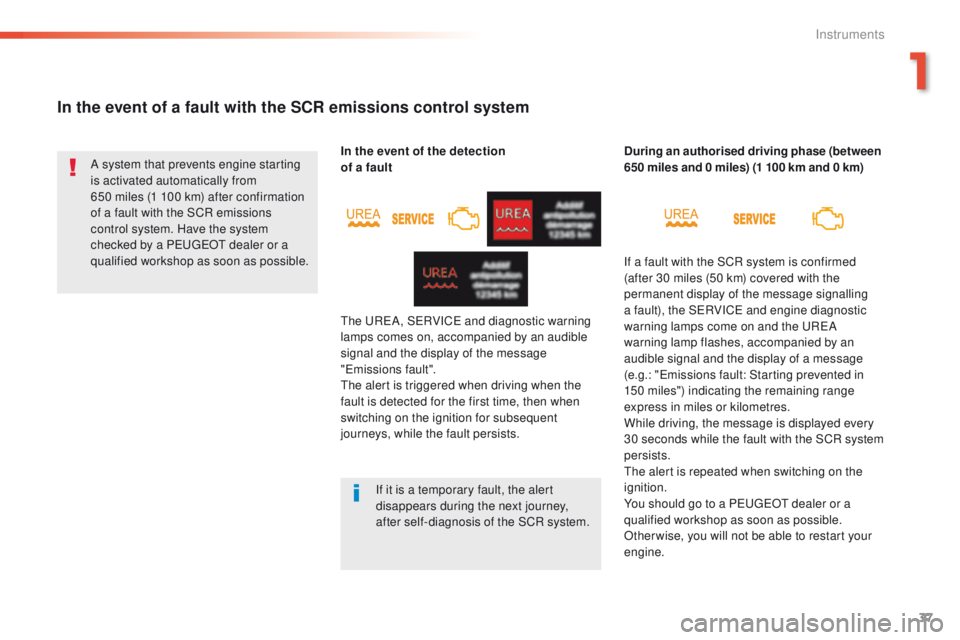

In the event of a fault with the SCR emissions control system
A system that prevents engine starting
is activated automatically from
650 miles (1 100 km) after confirmation
of a fault with the SCR emissions
control system. Have the system
checked by a P
e

uge
Ot
dealer or a
qualified workshop as soon as possible. In the event of the detection
of a fault
th

e u
ReA
, S
eR
VIC
e
and diagnostic warning
lamps comes on, accompanied by an audible
signal and the display of the message
"
em

issions fault".
the

alert is triggered when driving when the
fault is detected for the first time, then when
switching on the ignition for subsequent
journeys, while the fault persists.
If it is a temporary fault, the alert
disappears during the next journey,
after self-diagnosis of the SCR system. During an authorised driving phase (between
650 miles and 0 miles) (1 100 km and 0 km)
If a fault with the SCR system is confirmed
(after 30 miles (50 km) covered with the
permanent display of the message signalling
a fault), the S
eR

VIC
e
and engine diagnostic
warning lamps come on and the
u
ReA
w

arning lamp flashes, accompanied by an
audible signal and the display of a message
(e.g.: "
em

issions fault: Starting prevented in
150


miles") indicating the remaining range
express in miles or kilometres.
While driving, the message is displayed every
30 seconds while the fault with the SCR system
persists.
the

alert is repeated when switching on the
ignition.
You should go to a P
e

uge
Ot
dealer or a
qualified workshop as soon as possible.
Other wise, you will not be able to restart your
engine.
1
Instruments

38
You have exceeded the authorised
driving limit: the starting prevention
system inhibits engine starting.
Starting prevented
ev

ery time the ignition is switched on, the
S
eR

VIC
e an
d engine diagnostic warning
lamps come on and the u
ReA w
arning lamp
flashes, accompanied by an audible signal and
the display of the message "
em
issions fault:
Starting prevented".
to b

e able to start the engine, you must call on
a P
e

uge
Ot
dealer or a qualified workshop.
Instruments
