2016 Peugeot 508 Owner's Manual - RHD (UK, Australia)

55
System that allows the opening, closing
and starting of the vehicle while keeping the
electronic key on your person. It can also be
used as a remote control.

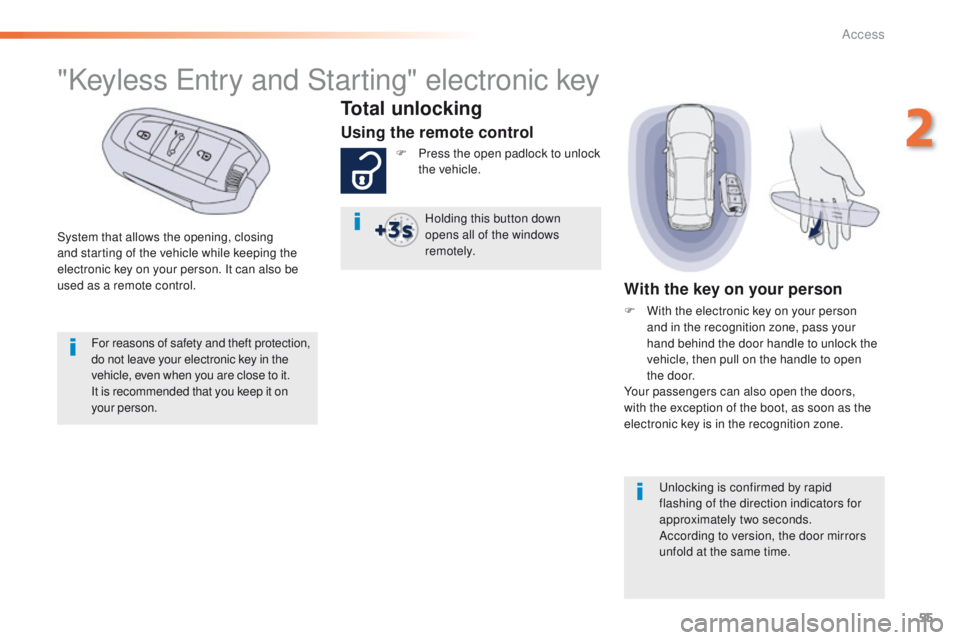

"Keyless entry and Starting" electronic key
Total unlocking
Using the remote control
F Press the open padlock to unlock
the vehicle.
With the key on your person
F With the electronic key on your person and in the recognition zone, pass your
hand behind the door handle to unlock the
vehicle, then pull on the handle to open
the


door.
Your passengers can also open the doors,
with the exception of the boot, as soon as the
electronic key is in the recognition zone.
Holding this button down
opens all of the windows
remotely.
For reasons of safety and theft protection,
do not leave your electronic key in the
vehicle, even when you are close to it.
It is recommended that you keep it on
your person.
un

locking is confirmed by rapid
flashing of the direction indicators for
approximately two seconds.
According to version, the door mirrors
unfold at the same time.
2
Access

56

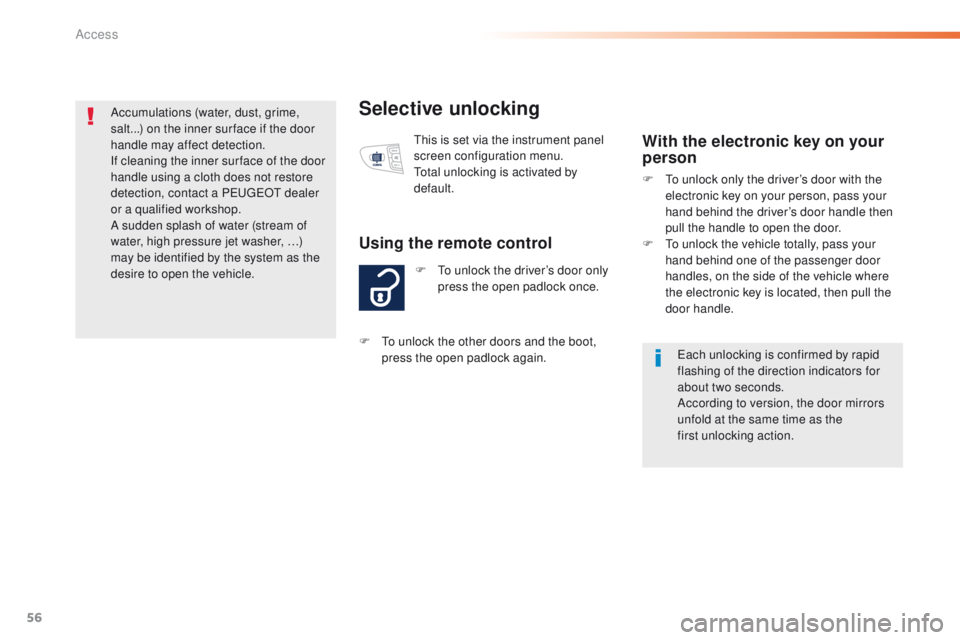

Selective unlocking
F to unlock the driver’s door only press the open padlock once.
Using the remote control
this is set via the instrument panel
screen configuration menu.
to

tal unlocking is activated by
default.With the electronic key on your
person
F to unlock only the driver’s door with the electronic key on your person, pass your
hand behind the driver’s door handle then
pull the handle to open the door.
F
t
o u
nlock the vehicle totally, pass your
hand behind one of the passenger door
handles, on the side of the vehicle where
the electronic key is located, then pull the
door handle.
ea

ch unlocking is confirmed by rapid
flashing of the direction indicators for
about two seconds.
According to version, the door mirrors
unfold at the same time as the
first


unlocking action.
F
t
o u

nlock the other doors and the boot,
press the open padlock again.
Accumulations (water, dust, grime,
salt...) on the inner sur face if the door
handle may affect detection.
If cleaning the inner sur face of the door
handle using a cloth does not restore
detection, contact a Pe
ugeOt
dealer
or a qualified workshop.
A sudden splash of water (stream of
water, high pressure jet washer, …)
may be identified by the system as the
desire to open the vehicle.
Access

57

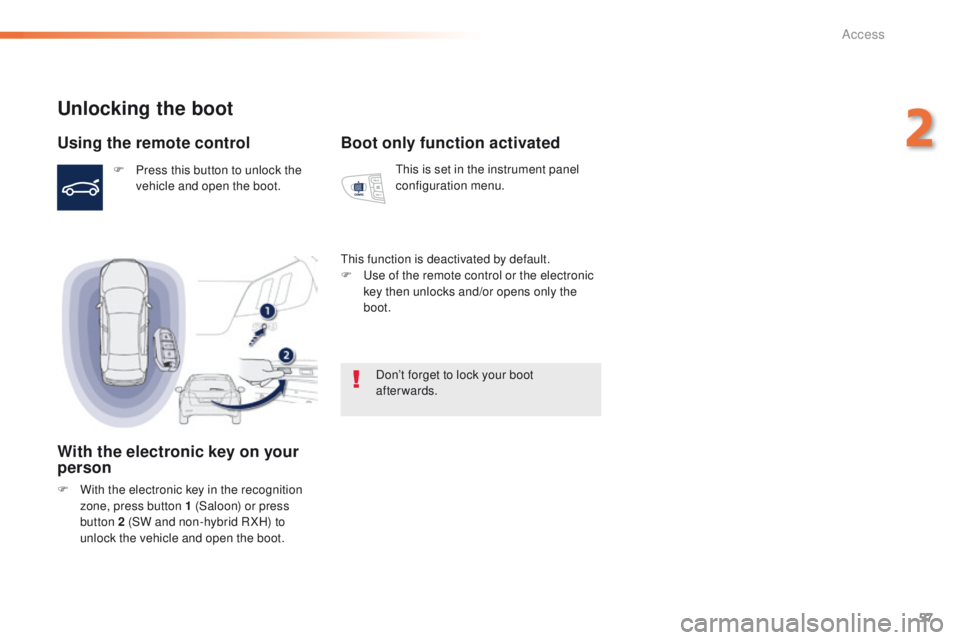

Unlocking the boot
Using the remote control
F Press this button to unlock the vehicle and open the boot.
With the electronic key on your
person
F With the electronic key in the recognition zone, press button 1 (Saloon) or press
button 2 (SW and non-hybrid R XH) to
unlock the vehicle and open the boot.
Boot only function activated
this is set in the instrument panel
configuration menu.
th

is function is deactivated by default.
F
u
s

e of the remote control or the electronic
key then unlocks and/or opens only the
boot.
Don’t forget to lock your boot
afterwards.
2
Access

58

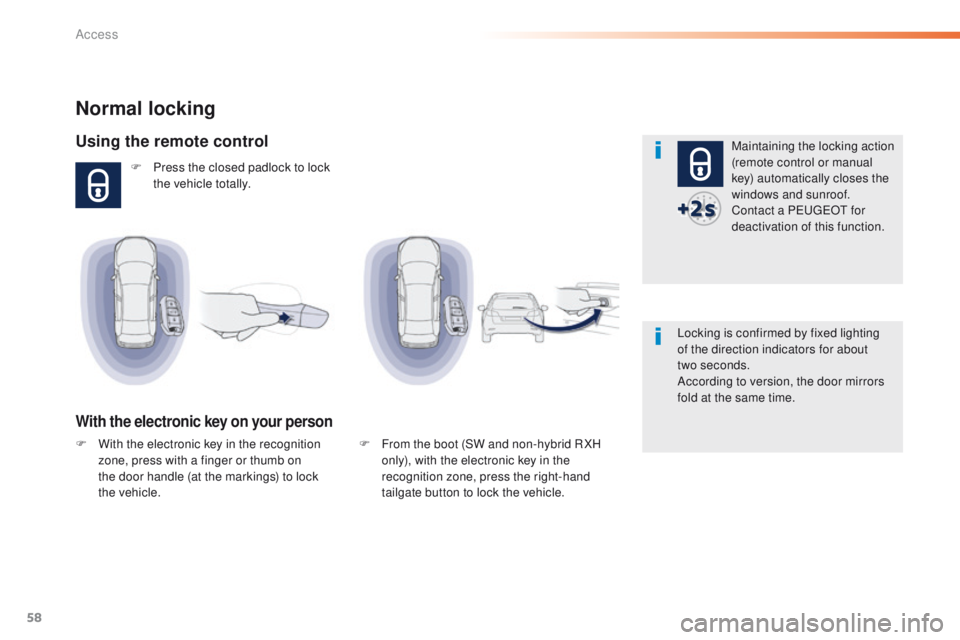

Normal locking
Using the remote control
F Press the closed padlock to lock the vehicle totally.
With the electronic key on your person
Maintaining the locking action
(remote control or manual
key) automatically closes the
windows and sunroof.
Contact a P
e

uge
Ot
for
deactivation of this function.
Locking is confirmed by fixed lighting
of the direction indicators for about
two


seconds.
According to version, the door mirrors
fold at the same time.
F

F

rom the boot (SW and non-hybrid

R XH
only), with the electronic key in the
recognition zone, press the right-hand
tailgate button to lock the vehicle.
F

W

ith the electronic key in the recognition
zone, press with a finger or thumb on
the door handle (at the markings) to lock
the


vehicle.
Access

59
If one of the doors or the boot is still
open or if the key for Keyless en try and
Starting system has been left inside
the vehicle or if the ignition is on, the
central locking does not take place.
When the vehicle is locked, if it is
unlocked inadvertently, it will lock itself
again automatically after about thirty
seconds unless a door is opened.
If the alarm was previously activated,
it will not be reactivated automatically.
th

e folding and unfolding of the door
mirrors by the remote control can be
deactivated by a P
e

uge
Ot
dealer or a
qualified workshop. As a safety measure (children on
board), never leave the vehicle without
taking the key for the Keyless
e
n
try and
Starting system, even for a short period.
gu

ard against theft when the key for the
Keyless
e
n
try and Starting system is
in the recognition zone with the vehicle
unlocked.
In order to preserve the charge of the
cell battery in the remote control, the
"hands-free" functions go into extended
stand-by after 21 days of non-use.
t
o
r

estore these functions, press one of
the remote control buttons or start the
engine with the electronic key in the
reader.
2
Access

60

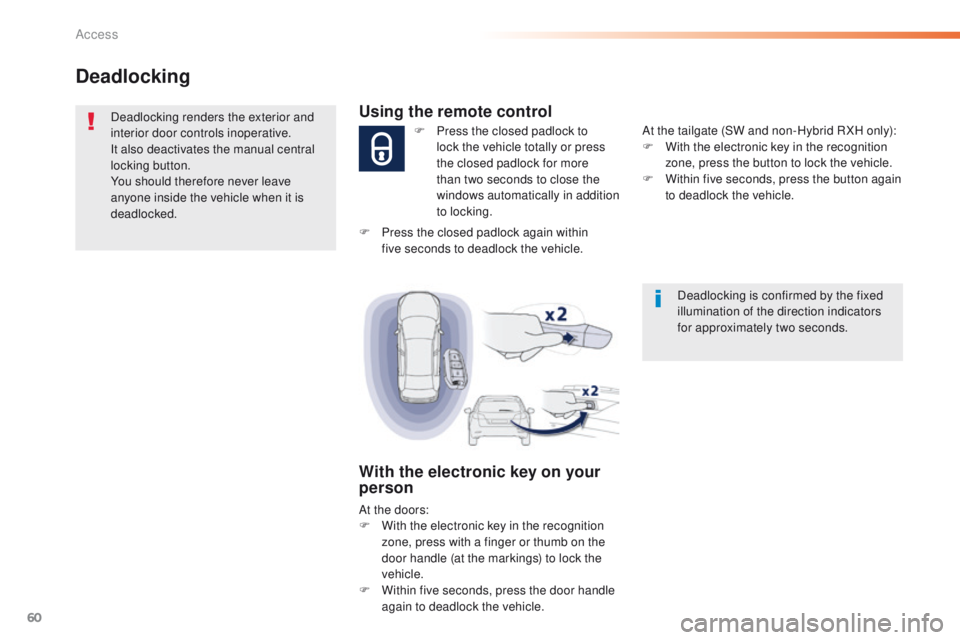

Deadlocking
Deadlocking renders the exterior and
interior door controls inoperative.
It also deactivates the manual central
locking button.
You should therefore never leave
anyone inside the vehicle when it is
deadlocked.Using the remote control
F Press the closed padlock to lock the vehicle totally or press
the closed padlock for more
than two
seconds to close the
windows automatically in addition
to locking.
With the electronic key on your
person
At the doors:
F W ith the electronic key in the recognition
zone, press with a finger or thumb on the
door handle (at the markings) to lock the
vehicle.
F

W
ithin five seconds, press the door handle
again to deadlock the vehicle. At the tailgate (SW and non-Hybrid R XH only):
F

W
ith the electronic key in the recognition
zone, press the button to lock the vehicle.
F
W
ithin five seconds, press the button again
to deadlock the vehicle.
F
P
ress the closed padlock again within
five

seconds to deadlock the vehicle.
Deadlocking is confirmed by the fixed
illumination of the direction indicators
for approximately two seconds.
Access

61

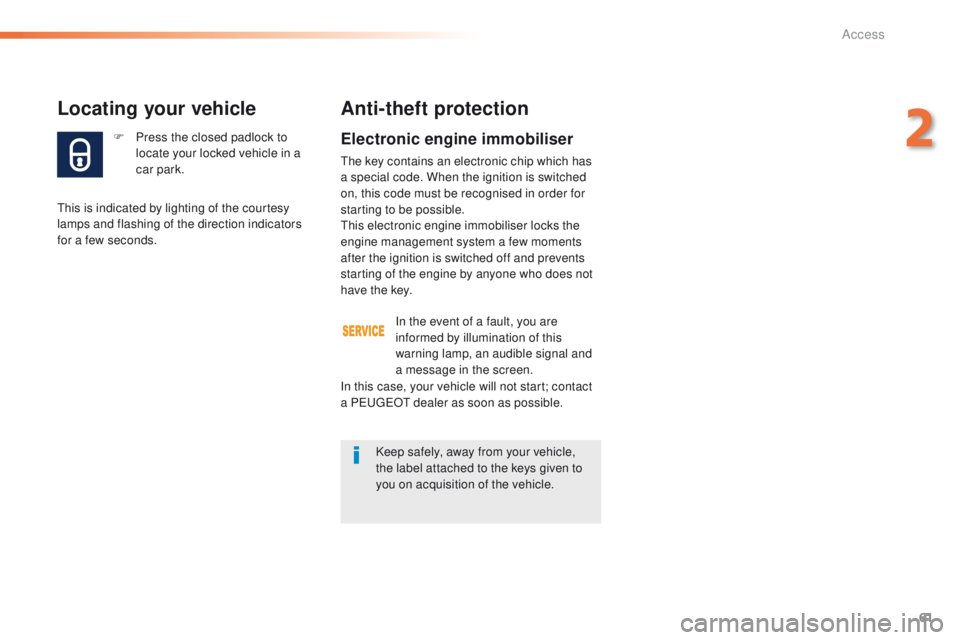

F Press the closed padlock to locate your locked vehicle in a
car park.
Locating your vehicle
this is indicated by lighting of the courtesy
lamps and flashing of the direction indicators
for a few seconds.
Anti-theft protection
Electronic engine immobiliser
the key contains an electronic chip which has
a special code. When the ignition is switched
on, this code must be recognised in order for
starting to be possible.
th

is electronic engine immobiliser locks the
engine management system a few moments
after the ignition is switched off and prevents
starting of the engine by anyone who does not
have the key.
In the event of a fault, you are
informed by illumination of this
warning lamp, an audible signal and
a message in the screen.
In this case, your vehicle will not start; contact
a P
e

uge
Ot
dealer as soon as possible.
Keep safely, away from your vehicle,
the label attached to the keys given to
you on acquisition of the vehicle.
2
Access

62

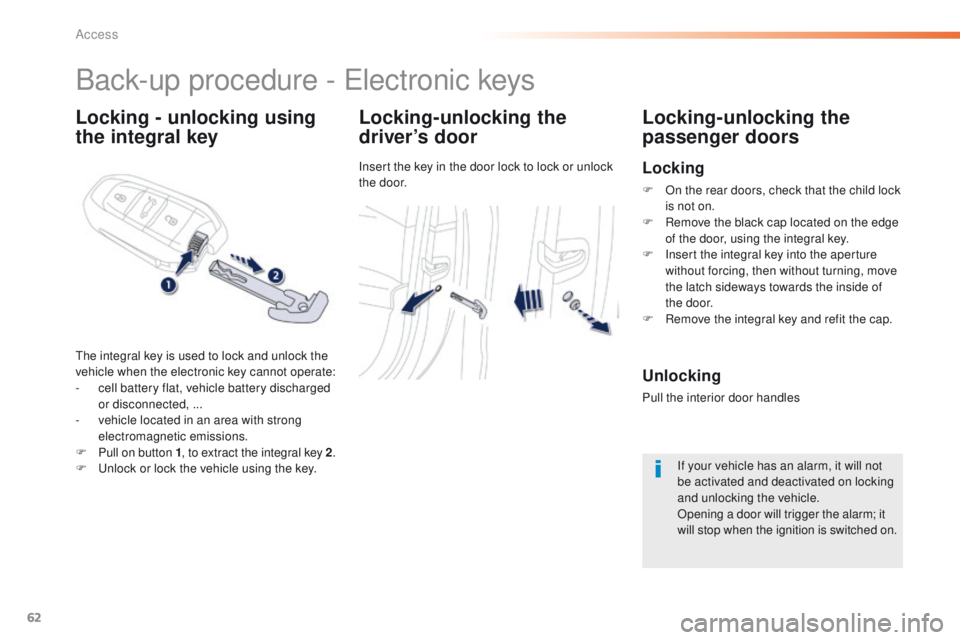

Locking - unlocking using
the integral keyLocking-unlocking the
driver’s door
Insert the key in the door lock to lock or unlock
the door.
Locking-unlocking the
passenger doors
Back-up procedure - ele
ctronic keys
the integral key is used to lock and unlock the
vehicle when the electronic key cannot operate:
-

c
ell battery flat, vehicle battery discharged
or disconnected, ...
-

v
ehicle located in an area with strong
electromagnetic emissions.
F

P
ull on button 1 , to extract the integral key
2.
F
u
n
lock or lock the vehicle using the key.
Locking
F On the rear doors, check that the child lock is not on.
F

R
emove the black cap located on the edge
of the door, using the integral key.
F

I
nsert the integral key into the aperture
without forcing, then without turning, move
the latch sideways towards the inside of
the


door.
F

R
emove the integral key and refit the cap.
Unlocking
Pull the interior door handles If your vehicle has an alarm, it will not
be activated and deactivated on locking
and unlocking the vehicle.
Opening a door will trigger the alarm; it
will stop when the ignition is switched on.
Access
