2016 PEUGEOT 5008 lock

244
5008_en_Chap10_infos-pratiques_ed01-2015

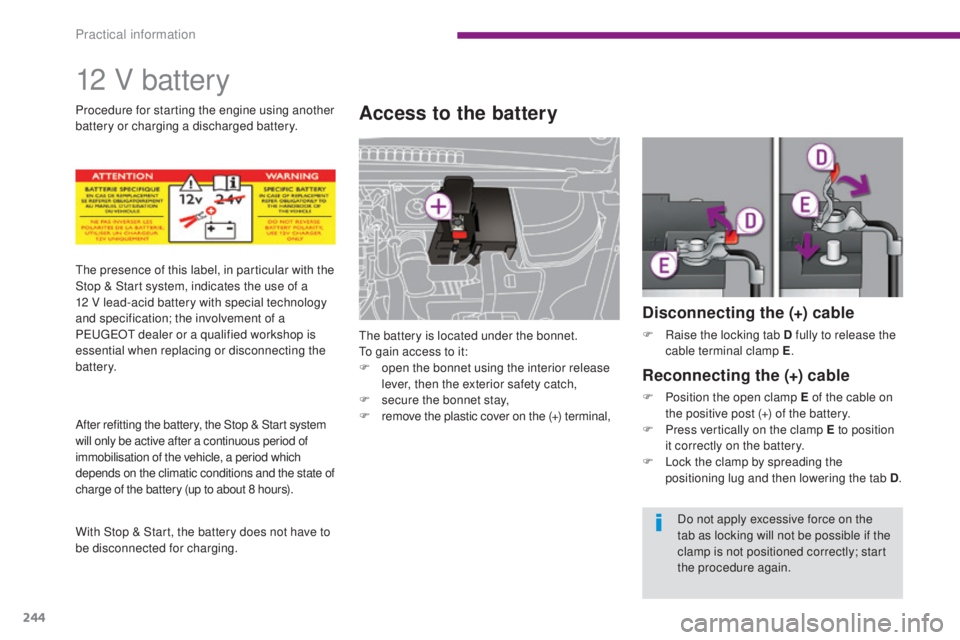

12 V battery
Access to the battery
The battery is located under the bonnet.
To gain access to it:
F
o
pen the bonnet using the interior release
lever, then the exterior safety catch,
F

s
ecure the bonnet stay,
F

r
emove the plastic cover on the (+) terminal,
Disconnecting the (+) cable
F Raise the locking tab D fully to release the cable terminal clamp E .
Reconnecting the (+) cable
F Position the open clamp E of the cable on
the positive post (+) of the battery.
F

P
ress vertically on the clamp E to position
it correctly on the battery.
F

L
ock the clamp by spreading the
positioning lug and then lowering the tab D .
The presence of this label, in particular with the
Stop & Start system, indicates the use of a
12 V lead-acid battery with special technology
and specification; the involvement of a
PEUGEOT dealer or a qualified workshop is
essential when replacing or disconnecting the
battery.
After refitting the battery, the Stop & Start system
will only be active after a continuous period of
immobilisation of the vehicle, a period which
depends on the climatic conditions and the state of
charge of the battery (up to about 8 hours).
With Stop & Start, the battery does not have to
be disconnected for charging. Procedure for starting the engine using another
battery or charging a discharged battery.
Do not apply excessive force on the
tab as locking will not be possible if the
clamp is not positioned correctly; start
the procedure again.
Practical information

249
5008_en_Chap10_infos-pratiques_ed01-2015
Towing your vehicle
F On the front bumper, unclip the cover by pressing at the bottom.
F

S
crew the towing eye in fully.
F

I
nstall the towing arm.
F

S
witch on the hazard warning lamps on the
towed vehicle. F
O n the rear bumper, unclip the cover by
pressing at the bottom.
F

S
crew the towing eye in fully.
F

I
nstall the towing arm.
F

S
witch on the hazard warning lamps on the
towed vehicle.
Towing another vehicle
Put the gear lever into neutral
(position N for an electronic or
automatic gearbox).
Failure to follow this instruction could
lead to damage to certain components
(brakes, transmission,
...) and the
absence of braking assistance on
restarting the engine.
General recommendations
Observe the legislation in force in your
c o unt r y.
Ensure that the weight of the towing
vehicle is higher than that of the towed
vehicle.
The driver must remain at the wheel of
the towed vehicle and must have a valid
driving licence.
When towing a vehicle with all four
wheels on the ground, always use an
approved towing arm; rope and straps
are prohibited.
The towing vehicle must move off gently.
When towing a vehicle with the engine
off, there is no longer any power
assistance for braking or steering.
In the following cases, you must always
call on a professional recovery service:
-

v
ehicle broken down on a motor way
or fast road,
-
f

our-wheel drive vehicle,
-

w
hen it is not possible to put the
gearbox into neutral, unlock the
steering, or release the parking
brake,
-

t
owing with only two wheels on the
ground,
-

w
here there is no approved towing
arm available...
10
Practical information

250
5008_en_Chap10_infos-pratiques_ed01-2015

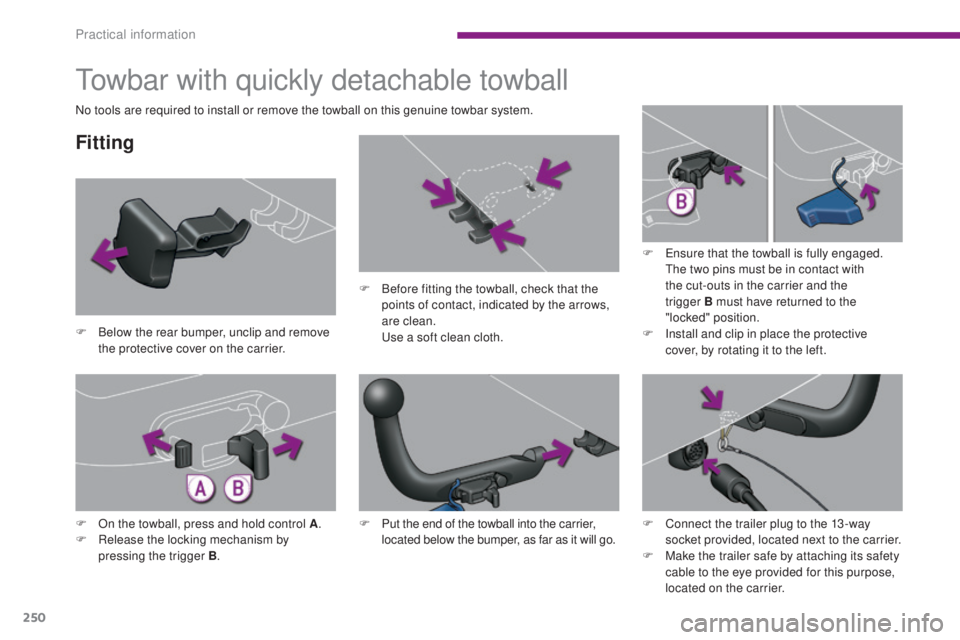

Towbar with quickly detachable towball
Fitting
F Below the rear bumper, unclip and remove the protective cover on the carrier. F

B
efore fitting the towball, check that the
points of contact, indicated by the arrows,
are clean. U se a soft clean cloth.F

E
nsure that the towball is fully engaged.
The two pins must be in contact with
the cut-outs in the carrier and the
trigger

B must have returned to the
"locked" position.
F I nstall and clip in place the protective
cover, by rotating it to the left.
F

O
n the towball, press and hold control A .
F

R
elease the locking mechanism by
pressing the trigger B . F

P
ut the end of the towball into the carrier,
located below the bumper, as far as it will go.
No tools are required to install or remove the towball on this genuine towbar system.
F
C
onnect the trailer plug to the 13 -way
socket provided, located next to the carrier.
F

M
ake the trailer safe by attaching its safety
cable to the eye provided for this purpose,
located on the carrier.
Practical information

251
5008_en_Chap10_infos-pratiques_ed01-2015
When the towball is installed, it may
inter fere with the complete opening of
the lower tailgate.
Take care to avoid the tailgate coming
into contact with the towball.
F

U

nclip and remove the protective cover, by
turning it to the right.
Removing
F Press the trigger B and remove the towball by pulling it towards you.
F

O

n the towball, press and hold control A .
F

R

elease the locking mechanism by
pressing the trigger B . F

C
lip the protective cover in place on the
carrier located below the bumper. If the towball is not locked in place, the
trailer could separate. There is a risk of
an accident.
Always lock the towball in the way
described.
Observe the legislation in force in the
country in which you are driving.
Remove the towball when it is not
being used.
Before setting off, check that the trailer
lighting and signalling works correctly.
Maximum authorised nose weight:
70 kg.
Refer to the "Technical data" section for
the maximum weights and towed loads
for your vehicle.
Carrying system (box or bicycle carrier).
You must not exceed the maximum
nose weight on the towbar: if this weight
is exceeded, the device could detach
from the vehicle and cause a serious
accident.
10
Practical information

254
5008_en_Chap10_infos-pratiques_ed01-2015
Fitting roof bars
When fitting transverse roof bars, use the four
quick-fit fixings provided for this purpose:
F
l
ift the concealing flaps,
F

o
pen the fixing covers on each bar using
t h e key,
F

p
ut each fixing in place and lock them on
the roof one by one,
F

e
nsure that roof bars are correctly fitted (by
shaking them),
F

c
lose the fixing covers on each bar using
t h e key. If your vehicle is fitted with roof
finishers, do not use them for carrying
loads.
Maximum authorised weight on the roof
bars, for a loading height not exceeding
40 cm (with the exception of bicycle
c a r r i e r s): 65
kg.
If the height exceeds 40 cm, adapt the
speed of the vehicle to the profile of the
road to avoid damaging the roof bars
and the fixings on the roof.
Be sure to refer to national legislation in
order to comply with the regulations for
transporting objects that are longer than
the vehicle.
Practical information

04
333
5008_EN_CHAP12C_RD45_ED01_2015
AUDIO
Press the SOURCE button several
times in succession and select the
radio.
Press the BAND AST button to
select a waveband.
Briefly press one of the buttons to
carry out an automatic search of the
radio stations.
Press one of the buttons to carry out
a manual search up / down for radio
frequencies.
Press the LIST REFRESH button to
display the list of stations received
locally (30 stations maximum).
To update this list, press for more
than two seconds.The external environment (hills, buildings, tunnels, basement car parks\
, ...)
may block reception, including in RDS mode. This is a normal effect of the
way in which radio waves are transmitted and does not indicate any failu\
re
of the audio system.
RDS
Selecting a station
Press the MENU button.
Select "Audio functions ".
Select the "FM waveband
preferences " function.
Select "Activate RDS ".
Press OK.
Press OK.
Press OK, RDS is displayed in the
screen.
In "Radio" mode, press OK directly to activate / deactivate
RDS

mode.
RDS, if displayed, enables you to continue listening to the same station\

by automatic retuning to alternative frequencies. However, in certain
conditions, coverage of an RDS station may not be assured throughout
the country as radio stations do not cover 100 % of the territory. This
explains the loss of reception of a station that can occur during a jour\
ney.

350
5008_en_Chap13_index-alpha_ed01-2015
Accessories .................................................. 256
Accessory socket, 12V ....99, 102 , 108, 109, 113
Access to the 3rd row
..................................... 75
Additive, AdBlue


.............................. 23, 2 0 4 - 2 11
Additive, Diesel


..................................... 201, 202
Adjusting headlamps


...................................... 89
Adjusting head restraints


..........................70, 77
Adjusting seat belt height
............................. 13

9
Adjusting the date


........................33, 35, 38, 40
Adjusting the steering wheel


..........................81
Adjusting the time


........................33, 35, 38, 40
Advice on driving


.......................................... 147
Airbags


.................................................... 26, 143
Airbags, curtain
..................................... 14

5, 146
Airbags, front ......................................... 143, 146
Airbags, lateral


...................................... 145, 146
Air conditioning


............................................... 12
Air conditioning, digital


.............................61, 65
Air conditioning, manual


...........................61, 62
Air vents


.......................................................... 60
Alarm


............................................................... 51
Anti-pinch


................................................ 53, 10 6
Anti-theft


................................................. 5 0, 148
Armrest, rear
................................................. 10

9
Assistance call


.............................................. 270
Audible warning


............................................ 13 5
Audio streaming (Bluetooth)
..............................

............314, 3 41
Audio systems
....................................... 273, 329
Automatic illumination of headlamps


................................................ 83
Automatic operation of hazard warning lamps
..............................

............................13 5
Automatic rain sensitive windscreen wipers


........................................ 94
Auxiliary socket


............................. 101, 315, 338Battery
...........................................
202, 244-246
Battery, charging ...........................................246
Battery, remote control
............................. 49,

50
Blind for panoramic sunroof


........................................................10 6
Blinds ............................................................. 114
BlueHDi


.........................................179, 195, 204
Bluetooth (hands-free)
......................... 29

6, 339
Bluetooth (telephone)


...........................296, 339
Bonnet


...........................................................19 6
Bonnet stay


...................................................19 6
Boot


.................................................................58
Boot lamp


........................................................98
Brake discs
.................................................... 20

3
Brake lamps
...............................

...................234
Brake pads


....................................................203
Braking, dynamic emergency


..................................................15 4
AB
D
DAB (Digital Audio Broadcasting) .......308, 309
Date (setting) ............................... .33, 35, 38, 40
Daytime running lamps


...................................86
Deactivating ESP


.......................................... 13 8
Capacity, fuel tank
..............................

..........
191
CD


.........................................................
311, 3 3 4
CD, MP3
........................................ 3

11, 3 3 4
, 335
Central locking


..........................................
47, 56
Centre console


..............................................
101
Changing a bulb


....................................
231-236
Changing a fuse


.....................................
2 37-24 3
Changing a wheel
.................................
212, 223
Changing a wiper blade
..........................
95, 248
Changing the remote control battery
.............. 49
Checking levels
..................................... 19

9 -201
Checking the engine oil level


.................. 30, 199
C
Checking tyre pressures (using the kit) ........2 19
Checks ............... .................................... 197-2 0 3
Checks, routine


..................................... 202, 203
Child lock
...............................

..................54, 13 4
Children
...............................

...115 -13 4, 142, 14 4
Child seats

................... 11

5, 11 6 , 120 , 12 2 , 128
Child seats, conventional


......................12 2, 123
Child seats, ISOFIX

...................................... 12

8
Closing the boot
.............................................. 58
Closing the doors


............................................ 55
Cold climate screen
...................................... 255
Colour screen, retractable


..............................41
Concertina boards


.......................................... 76
Configuration, vehicle


....32, 34 , 36, 39, 40, 344
Connectors, audio
......................... 1

01, 315, 338
Control, electric windows


................................53
Control for panoramic sunroof blind


.............10 6
Control stalk, lighting
................................ 8

2- 84
Control stalk, wipers
.................................91-93
Coolant level


........................................... 27, 201
Coolant temperature indicator


........................................................ 27
Courtesy lamps
............................................... 96
Cover, load space

................................. 10

8, 109
Cruise control
................................................ 16

6
Cup holder

...............................
........99, 108 , 109
Alphabetical index

351
5008_en_Chap13_index-alpha_ed01-2015
F
E
H
G
Deactivating the passenger airbag ...............14 4
Deadlocking .................................................... 47
Defrosting


..................................... 63, 64 , 65, 79
Demisting
...............................

......63, 64, 65, 79
Dials and gauges


............................................ 14
Diesel


............................................................ 193
Dimensions


................................................... 267
Dipped beam
...............................

....82, 231-233
Dipstick
................

.................................... 30, 19 9
Direction indicators


...............13 5, 231 , 232 , 234
Display screen, instrument panel


...........15, 179
Display screen, multifunction (with audio system)
..........................34, 36 , 39
Display screen, multifunction (without audio system)
..................................32
Distance alert


................................................ 160
Doors


............................................................... 55
Doors emergency control


...............................57
Door pockets
................................................... 99
D

riving economically ....................................... 12
Dynamic stability control (DSC)
...... 2

2, 137 , 15 4 Energy economy mode
.................................
247
Engine compartment ............................197, 198
Engine compartment fusebox


.......................................................2 41
Engine, Diesel
...... 19

3, 195 , 198 , 261, 263 , 266
Engine, petrol


........................193, 197 , 258-260
Environment
........ 12,

50, 64, 183, 201, 211, 246
ESC/ASR
...............................

........................13 6
Filling with fuel
..............................191, 193, 194
Filter, air
...............

.........................................202
Filter, oil


.........................................................202
Filter, particle


........................................201, 202
Filter, passenger compartment


.....................202
Fitting a wheel

...............................
................228
Fitting roof bars


.............................................254
Fittings, boot
......................................... 10

8, 109
Flap, fuel filler

...............................
.................19 4
Flashing indicators


........................................13 5
Floor, concertina


...................................108, 109
Foglamps, front


...............................84, 231 , 233
Foglamps, rear


...............................84, 234, 235
Folding the rear seats


.........................73, 75 , 76
Folding/unfolding the door mirrors
............................................79
Front seats


..........................................68, 69 , 72
Fuel .................................................. 12, 191 , 193
Fuel consumption
...................................... 12,

42
Fuel filler cap
.................................................191
Fuel filler flap
.................................................191
Fuel gauge


..............................................14, 191
Eco-driving
..................................................... 12
Eco-driving (advice)


........................................ 12
Economy mode


............................................. 247
Electronic gearbox
....................................... 170
Electronic stability control (ESC)
..................13 6
Emergency boot release
................................. 59
E

mergency call
............................................. 2

70
Emergency warning lamps
........................... 13

5
Emissions control system, SCR
.............24, 204 Fuel tank
................................................ 191, 19 4
Fusebox, dashboard .....................................238
Fuses


.............................................................237
Halogen headlamps


..............................231, 232
Hazard warning lamps


..................................13 5
Headlamp adjustment


.....................................89
Headlamps, automatic illumination


................87
Headlamps, dipped beam


...............82, 231, 232
Headlamps, directional
........................... 90,

231
Gearbox, automatic


....................12, 14 , 18 , 151 ,
15 4 , 155 , 175, 203 , 246
Gearbox, electronic


..........................12, 18 , 151 ,
15 4 , 170 , 180 , 203
Gearbox, manual


...........................12, 151 , 15 4 ,
155 , 169 , 180, 203
Gear lever, automatic gearbox
..................... 17

5
Gear lever, electronic gearbox


.....................170
Gear lever, manual gearbox


.........................169
Gear shift indicator


.......................................179
Glove box
................................................99, 10 0
G . P. S .


............................................................270
Grab handles
.................................................. 99
G

uidance

.......................................................279
Guide-me-home


........................................86, 87
.
Alphabetical index
